Omron MC-720 Manuel utilisateur
Thank you very much for
purchasing the Forehead
Thermometer.
Be sure to read this Instruction
Manual thoroughly before use.
Keep this Instruction Manual
at hand for future reference.
䴲ᐌᛳ䇶ᙼ䌁фᴀ乱ᓣԧ⏽䅵DŽ
Փ⫼ࠡ䇋䆺㒚䯙䇏ᴀ䇈ᯢкDŽ
䇋ֱᄬᴀ䇈ᯢкҹৢ⫼П䳔DŽ

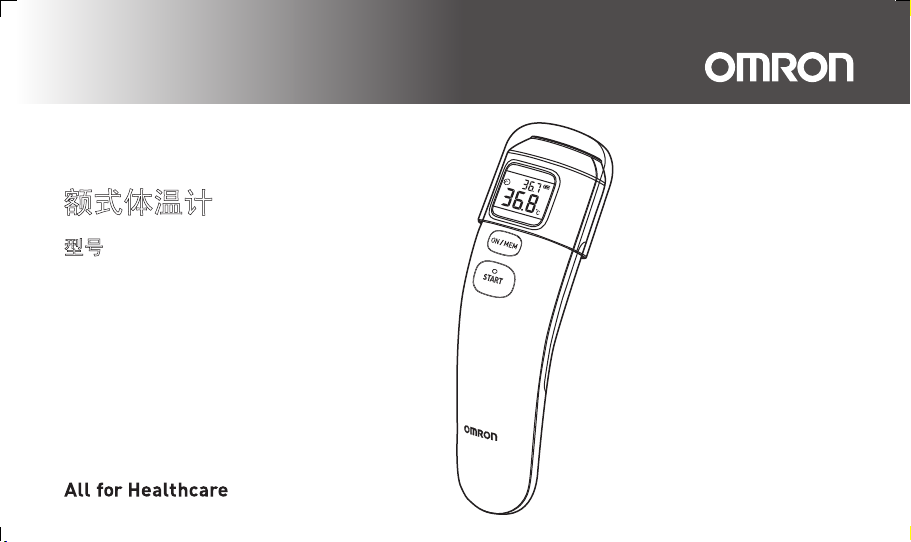

Forehead Thermometer
INSTRUCTION MANUAL
Model
MC-720
乱ᓣԧ⏽䅵
Փ⫼䇈ᯢк
ൟো
MC-720-AP_A_M.book Page 1 Friday, May 22, 2015 11:01 AM
Contents
Thank you for purchasing the OMRON Forehead Thermometer MC-720.
Intended Use:
The OMRON Forehead Thermometer MC-720 offers safe, comfortable and quick temperature measurement
from the forehead.
It is mainly designed for household use.
Important Safety Information .....................................1
1. Overview .................................................................3
2. Preparation .............................................................4
2.1 Removing the Insulating Tape ......................4
2.2 Switching between °C and °F .......................4
2.3 Setting the Buzzer ........................................5
3. Using the Unit .........................................................6
3.1 Taking a Reading .........................................6
3.2 Using the Memory Function .......................10
4. Troubleshooting and Maintenance .................... 11
4.1 The Icons and Error Messages .................. 11
4.2 Questions and Answers ............................. 13
4.3 Maintenance .............................................. 14
4.4 Replacing the Battery ................................. 15
5. Technical Data ...................................................... 16
6. Some Useful Information .................................... 19
Please read this instruction manual thoroughly before using this unit.
Please keep for future reference. For specific information about your own temperature,
CONSULT YOUR DOCTOR.
MC-720-AP_A_M.book Page 1 Friday, May 22, 2015 11:01 AM
1
EN
Important Safety Information
To assure correct use of the product, basic safety measures should always be followed, including the precautions listed
below.
Warning: The following situations are potentially hazardous and, if not avoided, could result in death or serious
injury.
• Conducting self-diagnosis based on the measurement results and/or treatment can be dangerous. Please follow the
instructions of your doctor. Self-diagnosis may worsen the symptoms.
• A high or prolonged fever requires medical attention, especially for young children. Please contact your doctor.
• Keep the unit out of children's reach.
• If a child swallows the battery, immediately consult with a doctor.
• Do not throw batteries into a fire. The battery may explode.
• Remove the battery when the unit will not be used for three months or more. Failure to do so may lead to fluid leakage,
heat generation or bursting, resulting in damage to the unit.
• Do not use the unit to measure any item with a temperature higher than 80.0°C (176.0°F).
General Precautions
• Do not apply a strong shock to, drop, step on, or vibrate the main unit.
• Do not use a mobile phone near the unit.
• The main unit is not waterproof. Be careful when handling this unit so that no liquid (alcohol, water, or hot water) will get
into the main unit. When the unit is wet with vapor, wait until it dries or wipe it lightly with a soft dry cloth.
• Do not disassemble, repair, or modify the unit.
• When the probe lens becomes dirty, wipe it lightly with a soft dry cloth or a cotton swab. Do not wipe the probe lens with
tissue paper or a paper towel. For details, refer to section 4.3.
• If there is any temperature difference between the places where the unit is stored and where you are going to measure,
leave the unit in the room where you are going to use it for more than 30 minutes to allow it to reach room temperature first,
then measure.
MC-720-AP_A_M.book Page 1 Friday, May 22, 2015 11:01 AM
2
Important Safety Information
• If the forehead is cold, wait until the forehead is warmed up before taking a temperature measurement. The measured result may
indicate low when you use an ice bag or an ice pack, or immediately after coming in from outdoor in winter.
• Do not use the unit when wet after swimming, bathing, or through sweating after physical exercise, as skin temperature
may have fallen. Wipe away moisture and allow 30 minutes for the body to acclimatize to room temperature before
measuring.
• Do not touch the probe lens with a finger or breathe on it.
• Do not attempt measurements when the unit is wet as inaccurate readings may result.
• Check the icon on the display before and after the measurement so that the measurement is taken in the appropriate
mode.
• When taking the temperature of an object with low emissivity such as gold or aluminum, inaccurate readings may result.
• When taking the temperature of something with low emissivity (such as milk) in surface measurement mode, slightly lower
readings may result.
• Do not use the unit in places where strong static electricity or electromagnetic fields are present. Doing so may lead to
inaccurate readings and may contribute to instrument failure.
• When you inform your doctor of your temperature, make sure you state that you measured the temperature from the
forehead.
MC-720-AP_A_M.book Page 2 Friday, May 22, 2015 11:01 AM
3
EN
1. Overview
Surface temperature
Room temperature
Last reading
Battery icon
Mute icon
Temperature mode (°F)
Memory icon
Temperature mode (°C)
Forehead
temperature
Main unit: Display:
Probe lens
Battery
compartment
Probe lens cap
Display
ON/MEM button
START button
MC-720-AP_A_M.book Page 3 Friday, May 22, 2015 11:01 AM
4
2. Preparation
2.1
Removing the Insulating Tape
When using the unit for the first time, pull the insulating tape
out of the battery compartment.
The unit is turned on and after 1 minute the room temperature
appears on the display.
Notes:
• The room temperature remains on the display even after the unit turns off.
• Place the unit on a level surface, in a place that is at room temperature (away from direct sunlight or air conditioning, etc.).
2.2
Switching between °C and °F
This unit is set in °C as default.
1.
While the room temperature is displayed, press and hold the START button.
2.
While holding it down, press and hold the ON/MEM
button until °F appears on the display with two beeps.
Notes:
• To select °C mode again, start from step1.
• When the unit is switched between °C and °F, all the readings stored in the
memory are deleted.
Back of the unit
MC-720-AP_A_M.book Page 4 Friday, May 22, 2015 11:01 AM
2. Preparation
5
EN
2.3
Setting the Buzzer
The buzzer is activated by default, but can be deactivated.
Note: The buzzer is only available in forehead measurement mode.
1. Press the ON/MEM button to turn on the unit.
2. Press and hold the ON/MEM button for 3 seconds.
The " " icon flashes on the display.
3. Release the ON/MEM button.
The " " icon remains lit and the buzzer is deactivated.
Notes:
• If the ON/MEM button is pressed down for more than 5 seconds after the " " icon starts
flashing, the unit turns off without deactivating the buzzer.
• To activate the buzzer again, start from step1.
MC-720-AP_A_M.book Page 5 Friday, May 22, 2015 11:01 AM
6
3. Using the Unit
3.1
Taking a Reading
Forehead Measurement Mode
This mode displays the oral-equivalent value of the measured forehead temperature.
Always make sure the probe lens is clean and undamaged, and the forehead is clean with no sweat, cosmetics,
scars, etc.
Prior to measurement, ensure that the patient has not taken a bath or exercised within the last 30 minutes, and
has remained in a stable environment for at least 5 minutes.
It is recommended to perform measurement three times. If the three measurements are different, select the
highest temperature.
1. Pull off the probe lens cap to remove it.
2. Press the ON/MEM button.
All indicators appear on the display for 1 second.
Then the display shown on the far right appears with two beeps.
MC-720-AP_A_M.book Page 6 Friday, May 22, 2015 11:01 AM
3. Using the Unit
7
EN
3. Hold the unit with the probe lens 1 to 3 cm away from the
center of the forehead.
Notes:
• Holding the unit too long in the hand may cause a higher ambient temperature reading of the
probe. This could make the body temperature measurement lower than usual.
• Keep still during measurement.
4. Press the START button.
The measurement is complete in 1 second with a long beep.
MC-720-AP_A_M.book Page 7 Friday, May 22, 2015 11:01 AM
3. Using the Unit
8
5. Move the unit away from the forehead and check the
measurement result.
The display lights up for 5 seconds.
Notes:
• If the result is higher than 42.2°C (108.0°F), “Hi” appears on the display.
If the result is lower than 34.0°C (93.2°F), “Lo” appears on the display.
• You can take another measurement after the display light turns off with two
beeps. Make sure the " " icon remains lit.
• After the second measurement, the first measurement is displayed in the top
right corner, while the second is displayed in the center.
6. Press and hold the ON/MEM button until "OFF" appears on the display to
turn off the unit.
The unit stores the measurement in memory, then turns off with the room temperature on the display.
The unit also turns off automatically if no operation is performed for 1 minute.
MC-720-AP_A_M.book Page 8 Friday, May 22, 2015 11:01 AM
