Omron E5AF Manuel utilisateur

E5AF/E5EF

Fuzzy Temperature Controller

Operation Manual

Produced July 1992





Notice:

OMRON products are manufactured for use according to proper procedures by a qualified operator

and only for the purposes described in this manual.

The following conventions are used to indicate and classify warnings in this manual. Always heed the

information provided with them.

Indicates information that, if not heeded, could result in loss of life or serious

injury.

Indicates information that, if not heeded, could result in minor injury or dam-

age to the product.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers

to an OMRON product, regardless of whether or not it appears in the proper name of the product.

The abbreviation “PC” means Programmable Controller and is not used as an abbreviation for any-

thing else.

Visual Aids

The following headings appear in the left column of the manual to help you locate different types of

information.

Indicates information of particular interest for efficient and convenient opera-

tion of the product.

Indicates lists of one sort or another, such as procedures, precautions, etc.

OMRON, 1992

                   

               

  

                  

                

      !          

                  

    

DANGER!

Caution

Note

1, 2, 3...





  

 

     

   

      

 

  

  

    

 !

"# $ %!&%'&%'( ) 

  ! 

 " #!!$ % &

 '$ (! )

* +   * *&, ! 

,   -  

 .  *

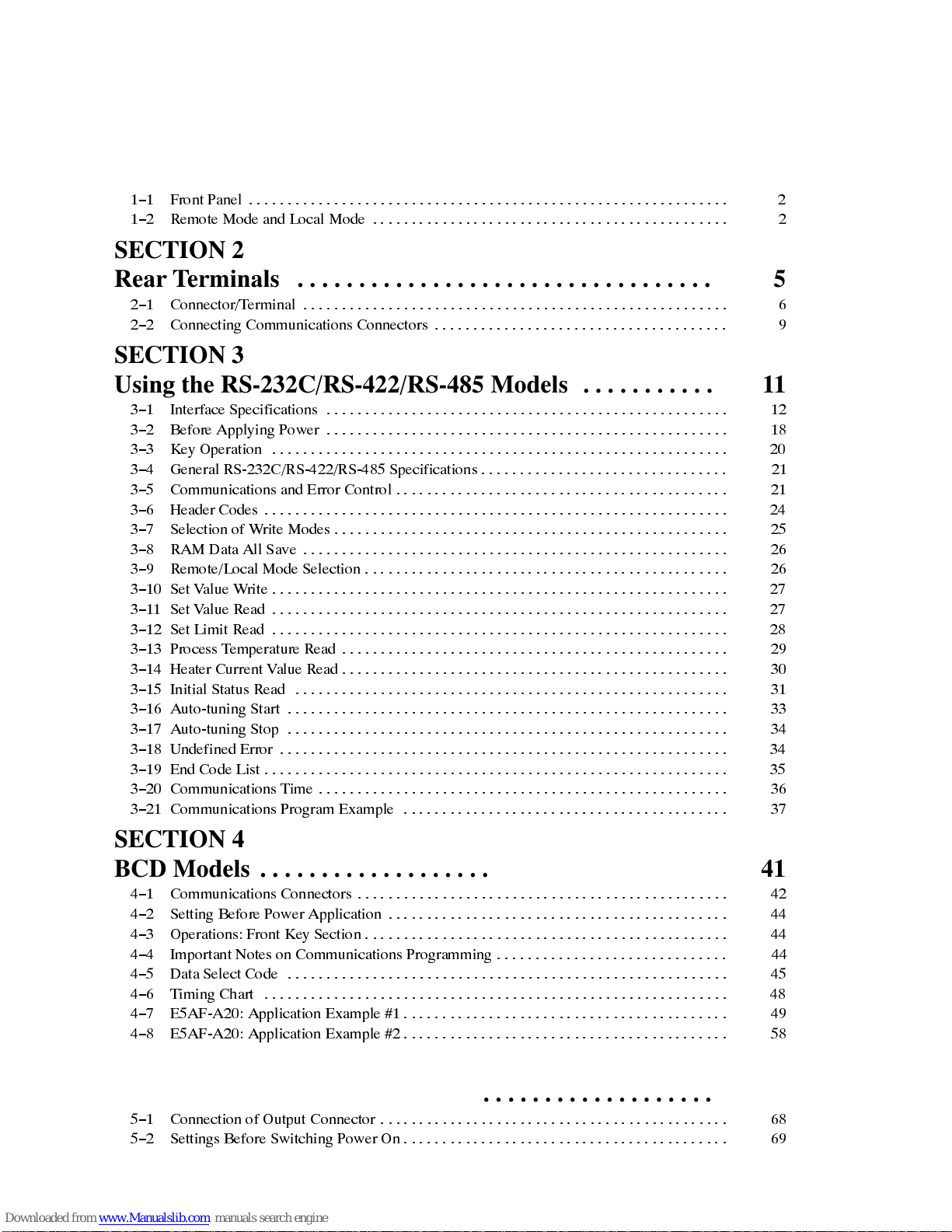

/   0  ,

& # 1 # 2 

    

)  3 0 /

  3  /

    &

  !  

* .  3  )

,    

 #  

/ # ! *

& 4 - *

 -   ,

)   

   -5! /

 '

* ) '

*   *

*  " % #!! **

* (!6  '$  **

** ! 7    **

*, 1   *,

*  8 *&

*/ -,##)6 #!! -5! 9 *

*& -,##)6 #!! -5! 9 ,&



 + ) ,-

,   (!  &

,  " %8 % ( 



++ -

# #   /

"   (! # /

. -

)  // -0

 12 (

.

About this Manual:

The manual describes the operation of the E5AF/E5EF Fuzzy Temperature Controller and includes

the sections described below.

Please read this manual completely and be sure you understand the information provided before at-

tempting to operate the Fuzzy Temperature Controller.

Section 1

introduces the basic features of the E5AF/E5EF Fuzzy Temperature Controller’s front pan-

el and a brief description of its remote mode and local mode.

Section 2

gives a general description of the E5AF/E5EF Fuzzy Temperature Controller’s rear panel

communications connector/terminals.

Section 3

provides the interface specifications and basic operational elements required in order to

use the RS-232C/RS-422/RS-485 Controllers and also provides the header codes.

Section 4

provides the basic operational elements required in order to use the BCD Output Models

and also gives two examples of its use.

Section 5

describes the connections and settings of the Transmission Output Models.

Appendix A

provides an ASCII list.

Appendix B

provides a list of optional accessories.



 

    

8  2  :   !  8 -,#-,- ;;$ ! <  !



1--1 Front Panel

The following diagram identifies the major features found on the Fuzzy Tem-

perature Controller front panel and gives a brief description of the function of

each front panel feature.

E5AF-A

Remote Key

Press this key for at least 1 s to

enable remote operation. Press

again to enable local operation

and setting via key operation.

This key cannot be used on the

Transmission Output Model.

Display Key

Press this key to shift the

display to the next

parameter.

Front Cover

Down Key

Press this key to decrease the value on the

display. Hold down the key to successively

decrease the value on the display.

Auto-tuning (AT) indicator

Flashes during auto-tuning

Shift indicator

Lights when input

shift function is used.

Remote indicator

Lights when in remote

mode; OFF when in local

mode.

Output (OUT) indicator

Lights when control output is

ON; OFF with current output.

Level Key

Press this key for at least 2 s to

change display levels.

Up Key

Press this key to increase

the value on the display.

Hold down the key to

successively decrease the

value on the display.

Auto-tuning (AT) Key

Press for at least 1 s to begin auto-

tuning. Press again for at least 1 s to

stop auto-tuning.

Process Value (PV) display

Displays process value, characters identifying

the parameter being set, and error messages.

Set Value (SV) display

Displays main settng and other

values.

Alarm Output 1 (ALM1) indicator

Lights when Alarm Output 1 is ON.

Alarm Output 2 (ALM2) indicator

Lights when Alarm Output 2 is ON.

1--2 Remote Mode and Local Mode

Remote mode Pressing the Remote Key puts the E5AF/E5EF in remote mode. In remote

mode, the keys on the front panel of the E5AF/E5EF cannot be used, except

for monitoring the set value with the Display Key, Level Key, and Remote

Key.

Local mode Pressing the Remote Key again puts the E5AF/E5EF in local mode and en-

ables settings via keys on the front panel. In the local mode, the E5AF/E5EF

cannot be remotely controlled, except for reading of the process temperature.

The changing from one mode to the other cannot be remotely controlled.

     Section 1--2

The Heater Burnout Detection Models are shown below.

E5AF-AH E5EF-AH

     Section 1--2
