Omntec PROTEUS B Manuel utilisateur
Compatible Controllers
PROTEUS
®B/K/X
Revision 2206
Document No. 200177 rev2206
OMNTEC Mfg., Inc. has been certified
by DQS Inc. to ISO 9001:2015
OMNTEC Mfg., Inc. | 2420 Pond Road | Ronkonkoma | NY 11779 | (631) 981-2001 | Email: [email protected] | www.omntec.com
MAGNETOSTRICTIVE
TANK GAUGING PROBE
INSTALLATION MANUAL
1. Open the camera app
2. Focus the camera on
the QR code by gently
tapping the code
3. Follow the instructions
on the screen to view
PDF file
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 2 of 11 Rev Date: 2-7-2022
Probe Installation Guide
Safety
When working in a hazardous area, it is important to block off this area to
keep out vehicles and unauthorized persons from entering. Observe all codes
and regulations from your local area. Also, review the instructions and safety
requirements listed in the Installation Manual.
Failure to comply can create an explosion hazard that can result in death, personal injury,
and/or property damage.
When making electrical splices use the SK-4 connector seal kit in accordance
with the instructions. This provides a water tight seal. You must use the
proper cable and conduit configuration (see Electrical Wiring from Installation
Manual).
Failure to comply can result in water intrusion to wiring which may cause the system to
fail.
Don’t VOID Your Warranty!
Warranty will be void if OMNTEC EC-2 (Belden #8761 or #87761 for direct burial) cable is not used with
MTG-series probes.
Probe wires must only enter the controller through the intrinsically-safe preformed knockouts.
!
WARNING
!
WARNING
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 3 of 11 Rev Date: 2-7-2022
Probe Installation Guide
4” Riser Installation
1”
7/8”
3.75” Buna
Product Float
5/8” 316SS
3-Pin Mini Style
Connector
Retainer and
End Cap
Spacer Bracket
Cathodic Boot
3.75” Buna
Water Float

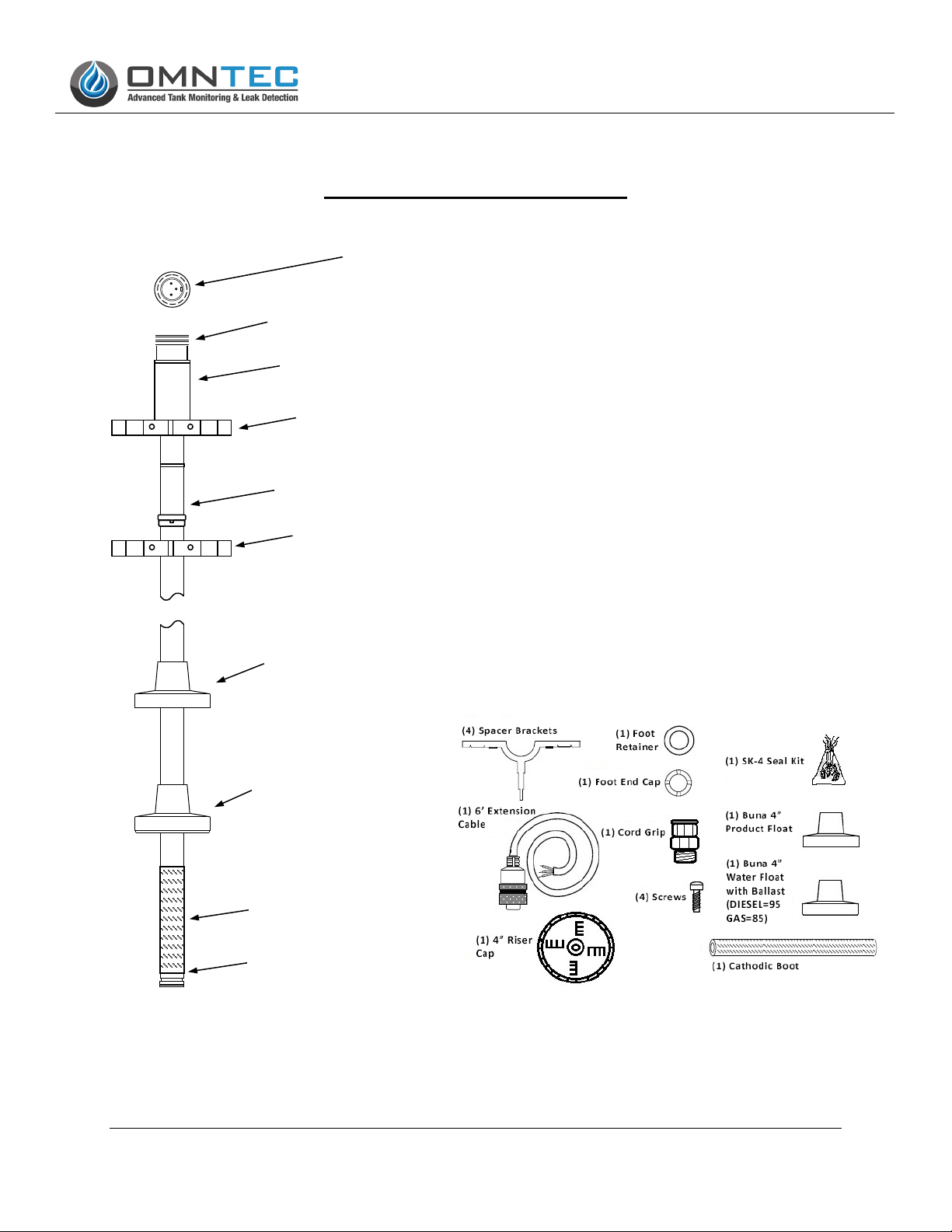

Typical Assembly for 4” riser application
Spacer Bracket
1. Make sure you have all the required
materials that come with the probe
float kit (See Figure 2.0).
2. Assemble the spacer brackets;
higher bracket directly below the
probe head and the lower bracket
about 8” below the probe head.
3. Slide on the product float first and
then the water float.
4. Place the cathodic boot on the
bottom of the probe.
5. The foot retainer gets placed on the
probe before securing the assembly
with the foot end cap. The foot end
cap should fit inside the foot
retainer if oriented properly.
Typical Float Kit for 4” riser application
Figure 2.0
Figure 1.0
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 4 of 11 Rev Date: 2-7-2022
Probe Installation Guide

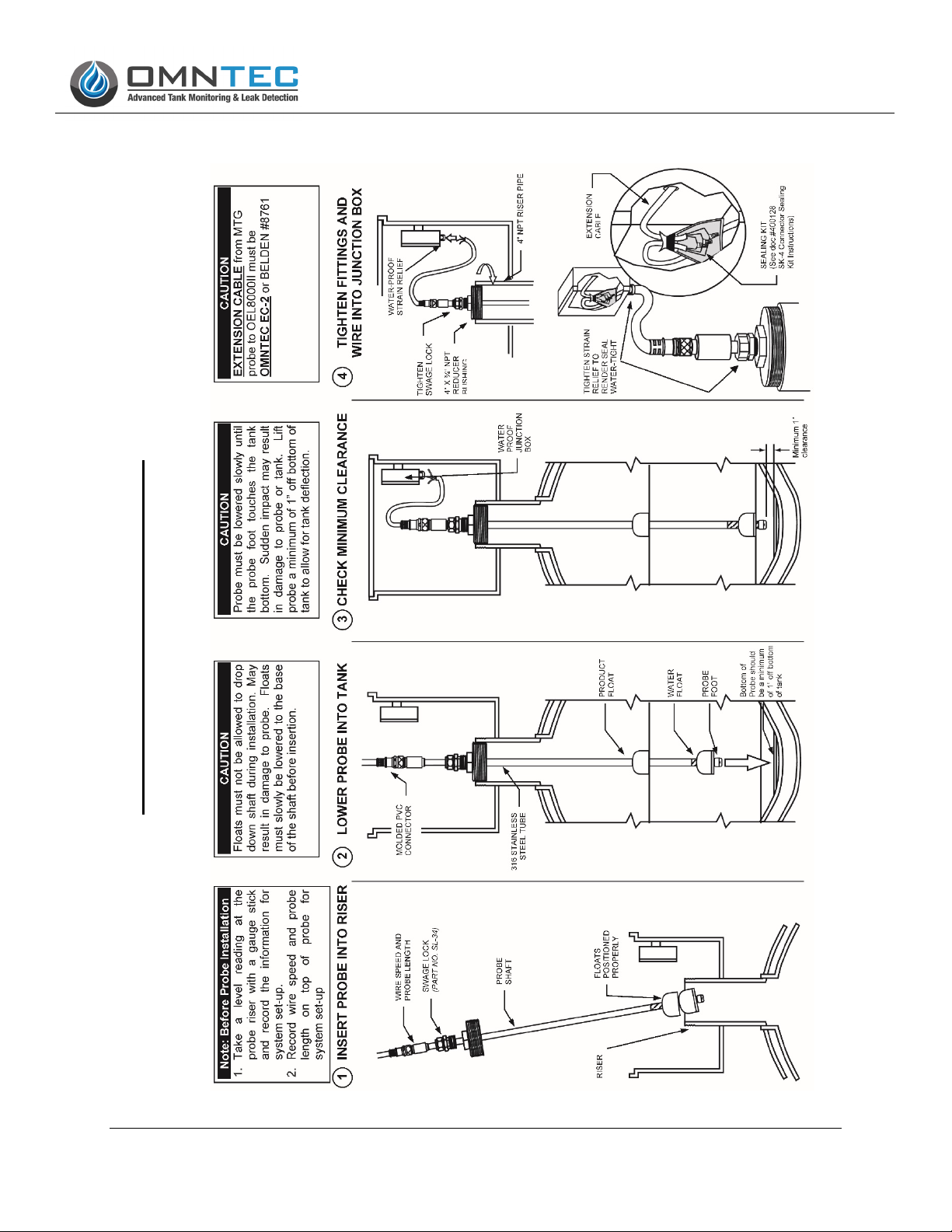

Figure 3.0
4” Riser Application
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 5 of 11 Rev Date: 2-7-2022
Probe Installation Guide
Wiring (wired probes)
The MTG Probe has three wires that are color coded as follows:
WHITE = Signal
BLACK = Signal Ground
GREEN = Shield (connected to drain of extension cable)
1. Bring the probe’s cable to a weatherproof junction box.
2. Make all wiring connections using the provided SK-4 connector sealing kit. Follow the
instructions within the seal kit for proper installation.
MTG Probe Connections at the Controller
1. Connect the Signal wire (white) to the positive (+) terminal of the corresponding Tank #
(See Figure 4.0).
2. Connect both the Signal Ground wire (black) and the Shield/Drain wire (bare) to the
negative (-) terminal of the corresponding Tank # (See Figure 4.0).
Figure 4.0
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 6 of 11 Rev Date: 2-7-2022
Probe Installation Guide
Wiring (wireless probes)
The Wireless MTG Probe has three wires that are color coded as follows:
RED = Power
WHITE = Signal
BLACK = Common
1. Bring the probe’s cable to a weatherproof junction box.
2. Make all wiring connections using the provided SK-4 connector sealing kit. Follow the
instructions within the seal kit for proper installation.
Wireless MTG Probe Connections to Transmitter
1. Each wireless probe will be paired with a transmitter and mast assembly. The mast
assembly will have the same three-colored wires as the probe. Connect the probe
wiring to the mast wiring and splice in a waterproof junction box using the SK-4 kit.
2. Install and plug in the batteries for your transmitter in a non-hazardous area.
3. Connect the transmitter to the top of the mast assembly and press the reset button on
the transmitter.
4. Secure the mast cover to the top of the mast assembly using the provided hardware.
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 7 of 11 Rev Date: 2-7-2022
Probe Installation Guide
Figure 5.0
Swage Lock Application
Part No. SL-34
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 8 of 11 Rev Date: 2-7-2022
Probe Installation Guide
Flex Probe Application (Fixed Top)
Figure 6.0
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 9 of 11 Rev Date: 2-7-2022
Probe Installation Guide
Flex Probe Application (Fixed Bottom)
Figure 7.0
OMNTEC Mfg., Inc., 2420 Pond Road, Ronkonkoma, NY 11779
Phone (631) 981-2001 Fax (631) 981-2007 www.OMNTEC.com
File Name: 200177 rev2206.docx Page 10 of 11 Rev Date: 2-7-2022
Probe Installation Guide
