Omnimount TVM-13 Manuel utilisateur

Specifications are subject to change without prior notice.

Every effort has been made to provide accurate and error-free assembly and installation. OmniMount Systems disclaims

liability for any difficulties arising from the interpretation of information contained in these instructions. If OmniMount

products are used for purposes other than their original intent, OmniMount, its distributors and retailers shall not be

held responsible or liable for injuries or property damage, direct, indirect, or consequential, which may arise from the

inability to use this product safely, properly, and in the manner for which it has been designed and manufactured.

Thank you for purchasing an OmniMount product.

Step 6

Place platform trim piece (14) over front lip of platform.

Hold trim piece in place with your fingers while using

thumbs to spread locking tabs out and down, until they lock

in place underneath the platform.

Step 7 Thread open end of security strap (19) up through

a slot on the outer edge of platform, across the

platform, and then down through the other slot.

Place self-adhesive anti-slip pads (8) on platform.

Place TV squarely onto platform.

Pull two ends of security strap over TV, thread

strap ends through strap buckle (as shown), and

secure tightly.

Step 8

Adjust platform for desired amount of tilt:

To increase tilt angle, hold top of TV and carefully push front edge of

platform backwards.

To decrease tilt angle, hold top of TV and carefully pull front edge of

platform forwards.

With tilt angle set, turn front edge of platform at right angles

to support arm. Insert small hex wrench through holes in

bottom of platform support as shown, and tighten

platform tilt screws securely.

Step 9

Press nose piece (4) into place at end of support arm, as shown.

OmniMount Systems, Inc.

8201 South 48th Street • Phoenix, AZ 85044-5355

1-800-MOUNT-IT • www.omnimount.com

P/N 1002759—Rev. B 4/2005

TVM-13 Television Wall Mount

Assembly Instructions

◊ TVM13 designed for: 9” - 13” CRT Televisions

◊ TVM13Maximum Weight Capacity: 60 lbs. (27.2 Kg)

• TV platform tilts and swivels

• Wall arm pivots

• Black security strap included

• Accepts optional Component Mount

IMPORTANT: Consult a qualified installer if you have any questions

regarding the proper installation of this wall mount system.

Questions? 1-800-MOUNT IT

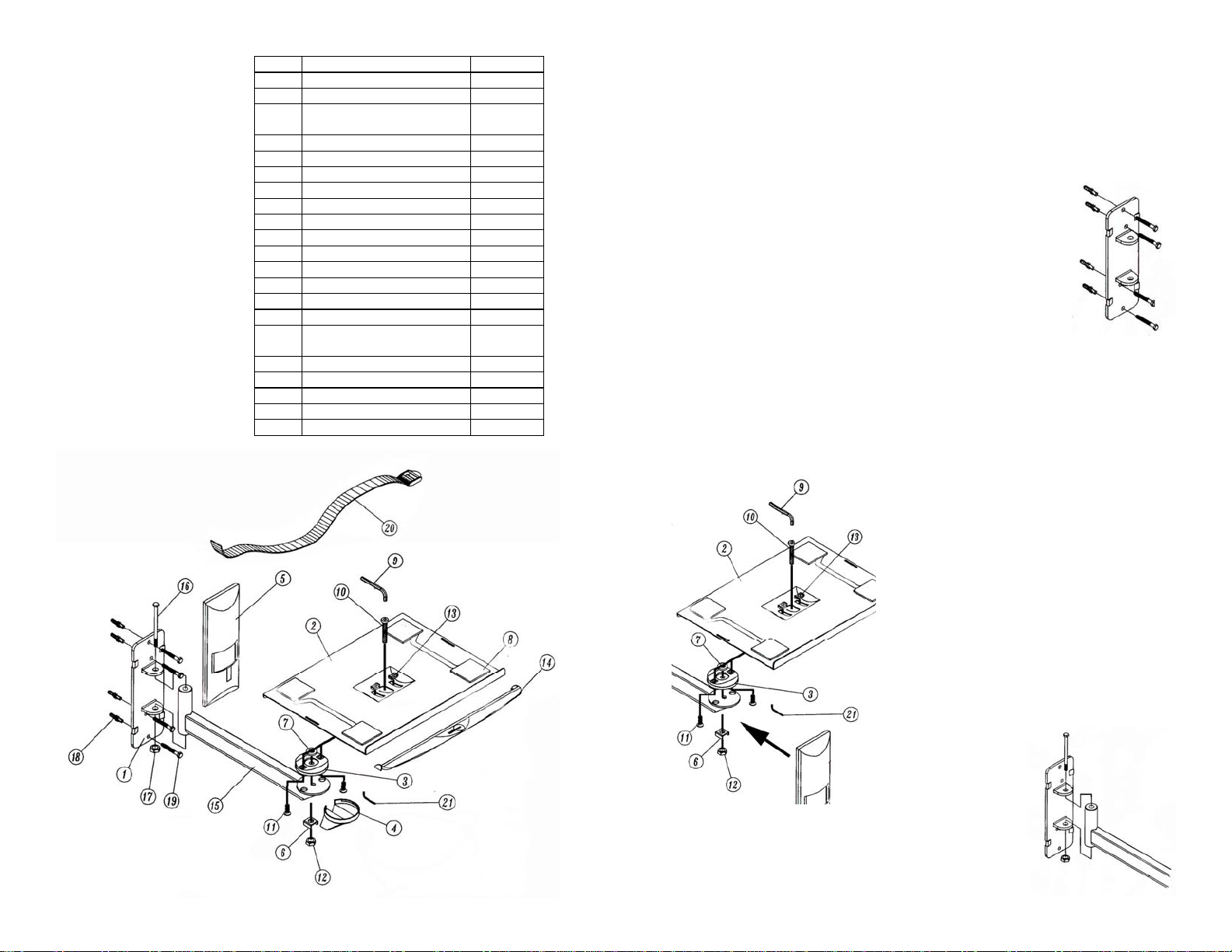

Model: TVM-13

Item

Description Quantity

1 Wall Bracket 1

2 Platform 1

3 Platform Swivel

Bracket

4 Nose Piece 1

5 Wall Bracket Cover 1

6 Square Washer 1

7 Flat Washer 1

8 Anti-slip Pads 4

9 Hex Wrench 1

10 Platform Main Bolt 1

11 Platform Tilt Screws 2

12 Platform Lock Nut 1

13 Platform Slide Nuts 2

14 Platform Trim Piece 1

15 Support Arm 1

16 Support Arm Pivot

Bolt

17 Large Hex Wrench 1

18 Wall Anchors 4

19 Wall Bracket Bolts 4

20 Security Strap 1

21 Small Hex Wrench 1

Step 1

Use electronic stud finder to locate center of stud.

Note: When mounting to masonry, go directly to Step 2

Step 2

Use wall bracket (1) as template to mark mounting hole locations.

Step 3

Wooden Stud Mounting:

Using 1/8” drill bit, drill mounting holes to a depth of 2”.

Using a 10mm wrench, bolt the wall bracket to the wall with

the supplied lag bolts (19).

Note: To make installation easier, dab a bit of liquid

soap onto the threads before driving the bolt into the

stud.

Masonry Mounting:

Use a 3/8” masonry drill bit, and drill mounting holes to a

depth of 2”.

Insert wall anchors (18) into mounting holes, and tap flush with hammer.

Using a 10mm wrench, bolt the wall bracket to the wall with the supplied lag

bolts (19).

Step 4

Slide wall bracket cover (5) over support arm, with flat side facing wall.

Insert platform tilt screws (11) up through two

countersunk holes in bottom of Platform

Swivel Bracket (3).

Thread square platform slide nuts (13) onto

platform tilt screws. Loosely secure nuts using

small hex wrench (21).

Place flat washer (7) in depression in center of

platform swivel bracket.

Insert platform main bolt (10) through center

of washer.

Place platform assembly on top of platform

swivel bracket, with main bolt passing through

center hole.

Install square washer (6) onto platform main

bolt, and then thread platform lock nut (12)

onto platform main bolt. Tighten with hex

wrench (9). Do not

over-tighten or plat-

form will not swivel.

Step 5

Insert support arm into wall bracket. Insert support arm

pivot bolt and secure with lock nut. Do not over tighten

lock nut, or arm will not swing freely.

Snap wall bracket cover into place.
