This device must be installed by qualified personnel. The installation consists of mounting the
device,
connecting to the GSM network, connecting inputs and outputs, providing power, and
configuring via a web browser.
ATTENTION! BEFORE INSTALLING THE SIM CARD IN THE CARD SLOT, PLEASE ENSURE THAT THE PIN
CODE IS DISABLED AND THE BATTERY IS DISCONNECTED.
5.1 MOUNTING
OMNITEXT-240 should be mounted in a clean and dry location on a non-flammable surface.
Ventilation is recommended for installations where the ambient air temperature is expected to be
high.
Mount the device to a wall by using a minimum of two plastic wall plugs 8x60mm and two
screws 6x70mm. See Appendix C, fig. 1
for mechanical details.
Maintain spacing between adjacent equipment. Allow 50 mm of space on all sides, as shown in fig.2
in Appendix C, this provides ventilation and electrical isolation.
5.2 CONNECTORS
ATTENTION! DISCONNECT POWER SUPPLY BEFORE WIRING.
The correct wiring procedure is as follows:
•Make sure battery is disconnected
•Make wiring connections to the terminals
•Insert the SIM card
•Connect the battery
It is recommended to test and configure OMNITEXT-240 without any sensors connected.
Make sure that wires are properly attached to the terminals and that the terminals are tightened.
Incorrect wiring and configuration can cause permanent damage of OMNITEXT-240 or the equipment

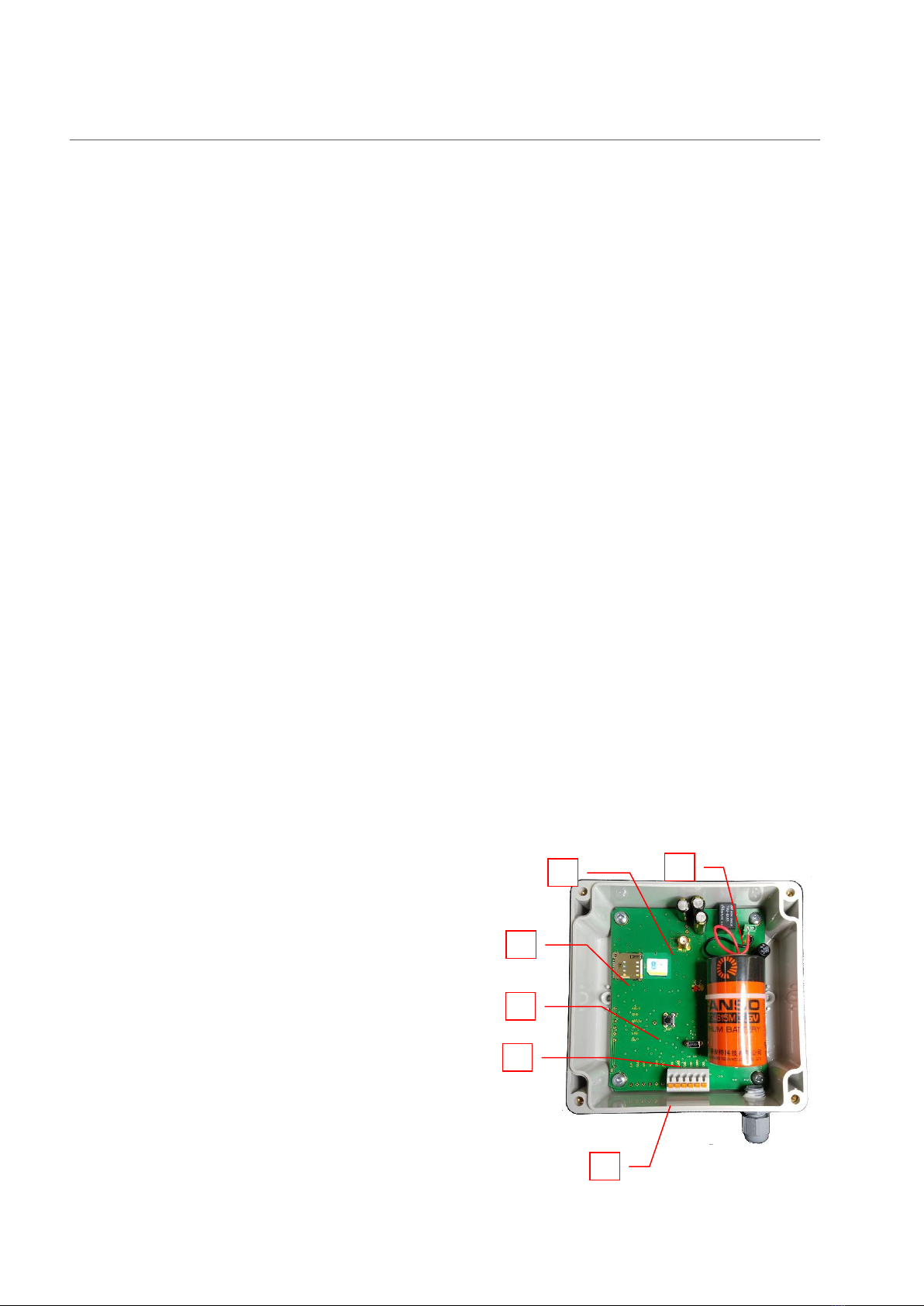

to which it is connected or both. Inputs and outputs locations are shown below:
•1 - Connector 1
oPin 1 - Digital input 1 (DI1)
o
Pin 2 - Ground (GND)
o
Pin 3 –Digital input 2 (DI2)
o
Pin 4 - Digital input 3 (DI3)
o
Pin 5 - Ground (GND)
o
Pin 6 - Digital input 4 (DI4)
•2 - Mini USB Connector
•3 - Reset button
•4 - SIM card holder (insert direction shown)
•5 - Antenna Connector (female SMA)
•6 - Battery Power Terminal - the positive wire (Red) may be
disconnected when you first receive the equipment.
Please connect the power before you use the device.
