Omega ORU50X Guide d'installation

CONTENTS

ORU50X

Undermount Rangehoods

Instructions for the Use and Care and Installation of

CONTENTS

1) WARNING

2) INSTALLATION INSTRUCTIONS

3) OPERATION

4) LIGHT REPLACEMENT

5) CLEANING

6) ATTENTION

7) TROUBLESHOOTING

8) SPECIFICATION

It is important that you retain these instructions, proof of purchase as well as other

important documents about this product for future reference.

Due to continual product development, Omega reserves the right to alter specifications

or appearances without notice.

Dispose of packaging responsibly – recycle where facilities are available.

1. WARNING

•Young children should be supervised to ensure that they do not play with the

appliance.

•The appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervised or instruction concerning

use of the appliance by a responsible person for their safely.

•Your cooker hood is for domestic use only, not suitable for barbecue, fast -food

shops, and other commercial use.

•Any installation work must be carried out by a qualified electrician or competent

person.

•The cooker hood and its filter mesh should be cleaned regularly in order to keep

in good working order.

•Before cleaning, always ensure that you have switched your cooker hood off.

•Do not flambé under the range hood.

•Clean the cooker hood according to the instruction manual, and keep the

cooker hood away from the danger of flames.

•If there is any fault with your cooker hood, please call the customer service

number in the Warranty Card.

•Please keep the room adequately ventilated when your cooker hood and gas

hob are working.

•Do not exhaust the gas from cooker hood through the same heated flue which

is for the gas from gas hob and other kitchen appliances.

•Before installation and usage, read all the instructions and make sure that the

voltage (V) and the frequency (Hz) indicated on your cooker hood are exactly

the same as the voltage (V) and the frequency (Hz) in your home.

•To ensure that you get the best Warranty experience for your cooker hood,

please provide copies of the Warranty Card and purchase receipt, when

booking warranty work with the Customer Service department.

2. INSTALLATION

Please ensure that before installing the range hood, that all power is switched off.

Installation must be in accordance to the local electrical authority and codes. This

range hood must be earthed at all times for the operators’ safety.

The G.P.O. for the range hood should be positioned to enable the user to turn the

power off, to enable cleaning and any maintenance required.

Ensure that when installing the range hood, that it is protected from any

possible damage from tools etc.

Ducting for this unit must be installed in accordance to the local authority. Ensure

that the fixings used for this range hood are suitable.

Check the area where the range hood is to be fitted, to ensure that it is

structurally sound.

Before using the appliance, remove the plastic coatings protecting the

stainless steel finish.

Ensure that the wall is structurally sound, and is capable of carrying the

weight of the range hood.

It is recommended that the dimension be checked on the range hood

before installing.

3．

The cooker hood should be placed at a distance of 65-75cm (26-30inch)

from the cooking surface for the best effect.

Drill a hole in the cupboard, 490*265(mm) for model ORU50X.

Make sure the distance between the edge of the hole and the edge of

the cupboard edge is at least 35mm. Take down the filter and remove the

four screws on the panel.

4. Use random accessory tighten screws fix the hood into cabinet.

5. Use 4 screws fix the panel into body and equip the filter.

6. Install one-way valve: put the one-way valve into air outlet, Put on

the one-way valve with air outlet.

3. OPERATION:

Note: Before the unit can be operated, it must be ducted.

1. Connect the plug into the power.

2. Push ‘Stop’ button, the motor will stop.

3. Push the ‘Low’ button, the motor runs at low speed.

4. Push the ‘Mid’ button, the motor runs at mid speed.

5. Push the ‘High’ button, the motor runs at high speed.

6. Push the ‘Light’ button and the two lights will be on. Push it again and the light

will turn off.

If your range hood does not function correctly when attempting any of the

above, please ensure that your power is on and is functioning correctly. If the

power seems to be functioning correctly in the house, there may be a problem with

the range hood. Please call your authorised Omega service centre in this case to

organise a service call.

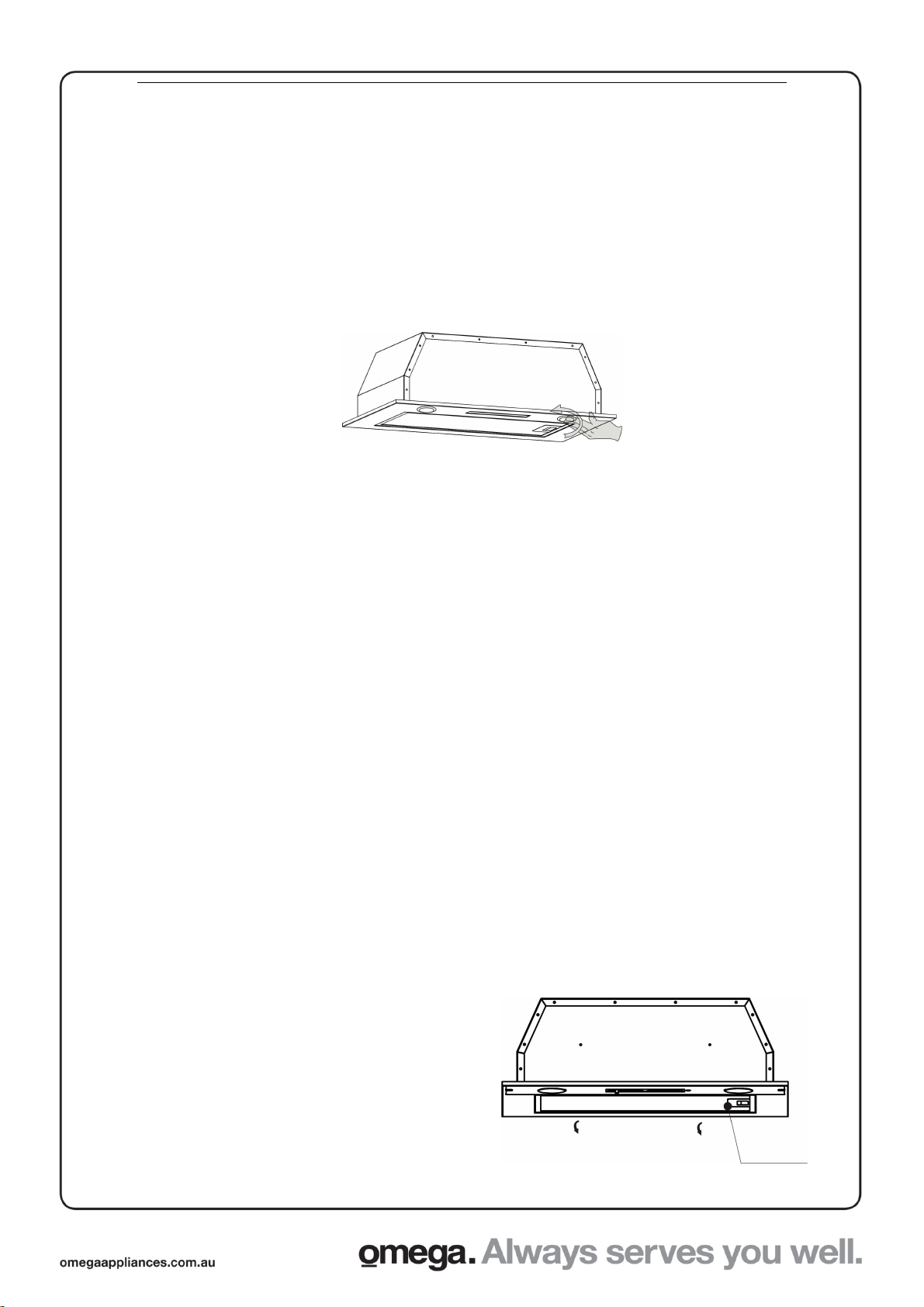

4. LIGHT REPLACEMENT

1. Switch the unit off and disconnect from mains power first.

2. Remove filter and read labels regarding maximum lamp ratings.

3. Press the light face and remove by turning in anti-clockwise direction.

4. Pull out the halogen light bulb carefully and replace by same type and same rated

halogen light bulb (12V 40W MAX).

5. CLEANING

SAFETY PRECAUTION

Before cleaning your range hood or performing any maintenance, please

ensure that the range hood is turned off at the power point.

Do not use abrasive cleaners to clean the range hood. The use of warm soapy

water and a cloth are recommended.

Ensure that the range hood is cleaned regularly, as a build up of grease and fat may

occur otherwise.

The filters on the range hood must be cleaned regularly to maintain efficiency, and

prevent grease build up.

It is recommended that this is undertaken every 4 – 6 weeks, depending on

frequency of use.

The filters can be cleaned with warm soapy water or a cloth, or they may be

washed in a dishwasher. If washed in a dishwasher, discolouration may occur to

the mesh and frame.

Cleaning of the range hood must be performed as described above, otherwise

there is a possibility of a fire hazard due to grease and fat build up.

ATTENTION

Rangehood uses 220-240V 50Hz power;

Disconnect the power when you clean the rangehood;

Do not detach the filter surround

If the power cord or plug is damaged, contact service center

7. TROUBLESHOOTING

For Omega service contact: 1300 739 033

Fault Cause Solution

Light does not work,

but motor works

The lamp may damaged Replace lamp

Light panel switch is damaged Contact service

Light works, but motor

does not work

Motor bearings damaged Contact Service

Motor burn out Contact Service

Light does not work,

motor does not work

Plug contact outlet is damaged Contact Service

Power wire cut off Contact service

Switch damaged Contact Service

Shake of the body

Fan is damaged Contact service

Motor screw loose Contact service

Combination screw loose Contact service

Insufficient suction

The distance between the body

and the cooktop is too high Readjust the distance

Cross-ventilation too strong or

too closed in the kitchen

Reduce

cross-ventilation or

open the window

Exhaust pipe too long Adjust the length of

pipe

Air outlet valve not open Check the valve if

flexible

The outside wind is too strong No the technical

problem

8. SPECIFICATION

Voltage 220V-240V~/50Hz

Rated motor input power

190W

Illumination ≤ 40W+40W(GU-10 base halogen)

Rated input power

270W

Airflow

667m

/hr

Outlet diameter 150mm

Omega products are distributed in Australia

by Shriro Australia Pty Ltd. Locked Bag

5002, Kingsgrove NSW 2208 Phone: 1300

795 572 Fax: (02) 9415 5525 Email:

[email protected]

Web: www.omegaappliances.com.au
