Omega ORF60X Manuel utilisateur

Instruction Manual for

Rangehood Models:

ORF60X

ORF90X

CONTENTS

1GENERAL

2SAFETY PRECAUTION

3WARNING

4 INSTALLATION INSTRUCTIONS

5 ATTENTION

6OPERATION

7 USE AND MAINTENANCE

8LIGHT REPLACING

9SPECIFICATIONS

It is important that you retain these instructions, proof of purchase as

well as other important documents about this product for future

reference.

Due to continual product development, Omega reserves the right to alter

specifications or appearances without notice.

Dispose of packaging responsibly – recycle where facilities are available.

WARNING

•Young children should be supervised to ensure that they do not play with

the appliance.

•The appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervised or instruction

concerning use of the appliance by a responsible person for their safely.

•Your cooker hood is for domestic use only, not suitable for barbecue, fast -

food shops, and other commercial use.

•Any installation work should be carried out by a qualified electrician or

competent person.

•The cooker hood and its filter mesh should be cleaned regularly in order to

keep in good working order.

•Before cleaning, always ensure that you have switched your cooker hood

off.

•Do not flambé under the range hood.

•Clean the cooker hood according to the instruction manual, and keep the

cooker hood away from the danger of flames.

•If there is any fault with your cooker hood, please call the customer service

number in the Warranty Card supplied.

•Please keep the room adequately ventilated when your cooker hood and

gas hob are working.

•Do not exhaust the gas from cooker hood through the same heated flue

which is for the gas from gas hob and other kitchen appliances.

•Before installation and usage, read all the instructions and make sure that

the voltage (V) and the frequency (Hz) indicated on your cooker hood are

exactly the same as the voltage (V) and the frequency (Hz) in your home.

•To ensure that you get the best Warranty experience for your cooker hood,

please provide copies of the Warranty Card and purchase receipt, when

booking warranty work with the Customer Service department.

4. INSTALLATION INSTRUCTIONS

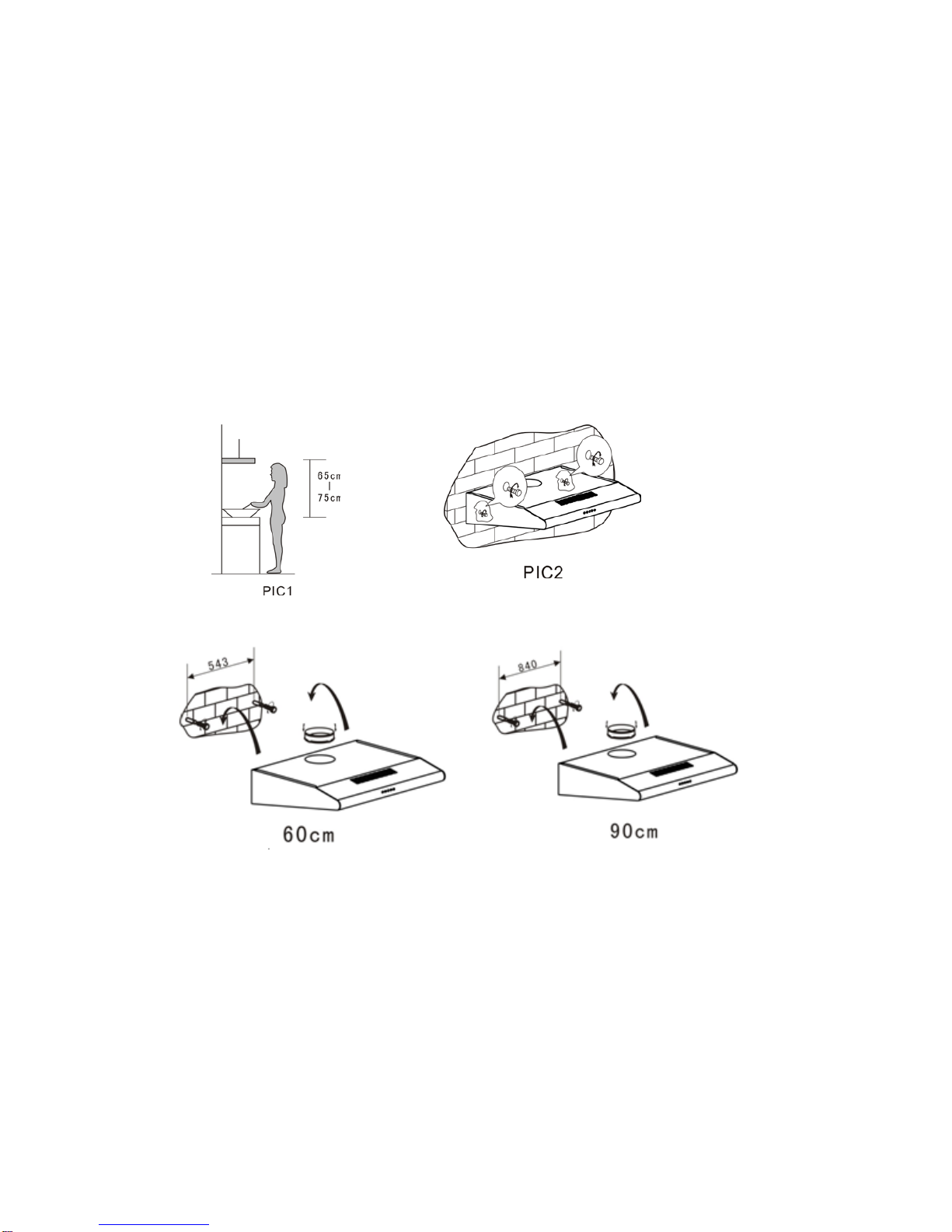

Method one:

1) The cooker hoods should be placed at a distance of 65-75cm from the cooking surface

for best effect.

2) To install onto the wall, drill 4 holes of Ø 8mm at a suitable place according with the

centre distance of hole in the back of the cooker hood.

3) Insert the nut into the holes.

4) Insert the screws into the nuts and tight.

5) Put up the cooker hood onto the fixed screws.

6) Then use the attached accessories enclosed to turn the screws into the two holes of

inside the hood, and then fix the screws to tighten the hood onto the wall.

7) Put the one way valve onto the cooker hood.

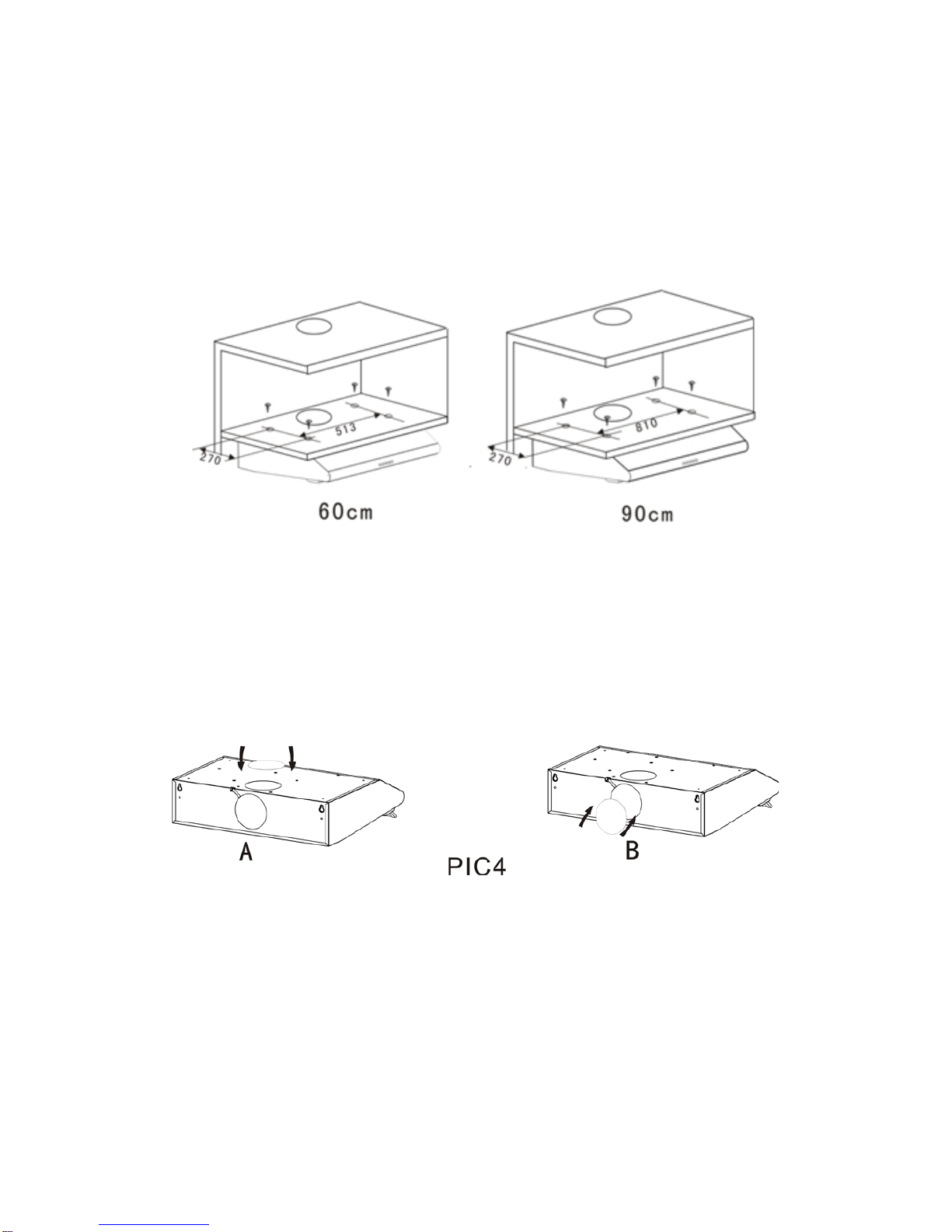

Method two:

1) Drill 6 holes of Ø 4mm at the bottom of the hanging cupboard.

2) Put the one way valve on the cooker hood, then install the cooker hood on the

bottom of the cupboard, tighten the hood with enclosed 6 screws.

3) Install the adjusted board on the bottom of the hood in order to keep out the gap

between hood back and cupboard.

Notice:

There are 2 methods for ventilation, including ' horizontal ventilation' and ' vertical

ventilation'. Please pay attention to the ventilation method when installation.

Horizontal ventilation:As pic. 4Ashown, please use the cover to seal the outlet on the top,

then the air can be vented from back.

Vertical ventilation: As pic 4B shown, please use the cover to seal the outlet on the back,

then the air can be vented from top.

6. OPERATION

Outdoor air ventilation: Turn the adjuster to outdoor position(pic.5A), install the outlet, turn

on the cooker hood, then the air will be vented from the outside outlet.

Indoor air ventilation: Turn the adjuster to indoor position (pic.5B), install the outlet cover,

turn on the cooker hood, then the air can be vented from the inside outlet.

When you choose “front re-circulation mode”, the charcoal filter must be installed.

SPEED ADJUSTMENT:

1) Push ‘Stop’ button, and the motor will stop.

2) Push the ‘Low’ button, the buzzer will buzz once, and the motor runs at low speed.

3) Push the ‘Mid’ button, the buzzer will buzz once, and the motor runs at mid speed.

4) Push the ‘High’ button, the buzzer will buzz once, and the motor runs at high speed.

5) Push the ‘Light’ button and the two lights will come on. Push it again and the light will

turn off.

7. MAINTENANCE

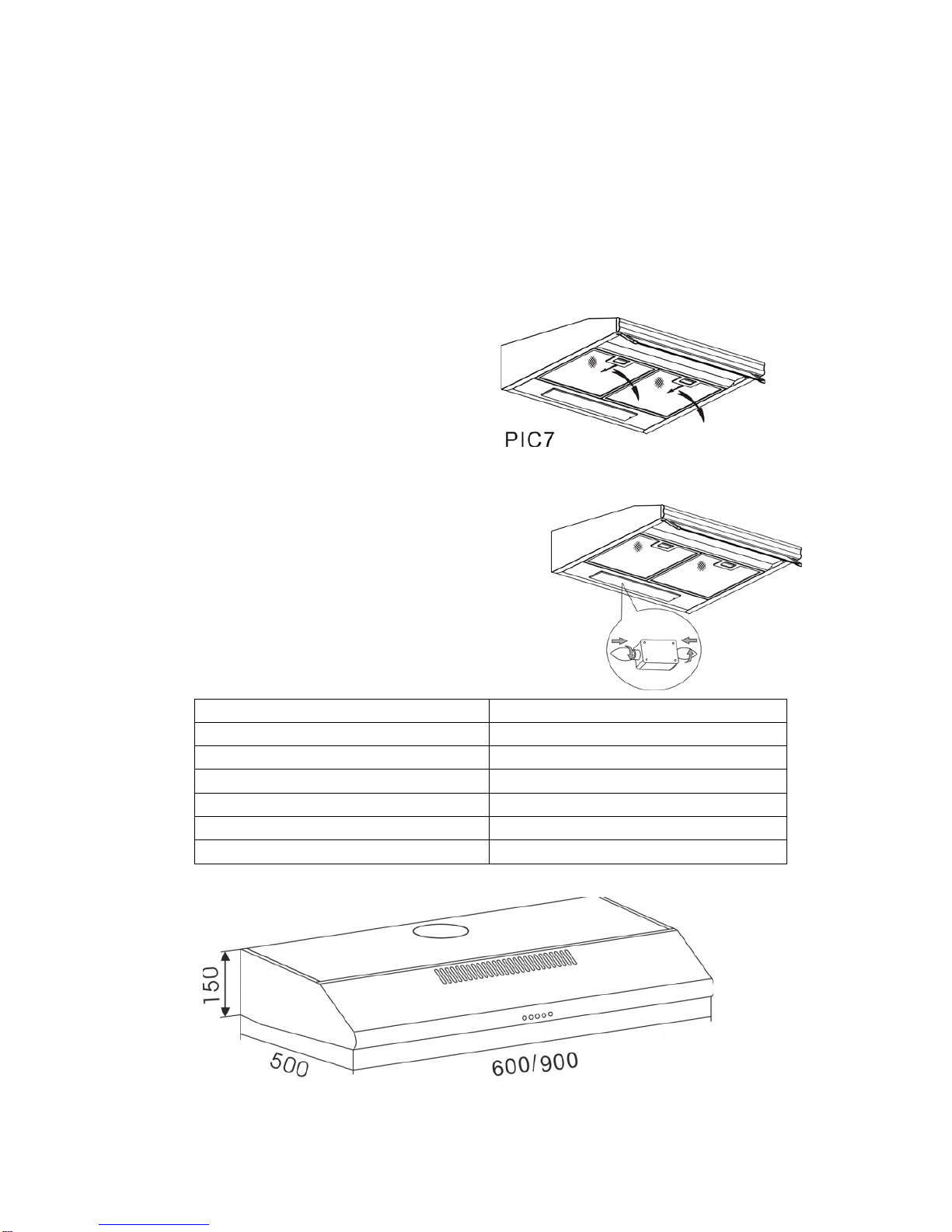

Changing and cleaning the filter as below (pic7):

1. Put the filter into the water of 40-50℃,Put some detergent in, and leave it for 2-3

minutes. Then use the soft brush to clean it with proper strength, in order not to

damage the filter.

2. The filter can be cleaned in the dishwasher. Put the filter into the dishwasher with

some detergent and run a cycle at 60℃.

All the filters are made of metal. Please do not use any corrosive detergent when

cleaning.

Notice: Please unplug before cleaning.

8. LIGHT REPLACING

1) Before changing the lights, make sure the appliance is unplugged.

2) Open the filter, see beside picture.

3) Change the Max. 40W E14 olive-shaped bulb.

4) Replace the filter to the original position.

9.SPECIFICATION

Voltage

220V-240V~/50Hz

Rotation method

Twin Motors, Twin Fans

Rated motor input power

100W+100W

Illumination ≤40W+40W(GU-10 base halogen)

Rated input power 280W

Airflow 440m

/hr

Outlet diameter 120mm
