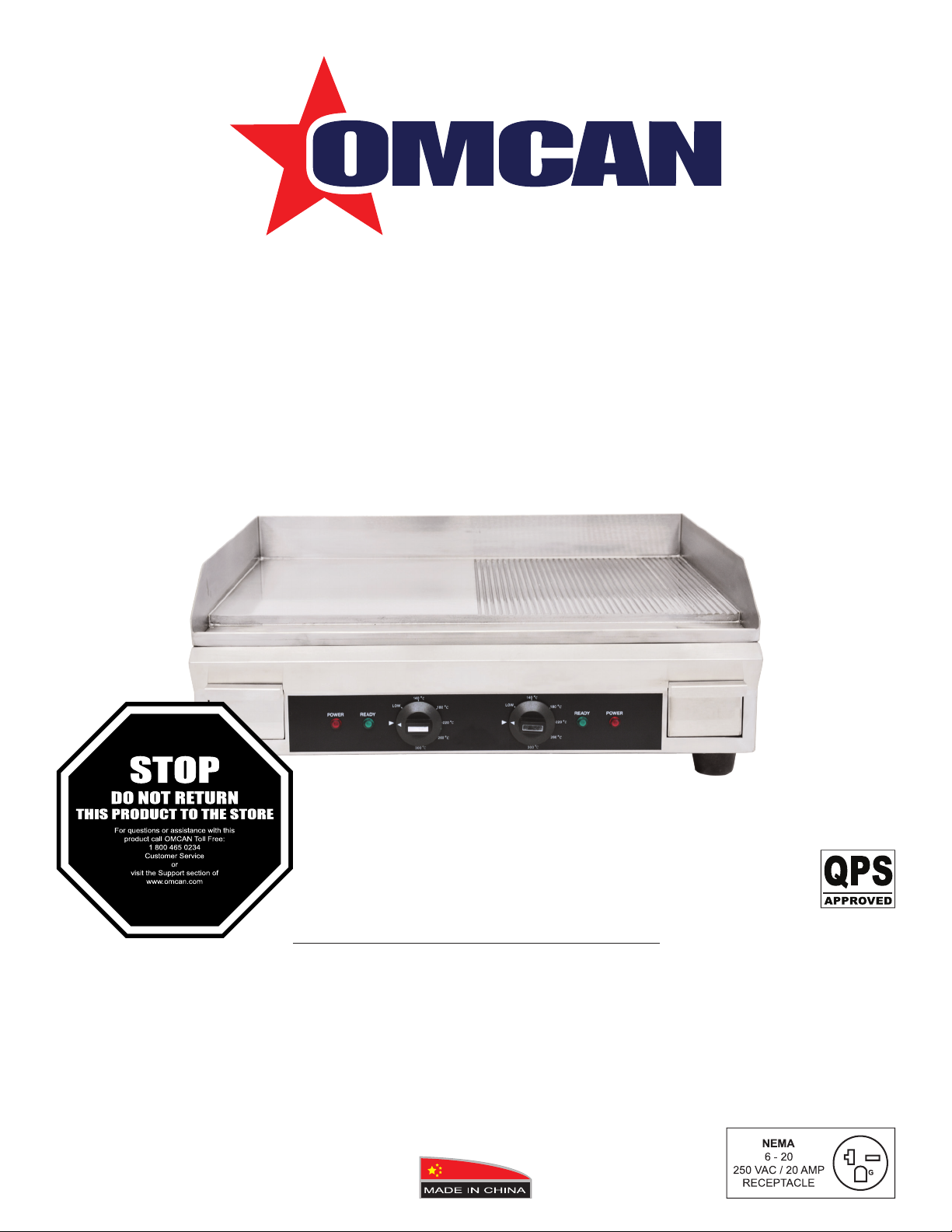

Griddle

Model CE-CN-0610-FR

Item 41373

Instruction Manual

2

Page

--------------------------------------------------------------------------- 3 - 4

--------------------------------------------------------------------------- 4 - 5

-------------------------------------------------------------------------- 5

-------------------------------------------------------------------------------------------- 6

--------------------------------------------------------------------------------------------- 6

----------------------------------------------------------------------------------------- 6

------------------------------------------------------------------------------- 7 - 8

------------------------------------------------------------------------------ 8

-------------------------------------------------------------------------------------------- 9 - 10

---------------------------------------------------------------------------- 11

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Installation

Operation

Maintenance

Parts Breakdown

Electrical Schematics

Notes

Warranty Registration

Model CE-CN-0610-FR

3

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan

and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or

negligent use of this equipment. The product shall only be operated by someone over the age of 18, of

sound mind, and not under the inuence of any drugs or alcohol, who has been trained in the correct

operation of this machine, and is wearing authorized, proper safety clothing. Any modication to the

machine voids any warranty, and may cause harm to individuals using the machine or in the vicinity of

the machine while in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

Before operating any equipment, always read and familiarize yourself with all operation and safety

instructions.

Omcan would like to thank you for purchasing this machine. It’s of the utmost importance to save

these instructions for future reference. Also save the original box and packaging for shipping the

equipment if servicing or returning of the machine is required.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Fabrication et distribution Companie Limité et Food Machinery d’Amerique, dba Omcan et

Omcan Inc. ne sont pas responsables de tout dommage ou blessure causé du fait que toute personne

ait utilisé cet équipement de façon irrégulière. Le produit ne doit être exploité que par quelqu’un de

plus de 18 ans, saine d’esprit, et pas sous l’inuence d’une drogue ou d’acohol, qui a été formé pour

utiliser cette machine correctement, et est vêtu de vêtements de sécurité approprié. Toute modication

de la machine annule toute garantie, et peut causer un préjudice à des personnes utilisant la machine

ou des personnes à proximité de la machine pendant son fonctionnement.

VÉRIFIEZ LE COLIS DÈS RÉCEPTION

Dès réception d’une expédition d’Omcan veuillez inspecter pour dommages externes. Si aucun dommage

n’est visible sur l’emballage externe, ouvrez le carton an de s’assurer que tous les éléments commandés

sont dans la boîte, et il n’y a aucun dommage dissimulé à la machine. Si le colis n’a subi aucune mauvaises

manipulations, de bosses ou de dommages (visible ou cachée), notez-le sur le bond de livraison avant

d’accepter la livraison et contactez Omcan dans les 24 heures qui suivent, pour que nous puissions engager

une réclamation auprès du transporteur. Un rapport détaillé sur l’étendue des dommages causés à la machine

doit être rempli dans un délai de trois jours, à compter de la date de livraison indiquée dans les documents

d’expédition. Omcan n’a aucun droit de recours pour les produits endommagés qui ont été expédiées ou cueilli

par un tiers transporteur.

4

General Information

Safety and Warranty

Please take notice that the unit will still be too hot to handle immediately after use.

If the power cord is damaged, it must be replaced by qualied technician.

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure

or other damages resulting from installation in non-commercial or residential applications. The right

is reserved to deny shipment for residential usage; if this occurs, you will be notied as soon as

Avant d’utiliser n’importe quel équipement, toujours lire et vous familiariser avec toutes les opérations

et les consignes de sécurité.

Omcan voudrais vous remercier d’avoir choisi cette machine. Il est primordial de conserver ces

instructions pour une référence ultérieure. Également conservez la boîte originale et l’emballage pour

l’expédition de l’équipement si l’entretien ou le retour de la machine est nécessaire.

---------------------------------------------------------------------------------------------------------------------------------------------------

Omcan Empresa De Fabricacion Y Distribucion Inc. Y Maquinaria De Alimentos De America, Inc. dba

Omcan y Omcan Inc. no son responsables de ningun daño o perjuicío causado por cualquier persona

inadecuada o el uso descuidado de este equipo. El producto solo podra ser operado por una persona

mayor de 18 años, en su sano juicio y no bajo alguna inuencia de droga o alcohol, y que este ha sido

entrenado en el correcto funcionamiento de esta máquina, y ésta usando ropa apropiada y autorizada.

Cualquier modicación a la máquina anúla la garantía y puede causar daños a las personas usando la

máquina mientras esta en el funcionamiento.

REVISE EL PAQUETE A SU LLEGADA

Tras la recepcion de un envio Omcan favor inspeccionar daños externos. Si no hay daños evidentes en el

empaque exterior, Habra el carton para asegurararse que todos los articulos solicitados ésten dentro de la

caja y no encuentre daños ocultos en la máquina. Si el paquete ha sufrido un manejo de poco cuidado, golpes

o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro

de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. Un informe detallado sobre

los daños causados a la máquina debe ser llenado en el plazo de tres días, desde la fecha de entrega que se

muestra en los documentos de envío. Omcan no tiene ningun recurso por productos dañados que se enviaron

a recoger por terceros.

Antes de utilizar cualquier equipo, siempre lea y familiarizarse con todas las instrucciones de

funcionamiento y seguridad.

Omcan le gustaría darle las gracias por la compra de esta máquina. Es de la mayor importancia para

salvar estas instrucciones para futuras consultas. Además, guarda la caja original y el embalaje para el

envío del equipo si servicio técnico o devolución de la máquina que se requiere.

5

Safety and Warranty

possible.

1 YEAR PARTS AND BENCH WARRANTY

Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either

an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the

equipment.

Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not

improper use.

Please see https://omcan.com/disclaimer for complete info.

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

Technical Specications

Model CE-CN-0610-FR

Power 3.6 kW

Temperature 60°C - 300°C / 140°F - 572°F

Cooking Area 23.9” x 16” / 606 x 406mm

Electrical 240V/60/1

Dimensions 20.6” x 23.9” x 8.9” / 524 x 606 x 225mm

Packaging Dimensions 28” x 24” x 14” / 711 x 610 x 356mm

Weight 92.6 lbs. / 42 kgs.

Packaging Weight 97.2 lbs. / 44.1 kgs.

Item Number 41373

6

Maintenance

The Griddle should be cleaned using warm, soapy water after each day’s operation.

For cleaning grilling plate, please use warm soapy water while still warm. Do not use cold water on warm plate.

After cleaning, be sure the trays should be dry before putting them back to the unit.

Do not immerse completely in water to clean.

The appliance is not to be cleaned with a water jet.

HELP

If the Griddle does not work, please check the following:

• The power supply is correct and the thermostat is turned on.

• The thermostat is correct.

• The element is clear.

Installation

Take out the Griddle from the packaging and locate the unit on a rm level surface.

When this appliance is to be positioned in close proximity to a wall, partitions, kitchen furniture, decorative

nished, etc., it is recommended that they be made of non-combustible material, if not, they shall be clad with

a suitable non-combustible heat-insulating material, and that the closet attention be paid to re prevention

regulations.

Once the Griddle has been placed in position by consulting International Standards and regulations. Cleaning

the steel plate thoroughly is advised. Before rst use, please warm up the unit for 10 minutes until all smoke

and/or odor has dissipated. Turn off the thermostat, unplug the unit, then use warm, soapy water to clean, After

cleaning. The Griddle is ready to operate.

Operation

Turn on the unit prior to allow the cooking surface to warm up about 20 minutes.

Put the food on the grilling plate, turn the thermostat dial to the required setting and cook. General cooking

temperature is between 200°C and 220°C. This may vary for particular kind of foods if needs. When not

cooking, the thermostat is turned down, unplug the unit.

7

Parts Breakdown

Model CE-CN-0610-FR 41373

8

Electrical Schematics

Model CE-CN-0610-FR 41373

Parts Breakdown

Item No. Description Position Item No. Description Position Item No. Description Position

62826 Plug and Lead for 41373 1 62831 Cover for 41373 6 62836 Thermostat for 41373 11

62827 Limiting Thermostat for 41373 2 62832 Oil Tray for 41373 7 62837 Fixing Plate for 41373 12

62828 Grill Plate for 41373 3 62833 Indicator Light (Red) for 41373 8 62838 Insulation Plate for 41373 13

62829 Body for 41373 4 62834 Indicator Light (Green) for 41373 9 62839 Element for 41373 14

62830 Feet for 41373 5 62835 Knob for 41373 10 62840 Aluminum Plate for 41373 15

Model CE-CN-0610-FR 41373
