Olympus DSX1000 Manuel utilisateur

Contents

(1) Introduction

(2) Preparation for observation

(3) Selection of observation modes

(4) Image processing method

(5) Image acquisition

(6) Saving acquired images

Basic

Quick Reference Guide

Digital Microscope

DSX1000

AX9342 02

Introduction

Reference information

Operating procedure

Basic

Introduction User interface

Software Console

[2D Acquisition] button

Performs the snapshot

acquisition.

[3D Acquisition] button

Performs the quick scan

acquisition.

Image processing button

Executes various image

processings.

[◄/►] button

Changes the observation

modes sequentially.

[▲/▼] button

Moves up and down the

zoom head.

[Joystick]

Moves the motorized stage.

[Move focus] button

Moves up and down the

zoom head.

[Observation mode] button

Changes the observation mode.

[Image processing] panel

Used to correct the image.

[Move] button

Moves the motorized stage.

[Image acquisition] panel

Used to perform image

acquisition.

Operating procedure

Reference information

Introduction

Basic

Preparation for observation Sample set

1. Start the system (in a state of bright-field observation).

2. Set a sample on the stage.

3. Move the zoom head to bring the sample into focus.

4. Move the stage back/forth and left/right to place the

position desired to be observed on the center.

* For “Up/Down movement of zoom head”, “Back/Forth and Left/Right movement of stage”, and “Usage of Focus assist bar”, please refer to the Instruction Manual.

Selection of

observation modes

Image processing

method

Image acquisition

Saving acquired

images

Software Console

Useful

operation * Pulling out the Focus assist bar helps

you to roughly find the focus point.

3. [▲/▼] button

Moves up and down the

zoom head.

4. [Joystick]

Moves the motorized stage.

Preparation for

observation

4. [Move] button

Moves the motorized stage.

3. [Move focus] button

Moves up and down the

zoom head.

Select the best image

1. Click the [Best image] button.

2. Click the [ALL MODES] button from the [Find best image] tab.

3. Select the desired image on the best image screen.

4. Click the [Apply] button.

Software

Useful

operation

[◄/►] button

Changes the observation modes

sequentially.

* Direct observation mode is also available.

Console

[Observation mode] button

Changes to the appropriate

observation mode.

Operating procedure

Reference information

Introduction

Basic

Selection of

observation modes

Image processing

method

Image acquisition

Saving acquired

images

Preparation for

observation

Selection of observation modes

3. Best image screen

Select the desired image

on the best image screen.

[ALL MODES] button

4. [Apply] button

1. [Best image] button

Image processing method

Live image processing is available

Select an appropriate image processing method from among four modes on the [Image processing] panel.

When the image processing is enabled, the corresponding button is highlighted.

Software Console

Image processing button

Executes various image processings.

When the image processing is enabled, the

corresponding LED lights up.

* Clicking the [Accessory] tab - [Live

measurement] button enables you to

perform the measurement during the

live operation. For details, please refer

to the Instruction Manual.

Useful

operation

Texture enhancement

Enhances the uneven state.

Anti-halation

Curbs various reflections.

Contrast UP

Enhances the contrast.

Depth of focus UP

Deepens the focusable

distance.

Operating procedure

Reference information

Introduction

Basic

Selection of

observation modes

Image processing

method

Image acquisition

Saving acquired

images

Preparation for

observation

[Image processing] panel

Adjusts the image quality

to optimal level.

Image acquisition 2D Acquisition and 3D Acquisition

can be easily conducted

1. Click [2D Acquisition] button.

Once the image acquisition is completed, the analysis application will be started to display

the acquired image.

[2D Acquisition] button

Performs the snapshot

acquisition.

Acquisition

Select from the [3D] from the [Image acquisition] panel and click the [3D Acquisition] button.

Once the image acquisition is completed, the analysis application will be started to display

the acquired 3D image.

Acquisition

Software Console

[3D Acquisition] button

Performs the quick scan

acquisition.

Operating procedure

Reference information

Introduction

Basic

Selection of

observation modes

Image processing

method

Image acquisition

Saving acquired

images

Preparation for

observation

[3D Acquisition] button

[2D Acquisition] button

Saving acquired images

1. Select [Save As] from the [File] menu.

The [Save as] screen will appear.

2. Select the format of the file to be saved from the [File type]

drop-down list.

3. Select a location to save the file.

4. Enter the file name in the [File name] field.

5. Click the [Save] button.

The file will be saved.

Saving the image data

Analysis application

Operating procedure

Reference information

Introduction

Basic

Selection of

observation modes

Image processing

method

Image acquisition

Saving acquired

images

Preparation for

observation

Useful

operation

● Desire to display [Save As] dialog

on every acquisition





Advanced settings > Image

acquisition > [Save As]

●

Desire to designate the name of a

file desired to be automatically saved

Advanced settings > Image

acquisition > [Auto save]

DSX1000 basic software

[File] menu

Contents

(1) Operation of tilt observation

(2) Operation of Rotatable stage

(3) Replacement of objective and option unit

(4) List of objectives and corresponded

observation modes

(5) Objectives and attachment management

(6)

Items often referred in the Instruction Manual

(7) Configuration of the Instruction Manual

Advanced

Quick Reference Guide

Digital Microscope

DSX1000

Operating procedure

Reference information

Introduction

Advanced

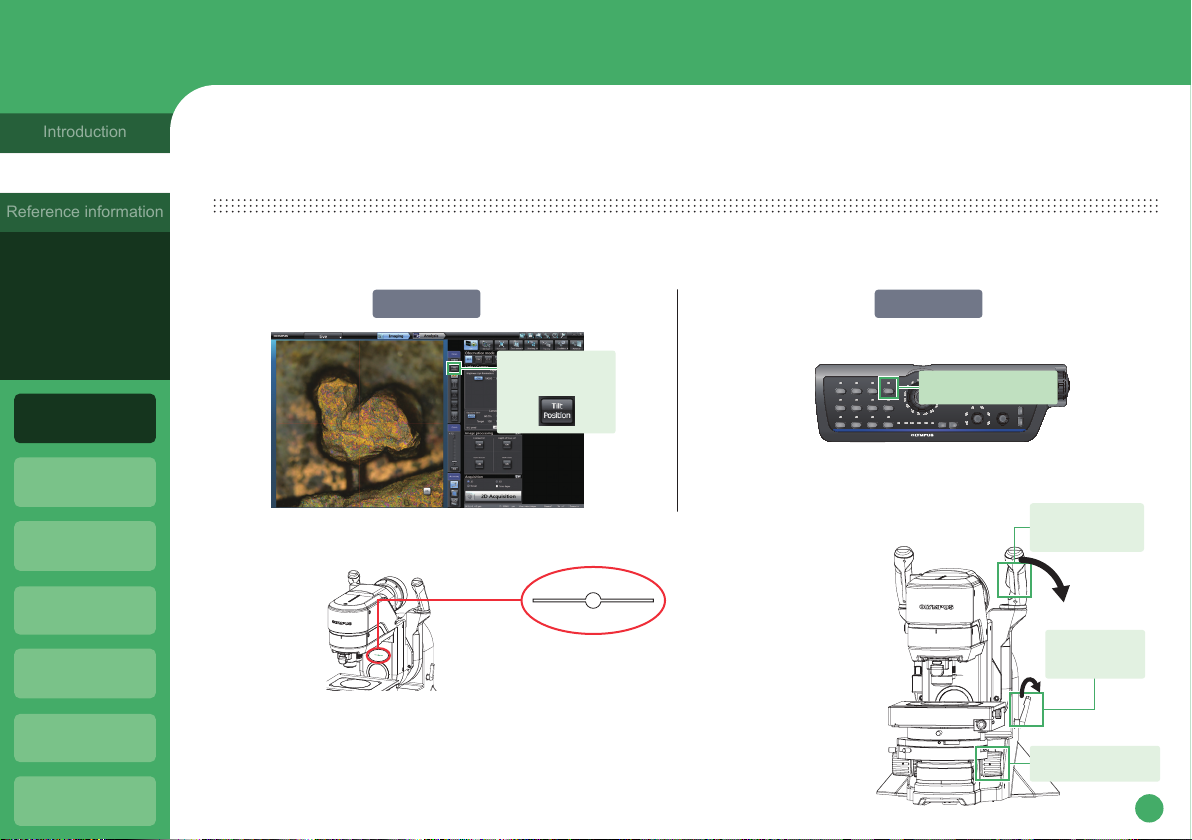

Operation of tilt observation

1. Press the [Tilt Position] button on the GUI or [Tilt Position] button on the console.

2. Adjust the focus with the Focusing knob

3. Rotate the Tilting lock lever to release the tilting lock.

4. Tilt the head holding the Rotation-release knob on the head arm.

5. Stop the head at an arbitrary position and release your hand from

Rotation-release knob.

Operation of tilt

observation

Operation of

Rotatable stage

Replacement of

objective and

option unit

List of objectives

and corresponded

observation modes

Objectives and

attachment

management

Items often

referred in the

Instruction Manual

Configuration of the

Instruction Manual

Software Console

[Tilt Position] button

* Aligning the upper surface of the sample to the horizontal

line helps you to roughly adjust the focusing.

2. Focusing knob

Rotation-release

knob

3. Tilting lock

lever

1. [Tilt Position]

button
