Olympus CIX100 Manuel utilisateur

Installation Manual

CIX Height Measurement

Solution

OLYMPUS Cleanliness Inspector System

Optical Microscope and Accessories

English

Any copyrights relating to this manual shall belong to

Olympus Soft Imaging Solutions GmbH.

We at Olympus Soft Imaging Solutions GmbH have tried to make the information contained in this manual as

accurate and reliable as possible. Nevertheless, Olympus Soft Imaging Solutions GmbH disclaims any warranty

of any kind, whether expressed or implied, as to any matter whatsoever relating to this manual, including

without limitation the merchantability or fitness for any particular purpose. Olympus Soft Imaging Solutions

GmbH will from time to time revise the software described in this manual, and reserves the right to make such

changes without obligation to notify the purchaser. In no event shall Olympus Soft Imaging Solutions GmbH be

liable for any indirect, special, incidental, or consequential damages arising out of purchase or use of this

manual or the information contained herein.

No part of this document may be reproduced or transmitted in any form or by any means, electronic or

mechanical for any purpose, without the prior written permission of Olympus Soft Imaging Solutions GmbH.

All brands are Trademark or registered Trademark of their respective owners.

Printed in Germany

510_UMA_Solution_ParticleHeight_CIX100_en_00_15092016

Olympus Soft Imaging Solutions GmbH, Johann-Krane-Weg 39, D-48149 Münster,

Tel. (+49)251/79800-0, Fax (+49)251/79800-6060

Solution CIX Height Measurement

Contents

Installation Manual

1 CIX Height Measurement Solution ........................4

1.1 Safety instructions .......................................................................4

1.2 Installing the objective .................................................................4

1.3 Installing the Solution...................................................................8

1.4 Configuring the objective ...........................................................12

1.5 Calibrating the objective ............................................................13

Solution CIX Height Measurement

Installation Manual 4

1 CIX Height Measurement Solution

This manual describes the installation of the objective as well as the

installation and configuration of the software for the CIX Height

Measurement Solution. Read this manual carefully before installing and

configuring the system.

1.1 Safety instructions

1.2 Installing the objective

1. Use the joystick to move the stage all the way forwards to the

mounting position.

2. Remove the multi-sample holder.

3. Lower the stage to its lowest position by rotating the coarse focus

adjustment knob (1).

Caution Pinching hazard

When the stage moves, gaps appear. This creates a pinching hazard.

Make sure that you are not within the stage’s range of movement

when it is moving.

Try never to put your hands or fingers into any gaps.

Solution CIX Height Measurement

Installation Manual

4. Use the joystick to move the stage all the way back towards the

frame.

5. Loosen the screw that holds the nosepiece using the hexagonal

screwdriver. To do that, use the screw that is located at the

microscope frame.

Solution CIX Height Measurement

Installation Manual 6

6. Carefully pull the nosepiece forwards along the runner.

7. CIX90: The nosepiece is connected with a loose cable. Gently

remove the plug.

8. Remove the cover on position 4 of the nosepiece.

9. Remove the objective from its packaging.

10. Screw the objective in to position 4.

11. CIX90: The following steps should be performed by two people, if

possible.

Connect the port of the nosepiece with the plug of the cable

under the microscope frame.

Place the nosepiece back in the runner on the microscope. While

you do this, keep the cable out of the way by pulling it carefully

back towards the back of the microscope frame.

Push the nosepiece slowly all the way to the back.

Solution CIX Height Measurement

Installation Manual

12. CIX100: Place the nosepiece in the runner on the microscope and

push it slowly all the way to the back.

13. When the nosepiece is all the way back on the runner, tighten the

screw with the hexagonal screwdriver.

Solution CIX Height Measurement

Installation Manual 8

1.3 Installing the Solution

A license key is required for the installation of the software. You can find

the license key on the license certificate in the accompanying envelope.

Insert the DL-DVD into your DL-DVD drive. The start dialog box of the

installation program should be automatically displayed on your screen.

Note: It is possible that the autorun function of your operating system is

deactivated. In this case, double click the “setup.exe” file located in the

root directory of your DL-DVD drive.

The installation program's first dialog box asks you to enter the license

key for the solution. Please enter all 15 characters into the required fields.

Solution CIX Height Measurement

Installation Manual

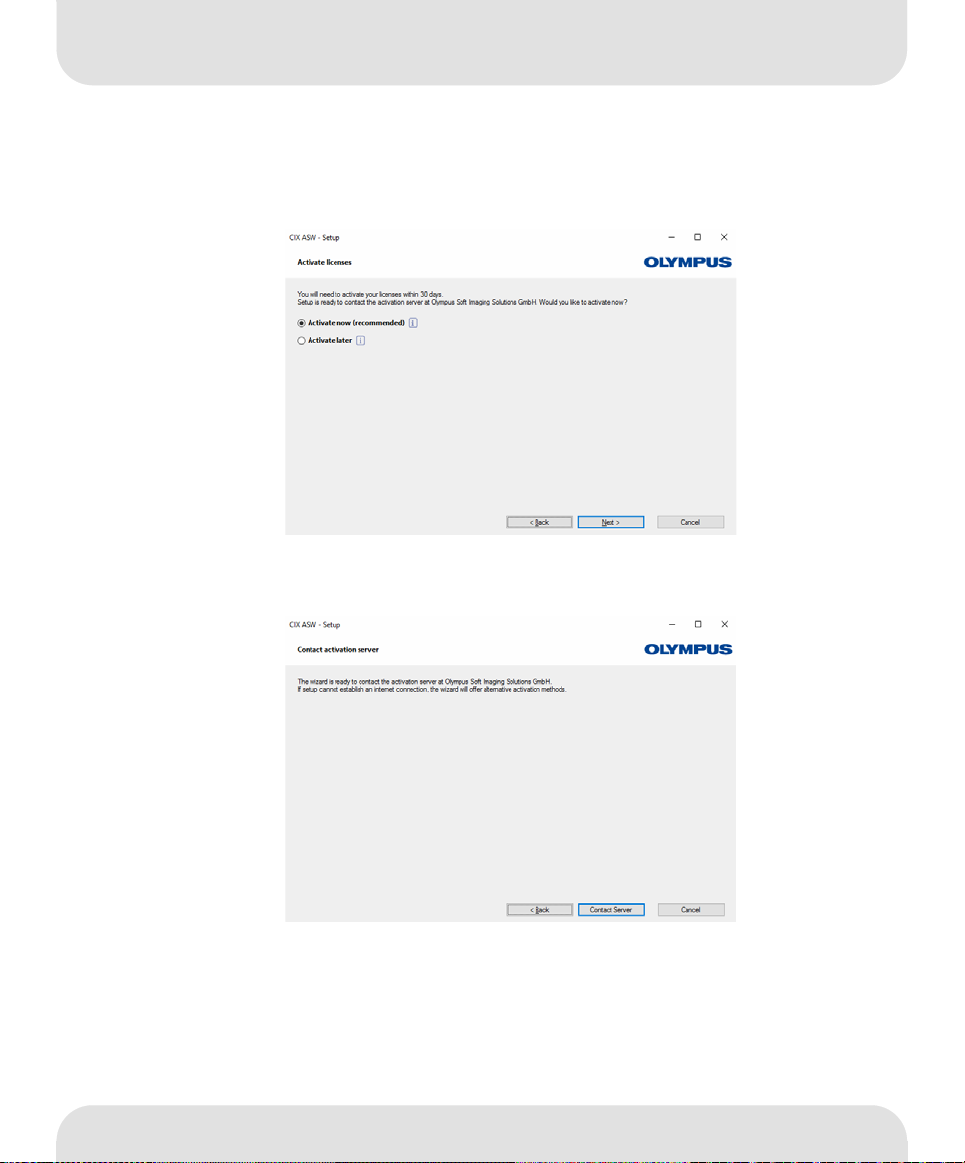

Activation

The license has to be activated within 30 days.

Activation requires a working Internet connection. The activation takes

place in the background.

Click the [Contact Server] button to complete the activation of the

OLYMPUS Cleanliness Inspector Software.

Note: If you are not connected to the Internet, but are able to exchange

files with another computer that does have an Internet connection, please

follow the steps in the next dialog box.

Solution CIX Height Measurement

Installation Manual 10

The following website is used for the activation.
