Olympus XA Manuel utilisateur

INSTRUCTIONS

DESCRIPTION OF CONTROLS

Rangefinder Window

Exposure Counter

Film Winder

Self-Timer/

Battery Check Lamp

Strap Eyelet

Aperture Lever

Distance

Scale Window

Lens

Shutter Release

Self-Timer/Battery Check Beeper

Non-Slip Finger Grip

Rewind Crank

Rewind Knob/

Camera Back Release

Dust

Barrier

Viewfinder

CdS Light Sensor

ASA Film Speed Lever

Focusing Lever

X-Synchro Contacts

Flash Retaining

Socket

Flash

Guide Pin Hole

(Side View)

Film Rewind Shaft

FilmChamber

Sprocket

Film Take-UpSpool

ASA Film Speed Window

Film Speed

Adjustment Lever

Auto

Flash Sensor

Battery

Chamber

Tripod Socket

Rewind Release Button

Control

Lever

Camera Back

Flash

Clamping Screw

Film Pressure Plate

Flash

Diffuser Window

Flashtube

Charge Lamp

TABLE OF CONTENTS

The Olympus XA is an aper-

ture priority auto-exposure

rangefinder camera setting new

standards for function and feel,

appearance and performance.

Please read the following pages

carefully and your new camera

will provide maximum per-

formance and satisfaction.

DESCRIPTION

CONTROLS

..............

Page

1•2

PREPARATION

Installing

the

Batteries

.....................

the

Film

.......................

5•6

SIMPLE STEPS FOR TAKING PICTURES

Setting

the

Aperture

......................

Focusing

............................

Releasing

the

Shutter

.....................

Unloading

the

Film

......................

Self-Timer

............................

Automatic

Flash

Photography

..............

11•12

PHOTOGRAPHIC TECHNIQUES

Aperture

and

Depth

Field

...............

13•14

Shutter-Speed

Priority

Photography

...........

15-16

Backlighting

Compensation

..................

Daylight

Synchronization

..................

HELPFUL

HINTS

..........................

CARE

AND

STORAGE

.......................

MAIN

SPECIFICATIONS

..........................

21•22

If the beeper doesn't signal, the

batteries are inserted incorrectly

or are exhausted.

The batteries will last about one

year and must be replaced with

two 1.5V silver oxide batteries

(SR 44, EPX-76 or equivalent).

Do not press the shutter release

during battery check operation,

or the battery will run down

quickly, leaving the shutter open-

ed. Return the lever to the normal

position.

2. Check the batteries.

Set the control lever to "CHECK".

The beeper emits a tone and the

check lamp glows brightly.

Installing the Batteries

PREPARATION

1. Insert the batteries correctly.

SR 44

(EPX-76,

MS-76 or

equivalent)

Loading the Film

1. Open the camera back and in-

sert the film cartridge. (Dust Bar-

rier is in closed position.)

Never load the film in direct sun-

light.

2. Attach the film end to the

take-up spool.

The film end must not stick out

of the slot excessively.

3. Startwindingthefilm and close

the camera back.

Film perforations must engage

with sprocket teeth and the film

must be drawn flat.

4. Open the Dust Barrier.

If the Dust Barrier is not fully

opened, the shutter cannot be

released.

5. Wind and expose two blank

shots until the exposure counter

shows "1".

The lens should be aimed toward

a bright light when shooting.

6. Set the ASA film speed.

SIMPLE STEPS FOR TAKING PICTURES

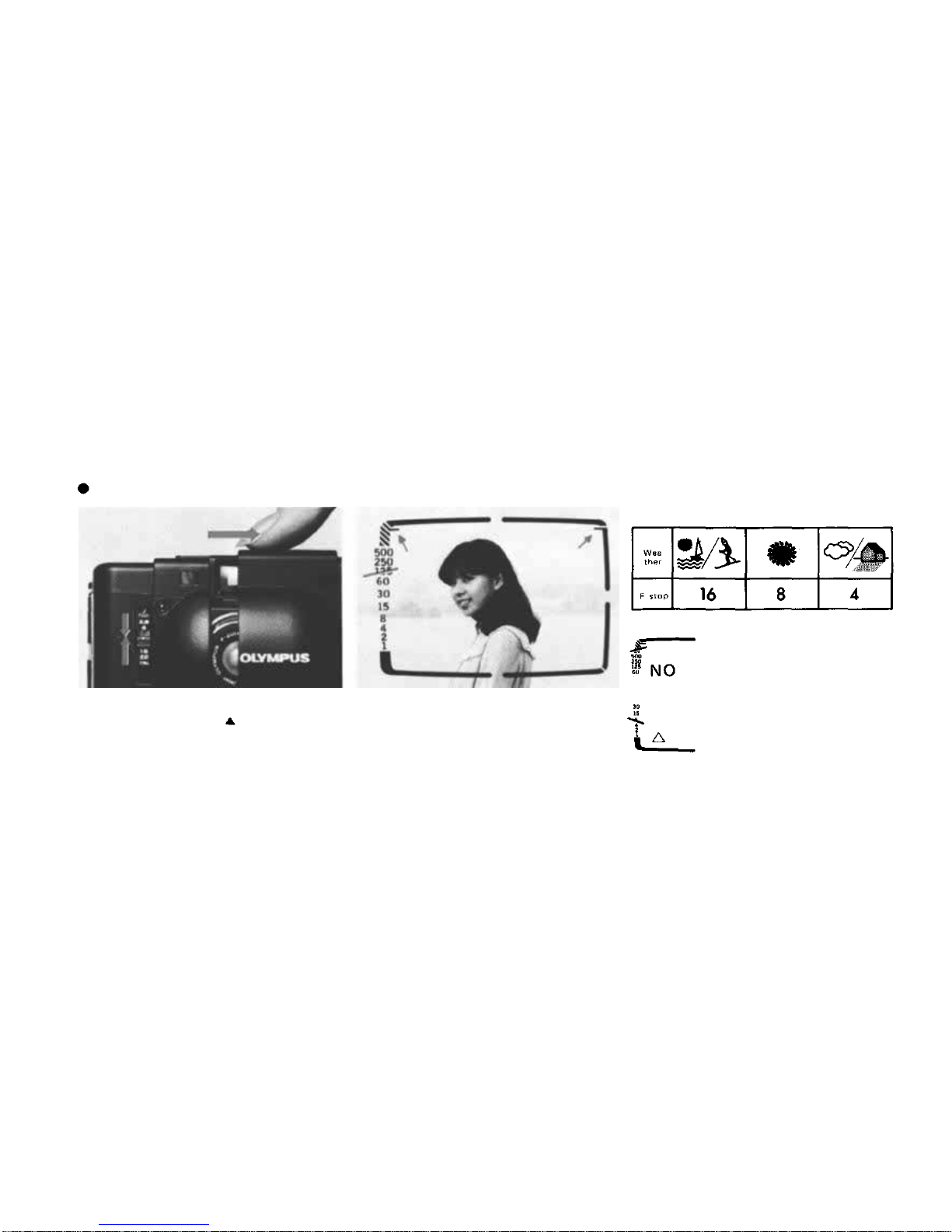

Setting the Aperture

1. Open the Dust Barrier and set

the aperture lever ( mark) to the

F-number required.

2. Confirm the shutter speed in

the viewfinder, aiming at the sub-

ject.

(The arrows indicate parallax cor-

rection marks.)

If the shutter speed nee-

dle enters the striped, over-

exposure warning zone,

push the aperture lever

downwardsothatthenee-

dle points to "500" (1/

500sec) orunder.

If the needle points to

"30" (1/30 sec) or under,

be careful not to shake the

camera.

(To make full use of aperture con-

trol,see pages 13 & 14.)

Aperture guideline (ASA 100)

Focusing

3. Looking through the view-

finder, compose and focus.

If the subject distance is 0.85 ~

1 meter (2.8 ~ 3.3 feet), frame

the subject in the area under the

2 parallax correction marks.

Turn

the

focusing

lever

until

the

double image in the central rec-

tangle fuses into one. Focusingcan

also

done

with

the

knurled

mount (e.g. when a tripod is in

use).

Out of focus

In focus

Take care not to block the lens, flash dif-

fuser window or auto flash sensor.

Releasing the Shutter

4. Hold the camera steady and

lightly press the shutter release.

The release requires a minimum of

finger pressure, reducing chance of

image blur due to camera shake.
