●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

Step 5

Step 2

Step 4

Step 3

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 48)

“Print Reservations (DPOF)” (p. 51)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................25

Menus for Shooting Functions...........27

Menus for Playback, Editing, and

Printing Functions...............................35

Menus for Other Camera Settings .....40

Printing .................................................48

Using OLYMPUS Master 2...................54

Usage Tips ...........................................56

Appendix ..............................................61

Index .....................................................78

ContentsContents

Step 1

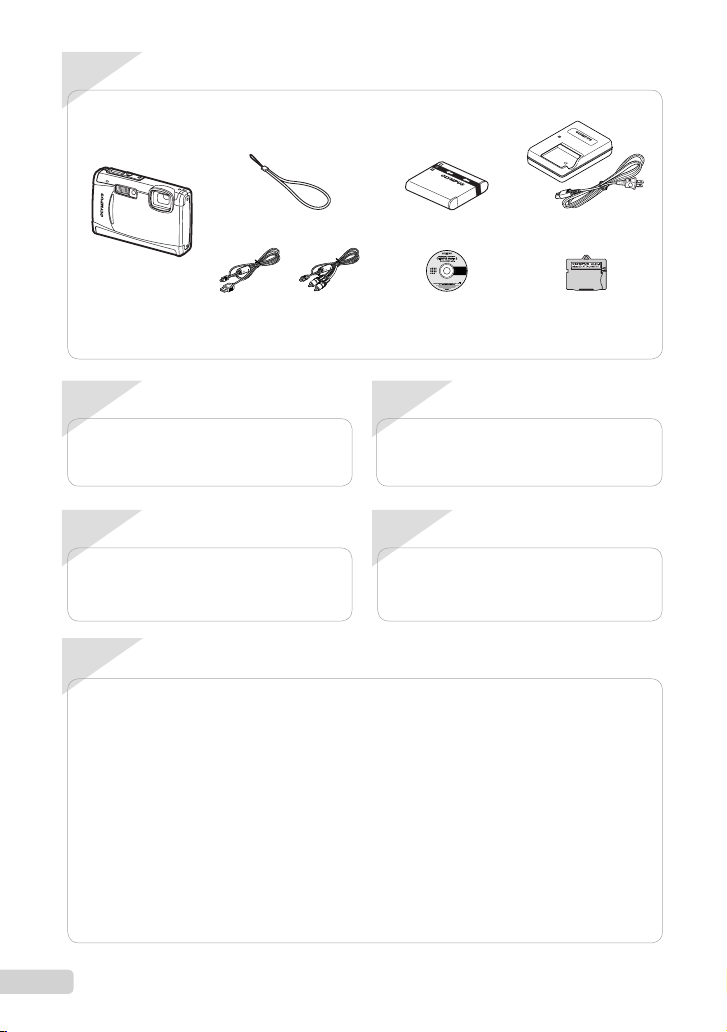

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion Battery LI-50C Battery Charger

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card

Contents may vary depending on purchase location.

Printed in China VN031501

DIGITAL CAMERA

STYLUS TOUGH-6000 /

TOUGH-6000

●Thank you for purchasing an Olympus digital camera. Before you start to

use your new camera, please read these instructions carefully to enjoy

optimum performance and a longer service life. Keep this manual in a

safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving products, Olympus reserves the

right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were produced

during the development stages and may differ from the actual product.

Instruction Manual

Step 5

Step 2

Step 4

Step 3

How to Use the Camera

“Four Types of Setting Operations” (p. 3)

Printing

“Direct printing (PictBridge)” (p. 48)

“Print Reservations (DPOF)” (p. 51)

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 15)

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ......................................6

Preparing the Camera .........................10

Shooting, Viewing, and Erasing .........15

Using Shooting Modes........................18

Using Shooting Functions..................20

Using Playback Features ....................25

Menus for Shooting Functions...........27

Menus for Playback, Editing, and

Printing Functions...............................35

Menus for Other Camera Settings .....40

Printing .................................................48

Using OLYMPUS Master 2...................54

Usage Tips ...........................................56

Appendix ..............................................61

Index .....................................................78

ContentsContents

Step 1

Checking the contents of the box

Digital camera

Strap LI-50B Lithium Ion Battery LI-50C Battery Charger

USB cable AV cable OLYMPUS Master 2 CD-ROM microSD Attachment

Other accessories not shown: Instruction Manual (this manual), warranty card

Contents may vary depending on purchase location.

Printed in China VN031501

MEMO

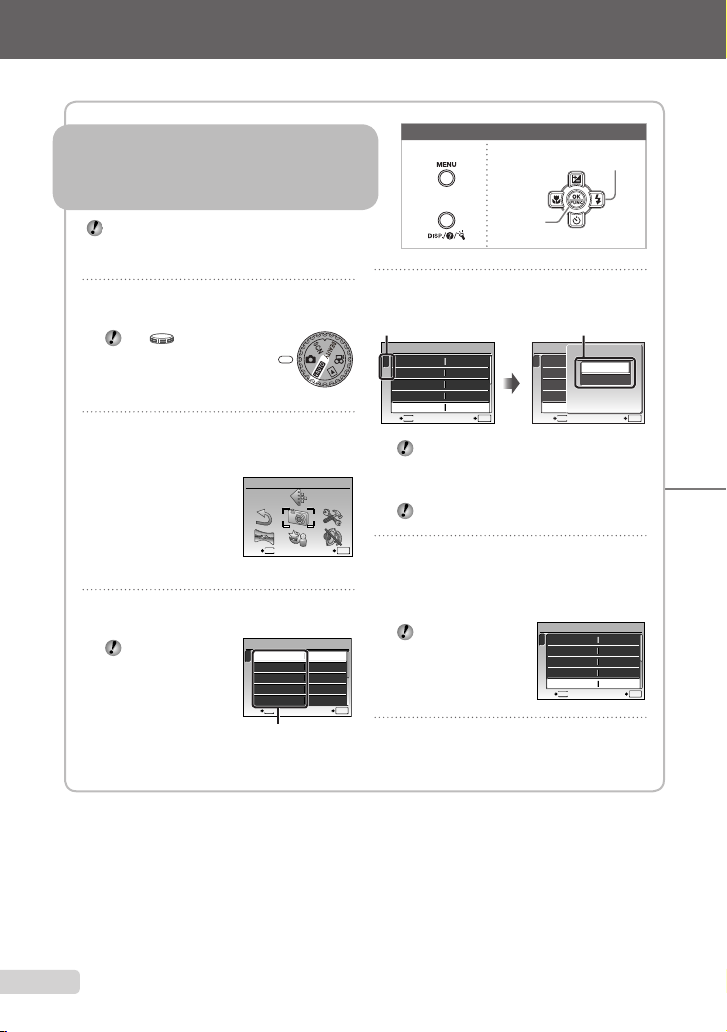

1Set the mode dial to a position other

than A.

The symbol in “Menu

Settings” (p. 27 to 47)

indicates available shooting

modes.

2Press the button.

This example describes how to set the

[DIGITAL ZOOM].

EXIT SET

CAMERA MENU

Shooting mode top menu

3Use ABCD to select the desired

menu, and press the button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 27 to 47) while referring to this page.

button

Arrow pad

button

Buttons in use

4Use AB to select the desired

Submenu 1, and press the button.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press Cto highlight the page tab, and then

use AB to move the page tab. Press Dto

return to the Submenu 1.

Some menus include submenus that appear

by pressing the button.

5Use AB to select the Submenu 2, and

press the button.

Once a setting is adjusted, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 27

to 47)

6Press the button to complete the

setting.

●

Four Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected mode

(p. 31).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 23)Using the FUNC Menu (p. 23)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

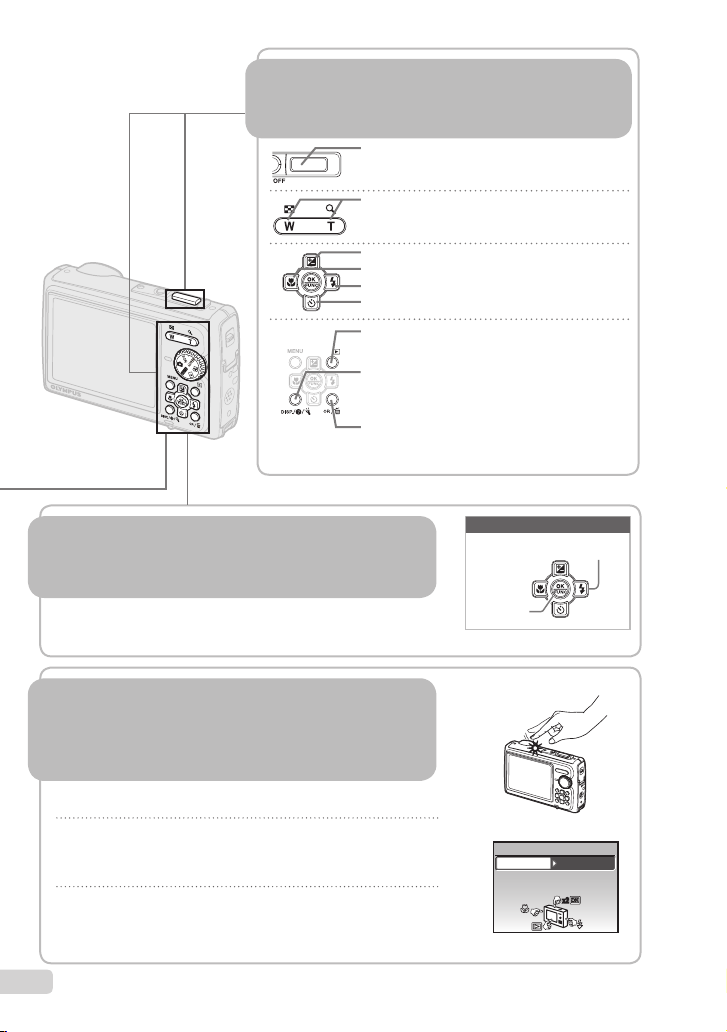

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct

buttons.

Shutter button (p. 15)

Zoom button (p. 20, p. 25)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 21)

#button (ash) (p. 20)

Ybutton (self-timer) (p. 22)

qbutton (playback) (p. 16)

g/E/Ybutton (information display

change/menu guide/date and time check/LED

illuminator) (p. 3, p. 13, p. 22)

o/button (panorama/tap control/

Shadow Adjustment Technology/multi window/

erase) (p. 17, p. 24)

button (p. 3, p. 23)

Arrow pad

button

Buttons in use

Operating the camera by tapping theOperating the camera by tapping the

bodybody (p. 46)(p. 46)

You can operate the camera by tapping the body when [TAP CONTROL]

is [ON].

To set [TAP CONTROL] to [ON]

1Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

2Tap the top surface of the camera twice.

The setting is conrmed.

●

ONOFF

TAP CONTROL

Tap the camera body to operate

the camera.

MEMO

1Set the mode dial to a position other

than A.

The symbol in “Menu

Settings” (p. 27 to 47)

indicates available shooting

modes.

2Press the button.

This example describes how to set the

[DIGITAL ZOOM].

EXIT SET

CAMERA MENU

Shooting mode top menu

3Use ABCD to select the desired

menu, and press the button.

Pressing and

holding the E

button displays

an explanation

(menu guide) of the

selected option.

ISO

OFF

CAMERA MENU

SET

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT

Submenu 1

●

Please read “Menu Settings” (p. 27 to 47) while referring to this page.

button

Arrow pad

button

Buttons in use

4Use AB to select the desired

Submenu 1, and press the button.

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

SET

BACK

DIGITAL ZOOM

OFF

Page tab Submenu 2

To quickly move to the desired submenu,

press Cto highlight the page tab, and then

use AB to move the page tab. Press Dto

return to the Submenu 1.

Some menus include submenus that appear

by pressing the button.

5Use AB to select the Submenu 2, and

press the button.

Once a setting is adjusted, the display returns to

the previous screen.

There may be

additional operations.

“Menu Settings” (p. 27

to 47)

6Press the button to complete the

setting.

●

Four Types of Setting Operations

Ebutton

Using the MenuUsing the Menu

Various camera settings can be accessed through the

menus, including functions used during shooting and

playback and the date/time and screen display.

There may be unavailable menus depending on the

other related settings or the selected mode

(p. 31).

2ISO

OFF

CAMERA MENU

AUTO

FINE ZOOM

DIGITAL ZOOM

DRIVE

AUTOWB

EXIT SET

Using the FUNC Menu (p. 23)Using the FUNC Menu (p. 23)

Frequently used shooting menu functions can be set with less

steps using the FUNC menu.

Using the Direct ButtonsUsing the Direct Buttons

Frequently used shooting functions can be accessed using the direct

buttons.

Shutter button (p. 15)

Zoom button (p. 20, p. 25)

Fbutton (exposure compensation) (p. 21)

&button (macro) (p. 21)

#button (ash) (p. 20)

Ybutton (self-timer) (p. 22)

qbutton (playback) (p. 16)

g/E/Ybutton (information display

change/menu guide/date and time check/LED

illuminator) (p. 3, p. 13, p. 22)

o/button (panorama/tap control/

Shadow Adjustment Technology/multi window/

erase) (p. 17, p. 24)

button (p. 3, p. 23)

Arrow pad

button

Buttons in use

Operating the camera by tapping theOperating the camera by tapping the

bodybody (p. 46)(p. 46)

You can operate the camera by tapping the body when [TAP CONTROL]

is [ON].

To set [TAP CONTROL] to [ON]

1Tap the top surface of the camera twice.

The [TAP CONTROL] settings screen displays.

2Tap the top surface of the camera twice.

The setting is conrmed.

●

ONOFF

TAP CONTROL

Tap the camera body to operate

the camera.

1GSLIDESHOW ............... p.35

2HPERFECT FIX ............. p.35

3MBEAUTY FIX................ p.35

4IEDIT

Q(Resize) ................ p.36

P(Crop) .................... p.36

COLOR EDIT............... p.36

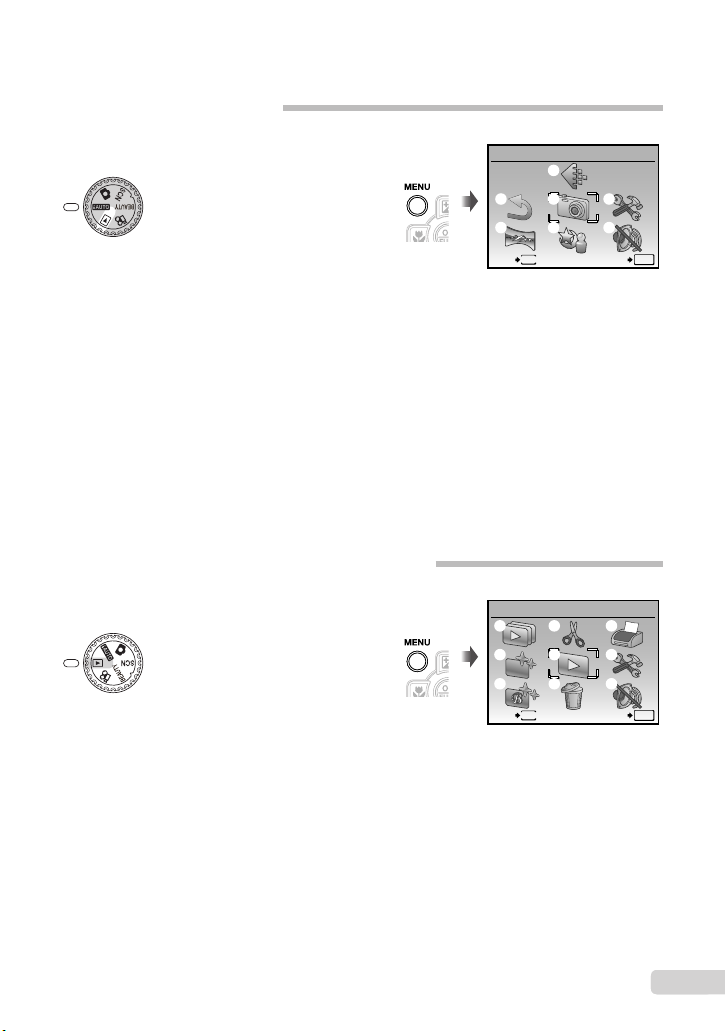

Menus for Playback, Editing, and Printing Functions

When the mode dial is set to the qposition, settings can be

adjusted.

EXIT SET

PLAYBACK MENU

Playback mode top menu

CALENDAR................. p.37

INDEX.......................... p.37

5JPLAYBACK MENU

0(Protect) ............... p.37

y(Rotate)................... p.38

R(Add sound to still

images) .................... p.38

6KERASE......................... p.38

7LPRINT ORDER ............ p.39

8ESETUP*

*Same as “Menus for

Shooting Functions”

9FSILENT MODE ............ p.47

1AIMAGE QUALITY......... p.27

2BCAMERA MENU

WB............................... p.28

ISO .............................. p.28

DRIVE.......................... p.28

FINE ZOOM................. p.29

DIGITAL ZOOM ........... p.29

ESP/n....................... p.29

AF MODE .................... p.29

R(Sound recording) .... p.30

IMAGE STABILIZER

(Still images)/

DIS MOVIE MODE

(Movies) ................... p.30

SHADOW ADJ............. p.30

3 OSCENE MODE............. p.31

4NPANORAMA................. p.32

5DRESET......................... p.34

6 ESETUP

MEMORY FORMAT/

FORMAT .................. p.40

BACKUP...................... p.40

W(Language)........ p.40

PW ON SETUP ........... p.41

MENU COLOR ............ p.41

SOUND SETTINGS..... p.42

REC VIEW................... p.42

FILE NAME.................. p.43

PIXEL MAPPING......... p.43

s(Monitor) ............... p.44

X(Date/time)............ p.44

DUALTIME................... p.44

VIDEO OUT................. p.45

POWER SAVE............. p.46

LED ILLUMINATOR..... p.46

TAP CONTROL ........... p.46

7FSILENT MODE ............ p.47

Menu Index

Menus for Shooting Functions

When the mode dial is set to a shooting mode position

(AKsbn), settings can be adjusted.

EXIT SET

CAMERA MENU

3 7

Shooting mode top menu

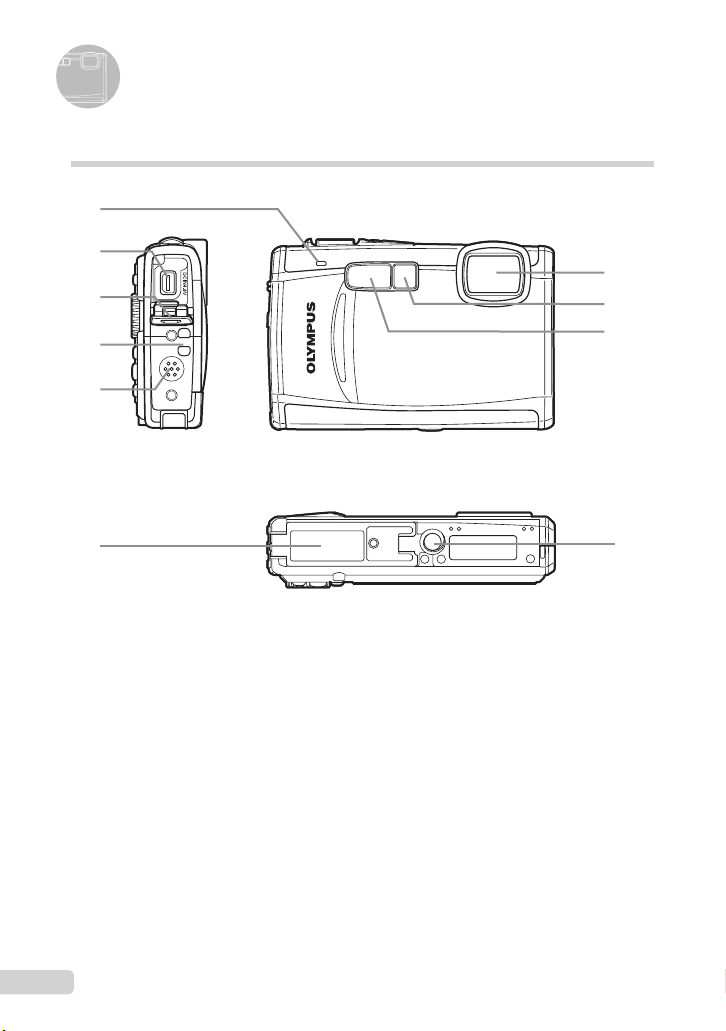

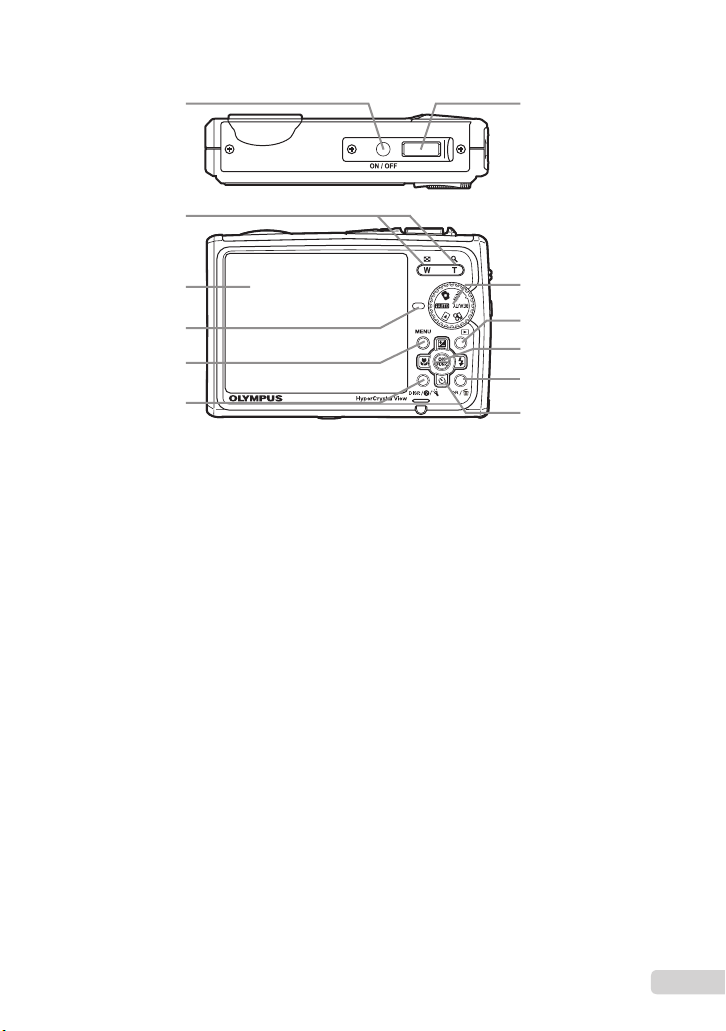

Names of Parts

1Microphone ............................ p.30, 38

2Multi-connector ................p.45, 48, 54

3Connector cover ........p.45, 48, 54, 66

4Strap eyelet.................................. p.10

5 Speaker .......................................... —

6Battery/card compartment cover

......................................... p.11, 57, 66

Camera unit

7Lens ............................................. p.61

8Self-timer lamp/LED illuminator

......................................... p.22, 31, 46

9 Flash ............................................ p.20

10 Tripod socket .................................. —

1nbutton .............................p.13

2Zoom button........................... p.20, 25

3Monitor......................... p.8, 15, 44, 56

4Card access lamp ........................p.63

5mbutton.............................. p.3, 5

6DISP./E/Ybutton

(information display change/

menu guide/date and time check/

LED illuminator) .................p.3, 13, 22

7Shutter button ........................p.15, 56

8Mode dial .................p.3, 5, 15, 16, 18

9qbutton (playback) ................... p.16

10 obutton (OK/FUNC).............. p.3, 23

11 o/Dbutton (panorama/tap control/

Shadow Adjustment Technology/

multi window/erase) ...............p.17, 24

12 Arrow pad ............................p.3, 4, 12

Fbutton

(exposure compensation)........ p.21

&button (macro) .................... p.21

Ybutton (self-timer) ............... p.22

#button (ﬂash).......................p.20

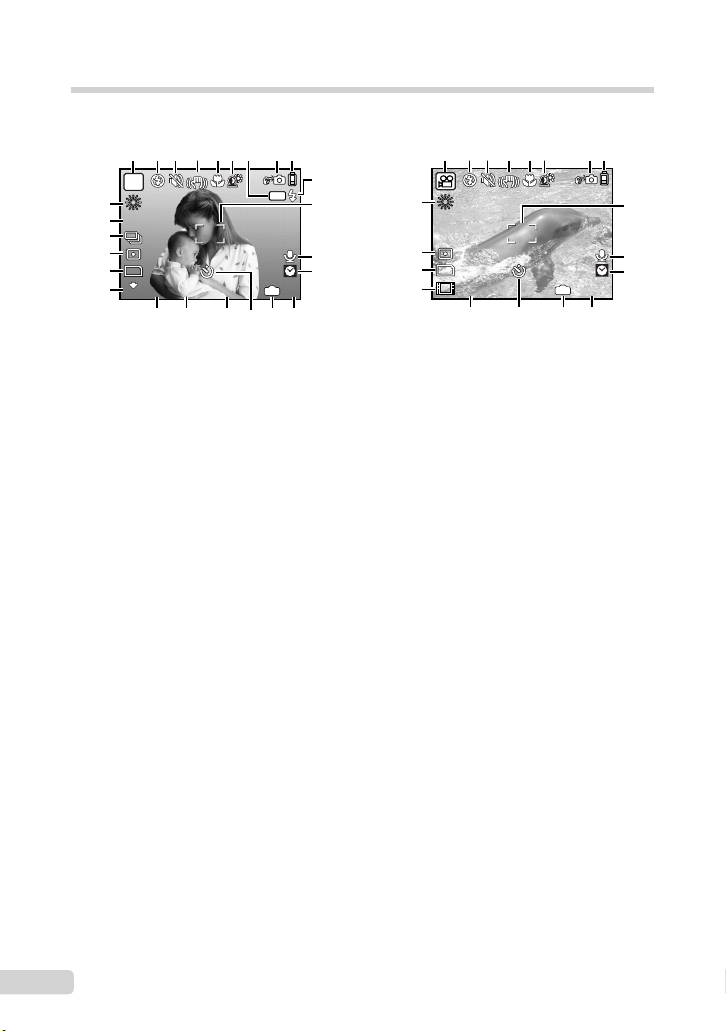

Monitor

Shooting mode display

+2.0

1/30

F3.5

ISO

1600

ISO

1600

AFL

ORM

15171819 1416

2 5 98763

+2.0

00:34

VGA

15 141619

2 544 983 6

Still image Movie

1Shooting mode....................... p.18, 19

2Flash mode .................................. p.20

3Silent mode.................................. p.47

4Image stabilization (still images)/

Digital image stabilization (movies)

..................................................... p.30

5Macro/super macro/

S-macro LED mode .....................p.21

Shadow Adjustment Technology

... p.30

7AF lock......................................... p.18

8Tap control .........................p.4, 32, 46

9Battery check .........................p.10, 57

10 Flash standby/camera shake warning/

ﬂash charge ................................. p.56

11 AF target mark .............................p.15

12 Sound record .........................p.19, 30

13 Dual time...................................... p.44

14 Number of storable still pictures/

remaining recording time

......................................... p.15, 19, 63

15 Current memory........................... p.62

16 Self-timer .....................................p.22

17 Aperture value ............................. p.15

18 Shutter speed .............................. p.15

19 Exposure compensation .............. p.21

20 Compression/Frame rate ............. p.27

21 Image size ................................... p.27

22 Metering....................................... p.29

23 Drive ............................................p.28

24 ISO............................................... p.28

25 White balance .............................. p.28

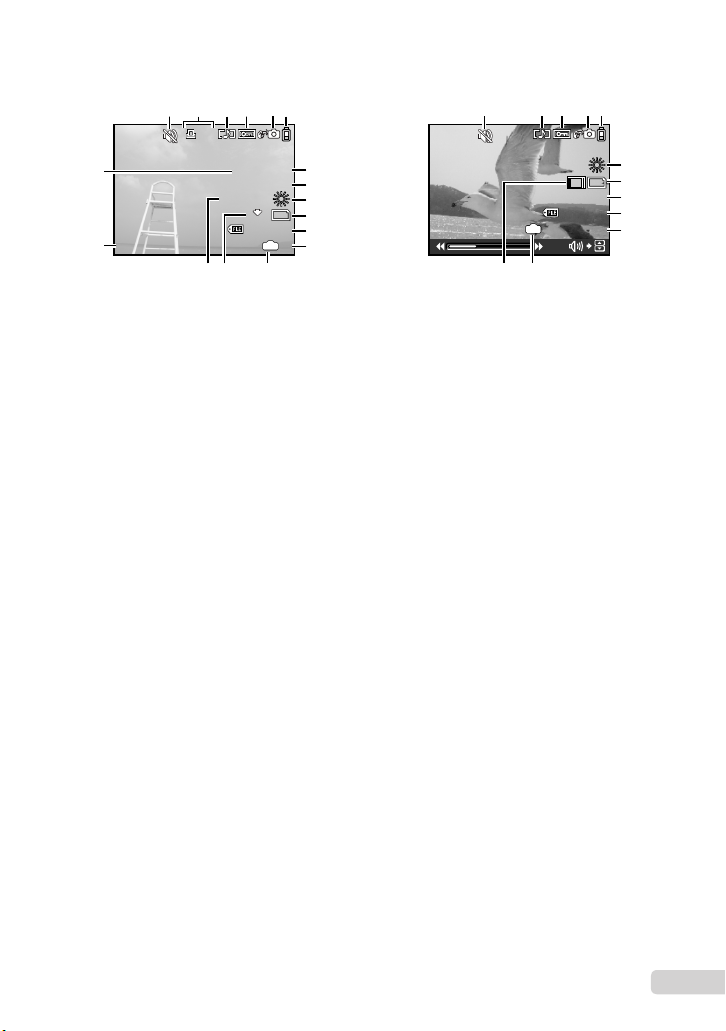

Playback mode display

2009.08.26

12:30

+2.0

F3.5

100-0004

ORM

1/1000

ISO 1

600

ISO 1

600

34 61

131415

2009.08.26

12:30

100-0004

00:14

00:34

00:14

00:34

VGA

34 61

1314

5 5

Still image Movie

1Silent mode.................................. p.47

2Print reservation/

number of prints................... p.51/p.50

3Sound record .............p.19, 30, 38, 60

4Protect .........................................p.37

5Tap control .........................p.4, 32, 46

6Battery check .........................p.10, 57

7Aperture value ............................. p.15

8Exposure compensation .............. p.21

9White balance .............................. p.28

10 Image size ................................... p.27

11 File number.................................. p.43

12 Frame number

Elapsed time/total recording time

..................................................... p.17

13 Current memory........................... p.62

14 Compression/Frame rate ............. p.27

15 ISO............................................... p.28

16 Date and time ........................p.13, 44

17 Shutter speed .............................. p.15

Preparing the Camera

Battery comes partially charged. Before

use, be sure to charge the battery until the

charging indicator goes off

(for approx. 2 hours).

If the charge indicator does not light or

it blinks, the battery may not be inserted

correctly or the battery or the charger may

be broken.

For details on the battery and the charger,

see “Battery and charger” (p. 61).

When to charge the battery

Charge the battery when the error message

shown below appears.

BATTERY EMPTY

Monitor top right Error message

Flashes in red

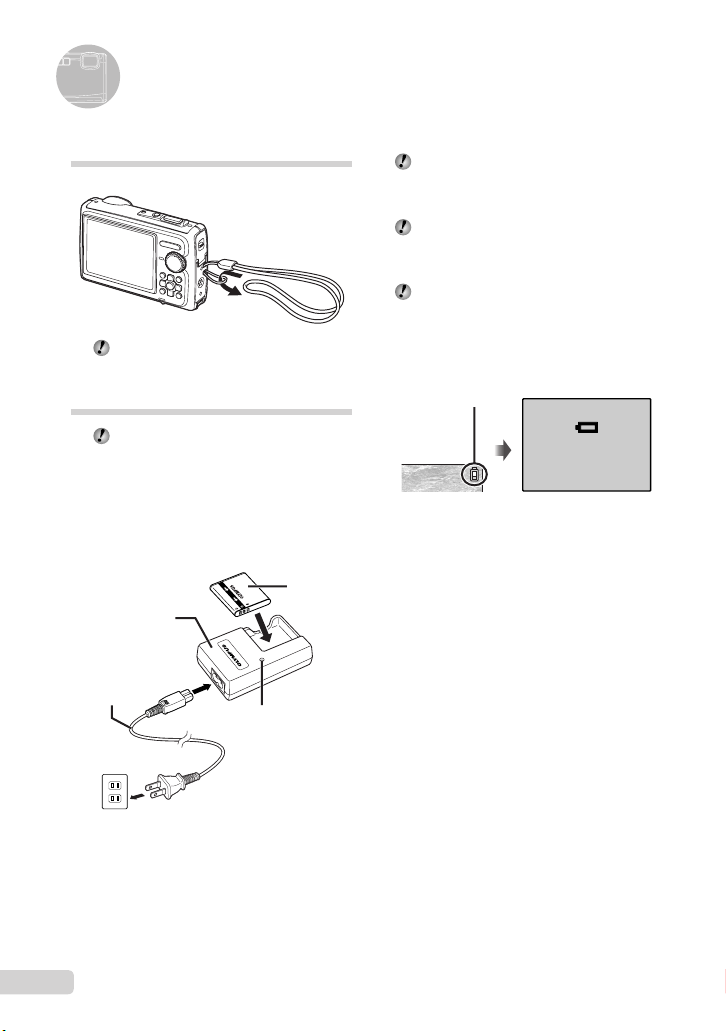

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

Charging the battery

The included battery charger (AC cable type

or plug-in type) differs depending on the

region where you purchased the camera. If

you received a plug-in type battery charger,

plug it directly into an AC outlet.

Example: AC cable type battery

charger

AC outlet

AC cable

Lithium ion

battery

Battery charger

Charging indicator

Lights: Charging

Off: Charged

Autres manuels pour u TOUGH-6000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus Tough TG-810 Manuel utilisateur

Olympus

Olympus E-600 Manuel utilisateur

Olympus

Olympus SH-60 Manuel utilisateur

Olympus

Olympus VR-325 Manuel utilisateur

Olympus

Olympus CAMEDIA C-211 Zoom Manuel utilisateur

Olympus

Olympus E-500 - EVOLT Digital Camera Manuel utilisateur

Olympus

Olympus C-520 Guide de configuration

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Manuel utilisateur

Olympus

Olympus CAMEDIA C-100 Manuel utilisateur

Olympus

Olympus V207090SU000 Manuel utilisateur

Olympus

Olympus STYLUS-5010 Manuel utilisateur

Olympus

Olympus Camedia C-360ZOOM Manuel utilisateur

Olympus

Olympus CAMEDIA C-4040 Zoom Manuel utilisateur

Olympus

Olympus CAMEDIA C-8080 Wide Zoom Manuel utilisateur

Olympus

Olympus AZ-1 ZOOM Manuel utilisateur

Olympus

Olympus Stylus 5010 Manuel utilisateur

Olympus

Olympus FE-270 Guide de configuration

Olympus

Olympus DP21-SAL Manuel utilisateur

Olympus

Olympus CAMEDIA C-370 ZOOM Manuel utilisateur

Olympus

Olympus FE170 - 6.0 Megapixel 3x Optical Zoom Digital... Guide de configuration

Olympus

Olympus Infinity SuperZoom 3000 DLX Manuel utilisateur

Olympus

Olympus X-560WP - Digital Camera - Compact Guide de démarrage rapide

Olympus

Olympus CAMEDIA D-490 Zoom Manuel utilisateur

Olympus

Olympus 226750 - Stylus Tough 8000 Digital Camera Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur

Olympus u TOUGH-6000 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques
