Olympus TG-630 Manuel utilisateur

DIGITAL CAMERA

Instruction Manual

TG-630

●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please

read these instructions carefully to enjoy optimum performance and a longer service life. Keep this

manual in a safe place for future reference.

●We recommend that you take test shots to get accustomed to your camera before taking important

photographs.

●In the interest of continually improving products, Olympus reserves the right to update or modify

information contained in this manual.

Checking the contents of the box

Digital camera Strap Lithium Ion

Battery

(LI-50B)

USB-AC adapter

(F-2AC) USB cable

(CB-USB8) OLYMPUS Setup

CD-ROM

Names of Parts

Connector cover

2Strap eyelet

Connector cover latch

4Lock knob

5Multi-connector

6HDMI micro connector

7Microphone

8Flash

Self-timer lamp/LED illuminator/

AF illuminator

Lens

Battery/card cover latch

Tripod socket

Battery/card cover

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

1 Indicator lamp

Speaker

3nbutton

4 Monitor

5 Shutter button

6Zoom lever

7 Rbutton (record movies)

8 qbutton (switching between

shooting and playback)

9 button

Ybutton (LED illuminator)

11 Joystick

INFO (changing information

display)

(erase)

Abutton (OK)

(#(ﬂash) I)

(Y(self-timer) G)

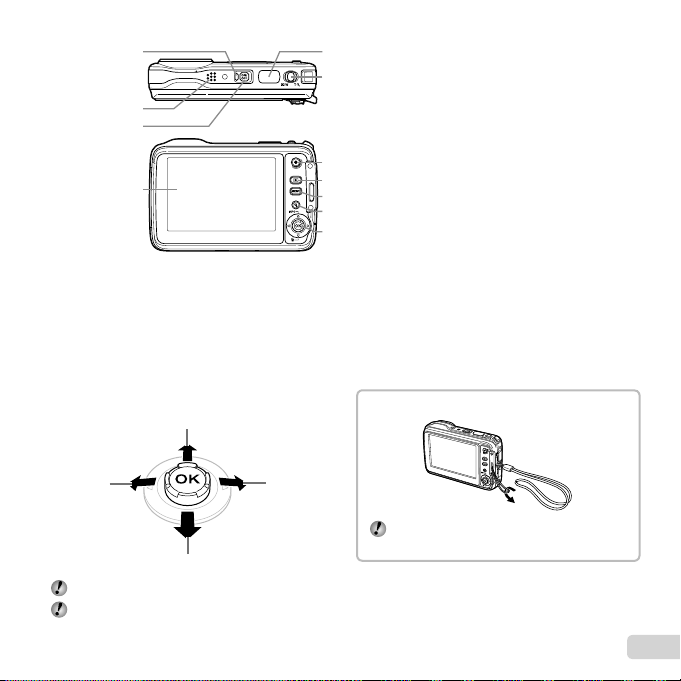

Attaching the camera strap

Pull the strap tight so that it does not come

loose.

Joystick

H(left)

G(down)

F(up)

I(right)

Press the joystick up/down/left/right to operate it.

FGHI instruct to press the joystick up/down/

left/right.

Inserting and removing the

battery and card (commercially

available)

1 Follow Steps 1, 2and 3to

open the battery/card cover.

Lock knob

Battery/card cover

Battery/card cover latch

Turn off the camera before opening the battery/

card cover.

2 Insert the battery while sliding the

battery lock knob in the direction

of the arrow.

Battery lock knob

Insert the battery as illustrated with the Bmark

toward the battery lock knob.

Damage to the battery exterior (scratches, etc.)

may produce heat or an explosion.

Slide the battery lock knob in the direction of the

arrow to unlock, and then remove the battery.

3 Insert the card straight until it

clicks into place.

Write-protect switch

Always use SD/SDHC/SDXC/Eye-Fi/FlashAir

(with Wireless LAN function) card with this

camera. Do not insert other types of memory

cards. “Using the card” (p. 71)

●Do not touch the metallic parts of the card directly.

To remove the card

Press the card in until it clicks and comes out slightly,

then remove the card.

4 Follow Steps 1and 2to close

the battery/card cover.

When using the camera, be sure to close and

lock the battery/card cover.

Charging the battery

Connect the USB cable and USB-AC adapter to the

camera and charge the battery.

For charging the battery abroad, see “Using your

charger and USB-AC adapter abroad” (p. 71).

●The battery is not fully charged at shipment. Before

use, be sure to charge the battery until the indicator

lamp turns off (up to 3 hours).

Connecting the camera

AC outlet

USB cable

(supplied)

Connector cover

Multi-connector

Indicator lamp

On: Charging

Off: Charged

When to charge the batteries

Charge the battery when the error message shown

below appears.

Battery Empty

Error message

Flashes in red

Never use any cable other than supplied or

Olympus-designated USB cable. This may cause

smoking or burning.

The included F-2AC USB-AC adapter (hereafter

referred to as USB-AC adapter) differs

depending on the region where you purchased

the camera. If you received a plug-in type USB-

AC adapter, plug it directly into AC outlet.

The included USB-AC adapter has been

designed to be used for charging and playback.

Do not take pictures while the USB-AC adapter

is connected to the camera.

Be sure to unplug the power plug of the USB-AC

adapter from the wall outlet when the charging is

complete or the playback ends.

For details on the battery, see “Battery Handling

Precautions” (p. 80). For details on the USB-AC

adapter, see “USB-AC adapter” (p. 81).

●If the indicator lamp does not light, check the USB

cable and USB-AC adapter connections.

●The battery can be charged while the camera is

connected to the computer via USB. The charging

time varies depending on the performance of the

computer. (There may be cases in which it takes

approx. 10 hours.)

Turning on the camera and

making the initial settings

When you turn on the camera for the ﬁrst time, a

screen appears enabling to set the language for the

menus and messages displayed in the monitor, and

the date and time.

To change the selected date and time, see “Setting

the date and time d[X]” (p. 46).

1 Press the nbutton to turn

on the camera, press the joystick

to FGHI to select your

language and press the Abutton.

2 Press the joystick to FG to

select the year for [Y].

Back

Y/M/D

YMDTime

-- -- -- --

:..

2013

Date and time setting

screen

3 Press the joystick to Ito save

the setting for [Y].

Back

Y/M/D

Y M D Time

-- -- -- --

:..

2013

4 As in Steps 2 and 3, press the

joystick to FGHI to set [M]

(month), [D] (day), [Time] (hours

and minutes), and [Y/M/D] (date

order), and then press the A

button.

For precise time setting, press the Abutton as

the time signal strikes 00 seconds.

5 Press the joystick to HI to

select time zone and then press

the Abutton.

●Use FG to turn daylight saving time

([Summer]) on or off.

’13.02.26 12:30 Back

Summer

Seoul

Tokyo

Learning how to use the

camera

●Press the nbutton to turn on the camera and

enter the standby mode. (Press the nbutton

again to turn off the camera.)

●Select the shooting mode, and press the shutter

button to shoot a still image.

●To shoot a movie, press the Rbutton.

●Set the shooting functions using the function

menu or the setup menu.

●To view images, press the qbutton to switch to

playback mode.

●To return to standby mode, press the qbutton

again, or press the shutter button halfway down

and then release it.

●Press and hold the qbutton while the camera is

turned off to start up the camera in the playback

mode.

●In this case, pressing the qbutton again sets

the camera to the standby mode.

Shooting still images

1 Press the nbutton to turn on

the camera.

2 Select the shooting mode. (p. 13)

3 Hold the camera and compose the

shot.

When holding the camera, take care not to cover

the ﬂash, microphone or other important parts

with your ﬁngers, etc.

Take care so that the ﬂash window is not

exposed to ﬁngerprints or dirt.

Press the shutter button halfway

down to focus.

Press

halfway

F3.9F3.91/4001/400

Shutter

speed

AF target mark

Aperture

value

●The camera was unable to focus if the AF

target mark ﬂashes red. Try focusing again.

5 To take the picture, gently press

the shutter button all the way

down while being careful not to

shake the camera.

Press

halfway Press fully

Using the zoom

Pressing the zoom lever adjusts the shooting range.

W side T side

Image size Zoom bar

12M

Super-resolution zoom*1

Optical zoom

Other *2

*1 For Super-resolution zoom, see [Super-Res Zoom]

(p. 34).

*2 Due to increased processing of the pixel

counts, the image quality will not degrade. The

magniﬁcation ratio changes depending on the

image size setting.

Using the ﬂash

The ﬂash functions can be selected to best match the

shooting conditions.

1 Press I.

MENUMENU

Flash Auto

0.00.0

AUTO

ISO

AUTO

ISO

4:3

2 Use HI to select the setting

option, and press the Abutton

to set.

Option Description

Flash Auto The ﬂash ﬁres automatically in

low-light or backlight conditions.

Redeye Pre-ﬂashes are emitted to reduce

the occurrence of red eye in your

photos.

Fill In The ﬂash ﬁres regardless of the

available light.

Flash Off The ﬂash does not ﬁre.

LED On The LED turns on when a picture

is taken. This is effective for

taking close up pictures.

Using the self-timer

After the shutter button is pressed all the way down,

the picture is taken after a short delay.

1 Press G.

1212

0.00.0

AUTO

ISO

AUTO

ISO

MENUMENU

Off

4:3

2 Use HI to select the setting

option, and press the Abutton

to set.

Option Description

YOff The self-timer is deactivated.

Y12 sec

The self-timer lamp turns on for

approx. 10 seconds, then blinks

for approx. 2 seconds, and then

the picture is taken.

Y2 sec The self-timer lamp blinks for

approx. 2 seconds, then the

picture is taken.



Auto

Release

When your pet (cat or dog) turns

its head towards the camera, its

face is recognized and the picture

is taken automatically.

*1 [Auto Release] is displayed only when the 

mode is [U] or [t].
