Olympus Stylus 830 Manuel utilisateur

DIGITAL CAMERA

Sl:::qlus830/Z :

OLYMPUS

830

Instruction

Manual le

Button operations

Menu operations

Printing pictures

Using OLYMPUS Master

Getting to know your

camera better

Appendix

• Thank you for purchasing an Olympus digital camera Before you start to use your new camera, please

read these instructions carefully to enjoy optimum performance and a longer service life Keep this manual

in a safe place for future reference.

• We recommend that you take test shots to get accustomed to your camera before taking important

photographs.

• In the interest of continually improving products, Olympus reserves the right to update or modify

information contained in this manual

• The screen and camera illustrations shown in this manual were produced during the development stages

and may differ from the actual product.

Quick Start Guide P.3

Button operations P. 11

Menu operations P.20

Printing pictures P.38

Using OLYMPUS Master P.44

Getting to know your camera

better P.52

Appendix P.62

2 EN

Digital Camera Strap LI-42B

Lithium Ion Battery

LI-40C

Battery Charger

USB Cable AV Cabte OLYMPUS Master 2

Software CD-ROM

Items not shown: Instruction Manual (this manual), warranty card. Contents may vary

depending on purchase location.

£a

• Pull the strap tight so that it does not come loose.

EN3

a. Chargethe battery

Power Cable Lithium ion Batter

,_ Charger

AC Wall Outlet

• Battery comes partially charged.

Charging indicator

I ight On (Red): Charging

Light Off: Charging complete

(Charging time: Approx. 5 hours)

b. Insert the battery and an xD-Picture Card (optional) in the

camera.

4 EN

_ndex area Notch

• Insert the battery by

putting in the Ymarked

side first, with the

marks toward the battery

lock knob.

If you insert the battery

incorrectly, you will not be able to

remove it. Do not use force.

Contact authorized distributors/

service centers. Damage to the

battery exterior (scratches, etc.)

may produce heat or an

explosion.

Battery lock knob

To remove the battery, slide the

battery lock knob in the direction of

the arrow.

•Orient the card as shown in the

illustration and insert it straight

into the card slot.

Insertthecarduntilit clicksintoplace.

To remove the card, push it all the way in

and release it slowly. Then grasp the card

and remove.

• You can shoot pictures with this camera even without using an optional xD-

Picture Card TM (hereinafter referred to as "the card"). If an xD-Picture Card is

not inserted, your pictures will be saved to the internal memory.

For details on the card, please refer to "The card" (P. 64).

EN5

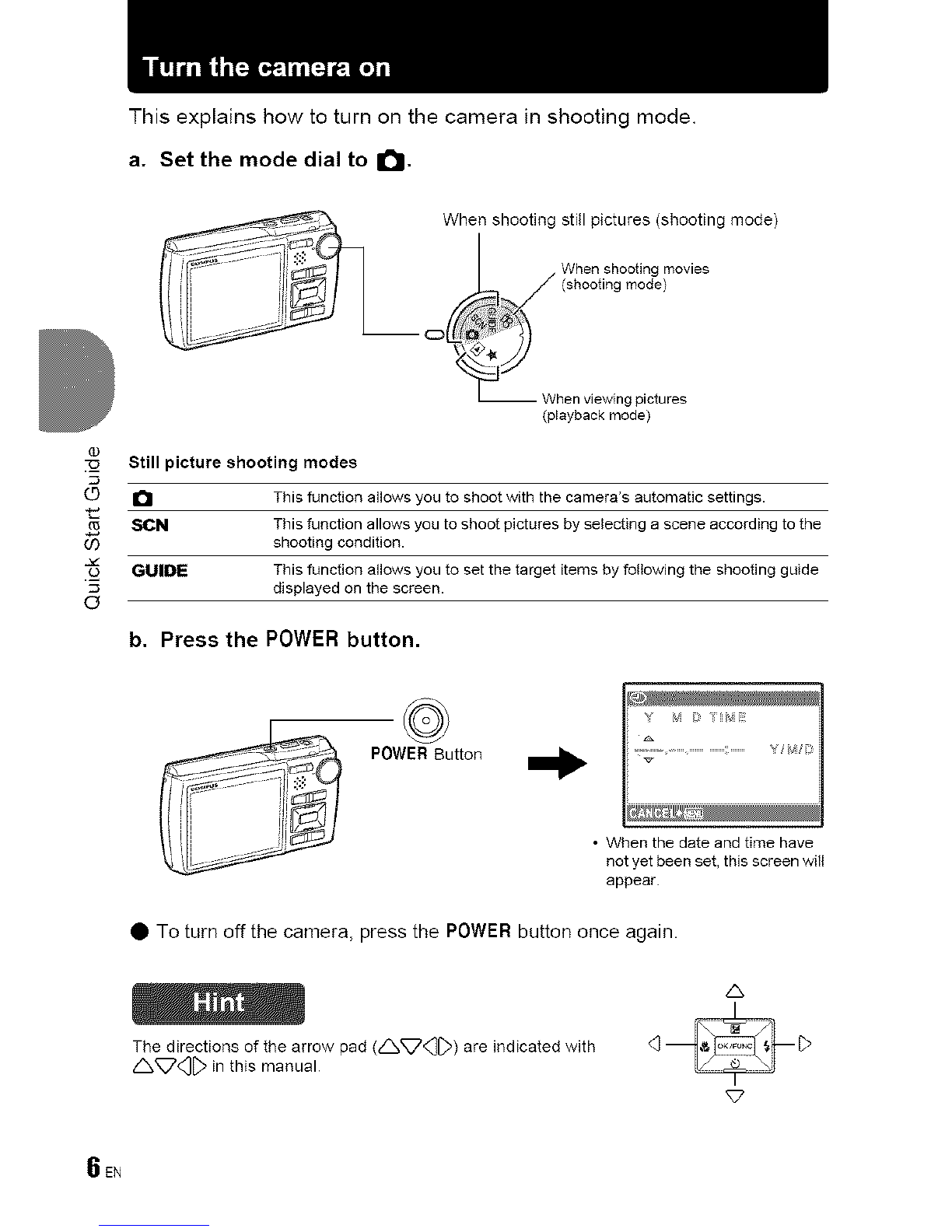

This explains how to turn on the camera in shooting mode.

a. Set the mode dial to I_.

When shooting stitl pictures (shooting mode)

LWhen shooting movies

J (shooting mode)

--C3

_ When viewing pictures

(playback mode)

Still picture shooting modes

CO It_ This function allows you to shoot with the camera's automatic settings.

,_ ,,_;N This function allows you to shoot pictures by selecting a scene according to the

03 shooting condition.

GUIDE This function allows you to set the target items by following the shooting guide

displayed on the screen.

b. Press the POWER button.

POWER Button

•When the date and time have

not yet been set, this screen will

appear.

• To turn offthe camera, press the POWER button once again.

The directions of the arrow pad (Z_) are indicated with

z_D in this manual

6 EN

Y-M-D (Year-Month-Day)

Hour

Minute

Date formats (Y-M-D, M-D-Y, D-M-Y)

Exits a setting.

a. Press the/_I_-M button and the _t_) button to select [Y].

• The first two digits of the year are fixed.

_ Button

b. Press the _ button.

: ................ g

c. Press the/_1"_ button and the _)

button to select [M].

d. Press the _ button.

E.7

pwww n1 p

e. Press the/_1_ button and the _

button to select [D].

f. Press the _>_ button.

g. Press the/_1"_ button and the _

button to select the hours and minutes.

•The time is displayed in the 24-hour format.

h. Press the _>_ button.

i. Press the/_1_-_ button and the _

button to select [Y/M/D].

j. After all items have been set, press the _ button.

• For precise time setting, press the f_11_ button as the time signal strikes 00 seconds.

8 EN

a. Hold the camera.

Horizontal grip VerticaI grip

b. Focus

Shutter Button

(Pressed

halfway)

c. Shoot

Shutter ButtoZ

(Pressed

completely)

Ptace this mark over your

subject.

The number of storable

still pictures is displayed

The green Iamp indicates the focus and

exposure are tocked The shutter speed

and aperture value are displayed

The card access lamp blinks

EN!I

a. Set the mode dial to I_"1.

POWERBut_-_ton

Arrow Pad _,_

Next Picture

Prey. Picture

Mode Dial

a. Press the _ button and the [_ button to display the picture

that you want to erase.

b. Press the _"/f_> button.

_,_/t_> Button

c. Press the/_F-_ button to select [YES] and press the _button

to erase the picture.

10 EN
