Olympus FE-5040 Manuel utilisateur

Instruction Manual

FE-5040

DIGITAL CAMERA

●Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these

instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for

future reference.

●We recommend that you take test shots to get accustomed to your camera before taking important photographs.

●In the interest of continually improving our products, Olympus reserves the right to update or modify information

contained in this manual.

●The screen and camera illustrations shown in this manual were produced during the development stages and may

differ from the actual product.

Step 1

Other accessories not shown: warranty card

Contents may vary depending on purchase location.

Checking the contents of the box

LI-70B Lithium

Ion Battery

USB cable OLYMPUS

Setup

CD-ROM

Step 2

Preparing the Camera

“Preparing the Camera” (p. 12)

Step 3

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 19)

Step 4

How to Use the Camera

“Camera Settings” (p. 3)

Step 5

Printing

“Direct printing (PictBridge)” (p. 47)

“Print Reservations (DPOF)” (p. 51)

Contents

Names of Parts............................................... 8

Preparing the Camera.................................. 12

Shooting, Viewing, and Erasing ................. 19

Using Shooting Modes ................................ 26

Using Shooting Functions .......................... 30

Menus for Shooting Functions ................... 34

Menus for Playback, Editing, and Printing

Functions...................................................... 37

Menus for Other Camera Settings.............. 40

Printing.......................................................... 47

Usage Tips .................................................... 54

Appendix....................................................... 59

Digital camera Strap AV cableF-2AC

USB-AC adapter

Camera Settings

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Shutter button (p. 20)

Zoom buttons (p. 21)

qbutton (switch between shooting and

playback) (p. 20, 22)

mbutton (p. 5)

Ebutton (menu guide) (p. 25)

Arrow pad

H(left)

G(down) /

Dbutton (erase) (p. 24)

F(up) /

INFO button (change information

display) (p. 22, 25)

I(right)

Hbutton

(p. 4, 17)

The symbols FGHI displayed for image

selections and settings indicate that the arrow pad

is to be used.

ORM

SINGLE PRINT

4/304/30

12:30’10/10/26’10/10/26 12:30

ORM

12M

FILE

100 0004100 0004

10 26 12 30:..2010

SET

YMDTIME

CANCEL

Y/M/DY/M/D

Using the Menu

Use the menu to change camera settings such as the shooting mode.

There may be menus that are unavailable depending on other related settings or the smode (p. 26).

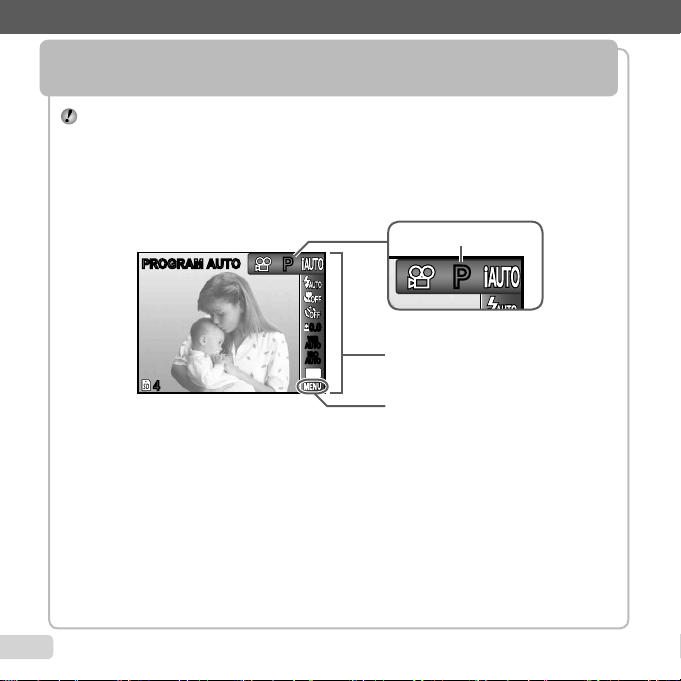

Function menu

Press the Hbutton during shooting to display the function menu. The function menu is used to choose the

shooting mode and provides access to frequently used shooting settings.

To select the shooting mode

Use HI to select a shooting mode and press the Hbutton.

To select the function menu

Use FG to select a menu and use HI to select a menu option. Press the H

button to set the function menu.

0.00.0

AUTO

ISO

AUTO

ISO

PROGRAM AUTOPROGRAM AUTO

Shooting

Function menu

Shooting mode

Selected option

Setup menu (p. 5)

1Press the mbutton.

The setup menu is displayed.

DIGITAL ZOOM OFF

AF MODE FACE/iESP

SETEXIT

ICON GUIDE ON

RESETRESET

COMPRESSION NORMAL

2Press Hto highlight the page tabs. Use

FG to select the desired page tab and

press I.

SETEXIT

POWER SAVE OFF

VIDEO OUT NTSC

BRIGHT

ENGLISH

WORLD TIME

PIXEL MAPPING

Page tab

SETEXIT

POWER SAVE OFF

VIDEO OUT NTSC

BRIGHT

ENGLISH

WORLD TIME

PIXEL MAPPINGPIXEL MAPPING

Submenu 1

3Use FG to select the desired submenu 1

and then press the Hbutton.

SETEXIT

VIDEO OUT NTSC

BRIGHT

ENGLISH

WORLD TIME

PIXEL MAPPING

POWER SAVEPOWER SAVE OFFOFF

SET

BACK

POWER SAVEPOWER SAVE OFFOFF

VIDEO OUT NTSC

BRIGHT

ENGLISH

WORLD TIME

PIXEL MAPPING

POWER SAVE

OFFOFF

Submenu 2

●

4Use FG to select the desired submenu 2

and then press the Hbutton.

Once a setting is selected, the display returns to

the previous screen.

There may be additional operations.

“Menu Settings” (p. 34 to 46)

SETEXIT

VIDEO OUT NTSC

BRIGHT

ENGLISH

WORLD TIME

PIXEL MAPPING

POWER SAVEPOWER SAVE ONON

5Press the mbutton to complete the

setting.

●

Setup menu

Press the mbutton during shooting or playback to display the setup menu. The setup menu provides access

to a variety of camera settings, including options not listed in the function menu, display options, and the time and

date.

Menu Index

Menus for Shooting Functions

1Shooting mode

P(PROGRAM AUTO)......p. 19

M(iAUTO)...................p. 26

N(DIS MODE) ..............p. 26

s(SCENE MODE) .....p. 26

P(MAGIC FILTER) ....p. 28

~(PANORAMA) ..............p. 29

A(MOVIE) ......................p. 20

2Flash.................................p. 30

3Macro ...............................p. 30

4Self-timer ..........................p. 31

5Exposure compensation...p. 31

6White balance...................p. 32

7ISO ...................................p. 32

8Image size (Still images) ..p. 33

9#(Setup) X

z(Shooting) / A(Movie)

RESET..............................p. 34

IMAGE SIZE (Movies) ......p. 34

COMPRESSION

(Still images) ...................p. 34

FRAME RATE (Movies)....p. 34

AF MODE .........................p. 35

DIGITAL ZOOM ................p. 35

R(Movies)........................p. 35

ICON GUIDE ....................p. 36

0.00.0

AUTO

ISO

AUTO

ISO

PROGRAM AUTOPROGRAM AUTO

SETEXIT

DIGITAL ZOOM OFF

AF MODE FACE/iESP

ICON GUIDE ON

RESET

COMPRESSION NORMAL

IMAGE SIZE VGA

FRAME RATE 30fps

SETEXIT

Menus for Playback, Editing, and Printing Functions

1r(Settings 1)

MEMORY FORMAT/

FORMAT....................... p. 40

BACKUP....................... p. 40

USB CONNECTION..... p. 40

qPOWER ON ........... p. 41

KEEP KSETTINGS... p. 41

PW ON SETUP ............ p. 41

SOUND SETTINGS ..... p. 42

2s(Settings 2)

PIXEL MAPPING.......... p. 43

s(Monitor) ................ p. 43

VIDEO OUT.................. p. 44

POWER SAVE.............. p. 45

W(Language)............ p. 45

X(Date/time)............. p. 45

WORLD TIME............... p. 46

SETEXIT

BACKUP

qPOWER ON YES

FORMAT

KEEP

SETTINGS

YES

USB CONNECTION

STORAGE

PW ON SETUP ON

SOUND SETTINGS

Menus for Other Camera Settings

SETEXIT

SLIDESHOW

EDIT

ERASE

PRINT ORDER

1q(Playback)

SLIDESHOW................ p. 37

EDIT ....................... p. 37, 38

ERASE ......................... p. 38

PRINT ORDER............. p. 39

?(Protect).................... p. 39

y(Rotate).................... p. 39

Names of Parts

Camera unit

41 6

1Strap eyelet .................... p. 9

2Battery/card compartment

cover ........................... p. 12

3Multi-connector

.................. p. 13, 16, 44, 47

4Flash............................. p. 30

5Self-timer lamp ............. p. 31

6Lens........................ p. 59, 73

7Microphone............. p. 35, 37

Tripod socket

Speaker

1 2

1nbutton........ p. 17, 19

2 Shutter button............... p. 20

3Monitor ................... p. 19, 54

4Zoom buttons ............... p. 21

5Indicator lamp......... p. 13, 16

6qbutton

(switch between shooting

and playback) ....... p. 20, 22

7Hbutton (OK) ......... p. 4, 17

8Arrow pad ....................... p. 3

INFO button

(change information

display) ................. p. 22, 25

Dbutton (erase) .......... p. 24

9Ebutton (menu guide)

.................................... p. 25

mbutton .................. p. 5

Attaching the camera strap

Pull the strap tight so that it does not come loose.

Monitor

Shooting mode display

1/100 F2.8F2.8

1/100

ORM

0.00.0

AUTO

ISO

AUTO

ISO

1 2

1314

1819

Still image

Movie

0:340:34

0.00.0

AUTO

VGA

1 2

914 11

1Battery check................ p. 16

2Shooting mode ....... p. 19, 26

3Flash............................. p. 30

Flash standby/ﬂash charge

.................................... p. 54

4Macro ........................... p. 30

5Self-timer ...................... p. 31

6Exposure compensation

.................................... p. 31

7White balance............... p. 32

8ISO ............................... p. 32

9Image size .............. p. 33, 34

Setup menu .................... p. 5

Recording with sound

(movies) ...................... p. 35

World time .................... p. 46

Compression

(still images)................ p. 34

Number of storable pictures

(still images)................ p. 19

Continuous recording length

(movies) ...................... p. 21

Current memory ........... p. 61

AF target mark.............. p. 20

Camera shake warning

Aperture value .............. p. 20

Shutter speed ............... p. 20

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Guide de configuration

Olympus

Olympus E-P2 - PEN 12.3 MP Micro Four Thirds Interchangeable Lens Digital... Instructions de montage

Olympus

Olympus X-700 Guide d'installation

Olympus

Olympus SC180 Manuel utilisateur

Olympus

Olympus SP 100EE Manuel utilisateur

Olympus

Olympus E300 - 14-54mm f/2.8-3.5 Zuiko ED Digital SLR... Guide d'installation

Olympus

Olympus 226275 - Stylus 1010 10MP Digital Camera Guide de configuration

Olympus

Olympus FE-190 Manuel utilisateur

Olympus

Olympus C5000 - 5MP Digital Camera Manuel utilisateur

Olympus

Olympus Stylus 800 Guide de configuration

Olympus

Olympus SP-590 Guide d'installation

Olympus

Olympus Pen E-P7 Manuel utilisateur

Olympus

Olympus FE 370 - Digital Camera - Compact Guide de configuration

Olympus

Olympus CAMEDIA C-3020 Zoom Manuel utilisateur

Olympus

Olympus C-2020ZOOM - CAMEDIA - Digital Camera Manuel utilisateur

Olympus

Olympus Stylus 1050SW Guide de configuration

Olympus

Olympus E-M5Mark II Manuel utilisateur

Olympus

Olympus E420 - Evolt 10MP Digital SLR Camera Guide de démarrage rapide

Olympus

Olympus X-715 Manuel utilisateur

Olympus

Olympus E-600 Instructions de montage

Olympus

Olympus CAMEDIA C-740 Ultra Zoom Manuel utilisateur

Olympus

Olympus CAMEDIA D-360L Manuel utilisateur

Olympus

Olympus C-700 - CAMEDIA Ultra Zoom Manuel utilisateur

Olympus

Olympus Super DLX IS-10 Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
