Olympus FE-46 Manuel utilisateur
DIGITAL CAMERA
FE-46/X-42/X-41
●Thank you for purchasing an Olympus digital camera. Before you start to
use your new camera, please read these instructions carefully to enjoy
optimum performance and a longer service life. Keep this manual in a
safe place for future reference.
●We recommend that you take test shots to get accustomed to your
camera before taking important photographs.
●In the interest of continually improving our products, Olympus reserves
the right to update or modify information contained in this manual.
●The screen and camera illustrations shown in this manual were produced
during the development stages and may differ from the actual product.
Instruction Manual
Preparing the Camera
“Preparing the Camera” (p. 10)
Names of Parts ................................. 6
Preparing the Camera .................... 10
Shooting, Playback, and Erasing
... 14
Using Shooting Modes................... 17
Using Shooting Functions............. 19
Using Playback Features ............... 23
Menus for Shooting Functions...... 24
¾
¾
¾
¾
¾
¾
¾
Menus for Playback, Editing, and
Printing Functions.......................... 28
Menus for Other Camera Settings
.. 30
Printing ............................................ 34
Using OLYMPUS Master 2.............. 39
Usage Tips ...................................... 41
Appendix ......................................... 45
Index ................................................ 59
¾
¾
¾
¾
¾
¾
¾
Contents
Contents
Step 2
Shooting and Playing Back Images
“Shooting, Playback, and Erasing” (p. 14)
Step 3
How to Use the Camera
“Three Types of Setting Operations” (p. 3)
Step 4
Printing
“Direct printing (PictBridge)” (p. 34)
“Print Reservations (DPOF)” (p. 37)
Step 5
2
EN

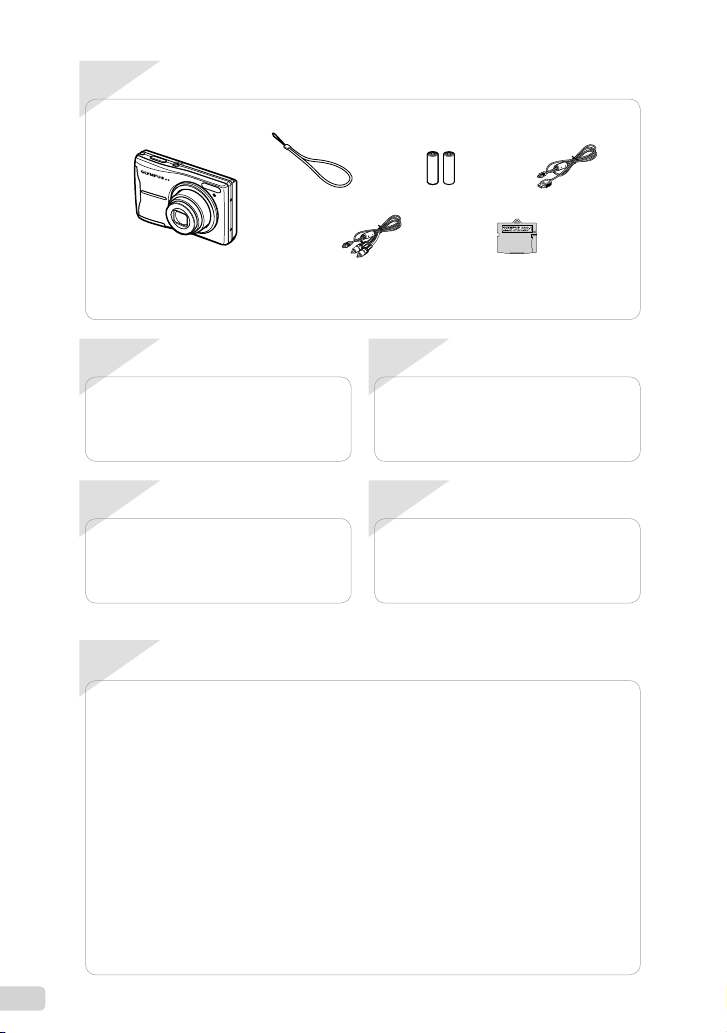

Checking the contents of the box
Step 1
Other accessories not shown: Instruction Manual (this manual), OLYMPUS Master 2, warranty card.
Contents may vary depending on purchase location.
Digital camera
Strap Two AA batteries USB cable
microSD AttachmentAV cable
1Press the mbutton.
This example describes how to use the
menus to set the [POWER SAVE].
CAMERA MENU
MENU
EXIT SET
OK
Shooting mode top menu
2Use klmn to select the desired
menu, and press the Bbutton.
Pressing and
holding the E
button displays
an explanation
(menu guide)
of the selected
option.
BACKUP
NO
1
2
3
SETUP
SET
OK
ENGLISH
PIXEL MAPPING
MEMORY FORMAT
MENU
EXIT
Submenu 1
●
Please read “Menu Settings” (p. 24 to 33) while referring to this page.
3Use kl to select the desired
Submenu 1, and press the
Bbutton.
1
2
3
SETUP
MENU
EXIT SET
OK
POWER SAVE OFF
NTSCVIDEO OUT
ALKALINEBATTERY TYPE
1
2
3
SETUP
MENU
SET
OK
BACK
POWER SAVE OFF
NTSCVIDEO OUT
ALKALINEBATTERY TYPE
POWER SAVE
OFF
ON
Page tab Submenu 2
To quickly move to the desired submenu,
press mto highlight the page tab, and then
use kl to move the page. Press nto
return to the submenu.
Some menus include submenus that
appear by pressing the Bbutton.
4Use kl to select Submenu 2,
and press the Bbutton.
Once a setting is selected, the display
returns to the previous screen.
There may
be additional
operations.
“Menu Settings”
(p. 24 to 33)
1
2
3
SETUP
MENU
EXIT SET
OK
POWER SAVE ON
NTSCVIDEO OUT
ALKALINEBATTERY TYPE
5Press the mbutton to complete
the setting.
●
Three Types of Setting Operations
Using the Menu
Using the Menu
Various camera settings can be accessed through
the menus, including functions used during shooting
and playback and the date/time and screen display.
There may be menus that are unavailable
depending on other related settings or the
smode (p. 17).
mbutton Arrow pad
Bbutton
Buttons in use
Ebutton
3
EN
4
EN
Using the FUNC Menu (p. 22)
Using the FUNC Menu (p. 22)
Frequently used shooting menu functions can be set with less
steps using the FUNC menu.
Using the Direct Buttons
Using the Direct Buttons
Frequently used shooting functions can be accessed using the
direct buttons.
Shutter button (p. 14)
Kbutton (shooting/switching shooting modes)
(p. 17, 18)
qbutton (playback) (p. 15)
Zoom buttons (p. 19)
Fbutton (exposure compensation) (p. 20)
&button (macro) (p. 20)
#button (flash) (p. 19)
Ybutton (self-timer) (p. 21)
g/Ebutton (changing information display/
menu guide) (p. 22, 23/p. 17)
/Dbutton (backlight boost/erase)
(p. 21/p. 16, 29)
Bbutton (p. 22)
Arrow pad
Buttons in use
Bbutton
5
EN
1GSLIDESHOW.............. p. 28
2HPERFECT FIX ............ p. 28
3IEDIT
Q(Resize) ............... p. 28
P(Crop) ................... p. 28
Menus for Playback, Editing, and Printing Functions
In playback mode, settings can be adjusted.
MENU
EXIT SET
OK
PLAYBACK MENU
2
3
4
5
6
7
8
1
Playback mode top menu
4JPLAYBACK MENU
0(Protect) .............. p. 28
y(Rotate).................. p. 29
R(Add sound to still
images) ................... p. 29
5KERASE ....................... p. 29
6LPRINT ORDER........... p. 29
7ESETUP*
*Same as “Menus for
Shooting Functions”
8FSILENT MODE ........... p. 33
1AIMAGE QUALITY........ p. 24
2BCAMERA MENU
WB.............................. p. 25
ISO ............................. p. 25
R(Still images/movies)
................................ p. 25
PANORAMA ............... p. 26
AF MODE ................... p. 26
3CSWITCH SHOOTING
MODES
P ................................ p. 14
G............................ p. 17
DIS MODE.................. p. 18
s........................... p. 17
MOVIE........................ p. 18
4QMAGIC FILTER........... p. 27
5DRESET........................ p. 27
6ESETUP
MEMORY FORMAT/
FORMAT ................. p. 30
BACKUP..................... p. 30
W(Language)....... p. 30
PIXEL MAPPING........ p. 30
K/q........................ p. 31
SAVE SETTINGS ....... p. 31
MENU COLOR ........... p. 31
BEEP.......................... p. 31
s(Monitor) .............. p. 31
X(Date/time)........... p. 31
VIDEO OUT................ p. 32
POWER SAVE............ p. 33
BATTERY TYPE ......... p. 33
7FSILENT MODE ........... p. 33
Menu Index
Menus for Shooting Functions
In shooting mode, settings can be adjusted.
MENU
EXIT SET
OK
CAMERA MENU
5
1
2
3
6
7
4
Shooting mode top menu
6
EN
Names of Parts
1Strap eyelet................................. p. 10
2Battery/card
compartment cover .....................p. 10
3Microphone ...........................p. 25, 29
4Flash ........................................... p. 19
Camera unit
8
7
1
3
4
5
6
2
5Self-timer lamp............................ p. 21
6Lens ......................................p. 45, 58
7Tripod socket
8Multi-connector ...............p. 32, 34, 39
7
EN
3
1
4
5
7
8
12
10
11
9
2
6
1nbutton ............................p. 12
2 g/Ebutton (changing information
display/menu guide)..... p. 22, 23/p. 17
3 Monitor.................................. p. 14, 41
4 mbutton................................. p. 3
5 /Dbutton (backlight boost/erase)
................................p. 21/p. 16, 29
6Shutter button .............................p. 14
7 Zoom buttons.............................. p. 19
8 Card access lamp .......................p. 46
9 Kbutton (shooting/
switching shooting modes) ...p. 17, 18
10 qbutton (playback) .................. p. 15
11 Bbutton (OK/FUNC).............. p. 3, 22
12 Arrow pad ...............................p. 3, 12
Fbutton (exposure compensation)
..........................................p. 20
&button (macro) ................... p. 20
Ybutton (self-timer) .............. p. 21
#button (flash)...................... p. 19
8
EN
Monitor
Shooting mode display
+2.0 1/30 F3.5
P
4
IN
ISO
400
N
ORM
1
6
8
7
10121314 911
18
17
16
15
2 4 53
+2.0
IN
00:34
QVGA
15
1
8
7
10 91114
18
16
15
2 4 53
12M12M
Still image Movie
1 Shooting mode............................ p. 14
2 Flash mode .................................p. 19
3 Silent mode................................. p. 33
4 Macro/super macro..................... p. 20
5 Battery check ..............................p. 10
6 Flash standby/camera shake
warning/flash charge............. p. 19, 41
7 AF target mark ............................p. 14
8 Recording with sound .................p. 25
9 Number of storable still pictures/
remaining recording time ...p. 14/p. 18
10 Current memory.......................... p. 46
11 Self-timer ....................................p. 21
12 Aperture value ............................p. 14
13 Shutter speed .............................p. 14
14 Exposure compensation .............p. 20
15 Compression/frame rate .............p. 24
16 Image size ..................................p. 24
17 ISO.............................................. p. 25
18 White balance .............................p. 25
9
EN
Playback mode display
12
M
2009.10.262009.10.26 12:30 4
+2.0
F3.5
10
IN
x
100-0004
N
ORM
1/1000
ISO 4
00
2
9
10
8
6
7
11
34 51
15
16
121314
2009.10.262009.10.26 12:30
100-0004
00:14
/
00:34
IN
QVGA
15
10
15
8
9
11
34 51
1213
Still image Movie
1 Silent mode................................. p. 33
2 Print reservations/
number of prints................. p. 37/p. 36
3 Adding sound.............................. p. 29
4 Protect ........................................p. 28
5 Battery check ..............................p. 10
6 Aperture value ............................p. 14
7 Exposure compensation .............p. 20
8 White balance .............................p. 25
9 Image size ..................................p. 24
10 File number....................................... -
11 Frame number/
Elapsed time/total recording time
........................................... p. 15/p. 16
12 Current memory.......................... p. 46
13 Compression/frame rate .............p. 24
14 ISO.............................................. p. 25
15 Date and time .............................p. 12
16 Shutter speed .............................p. 14
10
EN
Preparing the Camera
2
For the types of batteries that can be used,
see “Battery handling precautions” (p. 45).
When using NiMH batteries, be sure they
are fully charged, and select [NiMH] for
[BATTERY TYPE]. [BATTERY TYPE] (p.33)
Turn off the camera before opening the
battery/card compartment cover.
When using the camera, be sure to close
the battery/card compartment cover.
When to replace the batteries
Replace the batteries when the error
message shown below appears.
BATTERY EMPTY
Monitor top right Error message
Flashes in red
Attaching the camera strap
Pull the strap tight so that it does not come
loose.
Loading the batteries and
the xD-Picture Card™ (sold
separately) into the camera
Do not insert anything other than an
xD-Picture Card or the microSD Attachment
into the camera.
1
3
2
1Battery/card
compartment
cover
Autres manuels pour FE-46
3
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels Olympus Appareil photo numérique
Olympus
Olympus Camedia D-340R Manuel utilisateur
Olympus
Olympus CAMEDIA C-2020 Zoom Manuel utilisateur
Olympus
Olympus TG-320 Manuel utilisateur
Olympus
Olympus E620 - Evolt 12.3MP Live MOS Digital SLR... Manuel utilisateur
Olympus
Olympus CAMEDIA C-7070 Wide Zoom Manuel utilisateur
Olympus
Olympus u TOUGH-8000 Manuel utilisateur
Olympus
Olympus STYLUS VERVE S Guide d'installation
Olympus
Olympus CAMEDIA C-350ZOOM Manuel utilisateur
Olympus
Olympus FE-4020 Mode d’emploi
Olympus
Olympus Tough 6000 - Stylus 10 MP Waterproof Digital... Instructions de montage
Olympus
Olympus X-785 Manuel utilisateur
Olympus
Olympus SP 320 - Digital Camera - 7.1 Megapixel Manuel utilisateur
Olympus
Olympus Stylus 810 Guide d'installation
Olympus
Olympus IS-1 Manuel utilisateur
Olympus
Olympus T-10 Manuel utilisateur
Olympus
Olympus E620 - Evolt 12.3MP Live MOS Digital SLR... Guide de configuration
Olympus
Olympus C-570 Guide d'installation
Olympus
Olympus 262090 Manuel utilisateur
Olympus
Olympus CAMEDIA C-740 Ultra Zoom Manuel utilisateur
Olympus
Olympus T-100 Mode d’emploi
