E-330

• World's first Live View

digital SLR with two modes

• Full time Live View with

incorporated AF

• 6.4cm / 2.5� multi-angle

LCD

• 7.5 Megapixels Live MOS

sensor

• Strong dust reduction

(Supersonic Wave Filter)

• Dual slot for CF and xD-

Picture Cards

• Built-in pop-up flash • AEL functionality

The E-330, is the first digital SLR to offer the comfort and flexibility of continuous live views directly on the LCD. This ground-breaking

innovation enables framing of shots without the need to look through the viewfinder. Additionally, thanks to a tilting, multi-angle LCD

measuring a large 2.5�/ 6.4cm, the Olympus E-330 extends versatility even further. It makes capturing shots from unusual angles,

such as in crowds or during macro photo sessions effortless. The 7.5 million live MOS sensor, a fast sequence speed of 3 fps, the

professional AEL and bracketing function and last but not least the dust reduction system for carefree shooting makes this camera a

perfect working tool for ambitious photographers.

Specifications

Type

Lens mount Four Thirds mount

Body material Engineering plastics

Image Sensor

Effective pixels 7.5 Megapixels

Filter array Primary colour filter (RGB)

Full resolution 7.94 Megapixels

Type 4/3'' Live MOS sensor (4/3

type MOS solid-state image

sensor)

Aspect ratio & area 4:3 / 17.3 x 13.0mm

Filter

LPF filter Fixed type

IR cut filter Hybrid type

Dust reduction filter Supersonic Wave Filter

Viewfinder

Viewfinder type Eye-level TTL Optical Porro

mirror type finder

Field of view Approx. 95%

Magnification Approx. 0.93x with a 50mm

lens set to infinity at -1

dioptre

Depth of field preview Customised Drive button.

Selectable in optical

viewfinder or on the LCD

monitor.

Eye point 18mm at -1 dioptre

Diopter adjustment -3.0 - +1.0 diopter / built-in

type

Focusing screen Fixed type

Mirror Side swing quick return mirror

Displayed information

Eye piece shutter built-in type

Specifications and appearances are subject to change without any notice or obligation on the part of the manufacturer

Live View

A mode Full time Live View with

incorporated AF. No time

limitation. Field of view:

approx. 92% Grid and 2

passport templates are

available.

B mode Live View with AF function.

Field of view: 100%. Close up

10x and position selectable.

Grid: golden section, 8x6

grid, scale.

Focusing System

Method TTL phase difference

detection system

Focus areas 3 points / Automatic and

manual selection

AF illuminator Yes , Built-in flash, optional

Olympus dedicated flashes

AF lock Yes , Locked by first position

of shutter release button, AE/

AF lock button (customised)

AF tracking Yes , Available in continuous

AF mode

Detection range (ISO 100)

Exposure System

Exposure compensation +/- 5EV / 1, 1/2, 1/3 steps

Exposure bracketing 3 frames / +/- 1/3, 1/2, 2/3, 1

EV steps

Scene Modes

Number of scene modes 20

Light Metering

Method TTL open aperture light

metering

Zones 49 zones Multi-pattern

Sensing System

Detection range 2 - 20 EV (50mm, 1:2, ISO

100) Digital ESP and centre-

weighted average

3 - 17 (50mm, 1:2, ISO 100)

Spot

Sensitivity

Auto ISO 100 - 400

Manual ISO 100 - 400 Expandable

to 1600 (in each 1/3 EV

steps possible). Noise filter is

selectable in ISO boost.

Shutter

Shutter type Electronically controlled focal

plane shutter

Shutter release Soft Touch Electromagnetic

Self timer 12s / 2s

Shutter Speeds

Shutter speed range 1/4000 - 60s (up to 8 min in

Bulb mode)

Shutter speed P, Ps 1/4000 - 60s (depends on

settings)

Shutter speed A priority 1/4000 - 60s

Shutter speed S priority 1/4000 - 60s

Shutter speed Manual 1/4000 - 60s (up to 8 min in

Bulb mode)

Shutter speed scene mode 1/4000 - 4s

White Balance

AUTO WB system Advanced detection system

with Live MOS imager.

Manual White balance (One-

Touch)

Yes

Selectable steps in Kelvin 7 steps (3000 - 7500 K)

White balance bracketing 3 frames / +/- 5, 10, 15mired

steps

White balance adjustment +/- 7

Sequence Shooting

Sequential shooting mode 3.0fps / 15 frames

3fps / 4 frames RAW & TIFF

Specifications and appearances are subject to change without any notice or obligation on the part of the manufacturer

Image Processing

Colour space sRGB / AdobeRGB

Sharpness + Contrast 5 levels

Saturation 5 levels

Contrast 5 levels

Black & White filter Yellow, Orange, Red, Green

in Black & White and Sepia

mode.

Black & White toning Sepia, Blue, Red, Green in

Black & White mode.

Picture mode Vivid, Natural, Muted, Black &

White, Sepia.

Gradation 3levels (high key, normal, low

key)

Engine TruePic TURBO

Internal Flash

Guide number 13

Flash compensation +/- 2 EV / 1/3, 1/2, 1 EV

steps

External Flash Control

X-sync speed 1/180s / 1/4000s (Super FP

Mode)

Type TTL auto FP/ TTL auto for

Olympus dedicated flash,

auto or manual

Modes Auto

Manual

Red-eye reduction

Slow synchronisation with

red-eye reduction

Slow synchronisation

2nd curtain and slow

synchronisation

Fill-in for exclusive flash

Intensity +/- 2 EV / 1, 1/2, 1/3 EV

steps

Monitor

Resolution 215250 dots

Monitor type HyperCrystal LCD

Monitor size 6.4cm / 2.5''

Brightness adjustment +/- 7 levels

Recording Formats

RAW 12bit

RAW & JPEG parallel recording

JPEG Yes

TIFF 8bit RGB

JPEG compression 1/2.7SHQ 1/4HQ 1/8,

1/12SQ

Image Size

SHQ 3136 x 2352

HQ 3136 x 2352

SQ 2560 x 1920

1600 x 1200

1280 x 960

1024 x 786

Still Image Recording

EXIF 2.2

PIM II

DPOF Yes

DCF Yes

View Images

Histogram in playback mode Yes

Zoom 2, 3, 4, 6, 8, 10, 14x

Index 4, 9, 16, 25 frames

Slide show Yes

Calendar Yes

Shooting information Exposure mode, metering

mode, shutter speed,

aperture value, exposure

compensation level, ISO,

colour space, white balance

mode, white balance

compensation level, focal

length, focus area, file type,

picture mode, file name,

image size, recorded card

type.

Exposure level view Histogram (R,G,B available),

High light point warning,

Shadow point warning.

Erase / Protect / Copy Function

Erase modes Single, All, Selected

Image protect mode Single, Selected

Copy mode Single, All, Selected

Specifications and appearances are subject to change without any notice or obligation on the part of the manufacturer

Image Editing

RAW data edit Yes

Red-eye reduction Yes

Sepia Yes

Black & White Yes

Resize Yes

Correction of saturation Yes

Interface

USB 1.1 Yes

Combined V & USB output Yes NTSC or PAL selectable

Ethernet 10/100 Yes

Infrared Yes

Combined A/V & USB output Yes

USB 2.0 compatible Yes

USB 2.0 High Speed Yes

Video out Yes

Environment

Temperature 0 - 40°C operating

temperature / -20 - 60°C

storage temperature

Humidity 30 - 90% operation humidity /

10 - 90% storage humidity

Size

Dimensions (W x H x D) 140 x 87 x 72mm

Weight 550g (without battery and

card)

Autres manuels pour EVOLT E-330

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus STYLUS 710 Manuel utilisateur

Olympus

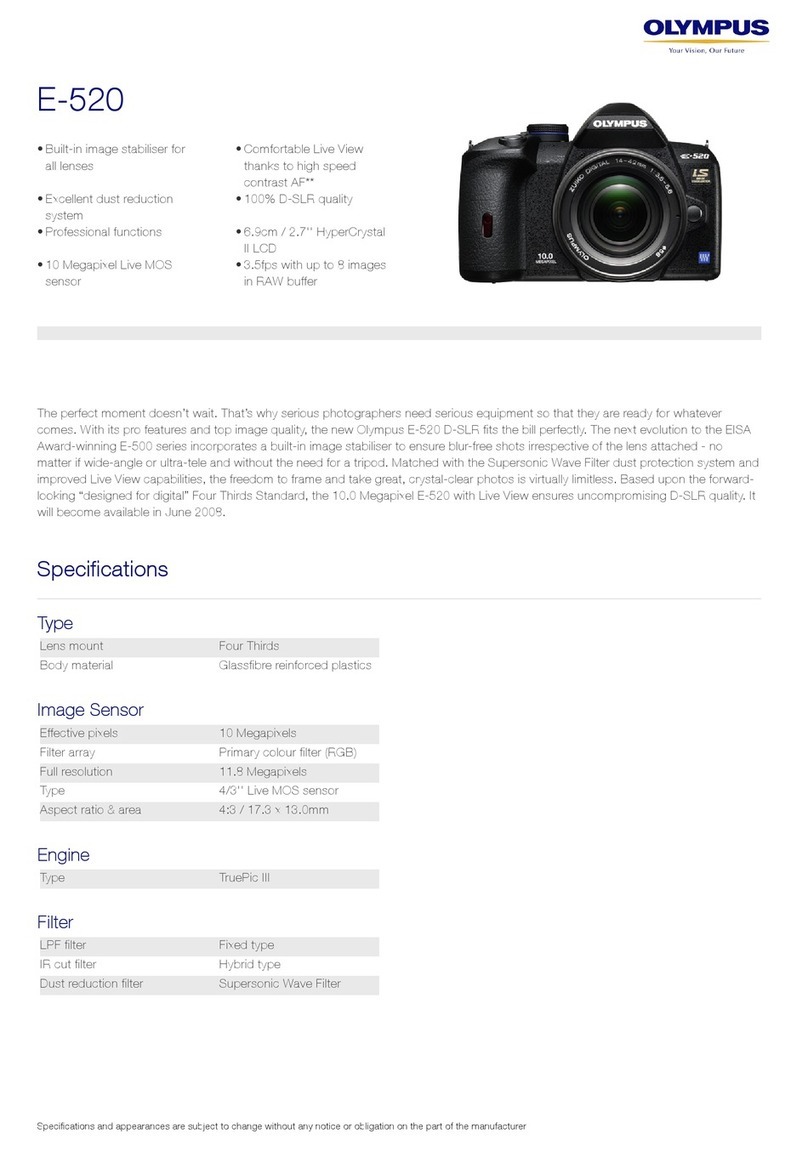

Olympus E420 - Evolt 10MP Digital SLR Camera Manuel utilisateur
