Olympus CAMEDIA D-535 ZOOM Manuel utilisateur

Thank you for purchasing an Olympus digital camera. Before you

start to use your new camera, please read these instructions care-

fully to enjoy optimum performance and a longer service life. Keep

this manual in a safe place for future reference.

We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

Screen and camera illustrations shown in this manual may differ

from those of the actual product.

DIGITAL CAMERA

D-535 ZOOM

C-370 ZOOM

X-450

REFERENCE MANUAL

For customers in North and South America

For customers in Europe

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.

• Microsoft and Windows are registered trademarks of Microsoft Corporation.

• Macintosh is a trademark of Apple Computer Inc.

• All other company and product names are registered trademarks and/or

trademarks of their respective owners.

• The standards for camera file systems referred to in this manual are the “Design

Rule for Camera File System/DCF” standards stipulated by the Japan Electronics

and Information Technology Industries Association (JEITA).

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer protection.

“CE” mark cameras are intended for sales in Europe.

For customers in USA

Declaration of Conformity

Model Number : D-535 ZOOM/C-370 ZOOM/X-450

Trade Name : OLYMPUS

Responsible Party :

Address : Two Corporate Center Drive, PO Box 9058, Melville,

New York 11747-9058 U.S.A.

Telephone Number :1-631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Composition of the manual

For playing back and erasing

pictures.

Getting started

About the menus

Shooting

Playback

Useful functions

Print setting (DPOF)

Miscellaneous

Troubleshooting and other

information.

Contents P.4

P.8

P.31

P.36

P.62

P.76

P.84

P.91

P.124

Direct printing (PictBridge)

Specifications

Glossary of terms

P.137

P.139

Settings that make the

camera easier to operate.

Printing pictures.

Downloading images to a PC

for displaying.

Index P.141

Introduction of the camera’s

functions.

Connecting to a computer

P.103

Basic and advanced photography

for various subjects.

Contents

Composition of the manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1 Getting started 8

Names of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Monitor indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Attaching the strap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Loading the batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Selecting optional batteries or an AC adapter. . . . . . . . . . 17

About the internal memory and the card . . . . . . . . . . . . . . . . . 19

Internal memory basics . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Relationship between the internal memory and the card

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Inserting a card (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Card basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Switching between the shooting mode and the playback mode

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Selecting a language . . . . . . . . . . . . . . . . . . . . . . . . . 26

Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . 28

2 About the menus 31

How to use the menus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Shooting mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Playback mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

3 Shooting 36

Shooting mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Taking still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

If correct focus cannot be obtained . . . . . . . . . . . . . . . . . . . . . 42

Determine the position of the subject after focusing

(Focus Lock)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Subjects that are difficult to focus on . . . . . . . . . . . . . . . . 44

Recording movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Using the flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Macro mode shooting . . . . . . . . . . . . . . . . . . . . . . . . . 53

Self-timer shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Selecting a record mode . . . . . . . . . . . . . . . . . . . . . . . . . 57

Varying the image brightness (Exposure compensation)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4 Playback 62

Viewing still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Close-up playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Picture rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Index display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Selecting the number of pictures . . . . . . . . . . . . . . . . 67

Slideshow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Playback on TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Viewing movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Protecting pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Erasing pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Single-frame erase . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

All-frame erase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Contents

5 Useful functions 76

RESET - Resetting the settings to the default . . . . . . . . . . . . . 76

Formatting the internal memory/card. . . . . . . . . . . . . . . . . . . . 78

BACKUP - Copying pictures to a card. . . . . . . . . . . . . . . . . . . 80

SLEEP - Setting the time period to switch to the sleep mode

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

PIXEL MAPPING - Checking the image processing functions

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

VIDEO OUT - Setting the output signal type . . . . . . . . . . . . . . 83

6 Print setting (DPOF) 84

With print reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

All-frame reservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Single-frame reservation . . . . . . . . . . . . . . . . . . . . . . . . . 88

Resetting print reservation data . . . . . . . . . . . . . . . . . . . . 90

7 Direct printing (PictBridge) 91

Using the direct printing function . . . . . . . . . . . . . . . . . . . . . . . 91

Connecting the camera to a printer . . . . . . . . . . . . . . . . . . . . . 92

Printing pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Using the simple print method. . . . . . . . . . . . . . . . . . . . . . 94

PRINT mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

PRINT ORDER mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Exiting direct printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

If an error code is displayed . . . . . . . . . . . . . . . . . . . . . . . . . 102

Contents

8 Connecting to a computer 103

Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Using OLYMPUS Master. . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

What is OLYMPUS Master? . . . . . . . . . . . . . . . . . . . . . . 105

Installing OLYMPUS Master . . . . . . . . . . . . . . . . . . . . . . 106

Connecting the camera to a computer . . . . . . . . . . . . . . . . . 112

Starting up OLYMPUS Master. . . . . . . . . . . . . . . . . . . . . . . . 114

Displaying camera images on a computer . . . . . . . . . . . . . . 116

Downloading and saving images . . . . . . . . . . . . . . . . . . 116

Viewing still pictures and movies. . . . . . . . . . . . . . . . . . . . . . 119

Printing pictures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Saving images to a computer without using

OLYMPUS Master . . . . . . . . . . . . . . . . . . . . . . . . . . 123

9 Miscellaneous 124

Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

List of menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

List of factory default settings . . . . . . . . . . . . . . . . . . . . . . . . 134

List of items by shooting mode . . . . . . . . . . . . . . . . . . . . . . . 135

Camera maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Glossary of terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Getting started

1 Getting started

Names of parts

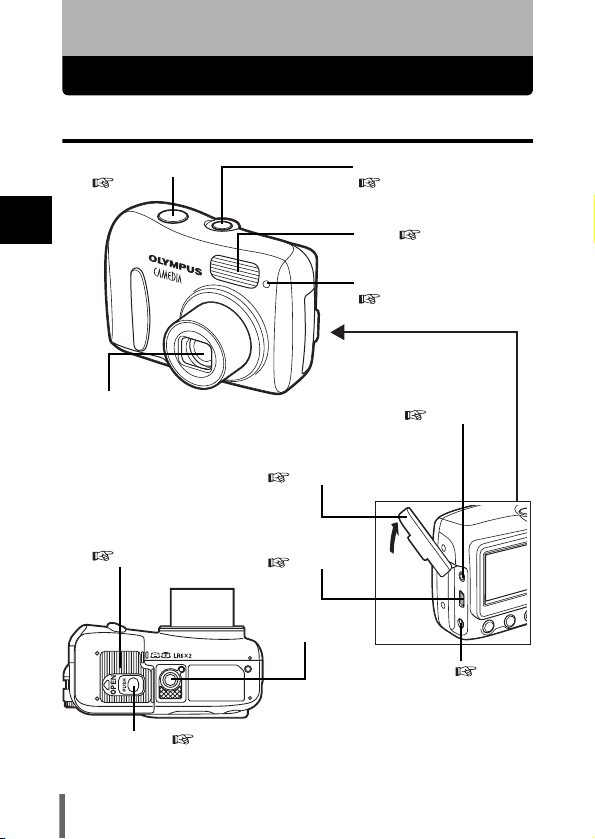

Camera

Flash P.49

Self-timer lamp

P.56

Connector cover

P.17, 69, 92, 112

VIDEO OUT jack

P.69

USB connector

P.92, 112

Lens

Extends automatically when the

power switch is pressed.

Battery compartment/

card cover

P.15, 21

DC-IN jack P.17

Lock button P.15, 21

Shutter button

P.39

Power switch

P.24, 39, 62

Tripod socket

Names of parts

Getting started

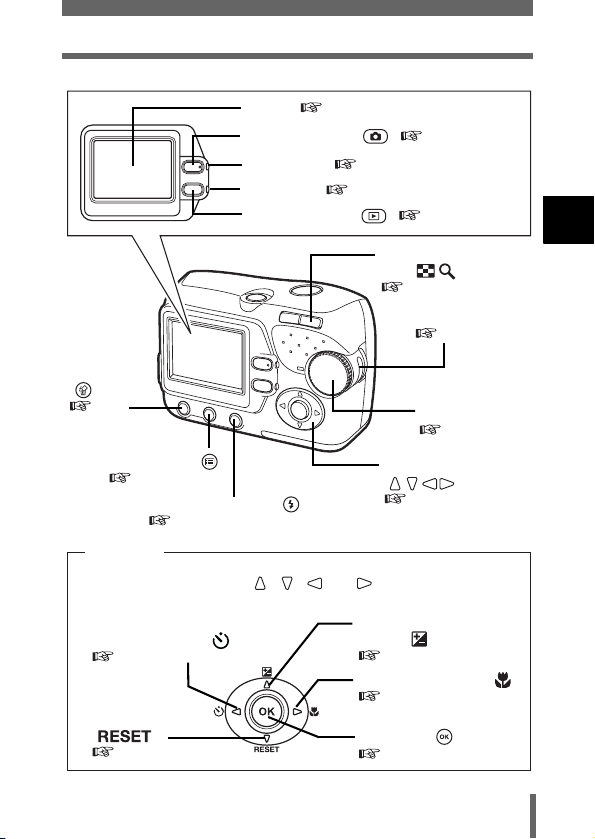

Self-timer button ( )

P.55

Monitor P.10

Macro mode button ( )

P.53

Mode dial

P.36

Flash mode button ( )

P.49

Arrow pad

()

P.31, 62

Arrow pad

OK button ( )

P.31

Buttons on the arrow pad have their respective functions. They are also

used as direction buttons. , , and indicate which button to

be pressed.

Erase button

()

P.74

Zoom button

(W/T• )

P.47, 64, 66

Strap eyelet

P.14

Exposure compensation

button ( )

P.60

Reset button

()

P.76

Shooting button ( ) P.25, 62

Orange lamp P.24

Green lamp P.25

Menu button ( )

P.31

Playback button ( ) P.25, 62

Names of parts

Getting started

Monitor indications

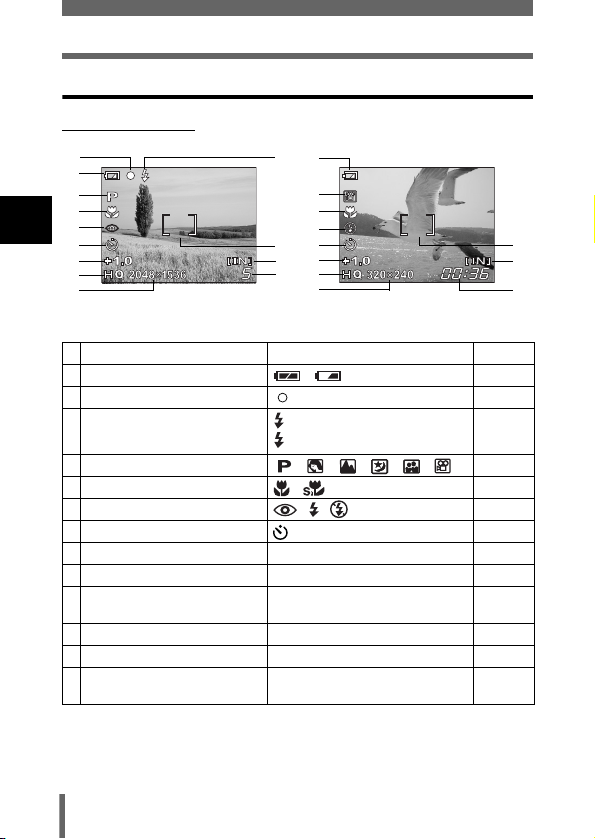

Shooting mode

* The [IN] indicator is displayed when you are storing pictures in the

camera’s internal memory. The [xD] indicator is displayed when the card is

inserted.

Items Indications Ref. Page

1 Battery check , P.12

2 Green lamp P.39

3 Flash standby

Camera movement warning/ Flash charge

(Lit)

(Blinks)

P.50

4 Shooting mode , , , , , P.36

5 Macro mode , P.53

6 Flash mode , , P.49

7 Self-timer P.55

8 Exposure compensation

-2.0

–

+2.0

P.60

9 Record mode SHQ, HQ, SQ1, SQ2 P.57

10 Resolution 2048×1536, 1600×1200, 640×480,

etc.

P.57

11 AF target mark [ ] P.39

12 Current memory * [IN], [xD] P.19

13 Number of storable still pictures

Remaining recording time

00:36

P.39

P.45

Still picture Movie

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus Pen Manuel utilisateur

Olympus

Olympus Stylus 820 Manuel utilisateur

Olympus

Olympus FE-150/X-735 Guide d'installation

Olympus

Olympus DP21-SAL Manuel utilisateur

Olympus

Olympus CAMEDIA D-630 Zoom Manuel utilisateur

Olympus

Olympus FE 250 - Digital Camera - Compact Guide d'installation

Olympus

Olympus C-700 UZ Guide d'installation

Olympus

Olympus Stylus 730 Manuel utilisateur

Olympus

Olympus UltraZoom C-2100U Manuel utilisateur

Olympus

Olympus E-3 Manuel utilisateur

Olympus

Olympus SP-610UZ Instructions de montage

Olympus

Olympus Camedia C-2500L Manuel de la liste des pièces

Olympus

Olympus 225690 - Stylus 600 6MP Digital Camera Guide de configuration

Olympus

Olympus CAMEDIA C-3000 Zoom Guide d'installation

Olympus

Olympus 226690 - Stylus 7000 Digital Camera Guide de configuration

Olympus

Olympus VG-120 Manuel utilisateur

Olympus

Olympus E-PL6 Manuel utilisateur

Olympus

Olympus CAMEDIA C-2 ZOOM Manuel utilisateur

Olympus

Olympus TRIP 35 Guide de configuration

Olympus

Olympus E-500 - EVOLT Digital Camera Guide de configuration

Olympus

Olympus E-M10 Mark III Manuel utilisateur

Olympus

Olympus u 1060 Guide d'installation

Olympus

Olympus E-PL1 Mode d’emploi

Olympus

Olympus 550WP - Stylus Digital Camera Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
