Olympus CAMEDIA C-200Zoom Guide d'installation

Digital Camera

Appareil photo

numérique

Digital-Kamera

Cámara Digital

C-200ZOOM

D-510ZOOM

Basic Manual

• Before you use this camera, read this manual and then store it in a safe

location where you can find it for future use.

• We recommend that you spend some time taking test shots and

experimenting with all of the features before you take important pictures.

• These instructions are only for quick reference. For more details on the

functions described here, refer to the software CD’s instructions on CD-

ROM.

English

Manuel de Base

• Avant d’utiliser votre appareil photo, lire ce mode d’emploi puis le ranger

dans un endroit sûr et à portée de la main pour toute consultation future.

• Nous vous conseillons de prendre le temps de faire des essais et de vous familiariser

avec toutes les fonctions avant d’effectuer des prises de vues importantes.

• Ces instructions ne sont que pour une référence rapide. Pour plus de

détails sur les fonctions décrites ici, se reporter au manuel de référence se

trouvant sur le CD logiciel.

Français

Einfache Anleitung

• Bitte lesen Sie vor Gebrauch dieser Kamera sorgfältig diese

Bedienungsanleitung, um optimale Ergebnisse beim Fotografieren zu erzielen.

• Wir empfehlen, vor wichtigen Aufnahmen Probeaufnahmen durchzuführen, um

sich mit der Bedienung und den Funktionen der Kamera vertraut zu machen.

• Diese Anleitung dient nur als Kurzanleitung. Ausführlichere Angaben zu

den hier beschriebenen Funktionen finden Sie in dem Handbuch auf der

CD-ROM.

Deutsch

Manual Básico

• Antes de utilizar la cámara, lea este manual y luego guárdelo en algún

lugar seguro donde lo pueda ubicar para un uso futuro.

•

Le recomendamos que dedique cierto tiempo a la toma de fotos de prueba utilizando

todas las características de la cámara antes de tomar fotografías importantes.

• Estas instrucciones son sólo para una consulta rápida. Para más detalles

acerca de las funciones aquí descritas, remítase a las instrucciones de CD

de software del CD-ROM.

Español

CONTENTS/TABLE DES MATIERES/INHALT/CONTENIDO

ENGLISH ..................................................................................2

FRANÇAIS ..............................................................................36

DEUTSCH ...............................................................................70

ESPAÑOL .............................................................................104

CONTENTS

Getting Started 4

Learning the Basics 10

Playing Images Back 19

Taking Better Pictures 22

Transferring Your Pictures to a Computer 30

Appendix 32

These instructions are only for quick reference. For more details on the

functions described here, refer to the camera’ s Reference Manual on

the software CD.

English

Thank you for purchasing an Olympus digital camera. Before you start

to use your new camera, please read these instructions carefully to

enjoy optimum performance and a longer service life. Keep this manual

in a safe place for future reference.

Declaration of Conformity

Model Number: D-510 ZOOM

Trade Name: OLYMPUS

Responsible party: Olympus America Inc.

Address: 2 Corporate Center Drive, Melville, New York 11747-3157

U.S.A.

Telephone number: 631-844-5000

Tested to comply with FCC standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

For Customers in USA

“CE” mark indicates that this product complies with the European

requirements for safety, health, environment and customer protection.

For Customers in Europe

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

For Customers in Canada

Trademarks

• IBM is a registered trademark of International Business Machines

Corporation.

• Microsoft and Windows are registered trademarks of the Microsoft

Corporation.

• Macintosh is a trademark of Apple Computer, Inc.

• All other company and product names are registered trademarks of

their respective owners.

Getting Started

Names of Parts

Camera

Zoom lever

Shutter button Selftimer lamp

Flash

Lens barrier

Lens

Card cover

Card slot

Video OUT jack

DC-IN jack

USB connector

Connector cover

English

Camera (continued)

Viewfinder

Macro button/

Protect button

Flash mode button

Selftimer button/

Erase button

Viewfinder

Diopter

adjustment

dial

Monitor

OK button/

Menu button

Monitor button

Tripod socket

(bottom)

Battery compartment cover (bottom)

AF target mark

Orange lamp

Green lamp

Battery

compartment

lock

Arrow pad

Monitor

Shooting mode display

Playback mode display

2001

+1.5

ISO100

Battery check

Sequential shooting/

Selftimer/Movie

Exposure compensation

Record mode

Flash mode

Spot metering

Macro/Quick focus

White balance

ISO sensitivity

Number of storable

pictures

Memory gauge

Battery check

Print reserve

Record mode

Movie

Protect

Date

Frame number

AF target mark

English

Playback mode display (with image information display on)

Attaching the Strap

1600x1200

ISO100

FILE:100

0123

2001

File number

Resolution

White balance

ISO sensitivity

Attach the strap to the camera as shown in the diagram.

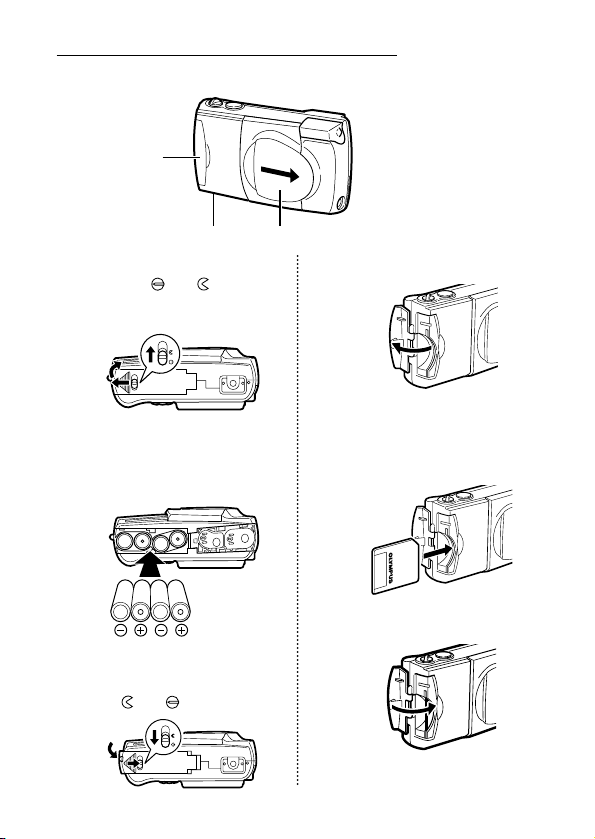

Inserting the Batteries and SmartMedia Card

1Make sure the lens barrier is closed.

2Slide the battery compartment

lock from to . Slide the

battery compartment cover to

the side and lift it up to open.

3Insert the batteries into the

camera as shown in the

diagram, making sure that

the negative and positive

poles are correctly aligned.

4Close the battery

compartment cover, and slide

the battery compartment lock

from to .

5Open the card cover.

6Insert the SmartMedia card

into the camera as shown in

the diagram, making sure

that it is pushed all the way

in.

7Close the card cover so it

clicks into place.

Card cover

Lens barrier

Battery

compartment cover

English

Setting the Date and Time

1Make sure the SmartMedia is inserted, then slide the lens

barrier open.

2Press the menu button ( ) to open the shooting menu.

3Press or to select SET, and then press .

4Press or to select the date setting, and then press .

5Press or to select the date format, and then press .

6Press or to set the first date/time position, and then press

.

Pressing moves right to the next position, and pressing 

moves back to the previous position.

7Repeat Step 6 until the date/time settings are completed.

8Press the OK button.

9Press the monitor button ( ).

Adjusting the Viewfinder

1Slide the lens barrier open until it clicks.

2While looking through the viewfinder, gently turn the diopter

adjustment dial.

3Stop turning the dial when the AF target mark is clearly visible.

4You are ready to take some pictures.

Switching Power On/Off

To switch the camera on

To switch the camera on, slide the lens barrier open until it clicks. The

lens extends and the flash pops up.

When the lens does not extend, the lens barrier is not fully opened.

Slide the lens barrier open until it clicks.

Standby Mode

• To extend battery life, always switch the camera off when it is not in

use.

• If the camera remains idle for three minutes, the camera enters

standby mode and the monitor goes off to save battery energy. To

resume shooting, lightly press the shutter button or zoom lever, close

and open the lens barrier, or press any button on the arrow pad, the

OK button, the menu button, or the monitor button.

• Normally if the camera remains idle for four hours in the standby

mode, it will turn off completely. (If new batteries are installed, then it

may take longer for the camera to shut down, depending on the type

of batteries in use.)

CAUTION

• To avoid losing images stored on the card, always switch the camera

off before you open the card cover, remove the card or batteries, or

disconnect the AC adapter.

To switch the camera off

1Close the lens barrier halfway until you hear it click slightly, and

then wait for the lens to retract automatically.

2After the lens retracts, close the lens barrier completely until

you hear a click. This allows to close the flash.

3Close the flash.

• The pictures you have taken are stored on the SmartMedia card

and will not be lost after the power is turned off, or when batteries

are replaced.

CAUTION

• To avoid damaging the lens, never push the lens barrier against the

lens. Always wait for the lens to retract automatically.
