●Thank you for purchasing an Olympus digital camera. Before you start

to use your new camera, please read these instructions carefully to

enjoy optimum performance and a longer service life. Keep this manual

in a safe place for future reference.

●We recommend that you take test shots to get accustomed to your

camera before taking important photographs.

●In the interest of continually improving our products, Olympus reserves

the right to update or modify information contained in this manual.

●The screen and camera illustrations shown in this manual were

produced during the development stages and may differ from the actual

product.

Instruction Manual

Contents

Step 5

Printing

“Direct printing (PictBridge)” (p. 37)

“Print Reservations (DPOF)” (p. 40)

Step 4

How to Use the Camera

“Camera Settings” (p. 3)

Step 3

Shooting and Playing Back Images

“Shooting, Viewing, and Erasing” (p. 14)

Step 2

Preparing the Camera

“Preparing the Camera” (p. 10)

Names of Parts ..............................6

Preparing the Camera.................10

Shooting, Viewing, and Erasing

...14

Using Shooting Modes................ 20

Using Shooting Functions..........23

Menus for Shooting Functions... 27

Menus for Playback, Editing, and

Printing Functions.......................30

Menus for Other Camera

Settings ........................................32

Printing.........................................37

Usage Tips ...................................42

Appendix......................................46

Step 1

Checking the contents of the box

Other accessories not shown: Instruction Manual (this manual), warranty card.

Contents may vary depending on purchase location.

Digital camera

Strap

AV cable

USB cable

ib CD-ROM

Two AA batteries

Camera Settings

UsingtheDirectButtons

Frequently used functions can be accessed using the direct buttons.

Shutter button (p. 14)

Zoom buttons (p. 16)

qbutton (switch between

shooting and playback) (p. 15)

mbutton (p. 4)

Ebutton (menu guide) (p. 19)

Arrow pad

H(left)

G(down) /

Dbutton (erase) (p. 18)

F(up) /

INFO button (change

information display) (p. 16, 19)

I(right)

Hbutton

(p. 12)

The symbols FGHI displayed for image

selections and settings indicate that the arrow

pad is to be used.

ORM

SINGLE PRINT PRINT

4/304/30

’10/02/26 12:30’10/02/26 12:30

ORM

14M

FILE

100 0004100 0004

02 26 12 30:..2010

SET

YMDTIME

CANCEL

Y/M/DY/M/D

UsingtheMenu

Use the menu to change camera settings such as the shooting mode.

Press the mbutton to display the function menu. The function menu can be used to set frequently

used shooting and playback functions such as shooting mode.

PERFECT FIX

EDIT

ERASE

SETUP

SLIDESHOWSLIDESHOW

Use FG to select a menu and press

the Hbutton.

0.00.0

AUTO

ISO

AUTO

ISO

PROGRAM AUTOPROGRAM AUTO

Shooting Playback

Selected option

To select the shooting mode

Use HI to select a shooting mode and press

the Hbutton.

To select the function menu

Use FG to select a menu and use HI to

select a menu option. Press the Hbutton to

set the function menu.

o[SETUP]

Function

Shooting

mode

In the [SETUP] menu, various camera functions can be set,

including shooting and playback functions not displayed in the

function menu, and other settings such as date, time and screen

display.

1Select [SETUP] and then press the H

button.

The [SETUP] menu is displayed.

FINE ZOOM OFF

ROFF

ICON GUIDE ON

AF MODE FACE/iESP

SETEXIT

COMPRESSIONCOMPRESSION NORMALNORMAL

2Press Hto highlight the page tabs. Use

FG to select the desired page tab and

press I.

OFF

SETEXIT

POWER SAVE

BATTERY TYPE

ALKALINE

Page tab

SETEXIT

BATTERY TYPE

ALKALINE

OFFOFFPOWER SAVEPOWER SAVE

Submenu 1

3Use FG to select the desired submenu 1

and then press the Hbutton.

SETEXIT

BATTERY TYPE

ALKALINE

POWER SAVEPOWER SAVE OFFOFF

SET

BATTERY TYPE

ALKALINE

BACK

OFFOFFPOWER SAVEPOWER SAVE

POWER SAVE

OFFOFF

Submenu 2

●

4Use FG to select the desired submenu 2

and then press the Hbutton.

Once a setting is selected, the display returns

to the previous screen.

There may be additional operations.

“Menu Settings” (p. 27 to 36)

SETEXIT

BATTERY TYPE

ALKALINE

ONONPOWER SAVEPOWER SAVE

5Press the mbutton to complete the

setting.

Some functions cannot be used in some

shooting modes. In such cases, the

following message is displayed after

setting.

FINE ZOOM OFF

ROFF

ICON GUIDE ON

AF MODE FACE/iESP

COMPRESSIONCOMPRESSION NORMALNORMAL

SETEXIT

CONFLICTING SETTINGS

●

Menu Index

Menus for Shooting Functions

1Shooting mode

P(PROGRAM AUTO).......p.14

M(iAUTO)....................p.20

N(DIS MODE)...............p.20

s(SCENE MODE) ......p.20

P(MAGIC FILTER).....p.21

~(PANORAMA)...............p.22

A(MOVIE).......................p.15

2Flash..................................p.23

3Macro ................................p.23

4Self-timer...........................p.24

5Exposure compensation....p.24

6White balance....................p.25

7ISO....................................p.25

8Image size (Still images)...p.26

9o(SETUP) X

z(Shooting)/A(Movie)

IMAGE SIZE (Movies).......p.27

COMPRESSION (Still images)

.......................................p.27

1SLIDESHOW.....................p.30

2PERFECT FIX...................p.30

3EDIT..................................p.30

4ERASE..............................p.30

Menus for Playback, Editing, and Printing Functions

5o(SETUP) Xq(Playback)

PRINT ORDER..................p.31

0(Protect).....................p.31

y(Rotate).........................p.31

R(Add sound to still images)

.......................................p.31

0.00.0

AUTO

ISO

AUTO

ISO

PROGRAM AUTOPROGRAM AUTO

PERFECT FIX

EDIT

ERASE

SETUP

SLIDESHOWSLIDESHOW

1r(Settings 1)

MEMORY FORMAT/

FORMAT............................p.32

BACKUP............................p.32

W(Language).................p.32

RESET...............................p.32

USB CONNECTION..........p.33

qPOWER ON ................p.33

SAVE SETTINGS..............p.33

Menus for Other Camera Settings

2s(Settings 2)

PW ON SETUP.................p.33

SOUND SETTINGS ..........p.34

PIXEL MAPPING...............p.34

s(Monitor).....................p.34

X(Date/time)..................p.34

WORLD TIME....................p.35

VIDEO OUT.......................p.35

3t(Settings 3)

POWER SAVE...................p.36

BATTERY TYPE................p.36

FRAME RATE (Movies).....p.27

AF MODE..........................p.28

FINE ZOOM ......................p.28

IS MOVIE MODE...............p.28

R(Still images)..................p.29

R(Movies).........................p.29

ICON GUIDE.....................p.29

FINE ZOOM OFF

ROFF

ICON GUIDE ON

AF MODE FACE/iESP

COMPRESSION NORMAL

SETEXIT

IMAGE SIZE VGA

IS MOVIE MODE

OFF

FRAME RATE 30fps

SETEXIT

SAVE SETTINGS

SETEXIT

BACKUP ENGLISH

RESET

USB CONNECTION

STORAGE

qPOWER ON NO

FORMAT

SETEXIT

PRINT ORDER

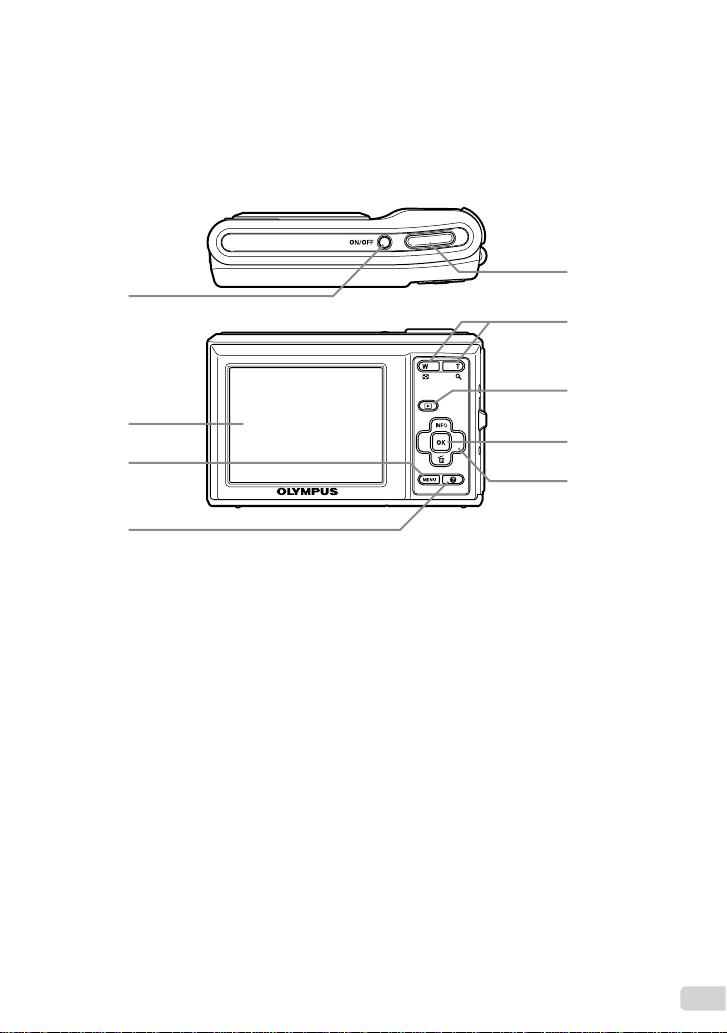

Names of Parts

1Strap eyelet

2Battery/card compartment cover...p. 10

3Battery/card compartment lock.....p. 10

4Microphone.............................p. 29, 31

5Lens........................................p. 46, 58

Camera unit

4 5 6 7

6Flash.............................................p. 23

7Self-timer lamp..............................p. 24

8Multi-connector .................p. 11, 35, 37

9Tripod socket

10 Speaker

Attaching the camera strap

Pull the strap tight so that it does not come loose.

1nbutton ........................p. 12, 14

2 Monitor....................................p. 14, 42

3 mbutton...................................p. 4

4 Ebutton (menu guide).................p. 19

5 Shutter button ...............................p. 14

6Zoom buttons................................p. 16

7 qbutton (switch between shooting

and playback)................................p. 15

8 Hbutton (OK)..........................p. 3, 12

9 Arrow pad........................................p. 3

INFO button (change information

display).............................p. 16, 19

Dbutton (erase) ....................p. 18

Monitor

Shooting mode display

F3.51/1001/100 F3.5

ORM

0.00.0

AUTO

ISO

AUTO

ISO

0:340:34 ONON

0.00.0

AUTO

VGA

1 2 1 2

121415 1213915

16 16

1920

Still image

Movie

1 Battery check................................p. 10

2 Shooting mode........................p. 14, 20

3 Flash.............................................p. 23

Flash standby/ﬂash charge...........p. 42

4Macro............................................p. 23

5 Self-timer.......................................p. 24

6 Exposure compensation ...............p. 24

7 White balance...............................p. 25

8 ISO................................................p. 25

9 Image size...............................p. 26, 27

10 [SETUP] menu............................p. 4, 5

11 Recording with sound (movies)

....................................................p. 29

12 World time.....................................p. 35

13 Digital image stabilization ........... .p. 28

14 Compression (still images)............p. 27

15 Number of storable pictures (still

images).........................................p. 14

Continuous recording length (movies)

....................................................p. 15

16 Current memory............................p. 47

17 AF target mark..............................p. 14

18 Camera shake warning....................... -

19 Aperture value...............................p. 14

20 Shutter speed................................p. 14

Playback mode display

Normal display

1010

’10/02/26 12:30’10/02/26 12:30

4/30

00:12/00:3400:12/00:34

1 65432 1

Still image Movie

Detailed display

1010

4/304/30

1/1000 F3.5 2.0

AUTO

ISO

ORM

FILE

100 0004

’10/02/26 12:30

1/1000 F3.5 2.0

AUTO

ISO

ORM

14M

FILE

100 0004

’10/02/26 12:30

1 6 87 9 11105432

●

1 Battery check................................p. 10

2 Print reservation/

number of prints...................p. 40/p. 39

3 Protect...........................................p. 31

4 Adding sound..........................p. 29, 31

5 Current memory............................p. 47

6 Frame number/total number of images

(still images)..................................p. 16

Elapsed time/total recording time

(movies)........................................p. 17

7 Shooting mode........................p. 14, 20

8 Shutter speed................................p. 14

9 Aperture value...............................p. 14

10 ISO................................................p. 25

11 Exposure compensation ...............p. 24

12 White balance...............................p. 25

13 Image size...............................p. 26, 27

14 File number......................................... -

15 Date and time................................p. 12

16 Compression (still images)............p. 27

Frame rate (movies)......................p. 27

17 Macro............................................p. 23

18 Flash.............................................p. 23

Preparing the Camera

For the types of batteries that can be used,

see “Battery handling precautions” (p. 46).

When using NiMH batteries, be sure they

are fully charged, and select [NiMH] for

[BATTERY TYPE].

[BATTERY TYPE] (p. 36)

Turn off the camera before opening the

battery/card compartment cover.

When using the camera, be sure to close

the battery/card compartment cover.

When to replace the batteries

Replace the batteries when the error

message shown below appears.

Monitor top left Error message

Flashes in red

BATTERY EMPTY

Inserting the battery and the

SD/SDHC memory card (sold

separately)

Always use SD/SDHC memory cards with

this camera. Do not insert any other types of

memory card.

Battery/card

compartment

cover

Battery/card

compartment lock

2Write-protect

switch

Insert the card straight until it clicks into

place.

Do not touch the contact area directly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Olympus Appareil photo numérique

Olympus

Olympus E-PL3 Manuel utilisateur

Olympus

Olympus Infinity SuperZoom 3000 DLX Manuel utilisateur

Olympus

Olympus Stylus 770 SW Manuel utilisateur

Olympus

Olympus Camedia C-450ZOOM Guide d'installation

Olympus

Olympus C-2/D-230 Guide d'installation

Olympus

Olympus FE-45 - Digital Camera - Compact Mode d’emploi

Olympus

Olympus E300 - 14-54mm f/2.8-3.5 Zuiko ED Digital SLR... Guide d'installation

Olympus

Olympus C-3000 - 3.2MP Digital Camera Manuel d'utilisation et d'entretien

Olympus

Olympus CAMEDIA C-2 ZOOM Manuel utilisateur

Olympus

Olympus CAMEDIA D-360L Manuel utilisateur

Olympus

Olympus TRIP AF 60 Manuel utilisateur

Olympus

Olympus Stylus Verve - Stylus Verve 4MP Digital... Manuel utilisateur

Olympus

Olympus CAMEDIA C-3030 Zoom Manuel utilisateur

Olympus

Olympus 225465 - Stylus 410 Digital Camera Guide de configuration

Olympus

Olympus ACCURA Zoom 80S Manuel utilisateur

Olympus

Olympus C-315ZOOM Guide d'installation

Olympus

Olympus Stylus 1 Guide d'installation

Olympus

Olympus X-755 Manuel utilisateur

Olympus

Olympus 226090 - Stylus 790 SW Digital Camera Mode d’emploi

Olympus

Olympus CAMEDIA D-560 Zoom Manuel utilisateur

Olympus

Olympus CAMEDIA C-55 ZOOM Guide d'installation

Olympus

Olympus CAMEDIA C-460 Zoom Manuel utilisateur

Olympus

Olympus Stylus 770 SW Guide d'installation

Olympus

Olympus E-M1 MARK II Manuel utilisateur

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
