Olympus EE-1 Manuel utilisateur

EE-1

WC887001

Printed in China

date of issue 2015.01.

44 -

INSTRUKCJA

46 -

INSTRUÇÕES

48 -

INSTRUCŢIUNI

50 -

UPUTSTVO ZA UPOTREBU

52 -

ИНСТРУКЦИЯ

54 -

BRUKSANVISNING

56 -

NAVODILA

58 -

NÁVOD NA POUŽITIE

60 -

TALİMATLAR

62 -

ІНСТРУКЦІЯ

65 -

66 -

คําแนะนําการใชงาน

68 -

취급설명서

70 -

CHT

使⽤說明書

04 -

取扱説明書

06 -

INSTRUCTIONS

09 -

INSTRUCCIONES

12 -

MODE D’EMPLOI

16 -

ИНСТРУКЦИИ

18 -

NÁVOD K POUŽITÍ

20 -

BEDIENUNGSANLEITUNG

22 -

BETJENINGSVEJLEDNING

24 -

JUHISED

26 -

KÄYTTÖOHJEET

28 -

ΟΔΗΓΙΕΣ

30 -

UPUTE

32 -

HASZNÁLATI ÚTMUTATÓ

34 -

ISTRUZIONI

36 -

INSTRUKCIJA

38 -

NORĀDĪJUMI

40 -

INSTRUCTIES

42 -

INSTRUKSJONER

00R2302coverjp.indd100R2302coverjp.indd1 2015/01/3111:22:162015/01/3111:22:16

4JP 77

取扱説明書

このたびは当社製品をお買い上げいただきあり

がとうございます。

ご使用前に本説明書の内容をよくご理解の上、

安全に正しくご使用ください。この説明書はご

使用の際にいつでも見られるように大切に保管

してください。

各部の名称 ( 図1)

1ターゲット明るさ調整ダイヤル

2照準器調整ダイヤル（横方向）

3ポップアップスイッチ

4照準器調整ダイヤル（縦方向）

5ターゲットマーク

電池の入れ方

ペンなどで の部分を押しながら電池蓋を開け

ます（図2）。

電池の向きを確かめて入れて蓋を閉めま

す

（図3）。

付属の電池はテスト用です。

使い方

カメラのホットシューに装着します（図4）。

ポップアップスイッチをスライドするとポップ

アップします。ターゲット明るさ調整ダイヤルを

回してターゲットマークの明るさを調整します。

ターゲット明るさ調整ダイヤルを

OFF に合わせ

ると、本機の電源が切れます。収納状態にして

も電源が切れます。

カメラのモニターで被写体を見ながら照準器調

整ダイヤルでターゲットマークの位置を合わせ

ます。

使用上のご注意

•本体に無理な力をかけないでください。

•電池交換時に電池室に水分が入らないように注

意してください。

•一部のレンズやカメラでは着脱時に本機と干渉

することがあります。また、ターゲットマーク

がレンズやフードによってけられることがあり

ます。

主な仕様

ターゲットマーク：赤

電源：コイン型リチウム電池 CR2032 1 個

質量：72.2g（電池含む）

大きさ：

約 46.2（幅）× 39.3（高さ）× 77.1（奥行き）mm

※外観・仕様は改善のため予告なく変更するこ

とがありますので、ご了承ください。

MEMO

123

00R2302coverjp.indd200R2302coverjp.indd2 2015/01/3111:22:172015/01/3111:22:17

6EN

INSTRUCTIONS

Thank you for purchasing this Olympus product.

To ensure your safety, please read this

instruction manual before use, and keep it

handy for future reference.

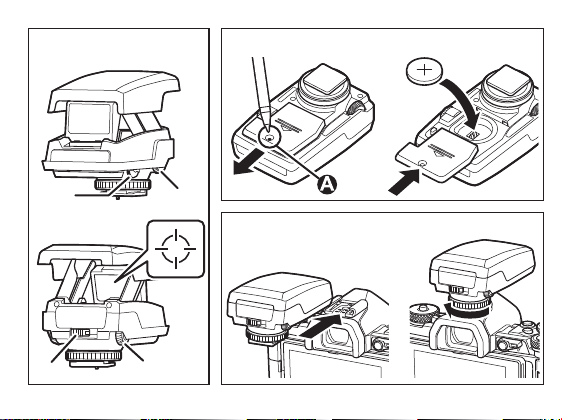

Name of parts (Figure 1)

1Target brightness adjustment dial

2Sight horizontal positioning dial

3Pop-up switch

4Sight vertical positioning dial

5Target indicator

Inserting the Battery

Insert a pen or other object into part ( ) and

open the battery compartment cover (Figure 2).

Insert the battery in the orientation shown and

close the cover (Figure 3). The supplied battery

is for test purposes only.

Use

Mount the product on the camera hot shoe

(Figure 4). Press the pop-up switch to ready

the sight and rotate the target brightness

adjustment dial to adjust brightness. Rotating

the dial to OFF turns the product off, as does

returning the sight to the closed position. Use

the sight positioning dials to position the target

while viewing the subject in the camera monitor.

Precautions for Use

• Do not use excessive force.

• When replacing the battery, be careful that

water does not enter the battery compartment.

• Some lenses and cameras may interfere

with operation when the device is attached.

In addition, some lenses and hoods may

obstruct the target.

Main Specifications

Target indicator : Red

Power source :One (1) CR2032 lithium battery

Weight :72.2 g (2.5 oz.)

(including battery)

Dimensions :

Approx. 46.2 (W) × 39.3 (H) ×

77.1 (D) mm (1.8 × 1.5 × 3.0 in.)

* Specifications are subject to change without any

notice or obligation on the part of the manufacturer.

R230232L.indb6R230232L.indb6 2015/01/3017:52:042015/01/3017:52:04

EN 7

Precautions: Be Sure to Read the Following

Warnings: Safety Precautions

• Do not use the product if the battery compartment

cover can not be completely closed.

• Keep the product and battery out of reach of

children.

• Observe all necessary precautions when

handling batteries. Batteries may leak,

overheat, or rupture if improperly handled.

When inserting batteries, be sure they are in

the correct orientation.

• Under no circumstances should you

expose batteries to heat or to open flame

or disassemble, short-circuit, or attempt

to recharge batteries. These actions are

extremely dangerous and could cause the

batteries to overheat, catch fire, or rupture.

• Consult a physician immediately should

swallow or otherwise ingest a battery.

• Should you notice smoke or an unusual

smell coming from the product, cease use

immediately and contact an authorized

distributor or Olympus service center.

This product uses a Lithium Battery which

contains Perchlorate material - special handling

may apply.

See www.dtsc.ca.gov/hazardouswaste/

perchlorate/.

Technical Support (U.S.A. / Canada)

24/7 online automated help :

http://www.olympusamerica.com/support

Phone customer support :

Tel.1-800-260-1625 (Toll-free)

Our phone customer support is available

from 9 am to 9 pm (Monday to Friday) ET

E-Mail : [email protected]

R230232L.indb7R230232L.indb7 2015/01/3017:52:042015/01/3017:52:04

8EN

For customers in Europe

The “CE” mark indicates that this

product complies with the European

requirements for safety, health,

environment and customer

protection. CE-mark products are for

sale in Europe.

This symbol [crossed-out wheeled

bin WEEE Annex IV] indicates

separate collection of waste

electrical and electronic equipment

in the EU countries.

Please do not throw the equipment

into the domestic refuse.

Please use the return and collection

systems available in your country

for the disposal of this product.

This symbol [crossed-out wheeled

bin Directive 2006/66/EC Annex II]

indicates separate collection of

waste batteries in the EU countries.

Please do not throw the batteries

into the domestic refuse.

Please use the return and collection

systems available in your country for

the disposal of the waste batteries.

European Technical Customer Support

Please visit our homepage

http://www.olympus-europa.com

or call: Tel. 00800 - 67 10 83 00 (Toll-free)

+49 40 - 237 73 899 (Charged)

•

R230232L.indb8R230232L.indb8 2015/01/3017:52:042015/01/3017:52:04
