OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

____________________________________________________________

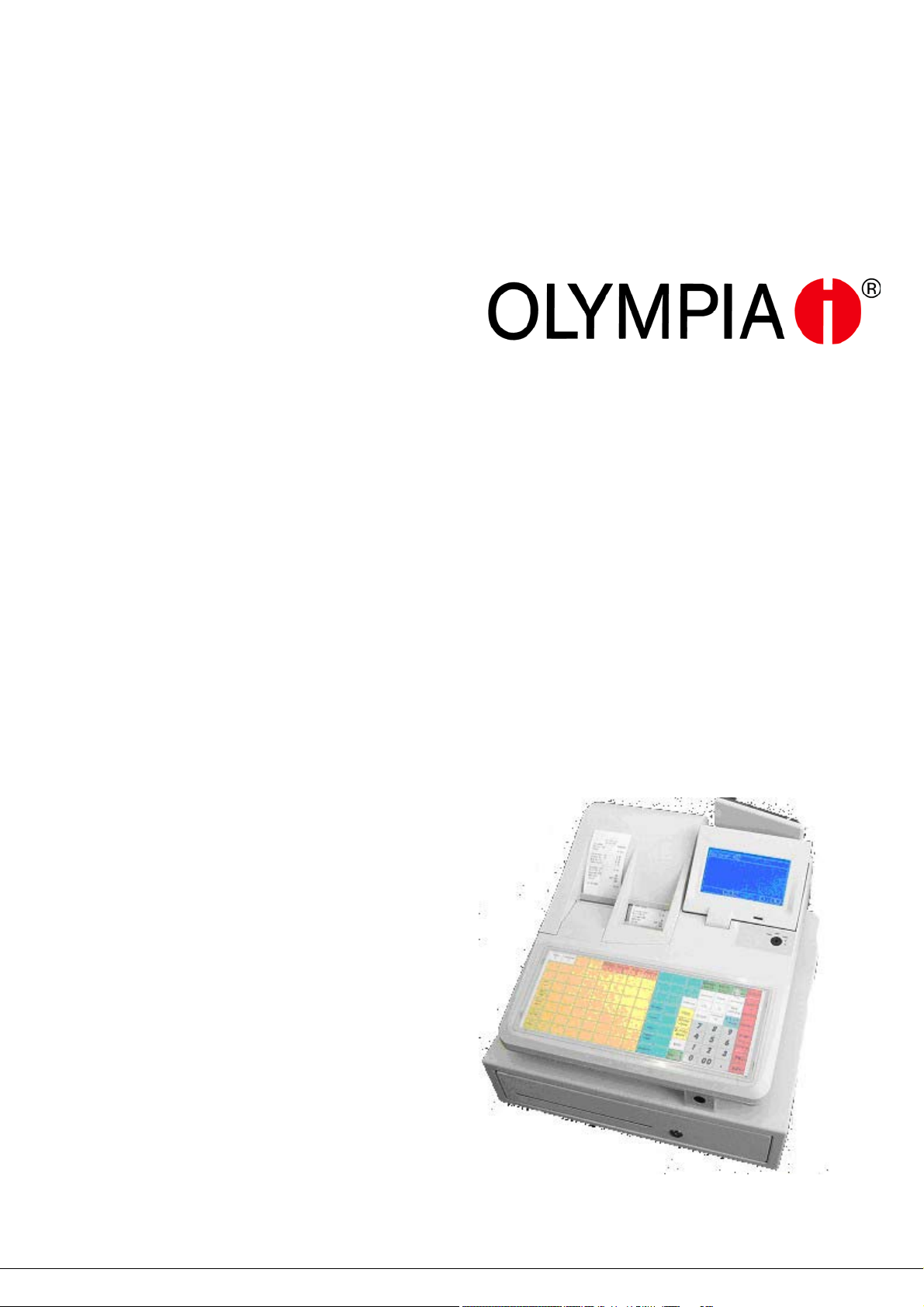

PROGRAMMING INSTRUCTION

ELECTRONIC CASH REGISTER

OLYMPIA CM 1856F

Version 3.01.02, 2006 (Rev-B)

Page 2

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

Table of contents: Page

1. Basic Feature 3

2. System RESET, initialisation machine 6

3. Key description, Default key layout 8

4. S – Mode, Service Mode Operation 13

4.1

Machine establishment dump (Initialize basic system) 13

4.2

System building dump – Memory set, Training 13

4.3

Keyboard program mode 15

4.4

Print out establishment S - Mode 18

5. PRG – Mode, Program Mode Operation 19

5.1

Program Department 20

5.2

Program Department group name 21

5.3

Program PLU 22

5.4

Program Link PLU 24

5.5

Program PLU group name 24

5.6

Program Clerk 25

5.7

Program Cashier 28

5.8

Program Tender media 28

5.9

Program Key (+, -) 29

5.10

Program Key (+%, -%) 30

5.11

Program Manager pass code 30

5.12

Program Machine number 30

5.13

Program P-register (Machine option) 31

5.14

Program Date 34

5.15

Program Time 35

5.16

Program Currency – FC 35

5.17

Program Clerk code assign 35

5.18

Program P-register (Report print item) 36

5.19

Program P-register (Double height line) 37

5.20

Program PLU assign - „PLU Clerk Report“ 38

5.21

Program Terminal number – IRC, PC 38

5.22

Program Com port machine 39

5.23

Programming the machine text 40

5.24

Program TAX 40

5.25

Program Logo message 40

5.26

Program AD message 41

5.27

Program Net caption machine 41

5.28

Program Cooking message 42

5.29

Program Order type name 42

5.30

Program Logo message for SLIP printer 43

5.31

Program Kitchen files – Kitchen printers 43

5.32

5.33

5.34

IRC configuration (optional)

Print out program dump report PRG-Mode

Stock-PLU,Link-PLU Stock counter adjustment

10.

11.

12.

13.

14.

15.

16.

17.

18.

MAKRO-function

Tracking print contents by „Ticket type“,“Order groups“, „Kitchen printer“

Management Reports. X-Report.Z-Report

Character Table. Alphabet Key Layout for Caption

Error message (error symbols)

Plug-in peripherals

Instructions for OLYMPIA - MANAGER / OLYMPIA - HELPER

Service Programm in "S" MODE

Flash-Programm

Modem for telecommunication with the cash register

Connection Scanner

Connection GCP - receipt printer

Connecting the SPRINTER module to the cash register Olympia CM 1856F

Page 3

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

1. BASIC FEATURE

Model : OLYMPIA CM 1856F

Wat :25W

Weight :8kg

Voltage : 220V

Working temperature: : 0 – 400C

Department : 64 (max. 99)

PLU : 1.500 (max. 25.000)

TAX system : 8

Clerk : 26 – key (max. 99 with ID code) OPTION Dallas Key

Cashier : 0 (max. 9 )

Tender Media : 5 (max. 30)

Track : 200 (max. 800)

Item Track : 70 (dynamic, max. 70)

Keyboard : flat

Number of key : 120 keys on basic Level and 71 keys on 1.Level,71 keys on 2.Level

Customer display : Numeric – 10 digits

Clerk display : Graphical LCD-Display, 240x128 dot

Printer : 2 station Thermal printer Seiko LTPC 245 with cutter

Speed max. 13 lines / sec

Max. numer of colums 32

Cutter (full, partial, not)

Paper width: 57,50 mm

Connection : PC – Personal Computer, modem

GCP external printer

Kitchen printers, BCR (scanner)

2 Version OLYMPIA CM 1856F

1. Hospitality ( standard )

2. Bakery-Version with floting clerk function

Page 4

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

Numeric Display:

Receipt nr. Waiter name or nr.

0024 Mr Meier

Fußzeile Display :

1. 2. 3. 4. 5. 6. 7. 8.

MO 23.10 8:35 T0 P1 BON PC IRC

1. MO The first letter of the day

2. Date

3. Time

4. Keypad level T0= basis, T1= 1. level, T2= 2. level.

5. Preisebene P1= Price level 1 , P2= Price level 2.

6. Bon-Ein without display receipt-off

7. PC-Display During PC transfer, the area has a white background.

8. IRC Combined display, the IRC area has a white background if combined display is active.

Control Lock: OFF OFF - The System is inoperable

PRG REG PRG - PRG – Mode (Program mode)

S X S - S – Mode (Service mode)

Z REG - Registration mode

X - Reports (print out only), Training

Z - Reports (print out and erase !!)

1. "TRAINING" Mode is used to practice cash register transactions.

FUNCTION:

Control lock key in position "X" : Enter 85 [CASH]. Training Mode is activated.

A point appears in the display.

The transactions are printed via the X/Z reports 86 and 87.

End Training Mode by changing the key position in the control lock.

2. "TRAINING" Mode is used to practice cash register transactions. Use clerk key #16. to do this.

Page 5

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

Clerk system:

Prior to the operation entry the Clerk logs in via a Clerk key (standard 26 keys). This system can be affected in the PRG

mode (i.e. it can be entirely turned off). A change of Clerk (i.e. key) is not feasible before the completion of the

appropriate operation. The system may be designed to eliminate (or to restrict) the system of keys and Cash Register

shall require log-in code - PASSWORD (not ID Code).

X X X

_ _ _ _ _ _ _ _ _

The Cash Register indicates on display a question for entering the PASSWORD. If the data (1 character) is entered, the

display is changed. (For example, when entering two characters ….)

X X

_ _ _ _ _ _ _ _ _

After all PASSWORD characters have been entered, the Clerk will be permitted to work. If the Cash Register displays a

character “0“, PASSWORD is not correct and entering can be repeated after pressing the key [ &/($5].

CM 1856F Operator system Bakery - Firmware

Floting clerk function

In front of the petition of a transaction the operator applies over an operator button (or key).

This system can in the PRG -- mode be influenced i.e., it can be turned off.

Several operators can be registered at the same time.

The operator: 1 applies and starts with his bookings.

The operator can interrupt his booking any time, without which the register is closed.

The operator: 2 can apply over the operator button (or key) now, execute his bookings and lock [CASH] or also interrupt

his booking.

The operator:1 applies on, again over the operator button (or key) his balance is shown automatically and he can

continue his booking.

Attention

As long as an operator is registered the lock position of „R“ cannot be changed . Cancel operators first push the

button through [TRACK = SALDO] . (lay out button)

Manager – System:

The Cash Register enables to program a secret entry “PASSWORD“ for manager allowing for an exclusive access to

operations in Z and PRG key positions or only to the operations in PRG position (i.e.. Z – reports, programming).

PASSWORD consists of four characters and the entry system is identical with the entry of Clerks’ PASSWORD.

Page 6

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

2. SYSTEM RESET. INITIALISATION MACHINE.

System Reset:

If the Cash Register is turned on (with the 220V mains), subsequent disconnecting/connecting an internal standby lithium

battery shall cause initialisation of the Cash Register and its memories, and start of the Cash Register. (All programmed

data, sales, etc. … are deleted !!!!). The status is indicated by characters “CL” on the Cash Register display. Following

that, the entire system has to initialised in S – mode. (see Chapter Cash Register Initialisation). This system reset takes

places upon EPROM replacement, upon initial initialisation of the Cash Register or in case the Cash Register does not

respond to warm reset.

System reset, step-by-step:

¾Turn key to position OFF

¾Disconnect Cash Register from the 220 V mains Keep the key [ %21 ]

pressed and simultaneously connect the Cash Register to the 220V mains

¾Characters SYSTEM RESET

WARM START

CONTINUE

shall appear on display

¾Release the key [ %21]

¾Turn the key to PRG and then go to SYSTEM RESET on the display with the

arrow key.

¾Press the [FDVK]key, the cash desk RESETs and shows the

Programme mode in the display.

¾Abort the SYSTEM RESET, go to CONTINUE with the arrow and press the

[ FDVK]key.

Warm Reset:

This cash desk start should only be used if the following key combination is unsuccessful:

|| The following key positions „REG“, „X“, „Z“, „PRG“.

1. [FOHDU]or &/5 

2. [FDVK]

3. [QRVDOH] 

A warm start can be manually performed as following:

1. According to the procedure for warm start

2. By pressing the „RESET“ BUTTON on the motherboard of the cash desk

(on the left next to the E Prom)

Page 7

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

Procedure for a warmstart:

¾Turn key to position OFF

¾Disconnect Cash Register from the 220 V mains Keep the key [ %21 ]

pressed and simultaneously connect the Cash Register to the 220V mains

¾Characters SYSTEM RESET

WARM START

CONTINUE

shall appear on display

¾Release the key [ %21]

¾leave the key in the OFF position and go with the arrow

key to WARM START

¾press the

[&$6+]key the reset is finished.

Abort the WARM START, go with the arrow key to

CONTINUE and press the [&$6+]key.

Page 8

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

3. KEY DESCRIPTION. DEFAULT KEY LAYOUT.

[ 5(&(,37)(('] : Receipt feed

[ 3/8] : Direct PLU

[ 0,186] : Minus (Discount)

[ 3/86]: Plus (Add On)

[ (&] [ &255(&7,21]: Used as VOID key last transaction item only (PLU, DEP,…)

[ 92,']: Used as VOID key otherwise (PLU, DEP,…)

[ 5(7851] : Return item

[ 68%727$/]: Subtotal during transaction

[ ;/ 7,0(]: Qty during sales. TIME and DATA display otherwise. Shift of

the indication character

[ 35,&(/(9(/1 2 ]: Change PLU price. Price PLU level change

[ 35,&( ]

[ 75$&.]: Open, close TRACK entry

: At the Bakery-Version CLERK cancel

[ &+$1*(7$;] : Change TAXABLE

[ $''75$&.]: Plural track addition

[ 6(3$5$7(] : Separate item from table tracking data

[ 75$16)(5]: Order transmission to another Track

[ %,//35,17 ] : Print out Track (not pay). Print out Receipt to SLIP printer

[ %,//83 / '2:1]: Up, Down item at table tracking data

[ +286(]: The registration of service menu

[ 7,&.(721/ 2)) ] : On/Off print out receipt (R-Mode only)

[ &22.,1* ] : Cooking code registration

[ &855(1&<] : FC conversion

[ # / 126$/(]: No sale open drawer, Non-add number print out

[ 5(&'$&&7]: RA otherwise

Page 9

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

[ 3$,'287]: PO otherwise

[][  ] : Add on, Discount + % / -% (3 x 3)

[ &/($5]: Clear entry

[ &$6+] : Cash payment

[ &+(&. ] [ &+$5*(] [ &5(',7]: Payment key

[ $.%.5.]: Additional business receipt

[ 1250$/35,17] : Tracking movement is not done

[ 7$; 1 2 ] [ 7$.(287 ] : TAX may be programming. Change of TAX.

[ &$6+,(5] : Cashier entry – ID Code

[ &/(5.] : Clerk entry – ID Code

[ 6+,)7'(3] : Shift DEP

[ $6.35,&(] : Price look up function PLU, no sale

[ .(<%2$5'/(9(/] : Change Keyboard level (3x)

[ '(3] : Entry Department

[ .(< %/2&.('] : Key without operation

[ 121 9$7] : The Non Tax key is used to TAX except operation

[0RGH ]: Set the font size in the display

[ PRYHSDJHXS]▲:scroll line by line in the display

[PRYHSDJH'2:1] ▼: scroll line by line in the display

[%LOO0HQX83] : scroll page by page in the display

[%LOO0HQX'2:1 ] : scroll page by page in the display

[ JURXSSOX ] : Display PLU summary in the display

[ 0$.52 ] : Makro key 2

[ 0$.52 ] : Makro key 1

[  ], [  ], [  ] : Banknote keys ( progamming under cooking message No.40 )

Page 10

OLYMPIA CM 1856F _______________________Programming Instruction___________________________________

Default key layout (CM 1856F) – Basic Level: HOSPITALITY

▲

FEED ▲

Journal PLU 23 PLU 31 PLU 39 PLU 47 PLU 55 PLU 63 Group

PLU 1

MAKRO

Keybord

Level RA PO

Ticket

ON/OFF

▲

PLU 7 PLU 14 PLU 22 PLU 30 PLU 38 PLU 46 PLU 54 PLU 62 Group

PLU 2

MAKRO

BILL

Print + % - %

▼

PLU 6 PLU 13 PLU 21 PLU 29 PLU 37 PLU 45 PLU 53 PLU 61 Group

PLU 3

DEPT.

PRICE

COOKING

CODE Seperat

TRANS-

FER

▲

▬

PLU 5 PLU 12 PLU 20 PLU 28 PLU 36 PLU 44 PLU 52 PLU 60 Group

PLU 4

DEPT.

2 RETOUR PLU MODUS X ▬

▼

PLU 4 PLU 11 PLU 19 PLU 27 PLU 35 PLU 43 PLU 51 PLU 59 Group

PLU 5

DEPT.

1 VOID 7 8 9 CHECK

PLU 3 PLU 10 PLU 18 PLU 26 PLU 34 PLU 42 PLU 50 PLU 58 Group

PLU 6

TAKE

OUT EC 4 5 6 CARD

PLU 2 PLU 9 PLU 17 PLU 25 PLU 33 PLU 41 PLU 49 PLU 57 Group

PLU 7 ADD # / NS 1 2 3 SUB

TOTAL

PLU 1 PLU 8 PLU 16 PLU 24 PLU 32 PLU 40 PLU 48 PLU 56 Group

PLU 8 TRACK CLR 0 00 . CASH

Default key layout (CM 1856F) – 1. Level:

REC.

FEED Journal PLU 123 PLU 131 PLU 139 PLU 147 PLU 155 PLU 163 PLU 171

PLU 107 PLU 114 PLU 122 PLU 130 PLU 138 PLU 146 PLU 154 PLU 162 PLU 170

PLU 106 PLU 113 PLU 121 PLU 129 PLU 137 PLU 145 PLU 153 PLU 161 PLU 169

PLU 105 PLU 112 PLU 120 PLU 128 PLU 136 PLU 144 PLU 152 PLU 160 PLU 168

PLU 104 PLU 111 PLU 119 PLU 127 PLU 135 PLU 143 PLU 151 PLU 159 PLU 167

PLU 103 PLU 110 PLU 118 PLU 126 PLU 134 PLU 142 PLU 150 PLU 158 PLU 166

PLU 102 PLU 109 PLU 117 PLU 125 PLU 133 PLU 141 PLU 149 PLU 157 PLU 165

PLU 101 PLU 108 PLU 116 PLU 124 PLU 132 PLU 140 PLU 148 PLU 156 PLU 164

in accordance with basic

level keyboard

Table des matières

Autres manuels Olympia Caisse

Olympia

Olympia CM 980-SF Manuel utilisateur

Olympia

Olympia CM 1810 plus Manuel de service

Olympia

Olympia CM 840 Manuel utilisateur

Olympia

Olympia CM 1846S-F Manuel utilisateur

Olympia

Olympia CM 910 Manuel d'installation

Olympia

Olympia UV 585 Manuel utilisateur

Olympia

Olympia CM 812 Manuel utilisateur

Olympia

Olympia CM 75 Manuel utilisateur

Olympia

Olympia CM 70 Manuel utilisateur

Olympia

Olympia ECR 465T-F Manuel d'installation

Olympia

Olympia ECR 360T-F Manuel utilisateur

Olympia

Olympia CM1830 Manuel utilisateur

Olympia

Olympia CM 812 Manuel utilisateur

Olympia

Olympia CM 812 Manuel utilisateur

Olympia

Olympia ECR 650F Manuel utilisateur

Olympia

Olympia CM 721 PLUS Manuel utilisateur

Olympia

Olympia CM 721 Manuel utilisateur

Olympia

Olympia CM 711 Manuel du propriétaire

Olympia

Olympia CM 910 Manuel utilisateur

Olympia

Olympia CM 940-F Manuel utilisateur

Olympia

Olympia CM 762 Manuel du propriétaire

Olympia

Olympia CM 980-SF Manuel utilisateur

Olympia

Olympia CM 941-F Manuel du propriétaire

Olympia

Olympia CM 1712 Manuel utilisateur

Manuels Caisse populaires d'autres marques

Royal

Royal 480nt Manuel utilisateur

Olivetti

Olivetti ECR 8200 S Manuel utilisateur

TEC

TEC TEC FS-3600 Manuel utilisateur

Integrated System Laboratory

Integrated System Laboratory ISL 4006 Manuel utilisateur

Sam4s

Sam4s ER-380 Guide de dépannage

Sharp

Sharp XE-A206 Manuel de la liste des pièces

Samsung

Samsung ER 5215 Manuel utilisateur

Toast

Toast Toast Manuel utilisateur

Sharp

Sharp XE-A130 Guide de démarrage rapide

TEC

TEC MA-600-1 series Manuel utilisateur

QUORION

QUORION CR 1200 Manuel utilisateur

Olivetti

Olivetti ECR 7700 LD eco Plus Manuel utilisateur

Sharp

Sharp XE-A137-WH Operation Manuel rapide

Sharp

Sharp XE-A203 - Cash Register Thermal Printing Graphic Logo... Manuel utilisateur

TEC

TEC TEC MA-1060 Manuel utilisateur

Casio

Casio PCR-408 Instructions de montage

ELCOM

ELCOM Euro-2100TE Manuel utilisateur

American Changer

American Changer CLASSIC Series Manuel utilisateur
