OLT 6x4 SPACE MASTER Manuel utilisateur
Important Information:
- It is the sole responsibility of the customer to check with your local municipal or county by-laws before
ordering this product to confirm it complies with building codes in your area.
- If the product is elevated, any structural and building code requirements are solely the customer's
responsibility, and should be abided by.
- Snow load ratings vary by geographical location. If heavy or wet snowfall occurs, it is advisable to sweep
snow off roof frequently.
- In areas with high or gusty wind conditions, it is advisable to install the structure securely to the ground.
- Have a regular maintenance plan to ensure screws, doors, windows and parts are tightly affixed.
- All structures purchased from Outdoor Living Today are covered for a period of one year for defects in
manufacturing and workmanship. Costs incurred for customer installations are not included.
- Failure to use supplied parts included in this kit could result in poor product performance and may void your
warranty. Please contact Outdoor Living Today’s Customer Toll Free Line if you plan to deviate from our
written instructions.
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 1
Thank you for purchasing a
6x4 Space Master. Please
take the time to identify all
the parts prior to assembly.
Version #1.0
May 25, 2023
In the event of a missing or broken piece, simply call the Outdoor Living Today Customer Support Line
@ 1-888-658-1658 within 30 days of the delivery of your purchase. It is our commitment to you to courier
replacement parts, free of charge, within 10 business days of this notification. Replacement parts will not be
provided free of charge after the 30 day grace period.
Stock Code:
SM64-TG-D-CEDAR
Customer agrees to hold Outdoor Living Today and any Authorized Dealers free of any liability for improper
installation, maintenance and repair.
6x4 SPACE
MASTER
WITH DOUBLE DOORS
AND CEDAR ROOF
ASSEMBLY MANUAL
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 2
What to do before my Shed arrives?
Become familiar with this assembly manual and determine if you can•
complete the project yourself or will require a professional contractor.
Clear the construction area and ensure a clear pathway for delivery when•
the freight company arrives. Remove all debris: roots, grass, rocks, etc.
Excavate the site. Contact your local utilities company to ensure there are•
no gas or electric lines buried in the area before digging.
Decide on the type of foundation you will be using:•
Concrete slab, or
46 inches of crushed gravel with paver stones or 4x4 stringers.
You can find the footprint for your shed on Page 3 of your Assembly
Manual.
If doing the assembly yourself, have all the necessary tools ready to go•
and in working condition. A list of required tools can be found after the
parts list.
One helper is recommended to assist in constructing your chalet.•
It generally takes two people less than a day to assemble a chalet. If you’re
hiring a contractor, their rate should be in line with that duration of work.
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 3
Foundation Types for 6x4 Garden Shed
Concrete Slab Foundation:
- Slab must be at least the same size as assembled floor frame (45” x 73”) or larger.
- 6” Deep foundation.
- 0.5 Cubic Yards of concrete required.
- A concrete slab will have the longest durability out of your foundation options.
Once level, a concrete slab is the easiest surface to build on.
Gravel with 4x4 Pressure Treated Stringers:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 0.6 Cubic Yards of gravel required, approximately 6 wheelbarrows.
- 5 - 4x4 Pressure Treated Stringers 44 3/4” long required.
- Evenly spaced, with one at each end of floor frame.
Saves money on materials, easy to level and work with.
Gravel with Patio Paver Stones:
- Excavate at least 6” deep, and 6” wider than floor frame on each side.
- 0.6 Cubic Yards of gravel required, approximately 6 wheelbarrows.
- 12 patio pavers (8” x 8” or larger).
- Center patio paver stones underneath floor runners and underneath seams in floor joists.
Patio paver stones are widely available from most landscape stores.
73”
45”
6”Deep
5 - 4”x4”x44 3/4”
12 Patio Stones
Floor FrameConcrete Foundation Completed Foundation
13 7/8”
Gravel Foundation Gravel Foundation with treated stringers Completed Foundation
Gravel Foundation Gravel Foundation with Patio Pavers Completed Foundation
73”
45”
85”
57”
85”
57”
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 4
Thank you for purchasing our 6x4 Space Master with Cedar Roof.
Please take the time to identify all the parts prior to assembly.
Note: Trim and Skirting pieces are graded with the best face being rough sawn.
Rough sawn cedar is much easier to paint and stain.
Parts List
A. - Floor Section
Floors
1 - Floor Section - 45” x 73”
1 - Mid Floor Joist - 1 1/2” x 2 1/2” x 70”
Steps
1
B. - Wall Section
Main Wall Panels
2 - Rear Walls - 35” x 63 1/4”
4 - Side Walls - 22 1/2” x 63 1/4”
2 - Top Wall Plates - 1 1/2” x 1 1/2” x 35”
4 - Top Wall Plates - 1 1/2” x 1 1/2” x 22 1/2”
2 - Front Narrow Walls - 12 1/2” x 61 3/4”
Header/Gables
1 - Front Header - 1 1/2” x 1 1/2” x 70”
1 - Interior Door Header - 1 1/2” x 1 1/2” x 44 7/8”
4 - Front/Rear Top Plate - Sides - 3/4” x 1 1/2” x 19”
2 - Front/Rear Top Plate - Center - 3/4” x 1 1/2” x 32”
2 - Side Wall Top Plates - 3/4” x 1 1/2” x 45” - Angle Cut
2 - Front/Rear Gables - 17 1/2” x 67 3/4”
Shelves
Storage Shelf Supports
Short (2 - 3/4” x 2 1/2” x 12 1/2”)
Long (2 - 3/4” x 2 1/2” x 35”)
2 - Storage Shelves - 11 1/2” x 41 7/8”
2 - 13
14 - 22
23 - 24
C. - Rafters and Roof Section
Roof
2 - Cedar Shingle Roof Panels - 45” x 53”
4 - Roof Nailing Strips - 3/4" x 1 1/4" x 40"
6 - Rafters - 1 1/2” x 2 1/2” x 41 3/4”
2 - Soffits - 1/2” x 2 1/2” x 45”
2 - Roof Ridge Boards - 3/4” x 3 1/2” X 45”
26 - 39
D. - Trim / Misc. Section
Lower Skirting
2 - Lower Rear Skirting - 1/2” x 2 1/2” x 35 3/4”
4 - Lower Side Skirting - 1/2” x 2 1/2” x 21 3/4”
Lower Front Skirting
Short (2@1/2” x 2 1/2” x 11 3/4”)
Long (1@1/2” x 2 1/2” x 47”)
Filler Trim
8 - Front/Rear Filler Trims - 5/8” x 1 1/2” x 30”
1 - Front Header Filler Strip - 5/8” x 1 1/2” x 69 1/2”
41
42 - 44
D. - Trim / Misc. Section Cont.
Outer Wall Trim and Fascia
4 - Front/Rear Wide Corner Trims - 1/2” x 3 1/2” x 67 7/8”
6 - Side Wall Trims - 1/2” x 2 1/2” x 65 1/2”
1 - Rear Horizontal Trim - 1/2” x 3” x 67 1/4”
1 - Rear Center Trim - 1/2” x 2 1/2” x 64 3/4”
4 - Front/Rear Facia - 3/4” x 3 1/2” x 43” - Angle Cut Ends
2 - Side Fascia - 3/4” x 3 1/2” x 49”
2 - Pentagon Detail Plates - 1/2” x 5 1/2” x 8”
2 - Vertical Door Frame Trim - 1/2” x 2 1/2” x 64 1/4”
Door System
1 - Door Threshold (Bevel) - 1/2” x 2 5/8” x 44 7/8”
2 - Left/Right Doors - 22 1/4” x 61 3/8”
1 - Door Flange - 1/2” x 2 1/2” x 61 3/8”
4 - Interior Vertical Door Stops - 3/4” x 3/4” x 29 7/8”
Miscellaneous
1 - Front Horizontal Trim - 1/2” x 3” x 67 1/4”
1 - Metal Drip Edge - 60”
8 - Roof Ridge Caps - 12”
1 - Roof Ridge Caps - 10”
** Plus 2 Cedar Shingle Shims - discard after shimming
doors
Steps
45- 53
54 - 66
68 - 70
Note: We recommend you drill a 1/8” pilot hole for each
screw to avoid splitting wood. The hole depth should be
equal to 3/4 the length of screw.
Tools Required (Not Provided)
Safety Equipment Required (Not Provided)
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 5

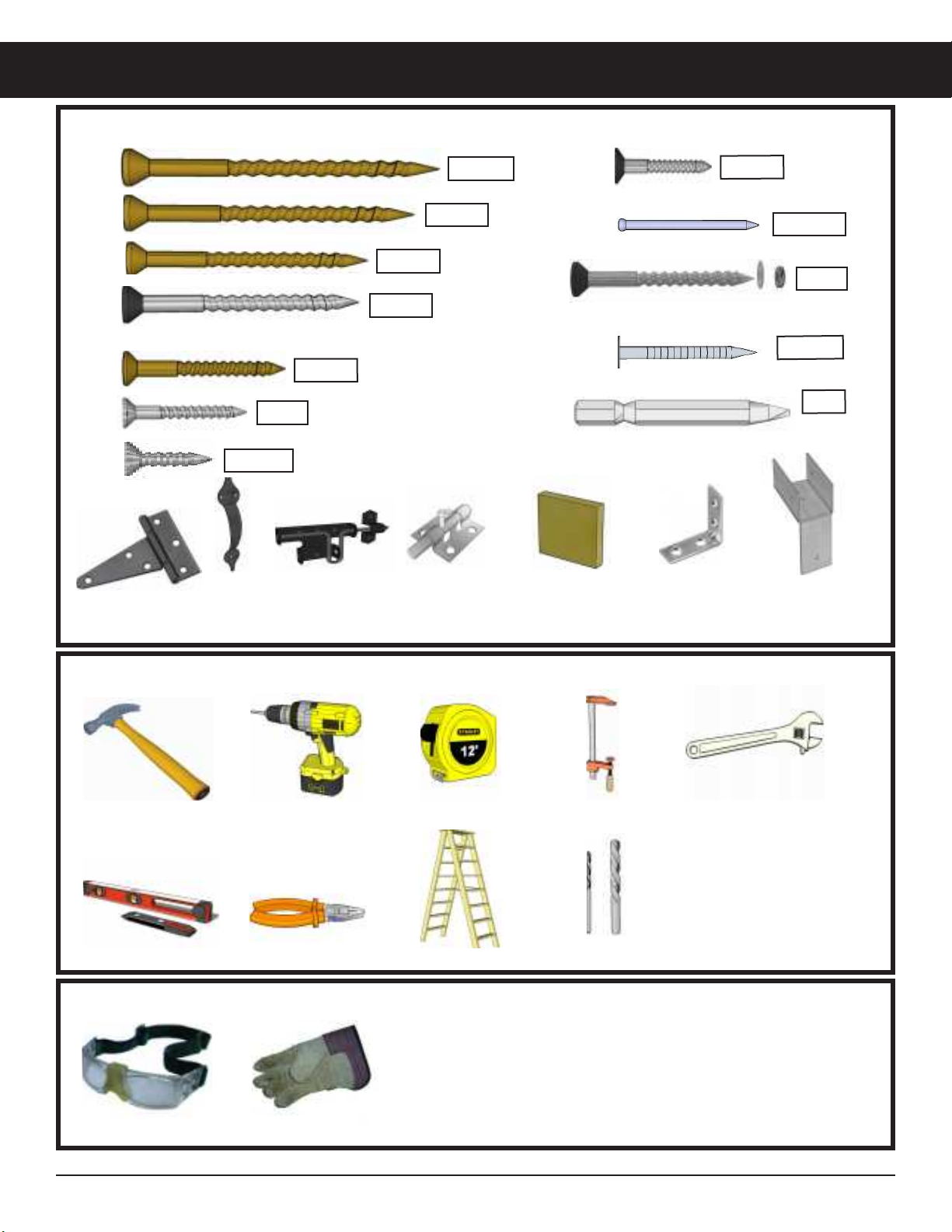

Hardware Kit (Provided)
6x4 SPACE MASTER - DOUBLE DOORS & CEDAR ROOF
3/4”
1 1/2”
T Hinge
x 4 pcs
Door
Handle
x 2 pcs
Black Headed Screw
Finishing
Shingle Nails
Safety Glasses
Work Gloves
Ladder
Screw Gun/Drill Tape Measure
Hammer Wood Clamp
Level Pliers
Silver
Barrel Bolt
Drop Latch
1/8” & 3/8” Drill Bits
1 1/2”
Black Headed Bolt with Silver Nut and Washer
24 pcs
250 pcs
6 pcs
22 pcs
1/2”x 2 1/2” x 2 1/2”
Plywood Spacer
3/8” Wrench
2 1/2”
3/4”
2”
Black Headed Screw
Silver
1 1/4”
55 pcs
14 pcs
80 pcs
60 pcs
1” 7 pcs
3” 25 pcs
2” 45 pcs
90° Metal
Brackets
x 12 pcs
Square Drive Bit
1 pc
1 1/2”
Rafter
Bracket x 2
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 6
Regular Maintenance & Tips to prolong the life of your shed.
Before/During Assembly:
1.) Paint each face and edge of your plywood floor with a latex exterior paint.
2.) Caulk wall seams if gaps appear.
3.) Caulk around window framing.
4.) Caulk perimeter between floor plywood and bottom wall plate.
5.) Caulk channels in lap siding at the top of your door above the trim, just a drop in each channel.
6.) Caulk edge of door threshold.
7.) Optional: Install a Sill Gasket between floor runners and foundation.
8.) Optional: Install an 8” strip of roofing paper below Cedar Ridge Caps for Cedar Roof Sheds.
Routine Maintenance:
- Routinely check all fasteners are tight (ex. Door Hinges, Nails)
- Brush off dirt from walls.
- Brush off snow from roof regularily.
- Routinely remove needles and leaves from cedar roof.
Painting/Staining
- Your cedar shed, if left untreated, will weather to a silvery grey colour.
- Painting or staining your structure is highly recommended and will prolong the life of your shed.
- You do not need to wait to paint or stain your shed, the wood in your kit has been dried and can
be stained or painted immediately.
- Consult your local paint store for the best paint or stain for cedar.
- Optional: stain the inside of your shed. (Note: this will remove the fresh cedar smell.)
1. 2. 3.
4. 5. 6.
7.
Sill Gasket
Floor Joists
Foundation
8.
Floor Plywood
Wall Panel
Dab of caulking
Strip of roofing paper over
apex of roof panels
Floor Runner
Small gap
between bevel
siding and
window trim
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 7
1. Locate Floor Joist and position at center of Floor Section
and flush with framing as illustrated above. Attach with 2 - 2 1/2”
Brown Screws per end. Flip over and lay Floor Section on a
level foundation only. Patio Stones or a Concrete Slab both
make excellent foundations. (See Page 3 for more information
on foundations). Use a level to confirm and shim Floor Joist as
required.
A. Floor Section
Parts
Floor Joist
(1 1/2” x 2 1/2” x 70”) x 1
Floor Section
(45” x 73”) x 1
Hardware
2 1/2” Brown Screws
x 4 total
Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Floor Joist
Floor Section
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 8
Due to packaging constraints, top wall plates must be attached prior to erecting walls.
2. For each Rear and Side Wall Panel, carefully lay Panel face down. Position and attach a Top Wall
Plate to top of wall studs of each Wall Panel with 2 - 2 1/2” Brown Screws. Position so Plates are
flush with framing.
Parts
Rear Wall Panels
(35” x 63 1/4”) x 2
Top Wall Plates
(1 1/2” x 1 1/2” x 35”) x 2
Hardware
2 1/2” Brown Screws
x 12 total
Top Wall Plate
Important:
Pilot hole ALL 2x2 Wall Studs
with 1/8” drill bit prior to screwing.
This will make it much easier
to attach together.
B. Wall Section
Exploded view of all parts necessary to complete the Wall Section. Identify all parts prior to
starting.
Long Shelf
Supports (2)
Side Wall
Panels (4)
Rear Gable
Short Shelf
Supports (2)
Storage Shelves (2)
Interior Door Header
Front Header
Front Gable
Center/Side Rear
Top Plate (3)
Center/Side Front
Top Plates (3)
Side Wall Top Plates (2)
Rear Wall Panels (2)
Front Narrow Walls (2)
Rear/Side Top
Wall Plates (6)
Parts
Side Wall Panels
(22 1/2” x 63 1/4”) x 4
Top Wall Plates
(1 1/2” x 1 1/2” x 22 1/2”) x 4
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 9
3. With Wall Plates properly attached, orientate completed Walls around the Floor. Be sure to leave
room to work. Front Narrow Walls will be required in this section.
Front
Rear Wall Panels
Front Narrow
Wall Panels
Front
Rear Left Side Wall
Wall frame flush with outside
of Floor on the side. Wall
siding will overhang Floor.
Rear Left Side Wall
4. Starting with Rear Left Side Wall, lift up and position so framing is
flush with Floor at the rear of shed. Make sure Wall frame is flush with
outside of Floor on the side. When Wall is positioned correctly,
secure Bottom Wall Plate to Floor with 3 - 2 1/2” Brown Screws.
Rear
BottomWallPlate
Before completely
attaching walls to floor
(Steps 4-13), check to
make sure door opening is
45” wide. See Step 17
for illustration.
Hardware (Steps 4 - 10)
2 1/2” Brown Screws
x 20 total
3” Brown Screws
x 15 total
3 - 2 1/2” Brown Screws
Wall frame flush with
outside of Floor at
the rear.
Side Wall Panels
Side Wall Panels
Floor
RearCorner
Outdoor Living Today www.outdoorlivingtoday.com sales@outdoorlivingtoday.com
Page 10
Rear Wall
5. With your helper holding the Side Wall Panel, position a Rear Wall Panel in rear corner.
Important: Align Wall Framing Flush with Floor Framing.
Rear Left Side Wall
RearWallPanel
Wall frame flush
with outside Floor.
Wall siding will
overhang Floor.
6. When Side and Rear Walls are aligned in corner correctly, Wall framings will be flush. Attach
Wall framings together with 3 - 3” Brown Screws. Secure Bottom Wall Plate to Floor with 4 - 2 1/2”
Brown Screws.
Left SideWall
3” Brown Screws
2 1/2” Brown
Screws
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels OLT Entreposage extérieur
OLT
OLT SpaceMaker Manuel utilisateur
OLT
OLT GardenSaver GS84-S-FJ Manuel utilisateur
OLT
OLT GS63-TG-CEDAR Manuel utilisateur
OLT
OLT 12x4 SpaceSaver Shed Manuel utilisateur
OLT
OLT GGC63-TG-CEDAR Manuel utilisateur
OLT
OLT GS84-S-Plywood Manuel utilisateur
OLT
OLT GS84-D-METAL Manuel utilisateur
OLT
OLT 8x12 SpaceMaker Garden Shed Manuel utilisateur
OLT
OLT GS84D-FJ-Plywood Manuel utilisateur
OLT
OLT GS124-SLIDER-CEDAR-FJ Manuel utilisateur
OLT
OLT 8x12 SpaceMaker Shed Manuel utilisateur
OLT
OLT STU128 Manuel utilisateur
OLT
OLT SS84-D-METAL Manuel utilisateur
OLT
OLT GS124-SLIDER-METAL-AK Manuel utilisateur
OLT
OLT STU128-FJ-Ply Manuel utilisateur
OLT
OLT GardenSaver GS124-SLIDER-PLY-AK Manuel utilisateur
OLT
OLT GardenSaver GS84-Slider Manuel utilisateur
OLT
OLT SpaceSaver SS84D-FJ-METAL Manuel utilisateur
OLT
OLT SM812-FJ-Ply Manuel utilisateur
OLT
OLT SS84-SLIDER-CEDAR-AK Manuel utilisateur
Manuels Entreposage extérieur populaires d'autres marques
Lifetime
Lifetime 6418 Manuel utilisateur
rollaway container
rollaway container ARPCA24 Manuel utilisateur
Duratuf
Duratuf Havelock Manuel utilisateur
X-METAL
X-METAL 4065 Manuel utilisateur
Outdoor Life Products
Outdoor Life Products FP2030 F Manuel utilisateur
Royalcraft
Royalcraft Faro 295L Storage Box Manuel utilisateur
