Olivetti MY_WAY Manuel utilisateur

Edited/Published/Produced by:

Olivetti S.p.A.

Gruppo Telecom Italia

Via Jervis, 77

Ivrea (TO)

Italy

www.olivetti.com

ENERGY STAR is a U.S. registered mark.

The ENERGY STAR program is an energy reduction plan introduced by the United States Environmental Protection Agency in response to

environmental issues and for the purpose of advancing the development and utilization of more efficient office equipment.

Code: 516307

Date of publication: September, 2005

Trademarks:

Microsoft and Windows are registered

trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this

document to refer to either the entities claiming the

marks and names or their products. Olivetti disclaims any

proprietary interest in trademarks and trade names other

than its own.

CONTENTS v

CONTENTS

1 GETTING STARTED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

INFORMATION ABOUT PRINT QUALITY AND THE WARRANTY . . . . . . . . . .3

LOCATING YOUR PRINTER’S COMPONENTS . . . . . . . . . . . . . . . . . . . . . . .4

PRINTER CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

LOADING PAPER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Loading Paper in the Paper Cassette . . . . . . . . . . . . . . . . . . . . . . . . . .8

Loading a Single Sheet of Plain A4 Paper Folded

Vertically in the Middle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

POWERING YOUR PRINTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Choosing the Power Source For Your Printer . . . . . . . . . . . . . . . . . . .9

TURNING YOUR PRINTER ON AND OFF . . . . . . . . . . . . . . . . . . . . . . . . . .10

Turning On Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning Off Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CONNECTING A DIGITAL CAMERA TO YOUR PRINTER . . . . . . . . . . . . . . 11

INSERTING AND REMOVING MEMORY CARDS . . . . . . . . . . . . . . . . . . . .11

Inserting a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Removing a Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CARRYING YOUR PRINTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

2 USING YOUR PRINTER WITHOUT A COMPUTER . . . . . . . . . 15

VIEWING PHOTOS ON YOUR PRINTER’S DISPLAY . . . . . . . . . . . . . . . . . . . 16

Full-Screen Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Thumbnail Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SELECTING AND PRINTING PHOTOS FROM YOUR MEMORY CARD . . . . .17

PRINTING PHOTOS FROM YOUR PICTBRIDGE DIGITAL CAMERA . . . . . . .18

SELECTING AND PRINTING PHOTOS FROM YOUR DPOF

DIGITAL CAMERA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

SELECTING AND PRINTING PHOTOS FROM YOUR NON-PICTBRIDGE/DPOF

DIGITAL CAMERA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

PRINTING PHOTOS FROM A BLUETOOTH PERIPHERAL . . . . . . . . . . . . . . .19

CHAPTER CONTENTS

3 USING YOUR PRINTER FROM A COMPUTER . . . . . . . . . . . . .21

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

THE TOOLBOX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

THE PRINTER STATUS MONITOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

PRINTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Printing From Your Application Using Print Properties . . . . . . . . . . . . 24

Printing with the Toolbox Print Photos Tool . . . . . . . . . . . . . . . . . . . . 25

TRANSFERRING FILES FROM A MEMORY CARD TO YOUR COMPUTER . . 26

4 THE INK CARTRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

CHECKING INK LEVELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

REPLACING THE INK CARTRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

ALIGNING THE INK CARTRIDGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Aligning the Ink Cartridge From the Toolbox . . . . . . . . . . . . . . . . . . 31

5 MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . .33

CLEANING YOUR PRINTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Cleaning the Printer Casing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

CLEANING THE INK CARTRIDGE NOZZLES . . . . . . . . . . . . . . . . . . . . . . . . 34

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Problems During Printer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Problems When Powering On the Printer . . . . . . . . . . . . . . . . . . . . . 37

Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Meaning of the Indicators on the Control Panel . . . . . . . . . . . . . . . . 38

CLEARING PAPER JAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

6 TECHNICAL CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . . .41

GENERAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

PRINTER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

PAPER SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Supported Paper Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

GETTING STARTED 1

1GETTING STARTED

OVERVIEW

SAFETY INSTRUCTIONS

INFORMATION ABOUT PRINT QUALITY AND THE WARRANTY

LOCATING YOUR PRINTER’S COMPONENTS

PRINTER CONTROL PANEL

LOADING PAPER

POWERING YOUR PRINTER

TURNING YOUR PRINTER ON AND OFF

CONNECTING A DIGITAL CAMERA TO YOUR PRINTER

INSERTING AND REMOVING MEMORY CARDS

CARRYING YOUR PRINTER

CHAPTER 12

OVERVIEW

Your compact, lightweight wireless mobile bubble ink-jet printer uses with a high-quality 3-colour print

cartridge to print borderless photographs in very high photo quality on photo or plain paper. With the

possibility of being operated with rechargeable batteries, and equipped with a wireless Bluetooth

interface, this printer becomes an inseparable companion during your moments of leisure.

You can enjoy your printer in the convenient PC-free or stand-alone mode, whereby you can print A6

size photographs by plugging your PictBridge, DPOF, or non-PictBridge/DPOF digital camera directly

into the printer’s USB interface without needing to connect the printer to a computer or even turn the

computer on. You can also insert your memory cards into the related slots on the printer, select and

directly print the photos that are stored in them. Furthermore you can print straight from your wireless

Bluetooth PC or mobile phone via the printer’s integrated Bluetooth interface.

You can also enjoy your printer connected to a personal computer via the printer’s second USB

interface. In this way, you can also work in the same way as in the PC-free mode but also take full

advantage of the document management and bundled software provided on the "Installation" CD-

ROM that came with the product.

note: If you want to connect your printer to a personal computer, the computer must be running the

Microsoft Windows 98, SE, Me, 2000 or XP operating system, or MAC OS 10.3 or later.

GETTING STARTED 3

SAFETY INSTRUCTIONS

Carefully read and follow the information indicated below:

• Connect the power cord to an electrical outlet that is near the product and easily accessible.

• Do not use your printer near water, or with wet hands.

• Do not expose your printer to rain or moisture.

• Do not attempt to disassemble your printer.

• Observe all warnings and instructions marked on your printer.

• Read and understand all the documentation that came with your printer.

INFORMATION ABOUT PRINT QUALITY AND THE WARRANTY

To guarantee the correct operation of your printer and top quality printing, it is essential to use only

Olivetti original ink cartridges.

Olivetti declines any responsibility for damage to your printer caused by the tampering with, or refilling

of, the ink-jet cartridges. Such actions also imply forfeiture of the Warranty.

CHAPTER 14

LOCATING YOUR PRINTER’S COMPONENTS

GETTING STARTED 5

Reference Part Description

1Control panel Features the colour display, Bluetooth activity indicator, error LEDs

and a number of buttons and indicators that allow you to print

and customize print jobs. See "Printer Control Panel" for a

description of the functions available.

2USB interface Plug the USB cable from your digital camera to print photographs

directly from your camera.

3Power connector Connector into which you plug the printer’s external power

transformer or car lighter adapter, both of which provided in the

product packaging.

note: Plug the external power transformer into the printer first

and then into the electrical outlet.

4Carry handle Extract this handle to carry your printer wherever you go.

5High-speed USB

interface

Plug the USB cable (not included) used for connection to your

personal computer. Plug the other end of the cable to the

computer.

6Paper cassette

insertion slot

Insert here the 20-sheet paper cassette after sliding it off the rails

on the bottom of your printer.

7Memory card slots Insert your memory cards in these slots to read their contents and

select the pictures that you want to print. See "Inserting and

Removing Memory Cards". Can accommodate Compact Flash I,

II, Microdrive, SmartMedia, SecurDigital and MultiMedia cards,

Memory Sticks and xD-Picture cards.

8Ink cartridge carrier Holds the colour ink cartridge. For information on how to change

the ink cartridge, see "Replacing the Ink Cartridge".

9Paper exit slot and

paper jam clearing

area

Slot from where the printed sheet of paper exits the printer. Also

used for clearing paper jams inside the printer. For information on

how to clear paper jams, see "Clearing Paper Jams".

10 Left inner cover Closes the paper exit slot and ink cartridge carrier.

11 Battery compartment Holds six 2-2.3 Ah rechargeable Nickel Cadmium (NiCd) or Nickel

Metal Hydride (NiMH) batteries that power the printer when the

external power transformer or car lighter adapter is not used.

12 Paper cassette Holds up to 20 sheets of 280 gm2photo paper. When not used,

the paper cassette can be secured underneath the printer.

CHAPTER 16

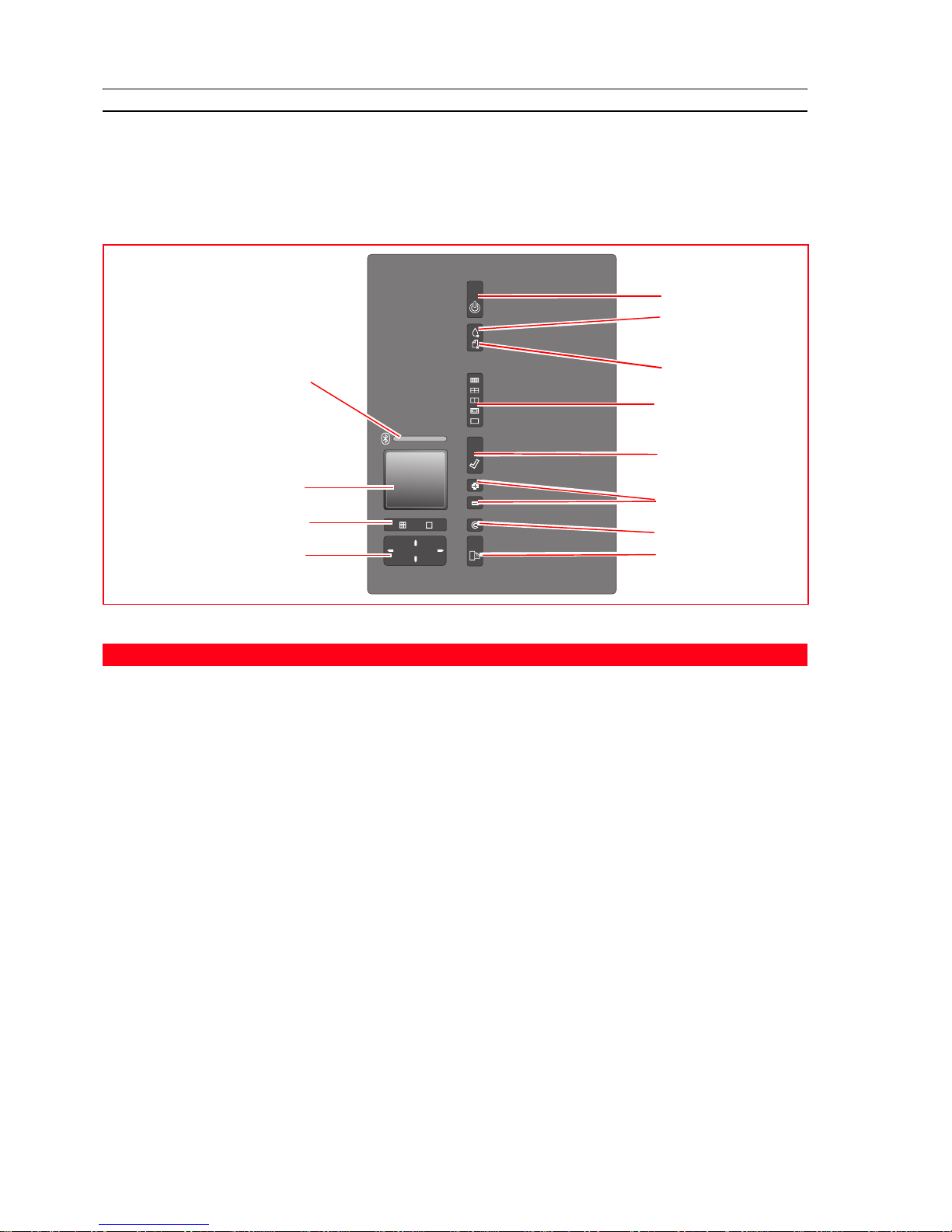

PRINTER CONTROL PANEL

The printer control panel allows you to manually control the printing of photos received from a digital

camera connected to the printer, stored in a memory card inserted in one of the printer’s memory card

slots, or received from a Bluetooth peripheral. With its colour display, you can also scroll and view the

photos. This console also includes buttons by means of which you can select your photos and

customise print jobs. The icons on the buttons illuminate to indicate the selection currently active.

Reference Part Description

1 On/Off Button Turn your printer on or off.

2 Out of ink indicator Flashes or illuminates to indicate an out ink condition, in which

case it is suggested that you replace the ink cartridge. See

"Replacing the Ink Cartridge".

3 Paper error indicator • Illuminates to indicate an out of paper condition.

• Illuminates to indicate a paper jam. See "Clearing Paper

Jams".

• Illuminates to indicate the feed of an incorrect paper size

when printing.

4 Page layout button Press to select the layout in which the photos will be printed on

the paper. Press this button sequentially to select:

• the index of your pictures, which will be correctly printed if

already compiled by the device (digital camera). If an index is

not provided by the device, the printer will create its own

index of pictures by it may not be complete.

• 4 borderless photos fitted on the page size

• 2 borderless photos fitted on the page size

• 1 photo with borders and fitted on the page size

• 1 borderless photo fitted on the page size

As you press this button, the icons illuminate to indicate the

corresponding page layout selected. If the icons do not illuminate,

there is no device connected to the printer. Borderless is not

available when using plain A4 paper folded vertically in the

middle.

Table des matières

Autres manuels Olivetti Imprimante

Olivetti

Olivetti PGL2645 Manuel utilisateur

Olivetti

Olivetti STUDIOJET 300 Manuel utilisateur

Olivetti

Olivetti DP N24 Manuel utilisateur

Olivetti

Olivetti d-Color 201MF Manuel utilisateur

Olivetti

Olivetti d-Color MF1600 plus Instructions d'installation et d'entretien

Olivetti

Olivetti ZU-603 Manuel utilisateur

Olivetti

Olivetti d-COLORP2230 Manuel utilisateur

Olivetti

Olivetti PG L2140 Manuel utilisateur

Olivetti

Olivetti PK-516 Manuel utilisateur

Olivetti

Olivetti PG L2035 Manuel utilisateur

Olivetti

Olivetti NOMAD-JET 100 Manuel utilisateur

Olivetti

Olivetti PR2 plus Manuel utilisateur

Olivetti

Olivetti PR4 SR Manuel utilisateur

Olivetti

Olivetti FK-507 Manuel utilisateur

Olivetti

Olivetti ZU-606 Manuel utilisateur

Olivetti

Olivetti d-COLOR P3100 Manuel utilisateur

Olivetti

Olivetti PG L2028 Special Manuel utilisateur

Olivetti

Olivetti JS-602 Manuel utilisateur

Olivetti

Olivetti d-Color P126W Manuel technique

Olivetti

Olivetti D-color MF 250 Plus Manuel utilisateur

Olivetti

Olivetti d-COLOR P2026 Manuel utilisateur

Olivetti

Olivetti PGL 12EN Manuel utilisateur

Olivetti

Olivetti FK-502 Manuel utilisateur

Olivetti

Olivetti JS-504 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
