Olivetti JS-602 Manuel utilisateur

JS-602

Option Printer

SERVICE MANUAL

Code Y111430-0

PUBLICATION ISSUED BY:

Olivetti S.p.A.

77, Via Jervis - 10015 Ivrea (TO)

Italy

JS-602OUTLINEMAINTENANCE

Field Service Ver. 1.0 Jul. 2009

CONTENTS

JS-602

OUTLINE

1. PRODUCT SPECIFICATIONS ................................................................................ 1

MAINTENANCE

2. PERIODICAL MAINTENANCE PROCEDURE ....................................................... 3

2.1 Paper exit section ................................................................................................. 3

2.1.1 Cleaning of the transport rollers/exit rollers .................................................. 3

3. OTHER MAINTENANCE ITEM ............................................................................... 4

3.1 Items not allowed to be disassembled and adjusted ............................................ 4

3.2 Disassembly/reassembly parts list........................................................................ 5

3.3 Disassembly/reassembly procedure..................................................................... 5

3.3.1 Separator ...................................................................................................... 5

3.3.2 Front cover .................................................................................................... 6

3.3.3 Rear cover..................................................................................................... 6

3.3.4 3rd entrance switching solenoid (SD404) ..................................................... 7

JS-602

OUTLINEMAINTENANCE

Field Service Ver. 1.0 Jul. 2009

Blank Page

Field Service Ver. 1.0 Jul. 2009 1. PRODUCT SPECIFICATIONS

JS-602OUTLINE

OUTLINE

1. PRODUCT SPECIFICATIONS

A. Type

B. Functions

C. Paper type

D. Machine specifications

E. Operating environment

Conforms to the operating environment of the main body.

NOTE

• These specifications are subject to change without notice.

Name Job separator

Type Add-on finishing device externally mounted on top of finisher

Installation Fixed to finisher

Document alignment Center

Modes Group, Sort (during copy, print, or fax mode)

Type Size Weight Tray capacity

Plain paper

A5S to A3

5-1/2 × 8-1/2S to

11 × 17

64 to 90 g/m2

17 to 24 lb

100 sheets:

A4, 8-1/2 × 11 (80 g/m2, 21.25 lb)

50 sheets:

except A4, 8-1/2 × 11 (80 g/m2, 21.25 lb)

(Height: up to 28 mm, 1.1 inch)

Power requirements DC 5 V, DC 24 V (supplied from finisher)

Dimensions 341 mm (W) × 537 mm (D) × 149 mm (H)

13.43 inch (W) × 21.14 inch (D) × 5.87 inch (H)

Weight 1.75 kg (3.86 lb)

Y111430-0Service Manual

1. PRODUCT SPECIFICATIONS Field Service Ver. 1.0 Jul. 2009

JS-602

OUTLINE

Blank Page

Service Manual Y111430-0

Field Service Ver. 1.0 Jul. 2009 2. PERIODICAL MAINTENANCE PROCEDURE

JS-602MAINTENANCE

MAINTENANCE

2. PERIODICAL MAINTENANCE PROCEDURE

2.1 Paper exit section

NOTE

• The alcohol described in the cleaning procedure of maintenance represents theޓ

isopropyl alcohol.

2.1.1 Cleaning of the transport rollers/exit rollers

A. Periodically cleaning parts/cycle

• Transport roller: Every 100,000 counts

• Exit roller: Every 100,000 counts

B. Procedure

1. Open the cover.

2. Using a cleaning pad with alcohol,

wipe the transport rollers [1] clean of

dirt.

3. Using a cleaning pad with alcohol,

wipe the exit rollers [1] clean of dirt.

A10CF2C001DA

[1]

A10CF2C002DA

[1]

Y111430-0Service Manual

3. OTHER MAINTENANCE ITEM Field Service Ver. 1.0 Jul. 2009

JS-602

MAINTENANCE

3. OTHER MAINTENANCE ITEM

3.1 Items not allowed to be disassembled and adjusted

A. Paint-locked screws

NOTE

• To prevent loose screws, a screw lock in blue or green series color is applied to

the screws.

• The screw lock is applied to the screws that may get loose due to the vibrations

and loads created by the use of machine or due to the vibrations created during

transportation.

• If the screw lock coated screws are loosened or removed, be sure to apply a screw

lock after the screws are tightened.

B. Red-painted screws

NOTE

• The screws which are difficult to be adjusted in the field are painted in red in order

to prevent them from being removed by mistake.

• Do not remove or loosen any of the red-painted screws in the field. It should also

be noted that, when two or more screws are used for a single part, only one repre-

sentative screw may be marked with the red paint.

C. Variable resistors on board

NOTE

• Do not turn the variable resistors on boards for which no adjusting instructions

are given in Adjustment/Setting.

D. Removal of PWBs

CAUTION

• When removing a circuit board or other electrical component, refer to “Handling of

PWBs” and follow the corresponding removal procedures.

• The removal procedures given in the following omit the removal of connectors and

screws securing the circuit board support or circuit board.

• Where it is absolutely necessary to touch the ICs and other electrical components

on the board, be sure to ground your body.

Service Manual Y111430-0

Field Service Ver. 1.0 Jul. 2009 3. OTHER MAINTENANCE ITEM

JS-602MAINTENANCE

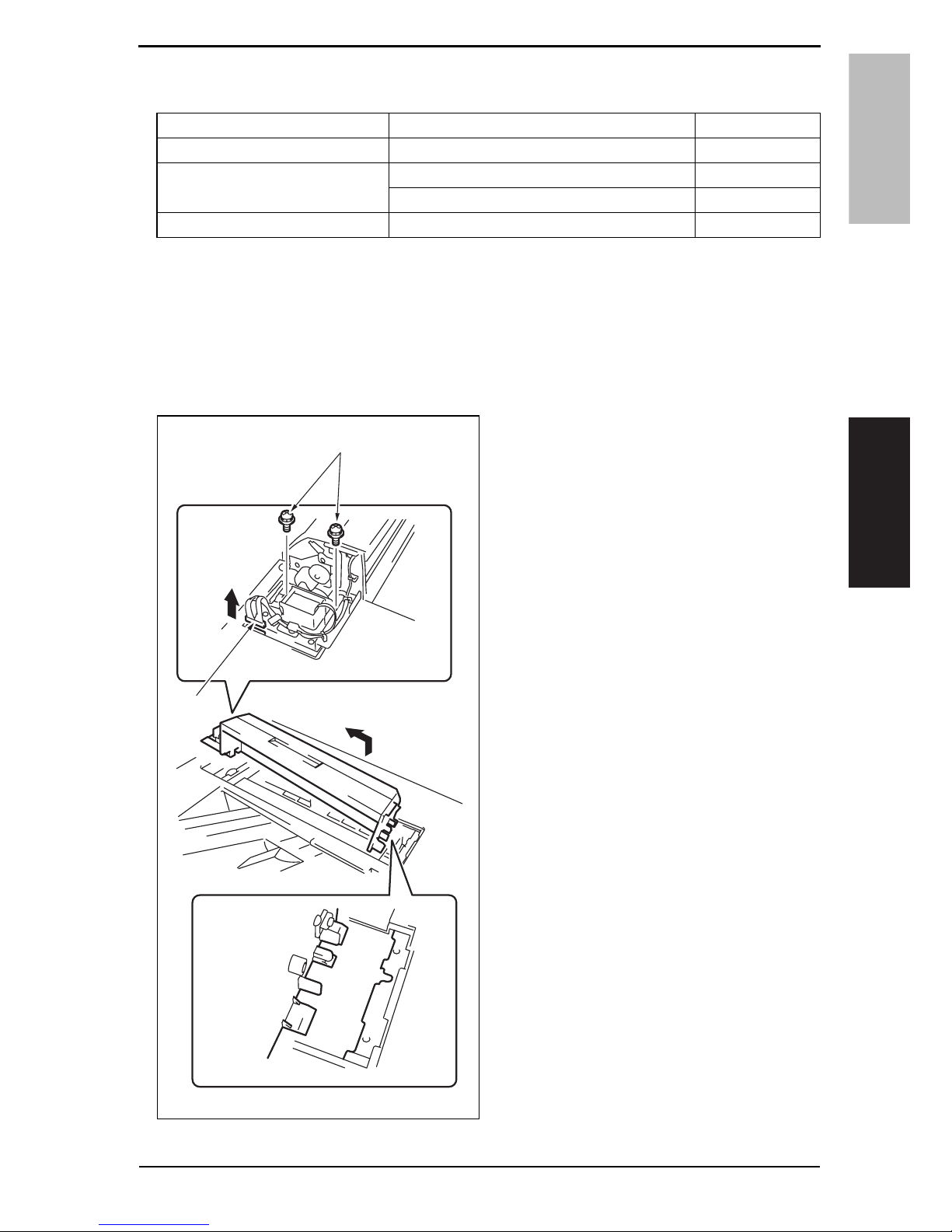

3.2 Disassembly/reassembly parts list

3.3 Disassembly/reassembly procedure

3.3.1 Separator

1. Remove the front cover.

See P.6

2. Remove the rear cover.

See P.6

3. Remove two screws [1] and connec-

tor [2], and remove the separator [3].

Section Part name Ref. page

Unit Separator P. 5

Exterior parts Front cover P. 6

Rear cover P. 6

Other 3rd entrance switching solenoid (SD404) P. 7

A10CF2C500DA

[2]

[1]

Y111430-0Service Manual

3. OTHER MAINTENANCE ITEM Field Service Ver. 1.0 Jul. 2009

JS-602

MAINTENANCE

3.3.2 Front cover

1. Unlock three tabs [1], and remove

the front cover [2].

2. Reinstall the above parts following the removal steps in reverse.

3.3.3 Rear cover

1. Unlock the tab [1], and remove the

spacer [2].

2. Unlock three tabs [1], and remove

the rear cover [2].

3. Reinstall the above parts following the removal steps in reverse.

A10CF2C501DA

[1]

A10CF2C502DA

[1]

A10CF2C503DA

[1]

Service Manual Y111430-0
