OPERATION MANUAL
AND PARTS LIST
7660.002
ROUND ROD MILLING MACHINE
WARNING: 1.Read this operation manual carefully before operation
2.Keep this manual for future reference
1
WOOD RATTAN WORKING MACHINE
AUTOMATIC ROUND RATTAN
AND ROUND ROD MILLING MACHINE
7660.002
The is a precise WOOD RATTAN WORKING MACHINE AUTOMATIC
ROUND
RATTAN AND ROUND ROD MILLING MACHINE. We believe that if you
operate it normally and make a good maintenance periodically, the
machine will stay in a perfect condition. Before operating the machine,
please read the INSTRUCTION-HANDBOOK.
SPECIFICATIONS
：
TYPE
7660.002
Work area diameter.
3/8”-2-3/8”
Minimum workable length（mm）
300
Main shaft motor（HP）
3-5
Feed motor（HP）
1-2
R.P.M. of main shaft
3000
Feeding speed（m/min）
6，9，13，16
Size of machine（cm）
92x68x100
Packing size（cm）
105x75x110
Net weight（kg）
300
Gross weight（kg）
340
FEATURES
：
1. This unit is ideally suited for the rod milling jobs for flag rod, especially with
materials like rattan, molded board, acrylics, carbon, bakelite, bamboo and
wood.
2
2. The cutter head is equipped with a stabilizer featuring no chips blocking in
stabilizer guide way and effectively reduces the noise level of this machine
during operation.
3. There are four rollers for input and output, therefore, any material can be
conveyed smoothly. The processing speed can be changed 4 speed by trans-
mission.
4. The conveyance unit can be adjusted in speed or replacement for clockwise
or counter clockwise revolution.
5 The retain roller for processed materials is made in ball type. As the center
point is adjusted, for any kind of outside diameter of processed material, the
width of the roller can be easily adjusted by the handle. Besides, it can
function to control the center point between roller with the tension of the
spring, consequently, it keeps the material in the center although there is
difference in distorter, rough and fine angles.
OPERATION STEPS
：
1. Put machine in a steady position， and then check whether the power is
suitable for the motor voltage. Turn on the electricity supply and examine
whether the revolution of main shaft follows the arrows. If not， turn off the
power and switch the two wire lines.
3
2. Before operation, please check and adjust positions of support bracket
for work-piece. When height of work-piece support is inappropriate,
loose the handle and fix the support bracket. Fig 1 shown after
adjustment is completed.
Fig 1
3

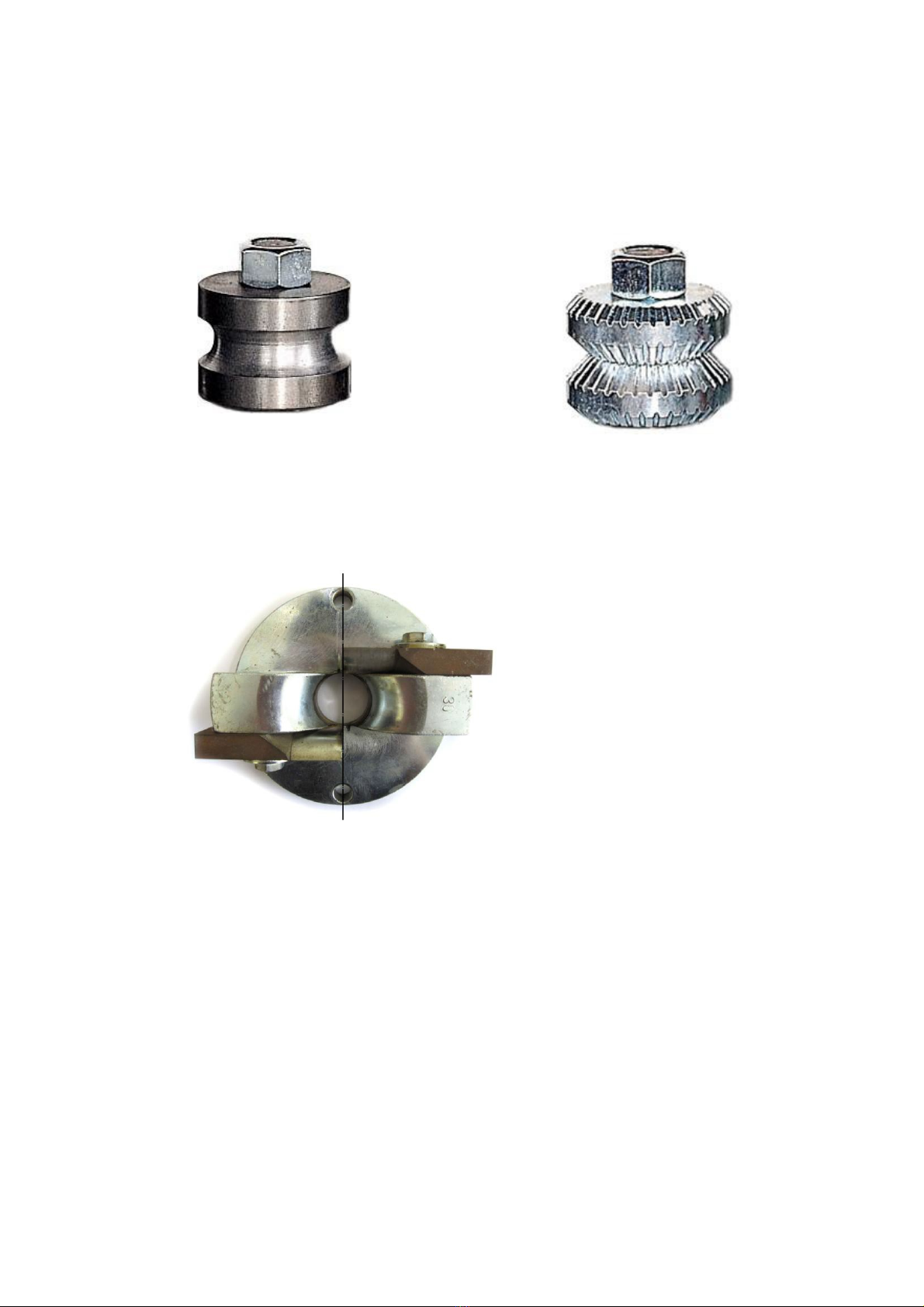

3. To select the correct feed wheel to install and fix: loose the nuts and wind-
up after completed changing of feed wheel.
(for the switch side with nuts of left-clockwise & right-counter clockwise
thread) Fig 2.
Fig 2
4. Even edge tool correct regulation means that as shown in Figure 3.
Fig 3
4
5. To adjust hand wheel according to sizes of work-piece: adjust spring nuts.
See Fig 4.
Fig 4
6. There are 4 variable speeds, to select the correct speed， depends on the
quality, hard or soft and sizes of work-piece.
Fig 5
7. To adjust the machine to meet requirements, the power needs to be
turned off.
8. How to the select feed wheel for according to work-piece.
WORKPIECE SIZE
FEED WHEEL SIZE
8-12 m/m
6 m/m
12-18 m/m
10 m/m
18-28 m/m
16 m/m
28-36 m/m
26 m/m
36-60 m/m
34 m/m
5
Φ 12-φ 17 φ 28-φ 42
φ 18-φ 27 φ 9-φ 11
Fig 6（圖 6）
φ 43-φ 60
MAINTENANECE:
1. Do not open the tool guard or put in anything while the machine is in
operation. Always keep away from the dust exhaust port. Do not put in
band or open the tool guard when machine in operating， to keep away
from Dust Exhaust port.
2. Lubrication should be done in daily basis before operation.
3. Machine and its surface should be cleaned daily.
4. Gearbox should be lubricated and replaced periodically. S.A.E. #30
lubricant is suggested for the gearbox.
5. When work piece is jammed during operation, stop the feed wheel
and withdraw the work-piece.
6
ROD MILLING MACHINE
NO
Description
QUANTITY
1
Lower Base
1
2
Support of Motor Seat
2
3
Net
4
4
Hexagon Screw
4
5
Flat Washer
4
6
Hexagon screw
4
7
Seat of Motor & Transmission
1
8
Seat of Motor
1
9
Hexagon screw
2
10
Set plate
1
11
Hexagon Screw
2
12
Hexagon Screw
4
13
Flat Washer
2
14
Nut
2
15
Left Column
1
16
Hexagon screw
4
17
Flat Washer
4
18
Hexagon screw
4
19
Flat Washer
4
20
Pulley
1
20-1
A-Belt
1
21
Hexagon screw
1
22
Square Key
1
23
Motor 5HP
1
24
Motor 2HP
1
25
Pulley
1
25-1
B-Belt
2
26
Socket Set
2
27
Hexagon screw
4
28
Spring Washer
4
29
Transmission
1
30
Net
4
31
Spring Washer
4
32
Pulley
1
7
32-1
Pulley
2
33
Spring Washer
1
34
Net
1
35
Hexagon screw
1
36
Transmission Rod Head
1
37
Transmission Rod
1
38
Handle
1
39
Hexagon screw
4
40
Seat of Reducer
1
41
Reducer
1
42
Spring Washer
4
43
Hexagon screw
4
44
Pulley
1
45
Round Head Screw
1
46
Hexagon screw
3
47
Guard
2
48
Round Head Screw
16
8
ROD MILLING MACHINE
49
Upper Base
1
50
Gear
4
51
Gear
2
52
Gear
2
53
Socket Head Screw
12
54
Chain Drum
1
55
Socket Head Screw
3
56
Flat Washer
4
57
Hexagon screw
4
58
Hexagon screw
4
59
Chain Drum
1
60
Gear Coupler
1
61
Hexagon screw
2
62
Chain Drum
1
63
Snap Ring
1
64
Idle Gear Shaft
1
65
Idle Gear Support
1
66
Flat Washer
1
67
Flat Washer
2
68
Nut
1
69
Hexagon screw
2
70
Support of Hanging Hook
2
71
Socket Head Screw
2
72
Work-piece Support
2
73
Hexagon screw
4
74
Work-piece Support Seat
2
75
Locking Handle
2
76
Name Plate
2
77
Round Head Screw
4
78
Spring Sleeve
2
79
Spring Screw
2
80
Spring
2
81
Nuts of Spring Sleeve
2
82
Snap Ring
2
