SIR42-365AI
SIR42-365AIP Operational Manual
42 IR Day & Night Weatherproof Color Camera
with Mechanical IR Cut Filter
FEATURES
•1/3” Ex-View CCD
•650 TV Lines
•42 IR LED
•3.7mm~12.0mm Aspherical Auto Iris Vari-Focal Lens
•Mechanical IR Cut Filter – ICR
•IR Distance up to 120ft / 40m
Selectable IR projecting distance design (Hi/Mid/Low)
•0.3 Lux @ F1.6
•External Function Adjustors
•Cable Management Bracket; IP66 Rating
•IR “on”: 320mA (Low) / 420mA (Mid) / 750mA (High)
IR “off”: 130mA
•12V DC
Copyright © 2011. All Rights Reserved. 2I-337
http://www.okinausa.com R201110-V07

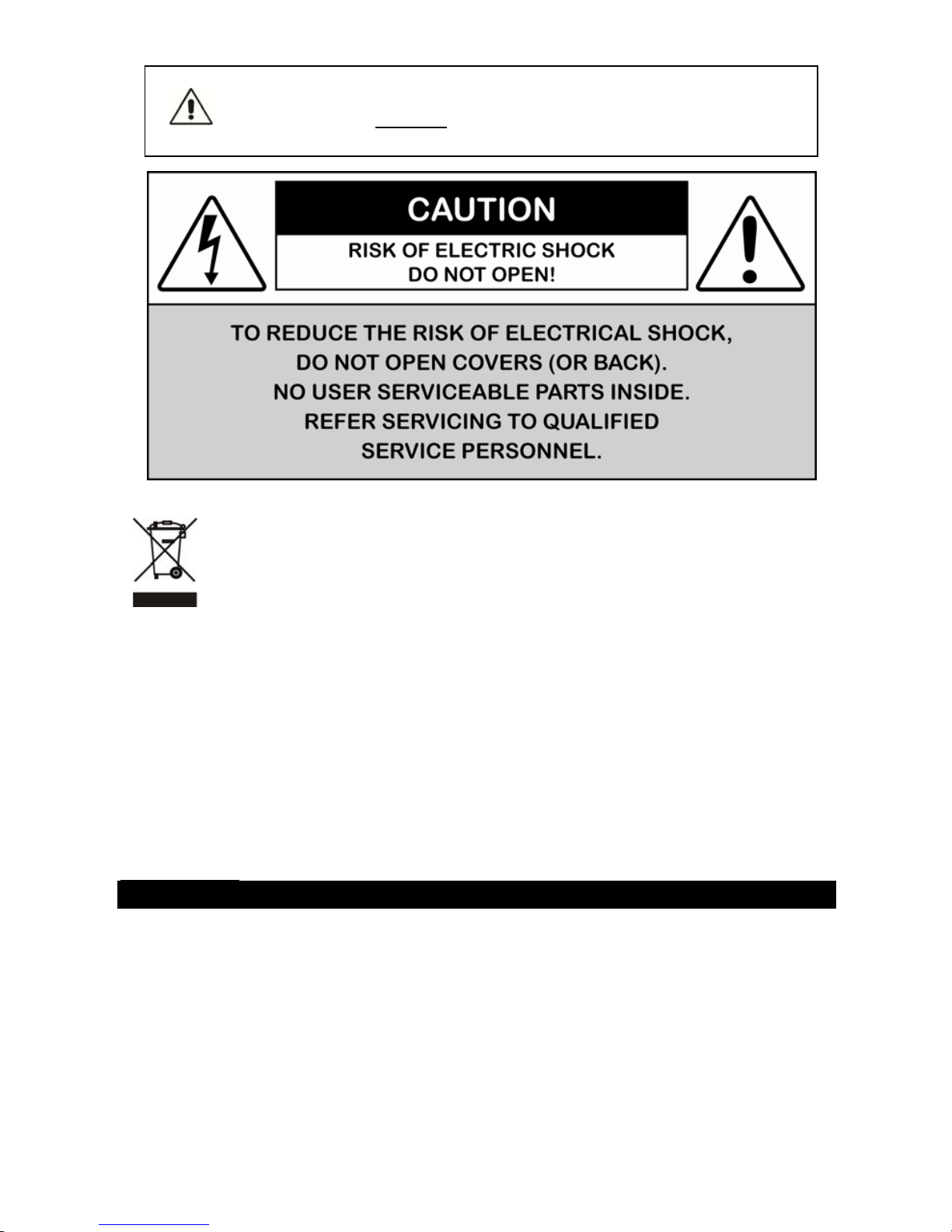

Disposal of Old Electrical & Electronic Equipment (Applicable in the
European Union and other European countries with separate collection
systems).
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the
product.
CAUTION
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this may damage the
pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could damage the
camera.
3. Requires a proper operating environment
This camera is designed for indoor use. The allowable temperature range for operation
of this camera is between -4°F ~ 122°F / -10°C ~ 50°C.
Please read the Manual before attempting to use this product.
Copyright © 2011. All Rights Reserved. 3I-337
http://www.okinausa.com R201110-V07
4. Clean the front face or lens
It is recommended that the surface be cleaned every 3~6 months. Cleaning should be
done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator
and ethanol to carefully remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range. (Camera must meet
the specifications). Camera must be connected to a surge protector at all times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch dangerous voltage
points of short out parts that could result in a fire or electric shock. Never spill any kind
of liquid on the video product.
7. Servicing
Do not attempt to service this video product by yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all service to qualified
servicing personnel.
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to qualified servicing
personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet has been damaged.
e. When the video product exhibits a distinct change in performance.

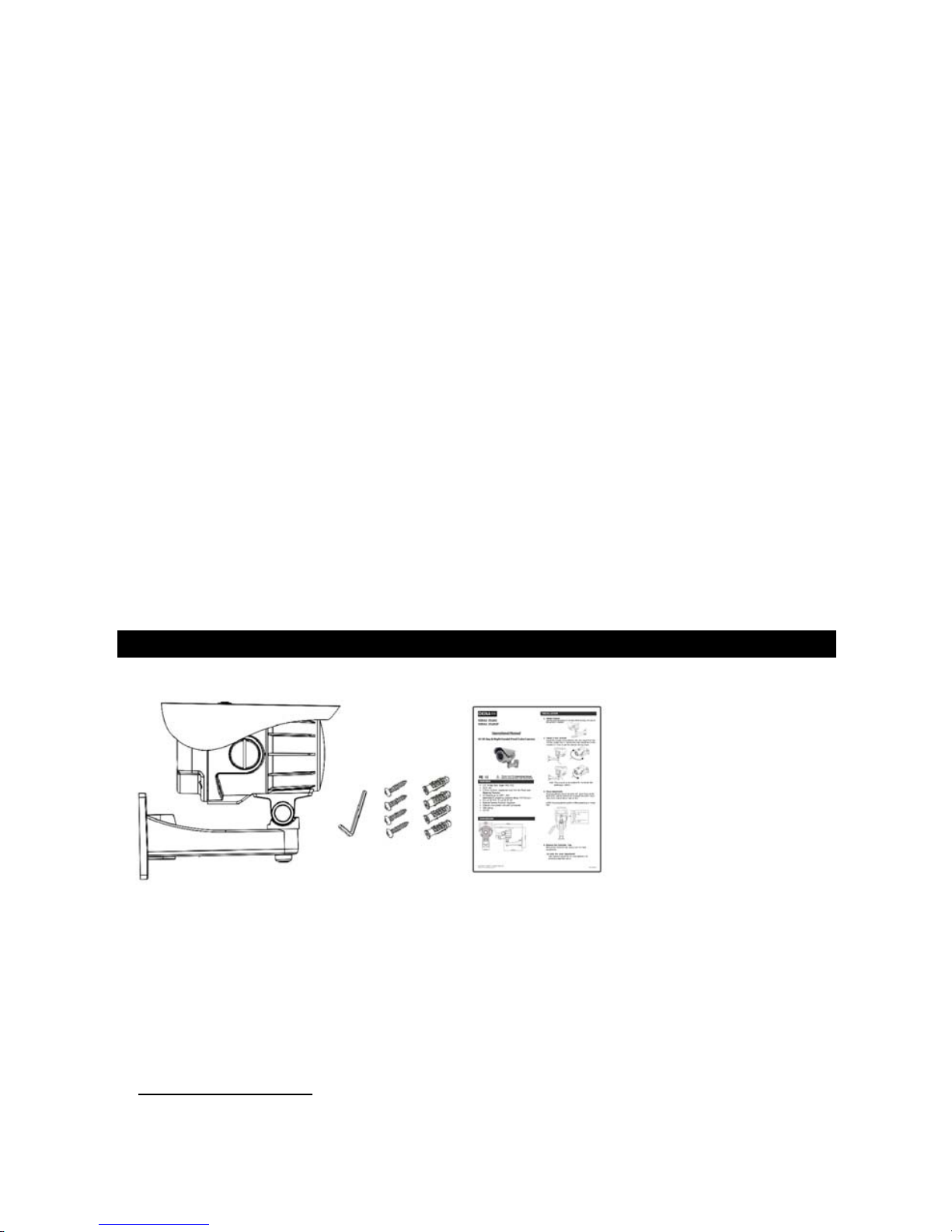

PACKAGE CONTENTS
zOne (1) SIR42-365AI/SIR42-365AIP Camera with power/video cable and sunshield
zOne (1) Allen Wrench
zFour (4) Screws
zFour (4) Wall Anchors
zOne (1) Operational Manual
* For any returns, please include all components listed above with original packaging in
Resalable Condition. Absolutely No Returns will be accepted if any component is
missing/damaged.
Copyright © 2011. All Rights Reserved. 4I-337
http://www.okinausa.com R201110-V07
DIMENSIONS & PARTS FUNCTIONS
OSD Button (Menu):
No. Name Function
1 LEFT LEFT
2 UP UP
3 ENTER Get in MENU and ENTER
4 RIGHT RIGHT
5 DOWN DOWN
Copyright © 2011. All Rights Reserved. 5I-337
http://www.okinausa.com R201110-V07
INSTALLATION
1. Install Camera
Use the supplied screws and secure the camera in position.

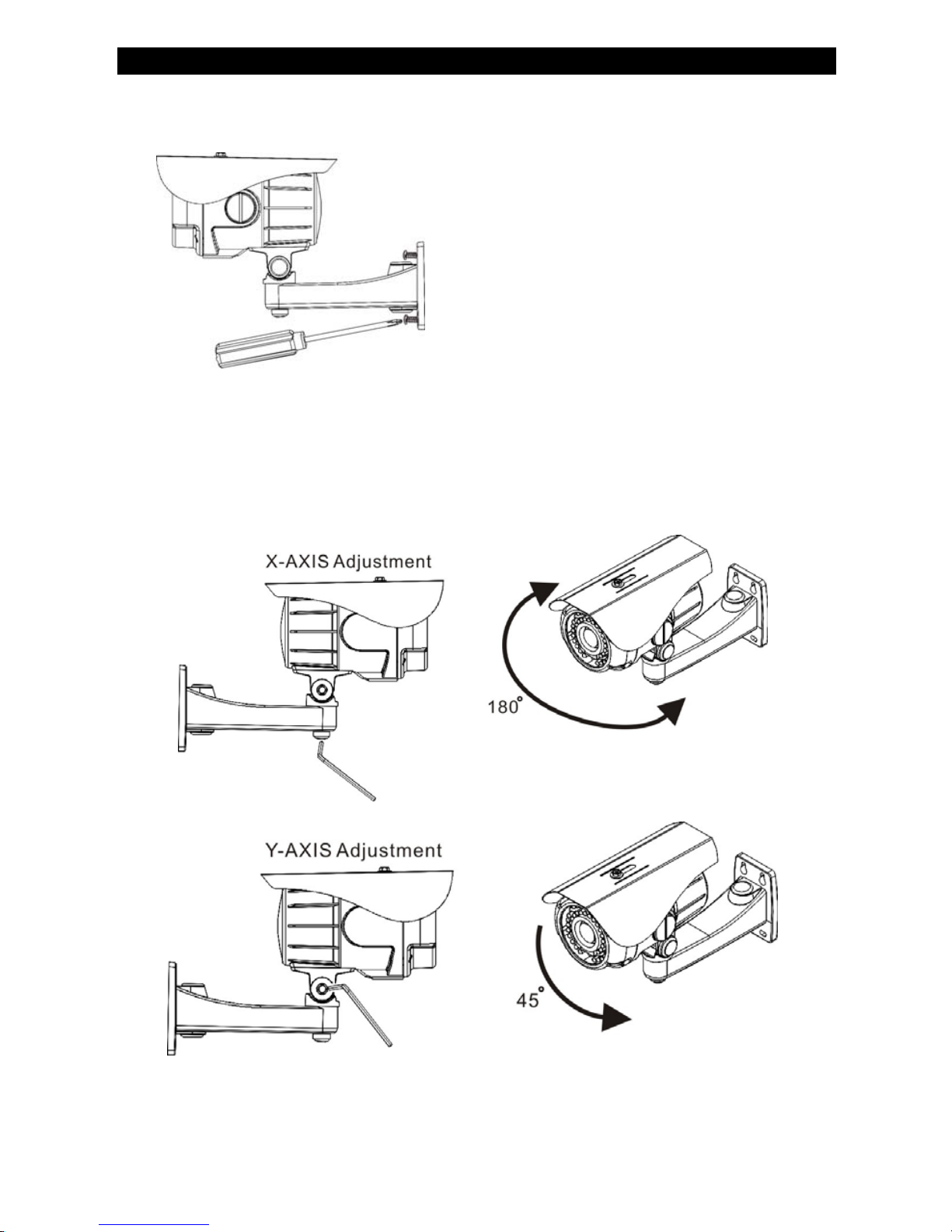

2. Adjust 2-Axis Bracket
Adjust the bracket while checking the view angle from the monitor. Loosen the
X-Y screws and then adjust the 2-Axis bracket (X-Y Axis) to get the desired
viewing angle.
NOTE: This product is not suitable for horizontal 360° continuous rotation.
Copyright © 2011. All Rights Reserved. 6I-337
http://www.okinausa.com R201110-V07
3. Focus Adjustment
Focus adjustment should be done with zoom focus at the same time. Use the
screwdriver to adjust the zoom/ focus ratio (from wide to tele or near to far).
NOTE: Focus adjustment position differs depending on model type.
4. Remove the Controller Cap
With your free hand or a coin remove the controller cap and make
adjustments.
.
Copyright © 2011. All Rights Reserved. 7I-337
http://www.okinausa.com R201110-V07
(1) Function Switch
1 Left Key
2 Up Key
3 Enter Key
4 Right Key
5 Down
(2) IR Distance/Power Consumption Adjustment
Installer may use IR adjustment function according to installation
conditions. It is suggested that the view angle should be checked
before setting up the IR distance. Below is the suggested LED
brightness and IR distance adjustment table:
LED
Brightness IR Distance Focal Length Power
Consumption
H (High) 80ft~130ft /
25m~40m 9mm~22mm 750mA
M (Middle) 50ft~80ft /
15m~25m 6mm~12mm 420mA
L (Low) 30ft~50ft /
10m~15m 3.7mm~6mm 320mA
* The suggested LED brightness and IR distance adjustment is for
reference only. Please adjust accordingly in regards to the environment
the camera is mounted. Use less power if there are reflections.

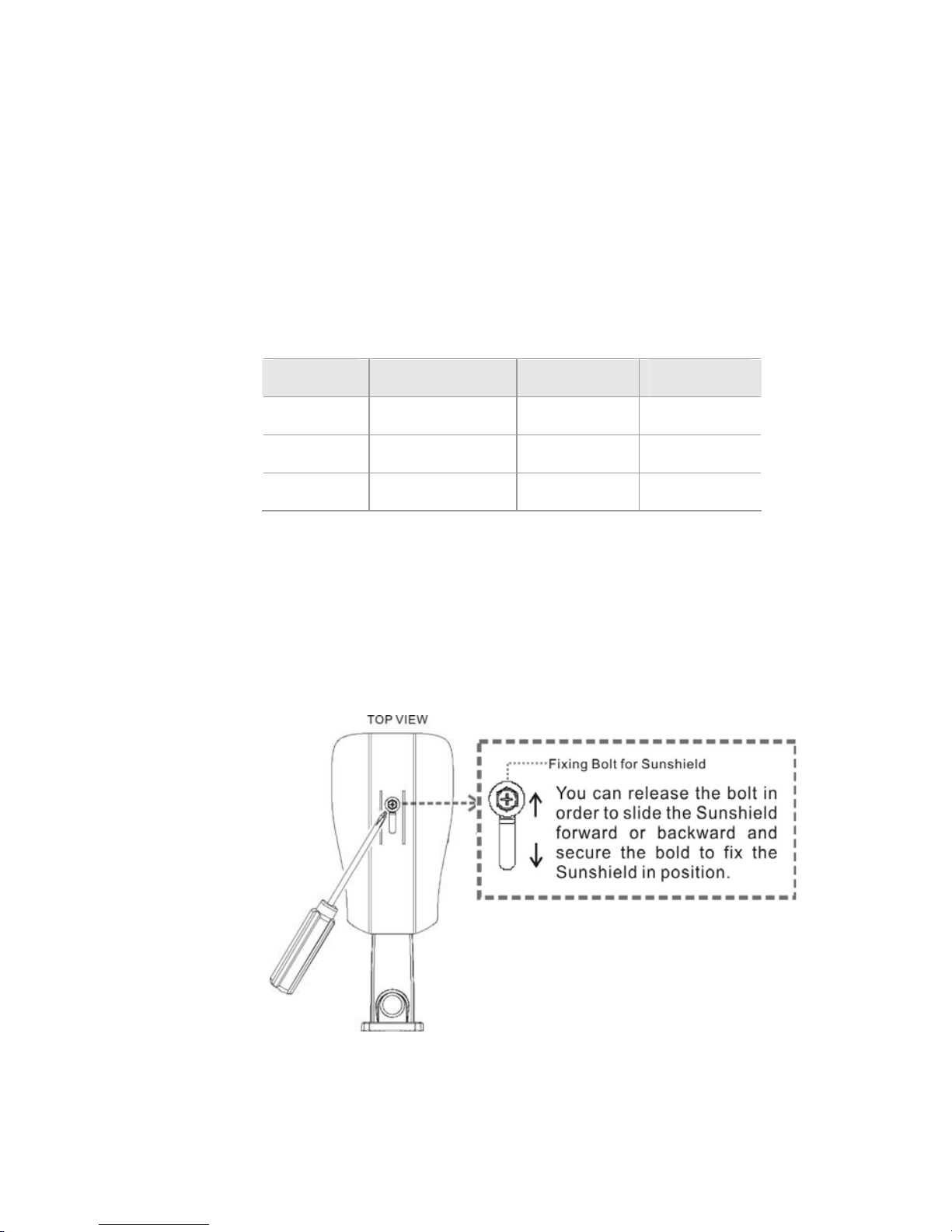

5. Install Sunshield
To install the sunshield, please follow the instruction shown below:
Copyright © 2011. All Rights Reserved. 8I-337
http://www.okinausa.com R201110-V07
6. Connect to Monitor
Connect the Video-out port of the camera to a monitor. As the connecting method
varies depending on the instrument, therefore refer to the manual supplied with the
instrument for more information.
7. Connect the Power
Connect to a 12V DC, 500mA adaptor.
Copyright © 2011. All Rights Reserved. 9I-337
http://www.okinausa.com R201110-V07
OPERATION
1. OSD Framework
(A) Main Menu Display
OSD Setup Menu page 1
LENS
SHUTTER /AGC
WHITE BAL
BACKLIGHT
ATR
NR
PICT ADJUST
NEXTռ
EXITռSAVE ALL
AUTOռ
AUTOռ
ATW
OFF
OFF
ռ
ռ
OSD Setup Menu page 2
PRIVACY
MOTION DET
CAMERA ID
LANGUAGE
CAMERA RESET
BACKռ
EXITռSAVE ALL
OFF
OFF
OFF
ENGLISH
(B) Main Menu Setup
•In order to display the setup menu on the screen, set the menu
command or press the button panel.
•Use UP/ DOWN control buttons to select each item.
•Use LEFT/ RIGHT control buttons to change the data.
•Use MENU control button to ENTER/ EXIT the menu display.
Copyright © 2011. All Rights Reserved. 10 I-337
http://www.okinausa.com R201110-V07
•ռ=ENTER
2. OSD Main Menu Description
LENS: Manual / Auto Selectable
•LENS: MANUAL
Not adjustable.
•LENS: AUTO
TYPE：DC
MODE：AUTO/ OPEN /CLOSE
AUTO
SPEED：000~255
AUTO Camera automatically controls the lens
OPEN Lens fully open
CLOSE Lens fully close
SPEED Lens speed
SHUTTER/AGC: Auto / Manual Selectable
•SHUTTER/AGC: AUTO
HIGH LUMINANCE
MODE：SHUT+AUTO IRIS / AUTO IRIS / SHUT
BRIGHTNESS：000~255
AUTO
LOW LUMINANCE
MODE：AGC / OFF
BRIGHTNESS：x0.25、x0.50、x0.75、x1.00
HIGH LUMINANCE
When LENS is setup to AUTO mode
SHUT+AUTO IRIS: Exposure is controlled by auto electronic shutter
combined with auto iris.
