Okina USA DNR Series Guide de démarrage rapide

www.okinausa.com 1 R072011-V13

SUPER LOW LUX DNR DAY & NIGHT

OSD VANDAL PROOF DOME CAMERA

1/3” Sony Super HAD CCD Sensor

630 TV Lines

Dual Voltage 12V DC / 24V AC

OPERATIONAL MANUAL

Please read the Operational Manual

before attempting to use this product.

DNR dramatically reduces both random and fixed noise.

It also reduces DVR disk space usage by up to 70%.

P = PAL Version

SDNX-F63AI-VD

SDNX-F63AI-

www.okinausa.com 2 R072011-V13

FEATURES

z1/3” Sony Super HAD CCD

z630 TV Lines

zDNR DSP

z2.8mm~11.0mm Auto Iris Lens / F1.4

z0.001 Lux @ F1.2

zDigital Noise Reduction (DNR)

zBuilt-in On-Screen Display (OSD) Control Module

zHigh Quality with Multi-function High Pixel

zIP66 Rating

z12V DC 160mA / 24V AC 80mA

The Digital Noise Reduction (DNR) technology is built into the camera to eliminate any noise associated

with low light environment. Ghost and blooming effects are reduced dramatically, leaving the image

clean and vivid. An added benefit is that the hard drive required capacity for DVR recording is

substantially reduced by up to 70%, due to the DNR technology.

The Day & Night digital control function is embedded within the camera to enhance picture quality. Day

& Night digital control technology automatically detects day or night time to keep full color in day time

and turn to B/W at night. It also detects the environmental brightness automatically. Star Lighting mode

will be working while the brightness is low. This ensures the picture brightness which can reach to 0.001

lux.

The camera can easily set up any function through the on-screen display menu. The privacy masking

function enables you to select and record only chosen coverage among 4 areas. Up to 4 motion detection

areas are available for setting. It is adjustable on location or size and an alarm will be alerted on screen.

PACKAGE CONTENTS

zOne (1) SDNX-F63AI-VD/SDNX-F63AI-VDP

Camera with power/video cable

zFour (4) Mounting Screws

zFour (4) Wall Anchors

zFour (4) Washers

zOne (1) Allen Wrench

zOne (1) Mounting Sticker Template

zOne (1) Operational Manual

* For any returns, please include all components listed above with original packaging in Resalable

Condition. Absolutely No Returns will be accepted if any component is missing/damaged.

DIMENSIONS

www.okinausa.com 3 R072011-V13

PARTS & FUNCTIONS

1. Cover

2. Lens

3. BNC Video Output

4. On-Screen Display (OSD) Control Module

5. Base

OPERATION

1. On-Screen Display

Setup Menu Function Summary

Lens

(Selection) Manual: Manual Iris

DC/Video: Auto Iris Lens Type

Shutter

(Condition and Speed Control)

ESC: Electronic Shutter

Manual: Manual

FLK: Flickerless

Manual: 1/60(50)~1/120,000sec

x2 ~ x128

WHITE BAL

(White Balance)

ATW: Auto White Balance

AWC: Auto White Balance

Control

Manual: Manual

ATW: 1,800~10,500K

AWC: Auto Detection on White

Balance (One Push)

Manual: Red/Blue Switch

BLC (Back Light

Compensation) Off, Low, Middle, High Back Light Compensation

AGC (Auto Gain Control) Off, Low, Middle, High Brightness Adjustable (1~70)

DNR (Digital Noise Reduction) Off, Low, Middle, High DNR Off When AGC Off

SENS-UP (Low Illumination) Off, Low, Middle, High Sens-up Off When AGC Off

SPECIAL Off, Auto Other Function

EXIT Special Functions Setup Save & Exit

Special Function Summary

CAMERA ID English Letter /

Number 0~9 / -, Empty Up to 15 letter or numbers can be

used

COLOR AUTO: AUTO

ON: ON Auto: Digital Control on D/N Mode

Switch

SYNC (Synchronization) INT: Internal Sync is default to Internal

MOTION DETECTION OFF / ON ON: The motion detection function

enables you to select and display

motion notification

PRIVACY OFF / ON ON: The privacy function enables

you to select and record only

chosen coverage among 4 areas

MIRROR OFF / ON Mirror Mode Switch

SHARPNESS OFF / ON Adjustable 0 ~ 31

RESET All Setting Return to Default Value

RETURN Save & Return to Setup Menu

www.okinausa.com 4 R072011-V13

Default Setting

Basic Functions Setup

Menu Item Menu Choice Function Default setting

DC/Video Auto Iris

Lens Type Manual Manual Iris

ESC: Electronic Shutter Shutter Speed Control

Manual: Manual Adjust 1/60(50) ~ 1/120,000sec

Shutter FLK: Flicker less Indoor fluorescent Light Auto (---)

ATW: Auto Track White Bal 1,800°K ~ 10,500°K

AWC: Auto White Bal

Control Auto Detection

White Bal

Manual: Manual Adjust Red and Blue Settings

ATW

Back Light Off, Low, Middle, High Back Light Compensation Off

AGC Off, Low, Middle, High Brightness Adjustable (1~70) Middle

DNR Off, Low, Middle, High Digital Noise Reduction Middle

Sens-Up Off, Auto Low Illumination Setting Auto (x4)

Special  Additional Functions Setup

Exit  Exit OSD

Additional Functions Setup

Menu Item Menu Choice Function Default setting

Camera ID Off, On Show Camera ID on Screen Off

On Stay in Color Mode

Color Auto Digital Control D/N Mode On

SYNC INT Internal Synchronization INT

Motion Det Off, On Show Motion Area Screen Off

Privacy Off, On Block up to 4 Sensitive Areas Off

Mirror Off, On Mirror Image Setting Off

Sharpness Off, On Adjust Image Sharpness On (15)

Reset Off, On Reset to System Default

Return  Return to Basic Setup Menu

2. Setup

Below are 5 setup buttons on the rear of the camera.

www.okinausa.com 5 R072011-V13

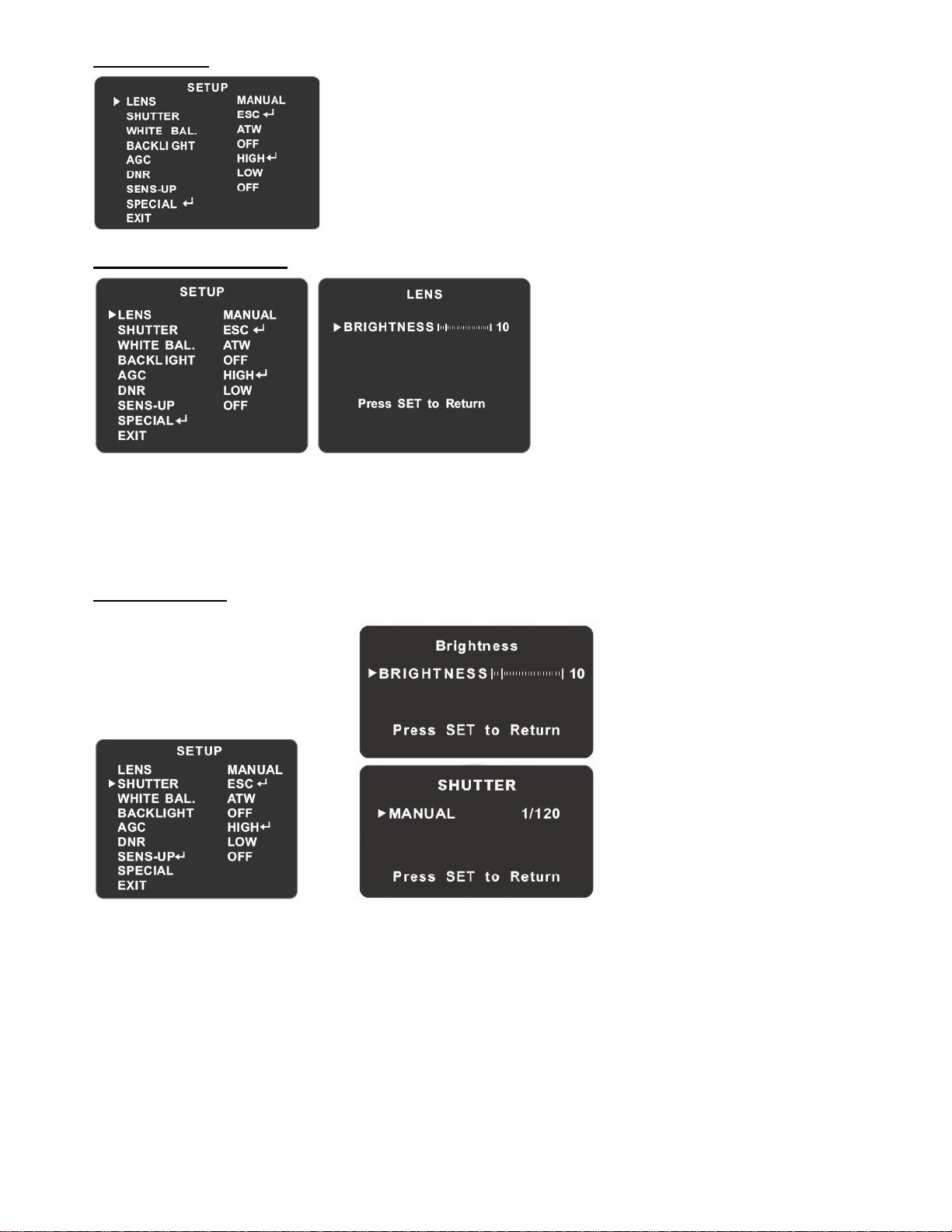

Setup: Menu

Setup: Lens Selection

When selecting DC mode, the brightness of the lens is adjustable after pressing SETUP. Select

LEFT/RIGHT to adjust auto iris and to modify brightness. Return to last menu by pressing SETUP

while finishing modification.

Setup: Shutter

FLK: Flickerless

Flicker is usually caused by non-synchronizing frequency. When selecting FLK mode, the speed of

electronic shutter for NTSC is 1/100s and for PAL, it is 1/120s.

Manual Control

When in MANUAL mode, press SETUP to enter into shutter menu. Set up the shutter speed by

LEFT/RIGHT button. NTSC: x128~x2, 1/60~1/120,000s; PAL: x128~x2, 1/50~1/120,000s. Return to

last menu by pressing SETUP while finishing modification.

NOTE: When selecting DC DRIVE, the shutter speed will be fixed at 1/60 (NTSC), 1/50 (PAL) which

the shutter mode is not selectable. When the shutter is set as FLK or MANUAL, SENS-UP will not

work.

Press SETUP to have On-Screen

Display

Press UP/DOWN to select Setup

Press LEFT/RIGHT to select Setu

1. Position the arrow to

SHUTTER in setup menu by

pressing UP/DOWN button

2. Press LEFT/RIGHT to select

shutter mode

ESC: Electronic Shutter Control

When selecting ESC, system

will automatically adjust the

shutter speed to control

brightness. When selecting ESC

mode, the brightness of the

screen is adjustable after

pressing SETUP. Select

LEFT/RIGHT to adjust the

brightness. Return to the last

menu by pressing SETUP while

finishing modification.

1. Position the arrow to LENS in setup

menu by UP/DOWN button.

2. Press LEFT/RIGHT to select lens

type

Manual: Setup when using manual

iris lens

Manual Mode: Internal electronic

shutter (IES) is on and brightness is

controlled by IES

DC: Setu

when usin

auto iris lens

www.okinausa.com 6 R072011-V13

Setup: White Balance

Setup: Back Light Compensation (BLC)

Setup: Auto Gain Control (AGC)

1. Position the arrow to WHITE BAL in setup menu by UP/DOWN

button.

2. Press LEFT/RIGHT to select WHITE BAL mode.

ATW: Auto Tracking White Balance

The camera will track the color temperature at a range between

1800°K~10500°K and keep white balance automatically.

AWC: Auto White Balance Control

AWC adjusts the white balance.

1. Select AWC

2. Place a white sheet of paper in front of the camera to

obtain the optimum state under current illumination.

3. Press SETUP, the white balance is adjusted.

4. Repeat step 2 when the light source is changed.

The function works when there is a strong back light behind the

object.

1. Position the arrow to BACKLIGHT in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing

LEFT/RIGHT button.

HIGH: The gain increases from 0dB up to 42dB

MIDDLE: The gain increases from 0dB up to 30dB

LOW: The gain increases from 0dB up to 18dB

OFF: BLC function is disabled

Turn on AGC when the light source is low to amplify the image

signal and to enhance the brightness in low illumination.

1. Position the arrow to AGC in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing

LEFT/RIGHT button.

HIGH: The gain increases from 6dB up to 42dB

MIDDLE: The gain increases from 6dB up to 30dB

LOW: The gain increases from 6dB up to 18dB

OFF: The gain is fixed at 6dB

MANUAL

1. Select MANUAL and press SETUP to enter into menu.

2. Choose RED/BLUE by UP/DOWN and increase or decrease

the red and blue values thru LEFT/RIGHT buttons.

3. Return to last menu by pressing SETUP while finishing

modification.

www.okinausa.com 7 R072011-V13

Setup: Digital Noise Reduction (DNR)

Setup: Sens-up (Low Illumination)

The DNR technology increases S/N ratio for enhancing the image in

low illumination, raising DVR recording efficiency and storage

capacity.

1. Position the arrow to DNR in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing LEFT/Right

button.

OFF: DNR function is disabled

LOW: Suggested Level – The level has a basic control on

noise reduction with almost no ghost image.

MIDDLE: The level is applied when the noise is obvious. A

ghost image would appear in low illumination.

HIGH: Noise is greatly reduced while ghost images are

increasing.

NOTE: DNR works with AGC. When AGC is off, DNR will be disabled.

Sens-up helps maintain a bright, clear screen image by automatically

detecting changes of the level of light in low illumination.

1. Position the arrow to SENS-UP in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing LEFT/RIGHT

button.

OFF: SENS-UP is disabled

AUTO: SENS-UP will be on by auto light detection

NOTE: When selecting AUTO, press SETUP to enter into menu.

Adjust the mode from x2~x128. Return to last menu by pressing

SETUP while finishing modification. When AGC is off, SENS-UP will be

disabled. When SHUTTER is in MANUAL, FLK mode, SENS-UP will be

disabled.



NOTE: When selecting HIGH/MIDDLE/LOW, press LEFT/RIGHT to

adjust brightness in setup menu. Return to last menu by pressing

SETUP while finishing modification. When the AGC is on, the noise

will be caused by magnification on the signal of image brightness.

The noise depends on the level of AGC, so there will be more

noise when AGC is higher.

www.okinausa.com 8 R072011-V13

Setup: Special

A) Camera ID

B) Color

1. Position the arrow to SPECIAL in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing LEFT/RIGHT

button.

1. Position the arrow to CAMERA ID in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing

LEFT/RIGHT button.

OFF: ID does not appear on monitor

ON: ID appears on monitor

Enter into CAMERA ID by pressing SETUP when in ON mode

1. Move the cursor to the letter to choose by positioning

UP/DOWN/LEFT/RIGHT button.

2. Enter the letter by selecting SETUP button

3. While modifying the letters in the CAMERA ID, select

『→』or『←』and press SETUP button to move the cursor to the

letters that need to be corrected.

4. CLR is to clear letters.

5. Position the cursor to POS and press SETUP when the ID is

completed.

6. The modified ID will be shown on the top left corner.

Position the ID to the place where you would like it to be

displayed by moving UP/DOWN/LEFT/RIGHT. Return to last

menu by pressing SETUP while finishing modification.

7. Select END and press SETUP to complete ID.

NOTE: Up to 15 letters or numbers can be used for CAMERA ID.

1. Position the arrow to COLOR in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing

LEFT/RIGHT button.

AUTO: The camera has a function which automatically

switches to the appropriate mode for daytime or night

time. The camera displays a color image in day and it

converts to B/W mode at night.

ON: Default value. It is fixed to color mode and the

image does not switch to B/W at night.

NOTE: When AGC is off, COLOR function will be fixed to ON

which cannot be modified.

www.okinausa.com 9 R072011-V13

C) Sync

D) Motion Detection

E) Privacy

The camera is fixed to INT in SYNC mode that cannot be

modified by the user.

When there is a moving object, the camera will detect it and an

on-screen alert will pop up. The user can set up the detected

coverage area by selecting the 4 areas individually on the monitor.

1. Position the arrow to MOTION DET in setup menu by

pressing UP/DOWN button.

2. Select the mode you wish to operate by pressing

LEFT/RIGHT button

OFF: Motion Detection is off

ON: Motion Detection is on

When selecting ON, enter into MOTION DETECTION by

pressing Setup

1. Position the arrow to AREA SEL by pressing

UP/DOWN button. The chosen area including

AREA1~AREA4 can be set u

LEFT/RIGHT button.

2. Position the arrow to AREA STATE by pressing UP/DOWN button. The detection of the

chosen area can be turned on/off by LEFT/RIHGT button.

3. Position the arrow to TOP/DOWN/LEFT/RIGHT by UP/DOWN button. The detected place and

coverage of the chosen area can be set up by pressing LEFT/RIHGT button.

4. Return to last menu by pressing SETUP while finishing modification.

NOTE: Motion detection only shows alert on the monitor without additional alarm output.

This mode conceals the areas you do not wish to show on the

screen.

1. Position the arrow to PRIVACY in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing

LEFT/RIGHT button.

OFF: This will cancel the Privacy

ON: This will activate the Privacy

When selecting ON, enter into PRIVACY by pressing Setup.

1. Position the arrow to AREA SEL by pressing

UP/DOWN button. The chosen area including

AREA1~AREA4 can be set up by LEFT/RIGHT button.

2. Position the arrow to AREA STATE by pressing

UP/DOWN button. The privacy area can be

canceled/activated by pressing LEFT/RIGHT button.

3. Position the arrow to TOP/DOWN/LEFT/RIGHT by pressing UP/DOWN button. The privacy

place and coverage can be set up by LEFT/RIGHT button.

4. Return to last menu by pressing SETUP while finishing modification.

www.okinausa.com 10 R072011-V13

F) Mirror

G) Sharpness

H) Reset

I) Return

Setup: Exit

The MIRROR function inverts the image.

1. Position the arrow to MIRROR in setup menu by pressing

UP/DOWN button.

2. Select the mode you wish to operate by pressing

LEFT/RIGHT button.

OFF: To turn off Mirror

ON: To turn on Mirror

This is to enhance the quality of the image.

2. Position the arrow to SHARPNESS in setup menu by

pressing UP/DOWN button.

3. Select the mode you wish to operate by pressing

LEFT/RIGHT button.

OFF: To turn off SHARPNESS

ON: To turn on SHARPNESS

When selecting ON, enter into SHARPNESS by pressing setup.

Adjust sharpness level by pressing LEFT/RIGHT button. Return to

last menu by pressing SETUP while finishing modification.

Return to Default Value.

1. Position the arrow to RESET by pressing UP/DOWN button.

2. Press setup and all settings will return to default value.

Return to Main Menu.

1. Position the arrow to RETURN by pressing UP/DOWN

button.

2. Press setup to return to main menu.

Exit from OSD menu.

1. Position the arrow to EXIT by pressing UP/DOWN button.

2. Press setup to exit from OSD menu.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Okina USA Caméra de sécurité

Okina USA

Okina USA SS10W-C100H Manuel utilisateur

Okina USA

Okina USA HD21B24-940 Manuel utilisateur

Okina USA

Okina USA HD21VDX36-K10 Manuel utilisateur

Okina USA

Okina USA NIVD-DIVA-SW13AI Guide de démarrage rapide

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Okina USA

Okina USA SEDX-768AI-B Manuel utilisateur

Okina USA

Okina USA HD SDI 1080 P ICR 33 IR Manuel utilisateur

Okina USA

Okina USA ECO SHB-7540DN Guide de démarrage rapide

Okina USA

Okina USA ECO EIR8H22-42VF550 Series Manuel utilisateur

Okina USA

Okina USA SEDX-761AI-VD Manuel utilisateur

Okina USA

Okina USA SDNR-8700 Manuel utilisateur

Okina USA

Okina USA TV8ID28-8VFW Manuel utilisateur

Okina USA

Okina USA SSB-7420DNP Guide de démarrage rapide

Okina USA

Okina USA SDNR-F63012-OSD Manuel utilisateur

Okina USA

Okina USA SDNI36-870AI-VD Manuel utilisateur

Okina USA

Okina USA EIR8H22-42VF840 Guide de démarrage rapide

Okina USA

Okina USA SIR42-365AIP Guide de démarrage rapide

Okina USA

Okina USA SEDX-768AI-VDD Manuel utilisateur

Okina USA

Okina USA EIR48-42VF Guide de démarrage rapide

Okina USA

Okina USA SEIRX30-761AI-VD Manuel utilisateur

Okina USA

Okina USA ECO COVERT Series Guide de démarrage rapide

Okina USA

Okina USA WDEDX-768AI-VD Manuel utilisateur

Okina USA

Okina USA SEIMW36T-V53DN Manuel utilisateur

Okina USA

Okina USA SHB-7540DNP Guide de démarrage rapide

Manuels Caméra de sécurité populaires d'autres marques

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
