Oki OJ2010 Manuel utilisateur

Chapter 1

Introduction

The printer is a general purpose color ink-jet printer that provides high quality text and graphics

printing. The printer can print on single sheet paper, envelopes, labels, index cards, and

transparencies.

Your printer combines the power and ease-of-use of Microsoft®WindowsTM with a compact printer.

This combination allows you to change printer settings and track the progress of your print job from

your computer screen.

This

Users Guide

describes the setup and operation of your printer.

OJ2010 ( 96-02-07 )

Select a Location for the Printer

Place the printer on a flat, stable surface near your workstation. Leave enough space above the

printer to allow for easy paper loading. Also, leave enough space to extend the paper exit tray.

Do not place the printer:

In direct sunlight

Near heat sources or air conditioners

In dusty or dirty environments

OJ2010 ( 96-02-07 )

Unpack the Printer

Remove the printer and all accessories from the packing carton. Save the carton and packing

materials in case you need to repack the printer.

Remove the print cartridges packed inside the printer, behind the paper load door.

Make sure you have the following items:

Printer

Power cord

Printer setup diskette(s)

Paper support

Black print cartridge

Color print cartridge

If any items are missing, broken, or damaged, contact your dealer.

OJ2010 ( 96-02-07 )

Begin Printer Setup

Follow the steps in this chapter to set up your printer. Then complete the steps in Chapter 2 ( )

to install the printer software on your personal computer.

Do not install the print cartridges in your printer until you are instructed during the

installation of the printer software in Chapter 2 ( ).

OJ2010 ( 96-02-07 )

Install the Paper Support

Place the bottom edge of the paper support onto the back of the printer and push

forward until it clicks into place.

OJ2010 ( 96-02-07 )

Connect the Printer and Computer

You need a parallel printer interface cable,

no longer than 6 feet

, capable of supporting

bidirectional communications to connect the printer to your computer. This cable is not supplied

with the printer.

Your printer should not be powered on or plugged in yet.

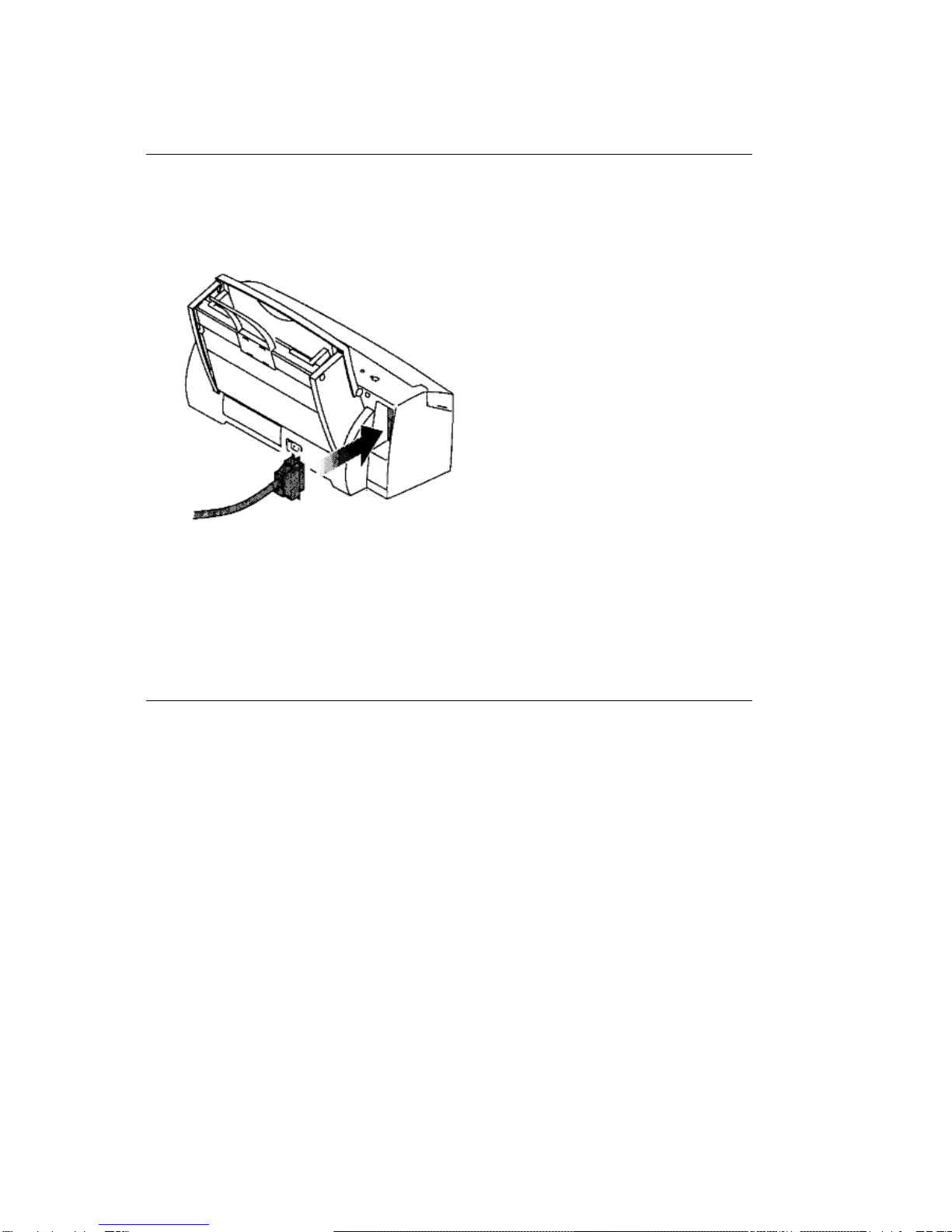

1) At the back of the printer, plug in the parallel interface cable.

2) Fasten the metal clips to the parallel interface cable.

If your parallel cable has a grounding wire, it is not necessary to attach it to the printer.

3) Refer to the instruction manuals that came with your computer to connect the other end of

the parallel interface cable to your computer.

OJ2010 ( 96-02-07 )

Plug in the Printer

1) Plug the printer power cord into the power socket on the back of the printer.

2) Plug the printer power cord into an electrical outlet.

3) Press the power switch to turn the printer on.

The power light comes on.

OJ2010 ( 96-02-07 )

Load Paper

You can use most high-quality papers with your OKI

JET

2010

printer. For the best results when printing

with color, use coated paper.

You'll find detailed paper guidelines in the printer software on-line Help.

Depending on the thickness of your paper, the sheet feeder can hold up to 150 sheets.

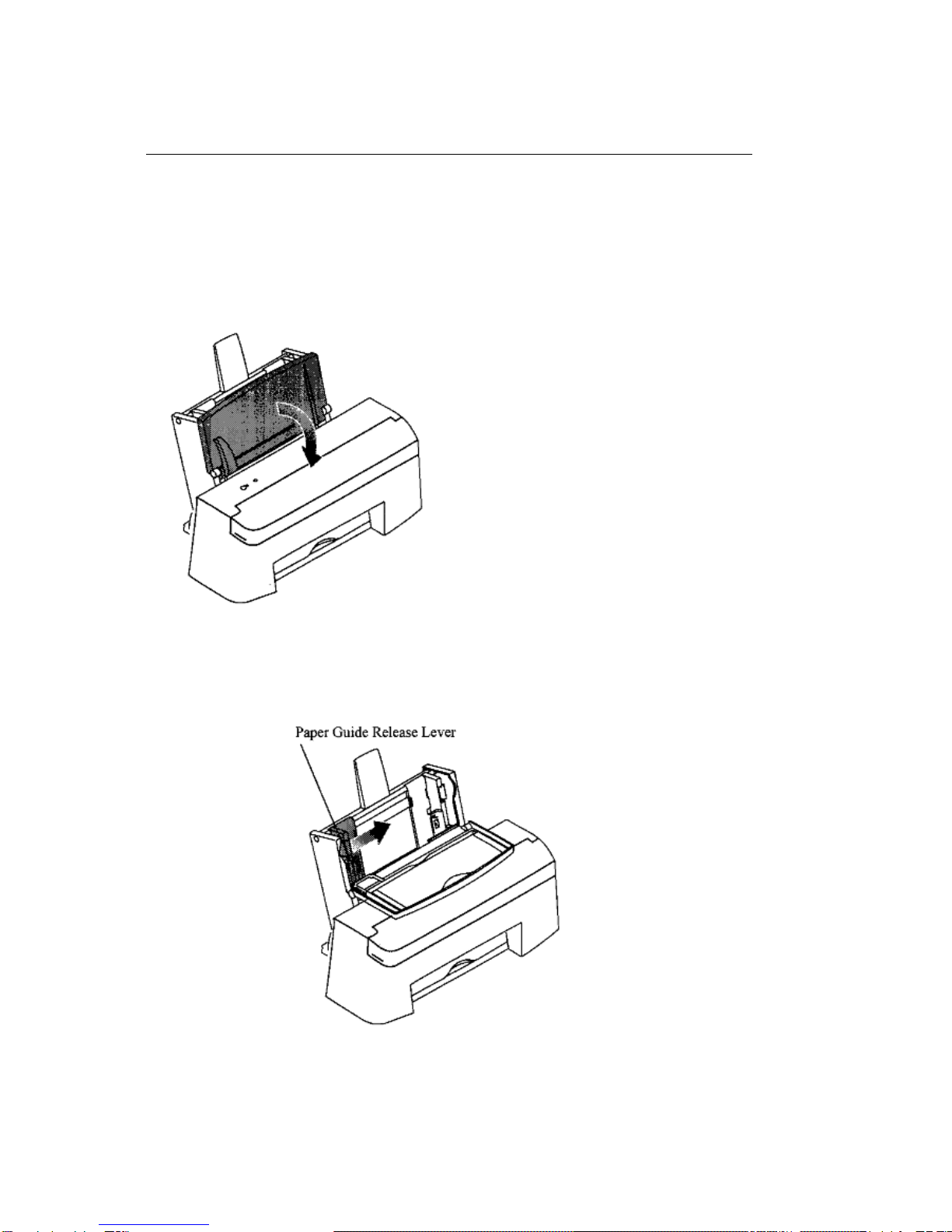

1) At the front of the printer, open the paper load door.

2) Squeeze and hold the left paper guide release lever and move the left paper guide

edge to the correct paper size indicator.

Do not move the right paper guide

3) Place the paper in the sheet feeder behind the guides.

Depending on the thickness of the paper, the sheet feeder will hold a

maximum of 150 sheets: do not overload it!

- Do not force the paper under the feeder rollers.

- If the paper has a preferred print side, insert it facing you.

OJ2010 ( 96-02-07 )

- Load letterhead stationery with the letter-head side facing you and

the top of the page pointed down.

4) Close the paper load door.

OJ2010 ( 96-02-07 )

Extend the Paper Exit Tray

1) Gently pull the tray toward you until it stops.

2) Flip the tray extension out.

The paper exit tray is designed for use with paper shorter than 11.7 inches

(297 mm). When you print on paper longer than 11.7 inches (297 mm), close

the paper exit tray.

Now install the printer software: see page 11 ( ).

Note: During

the installation of the printer software you will be prompted to

install the print cartridges.

OJ2010 ( 96-02-07 )
