Oki MPS711c Manuel de service

Handy Reference

Guide de référence pratique

MPS711c

59406901 my.okidata.com

Contents Table des matières

Ordering Replacement

Supplies . . . . . . . . . . . . . . . 3

Using the Printer Menu . . . . 4

Navigating. . . . . . . . . . . . . 4

Menu Summary . . . . . . . . . 5

Print Media Settings. . . . . . . 6

Print Media Settings. . . . . . . 7

Tray 1 and Optional Trays 2

and 3, . . . . . . . . . . . . . . . . . 8

Usable Print Media . . . . . . . 8

Loading Paper . . . . . . . . . . 9

Multi-Purpose Tray. . . . . . . 10

Usable Print Media . . . . . . .10

Loading Print Media . . . . . .11

Exit Trays . . . . . . . . . . . . . . 12

Power Save Mode. . . . . . . . 13

Clearing Media Jams. . . . . . 14

Troubleshooting . . . . . . . . 22

Service & Support. . . . . . . . 23

Commande de fournitures24

Utilisation des menus de

l'imprimante . . . . . . . . . . .25

Déplacement. . . . . . . . . . . 25

Sommaire des menus. . . . . 26

Paramètres de support

d’impression . . . . . . . . . . .27

Paramètres de support

d’impression . . . . . . . . . . .28

Bacs 1, 2 et 3 optionnel . . .29

Supports d'impression

utilisables . . . . . . . . . . . . 29

Chargement des supports

d'impression . . . . . . . . . . 30

Bac multifonction . . . . . . . .31

Supports d'impression

utilisables . . . . . . . . . . . . 31

Chargement des supports

d'impression . . . . . . . . . . 32

Bacs de sortie . . . . . . . . . . .33

Mode d'économie d'énergie 34

Dégagement des bourrages35

Dépannage . . . . . . . . . . . . .43

Service et support . . . . . . .44

59406901

•

MPS711c

•

English

Ordering Replacement Supplies

How to Order

• Consult the dealer where you

purchased your printer.

• Consult an Oki Data Authorized

Sales or Service Dealer. For

your nearest dealer, call

1-800-654-3282.

•U.S.only: Order on the Internet

WWW.OKIPRINTINGSOLUTIONS.COM

•U.S. only: Order toll-free by

phone at 1-800-654-3282,

using VISA

, MasterCard

, or

AMEX

Order Numbers

Toners, Type C16

Important! Use only genuine Oki

Toner Cartridges.

Drums, Type C16

Maintenance Items: Fusers

and Transfer Belt

Maintenance items are warranted

against defects for 90 days. When

the printer display indicates that

they are near end of life, a

replacement must be purchased.

Installation

These items include installation

instructions.

Toner Order No.

Black 52123804

Cyan 52123803

Magenta 52123802

Yellow 52123801

Image Drum Order No.

Black 56125804

Cyan 56125803

Magenta 56125802

Yellow 56125801

Item Order No.

Fuser, 120V 57106002

Transfer Belt 57106302

•

MPS711c

•

English

Using the Printer Menu

Navigating

Note

Settings made in the printer

driver will override the printer

menu settings.

Navigating the Menu

1. Press

to enter the Menu mode.

2. Press

repeatedly to scroll through the

Categories, Items and Values.

3. Press

to select a Category, Item or

Value to change, or to engage

the new setting for a Value.

4. Press

to exit the Menu mode.

For Example

If the MP Tray will normally be

loaded with index cards, set the

printer menu as follows:

1. Press

NTER

2. Press the down arrow key to

move down to

Menus

. Press

NTER

3. Press

NTER

to select

Tray

Configuration

4. Press the down arrow key to

move down to

MPTray Config

Press

NTER

5. Press the down arrow key to

move down to

Media Type

Press

NTER

6. Press the down arrow key to

move down to

Card Stock

Press

NTER

An asterisk appears next to

your selection. The setting is

engaged.

7. Press

INE

•

MPS711c

•

English

Using the Printer Menu

Menu Summary

Summary of Menu

Categories



Configuration

• Tray Count

• Supplies Life

•Network

•System



Print Information



Shutdown Menu



Print Secure Job Menu



Menus

• Tray Configuration

•SystemAdjust



Admin Setup

For use by the System

Administrator. To access this

menu you must enter the

password. If you have no

administrator, the default

password is aaaaaa.



Calibration



Boot Menu



Parallel Setup



USB Setup



Security Setup



Storage Setup



Power Setup



Language Setup



Print Statistics

Printing the

Configuration Report

The Configuration report provides

a listing of the current printer

menu settings.

1. Press

NTER

2. Press the down arrow key to

select

Print Information

3. Press

NTER

4. Press

NTER

to select

Configuration

5. Press

NTER

to select

Execute

The Configuration report prints

and the printer goes back on

line.

•

MPS711c

•

English

Print Media Settings

Always make sure the media setting

matches the print media you are

using.

Improper media settings:

• cause poor quality printing

• cause flaking

• can damage the printer

Note

Printer driver settings override

printer menu settings.

Default Settings

The default media weight setting

for Tray1 is Light.

The default setting for the MP

(Multi Purpose) Tray is Medium.

Resetting to the Defaults

Note

A password is required to

access this area of the printer

menu. If you have a System

Administrator, only they can

reset the defaults.

1. Press

NTER

2. Press the down arrow key to

move down to

Admin Setup

Press

NTER

3. Enter the administrative

password (the default

password is aaaaaa).

a. Press the up arrow key (a to

z, 0 to 9) or the down arrow

key (9 to 0, z to a) to scan

through the various

numbers and letters of the

alphabet.

b. Press

NTER

c. Repeat a and b above for

each digit of the password.

4. Press

NTER

5. Press the down arrow key to

move down to

Settings

. Press

NTER

6. Press

NTER

to select

Reset

Settings

7. Press

NTER

to select

Execute

The printer resets and returns

to the on-line state.

•

MPS711c

•

English

Print Media Settings

Temporarily Changing the

Media Weight for an

Individual Print Job

If you are printing a job on

special media, you can

temporarily load the media in a

tray and change the media

settings for that tray in the driver

as you print the job.

Media Weight Settings

Media weight settings can be

made in the printer menu or the

printer driver.

• Light: 16–17 lb. US Bond

(60–63 g/m²)

• Medium Light: 18 lb. US Bond

(64–74 g/m

)

• Medium: 20–24 lb. US Bond

(75–89 g/m

)

• Medium Heavy: 24–28 lb. US

Bond (90–104 g/m

)

• Heavy: 28–32 lb. US Bond

(105–120 g/m

)

• Ultra Heavy 1 (Tray 1):

32–50 lb. US Bond

(121–188 g/m

)

• Ultra Heavy 2: 50–59 lb. US

Bond (189–220 g/m

)

• Ultra Heavy 3: 59–67 lb. US

Bond (221–250 g/m

)

•

MPS711c

•

English

Tray 1 and Optional Trays 2 and 3,

Usable Print Media

Media Specifications

Weight Range

16–67 lb. US Bond (60–250 g/m

)

Standard Sizes:

Letter, Legal-14, Legal-13.5, Legal-13, Executive,

A4, A5, B5.

Custom Sizes:

•Min.: 5.5 x 8.3'' (140 x 211 mm)

•Max.: 8.5 x 14'' (216 x 356 mm)

Must be defined in driver before printing: see your

on-line User’s Guide.

Capacity:

350 sheets of 21-lb. (80 g/m

) paper

•

MPS711c

•

English

Tray 1 and Optional Trays 2 and 3 (cont.)

Loading Paper

4 Important! Adjust the paper

size dial to the size of the

paper being used.

•

MPS711c

•

English

Multi-Purpose Tray

Usable Print Media

Media Specifications

Weight Range

16–67 lb. US Bond (60–250 g/m

)

Standard Sizes:

Letter, Legal-14, Legal-13.5, Legal-13, Executive, A4, A5,

A6, B5, Com-10 envelopes.

Custom Sizes:

Width: 3” – 8.5” (76 – 216 mm)

Length: 5” – 52” (127 – 1320 mm) (banner printing)

Must be defined in driver before printing: see your on-line

User’s Guide.

Takes:

•100 sheets 20-lb. (75 g/m

) paper

•10 envelopes

•20 sheetsoflabels

•50 transparencies

•Banners, one at a time

Autres manuels pour MPS711c

Table des matières

Langues :

Autres manuels Oki Imprimante

Oki

Oki C7550 Instructions d'installation

Oki

Oki C331dn Instructions d'utilisation et d'entretien

Oki

Oki C3200n Guide de démarrage rapide

Oki

Oki D22540A Manuel utilisateur

Oki

Oki B411d Instructions originales

Oki

Oki C9600hdn Manuel du propriétaire

Oki

Oki LP470b Guide de démarrage rapide

Oki

Oki C910 Instructions d'utilisation et d'entretien

Oki

Oki C5800Ldn Series Manuel utilisateur

Oki

Oki C6150dn Guide de démarrage rapide

Oki

Oki B4400 Series Manuel utilisateur

Oki

Oki C5750 Manuel utilisateur

Oki

Oki MPS930b Manuel de service

Oki

Oki B4100 Manuel utilisateur

Oki

Oki C7300 Manuel utilisateur

Oki

Oki ML420 Series Guide de démarrage rapide

Oki

Oki C6050n Manuel utilisateur

Oki

Oki 1624N Manuel utilisateur

Oki

Oki C710dtn Manuel utilisateur

Oki

Oki C5100n Manuel utilisateur

Oki

Oki OKIPAGE14e Manuel de formation

Oki

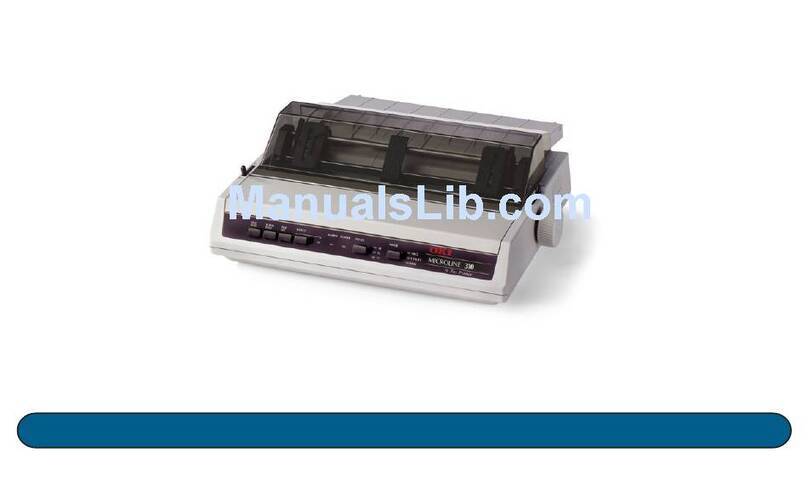

Oki MICROLINE ML310 Manuel utilisateur
