Oki C911 DICOM Manuel utilisateur

User's Manual

Custom Media Setup Guide

for

C911 DICOM PRINTER SERIES:

C911/C931 DICOM

ES9411/ES9431 DICOM

Pro9431 DICOM

- 2 -

zReading the Manual

Symbols

Note

zThese are cautions and restrictions indicating how to operate the device correctly. Please read carefully to avoid misoperation

of the device.

Memo

zInformation that is useful to know before using this device, or information to be used for reference. We recommend that you

read all of these.

Keys, Buttons and Symbols

Keys, buttons and symbols are indicated in the following ways in this manual.

Notation Explanation

[ ] Button/key

⿟Control panel buttons and 10-key pad buttons are indicated as follows.

E.g.)

[OK] button [BACK] button

[Fn] key [Clear] key

⿟Indicates your PC keyboard.

[ ]

⿟Indicates the menu names on the LCD panel.

⿟Indicates PC menus, windows and dialog box names.

" "

⿟Indicates messages and input text on the LCD panel.

⿟Indicates le names and window names on the PC.

⿟Indicates the title of a reference destination.

> Indicates the menu level of the device or the PC.

- 3 -

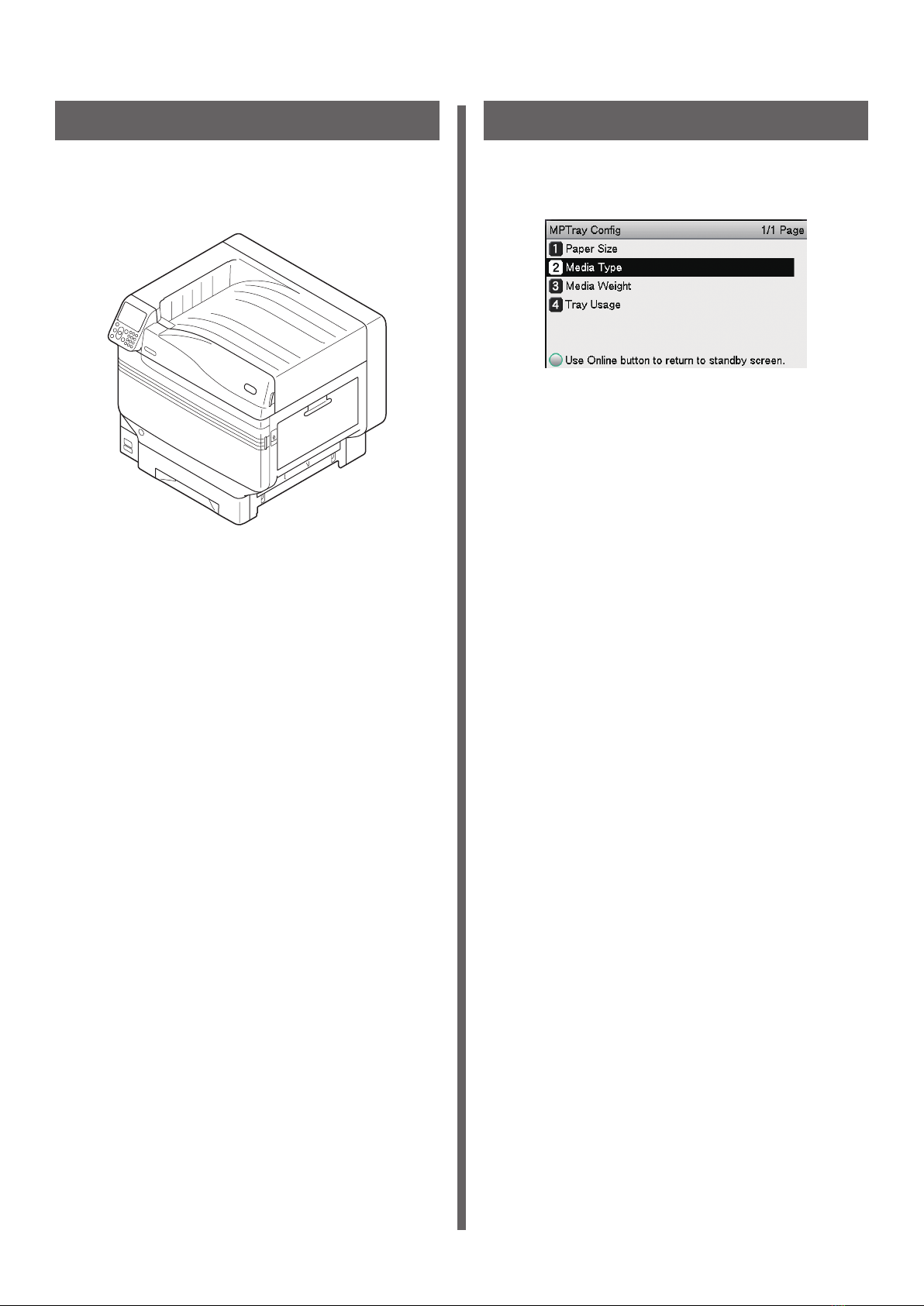

Illustrations

The device illustrations used in this manual show

the C931 model unless otherwise specied.

Illustrations may differ from the actual product.

Screens

Images of the control panel and PC used in this

manual are examples. Images may differ from

the actual product and screen.

- 4 -

Contents

Reading the Manual ............................................................................. 2

Symbols .................................................................................................................. 2

Keys, Buttons and Symbols ........................................................................................ 2

Illustrations ............................................................................................................. 3

Screens ................................................................................................................... 3

Custom Media Setup Tool..................................................................... 5

Registering custom media .................................................................. 6

Registering custom media to the device ....................................................................... 6

Applying custom media when printing ................................................ 8

Specifying custom media for printing........................................................................... 8

- 5 -

Custom Media Setup Tool

zCustom Media Setup Tool

Printer control can be optimized by registering the custom media le which contains your using media

information into the printer.

The Custom Media Setup Tool is used to register the custom media le to the printer.

Memo

zThe custom media le is a custom media information le that controls factors such as the xing temperature and printing

speed for custom media in order to ensure excellent printing results are obtained for the specic print media.

- 6 -

Registering custom media

zRegistering custom media

Registering custom media

to the device

Execute the Custom Media Setup Tool

(Custom Media Setup Tool.exe).

Select the language that you want to

use and click [OK].

Read through the [Software License

Agreement], select [I Agree] and click

[Next].

Select the device that you want to set

and click [OK].

Enter the device password and click

[OK].

zThe factory default password is [aaaaaa].

Select [Register new media to the

device] and click [Next].

Select the Index number, and click

[Enter media information...].

Select a custom media le by clicking

[Browse...], and click [OK].

Following screen is shown.

Note

zWhen there are multiple custom media les that

need to be registered, repeat above 7, 8 and 9

multiple times.

- 7 -

Registering custom media

Click [Register].

A dialog box prompting you to [Restart]

is displayed.

Click [Yes] to restart immediately.

Note

zWhen restarting, check to make sure the device is

not being used by another user.

Note

zIf you select “No” in the dialog box above and

immediately exit the tool, you may need to restart

the device yourself in order to apply the settings.

Click [Cancel] to exit the Custom Media

Setup Tool.

- 8 -

Applying custom media when printing

zApplying custom media when printing

Specifying custom media

for printing

Set the media to be used.

Setting in the Multi-Purpose Tray

ABC

Setting the paper

orientation

Setting in the paper tray

Setting the paper

orientation

Set the Paper Size and Media Type

using the control panel.

(1)

Press the [Fn] key.

The numerical value input screen is

displayed.

(2)

Enter the number according to the

paper tray to be used.

zFor the Multi-Purpose Tray

Press [9], [0] and press the [OK]

button.

zFor tray 1

Press [1], [0] and press the [OK]

button.

(3)

Select the paper size and press the

[OK] button.

(4)

Check that is displayed to the

left of the selected paper size, and

press the [Back] button.

(5)

Select [Media Type] and press the

[OK] button.

- 9 -

Applying custom media when printing

(6)

Select the custom media that you

want to use and press the [OK]

button. Check that is displayed

to the left of the selected custom

media.

(7)

Press the [ON LINE] button to

return to the standby screen.

Memo

zTo make setting for glossy paper;

(1) Print a medical image on glossy paper with

MEDGLOSS4 rst.

(2) Try the rest of options from MEDGLOSS3 to

MEDGLOSS1 in turn.

(3) Select a preferred one of MEDGLOSS Group for glossy

paper.

Note

zThe media with a narrow width of 216 mm or less can

NOT be used with ”Media Type” options of “MEDGLOSS1”

and “MEDGLOSS2”.

zIf printing on paper not recommended by OKI, thoroughly

test the print quality and paper traveling performance,

etc., and check that there are no impediments before use.

http://www.oki.com/printing/

Oki Data Corporation

4-11-22 Shibaura, Minato-ku,Tokyo

108-8551, Japan

46832101EE Rev1
