Oki 70037301 Manuel utilisateur

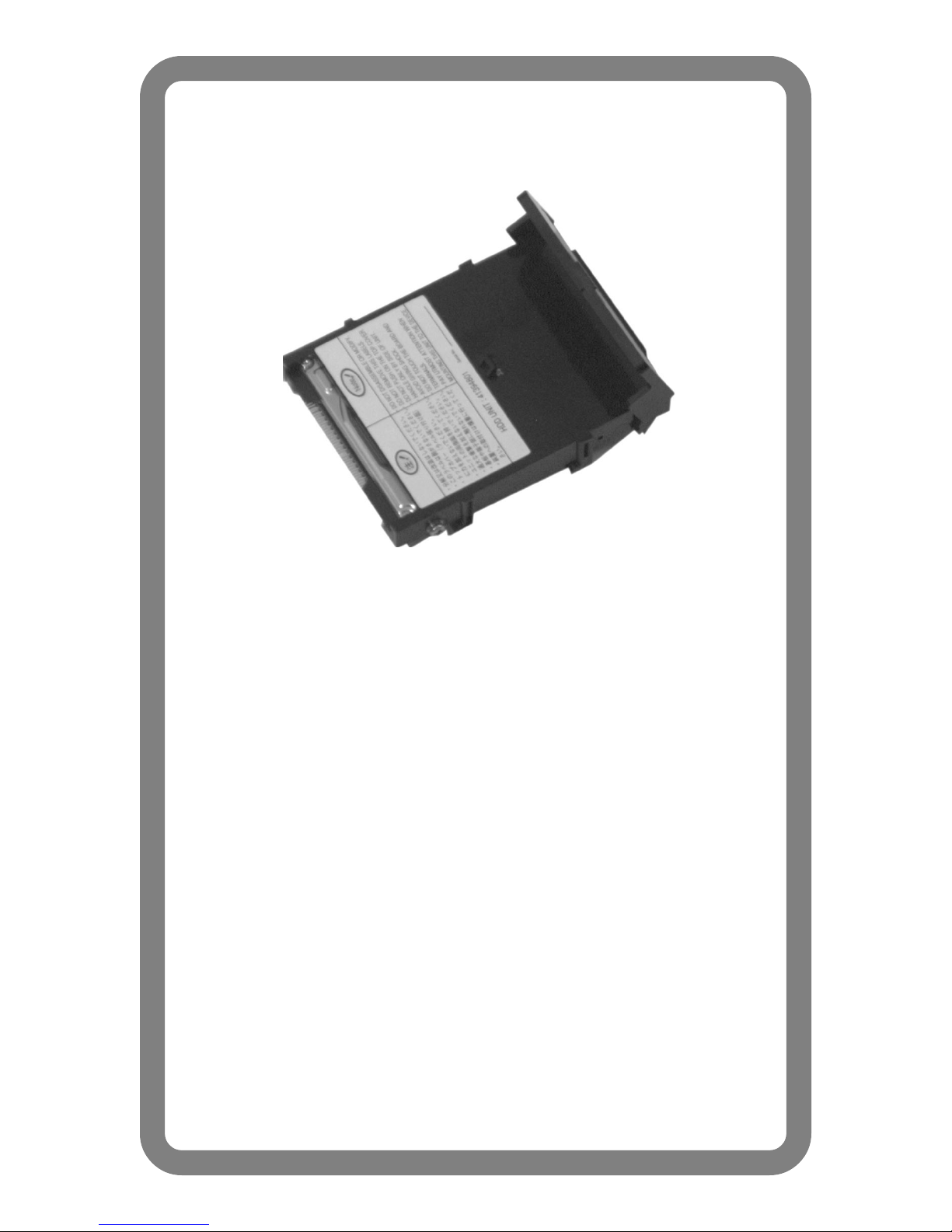

OKI 70037301

Hard Disk Drive

Installation

Instructions

Every effort has been made to ensure that the infor-mation

in this document is complete, accurate, and up-to-date.

Oki Data assumes no responsibility for the results of

errors beyond its control. Oki Data also cannot guarantee

that changes in software and equipment made by other

manufacturers and referred to in this guide will not affect

the applicability of the information in it. Mention of

software products manufactured by other companies does

not necessarily constitute endorsement by Oki Data.

reserved.

Written and produced by the Oki Data Training &

Publications Dept. Please address any comments on this

publication

by mail to:

Training & Publications Dept.

Oki Data Americas, Inc.

2000 Bishops Gate Blvd.

Mt. Laurel, NJ 08054-4620

or by email to: [email protected]

For the latest information, we welcome you to visit our

multilingual web site:

http://www.okidata.com

OKI, R/MD/MR Oki Electric Industry Company, Ltd. Adobe

& PostScript, TMAdobe Systems, Inc. which may be

registered in certain jurisdictions. Macintosh, TM Apple

Computer, Inc., registered in the U.S. and other countries.

Windows & Windows NT, R or TM Microsoft Corporation

in the U.S. and other countries.

Prepare The Printer

1Turn the printer off and unplug the power

cord.

2Detach the interface cable from the back of

the printer.

3Remove and save the thumbscrews (1) at the

top and bottom which hold the control board

in place.

C7000 Series C9000 Series

4Grasp the control board and loosen it by

wiggling it back and forth, then slide it out of

the printer.

C7000 Series

C9000 Series

Install the Hard Disk

Drive (HDD)

1Locate the drive connector (1) on the control

board:

2Remove the HDD from its shipping package.

3Lift the handle on the HDD and lower it onto

the control board.

4Insert the board firmly into the connector and

press down on the handle to lock it in place.

Complete the Installation

1Align the bottom of the control board with the

track in the printer and slide it back into place.

C7000 Series

C9000 Series

2Reinstall the screws at the top and bottom of

the board.

C7000 Series C9000 Series

3Reattach the interface cable, then plug the

power cord into the power outlet and turn the

printer on.

Check for Proper

Installation

1On the printer control panel, press MENU

once or twice until INFORMATION MENU

appears on the display.

2Press SELECT.

PRINT MENU MAP

appears on the display.

3Press SELECT.

The MenuMap prints.

4Check the MenuMap printout:

• At the top of the printout you should see

"HDD:5.00 GB"

• In the right column you should see a new

menu section entitled DISK

MAINTENANCE

5If you do not see these, remove the control

board, lift the hard drive handle and check to

be sure that the hard drive is firmly inserted in

the connector. Then reinstall the control board

and print the MenuMap again.

Activate the Hard Disk in

the Driver

Windows®PCL Driver

1Click Start

Settings

Printers.

The Printers dialog box opens.

2Right click the OKI PCL driver icon, then

click Printing Preferences, Properties or

Document Defaults, depending on the

Windows system.

3In the Paper tab, click Device options.

4Click Printer hard disk to select it, then click

OK.

5Click OK, then close the Printers dialog box.

Windows Adobe®PostScript®Driver

1Click Start

Settings

Printers.

The Printers dialog box opens.

2Right click the OKI PostScript driver icon,

then click Properties.
