OHAUS Ranger 7000 Manuel utilisateur

Quick Start Guide Ranger™7000

Ohaus Corporation www.ohaus.com iii Ranger 7000 Quick Start Guide

Safety Precautions

Caution: Read all safety warnings before installing, making connections, or servicing this

equipment. Failure to comply with these warnings could result in personal injury and/or

property damage. Retain all instructions for future reference.

Verify that the input voltage range printed on the data label and the plug type matches the local AC

power to be used.

Only connect models supplied with a grounded power cord to a compatible grounded power

receptacle.

Do not position the scale such that it is difficult to disconnect the power cord from the power

receptacle.

Make sure that the power cord does not pose a potential obstacle or tripping hazard.

This scale is for indoor use only.

Use the scale in dry locations only.

Do not drop loads on the pan.

Use only approved accessories and peripherals.

Operate the equipment only under ambient conditions specified in these instructions.

Disconnect the equipment from the power supply when cleaning.

Do not operate the equipment in hazardous or unstable environments.

Service should only be performed by authorized personnel.

Installation

Unpacking

Carefully remove your Ranger 7000 scale and each of its components from the package. The included

components vary depending on the scale model (see table below). Save the packaging to ensure safe storage

and transport.

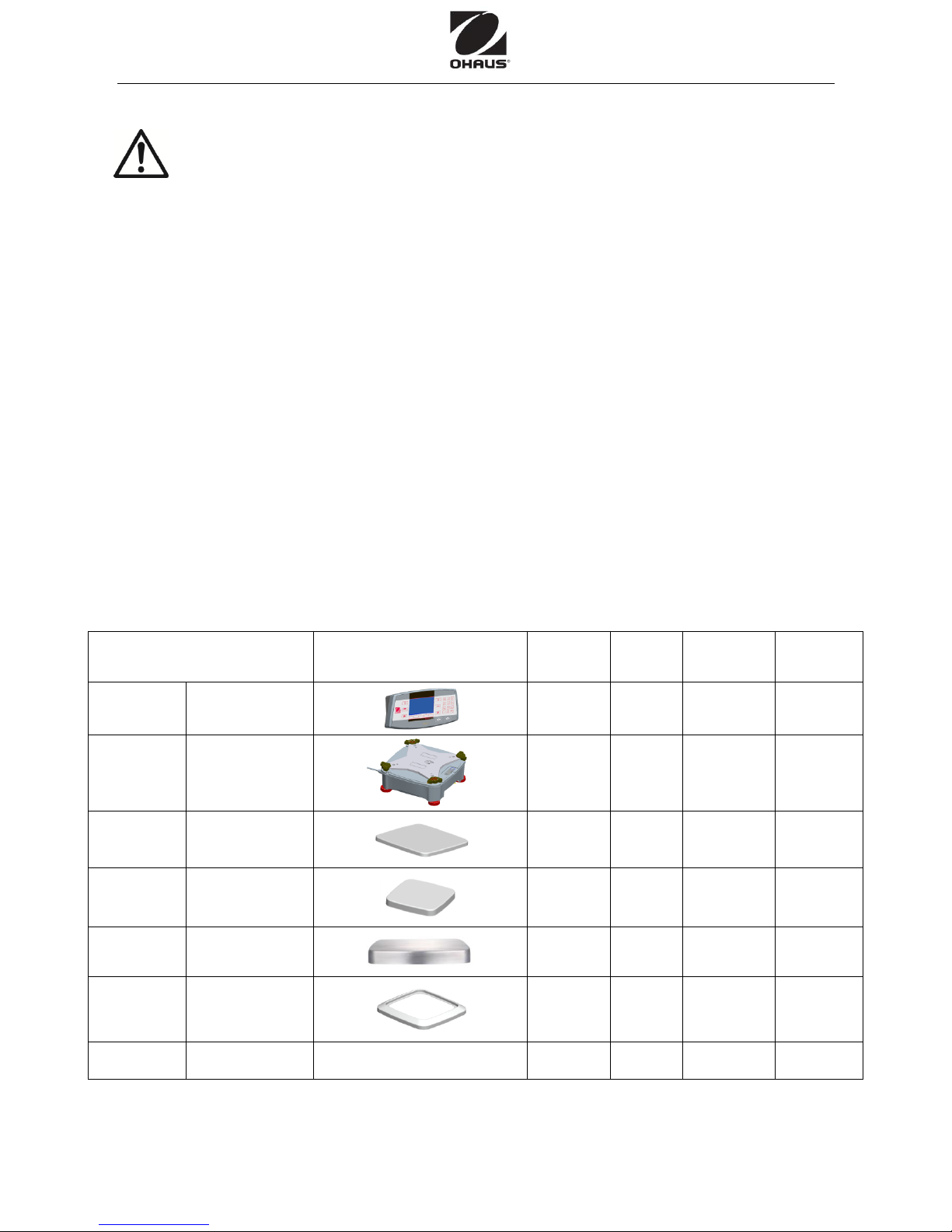

Included Component


R71MHD3

R71MHD6

R71MD3

R71MD6

R71MHD15

R71MHD35

R71MD15

R71MD35

R71MD60

Terminal

Weighing

Base

Weighing

Platform

200 x 200 mm

Weighing

Platform

240 x 240 mm

Weighing

Platform

311 x 371 mm

Wind Shield

Compact

Disc

Instruction

Manual

Ranger™7000 Quick Start Guide

Ranger 7000 Quick Start Guide ii Ohaus Corporation www.ohaus.com

Installing Components

Refer to the illustrations and instructions below to identify and assemble your Ranger 7000 scale with its

components. All components must be assembled before using the scale.

Terminal Setup

When the Ranger 7000 is delivered, the Terminal is already attached (docked) to the Base. No additional

setup is necessary. Refer to the illustrations and instructions below to identify and assemble your Ranger

7000 Scale.

Note: The Terminal is identical for all Ranger 7000 Scale models.

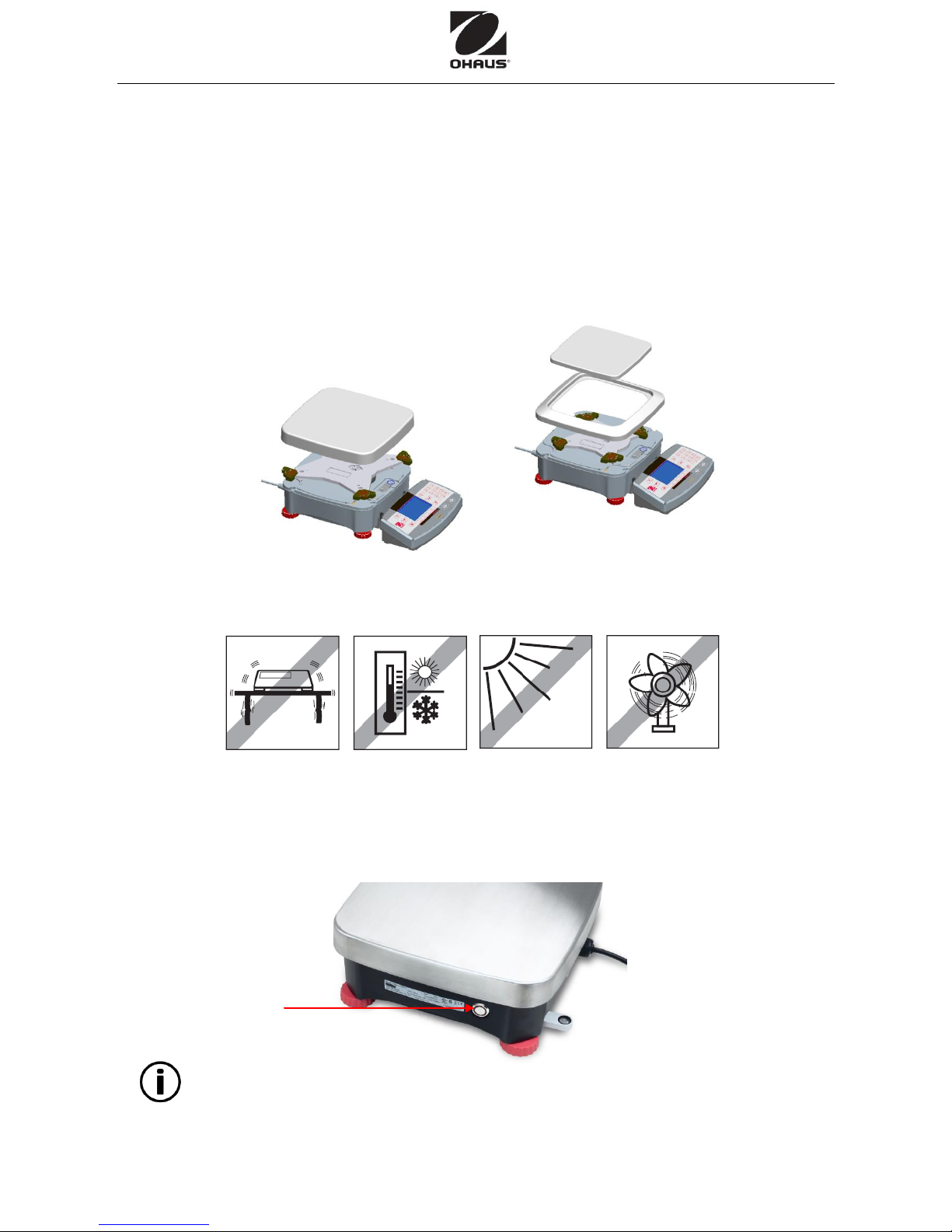

Installing the Wind Ring, Weighing Platform

1. Place the Wind Ring in position

(R71MHD3, R71MHD6).

2. Place the platform onto the

spider.

Selecting the Location

Avoid excessive vibrations, heat sources, air current, or rapid temperature changes. Allow sufficient

space.

Note: Interface cables connect to the terminal. The terminal can be detached and mounted on a wall

or positioned on a table separate from the scale.

Connecting Power and Turning ON the Scale

The Ranger 7000 comes with an AC power cord. Connect the power cord to a suitable grounded electrical

outlet and press the ON button on the side of the base (see figure below).

Attention: Allow equipment to warm up for 60 minutes for optimal weighing performance.

Power ON Button

Quick Start Guide Ranger™7000

Ohaus Corporation www.ohaus.com iii Ranger 7000 Quick Start Guide

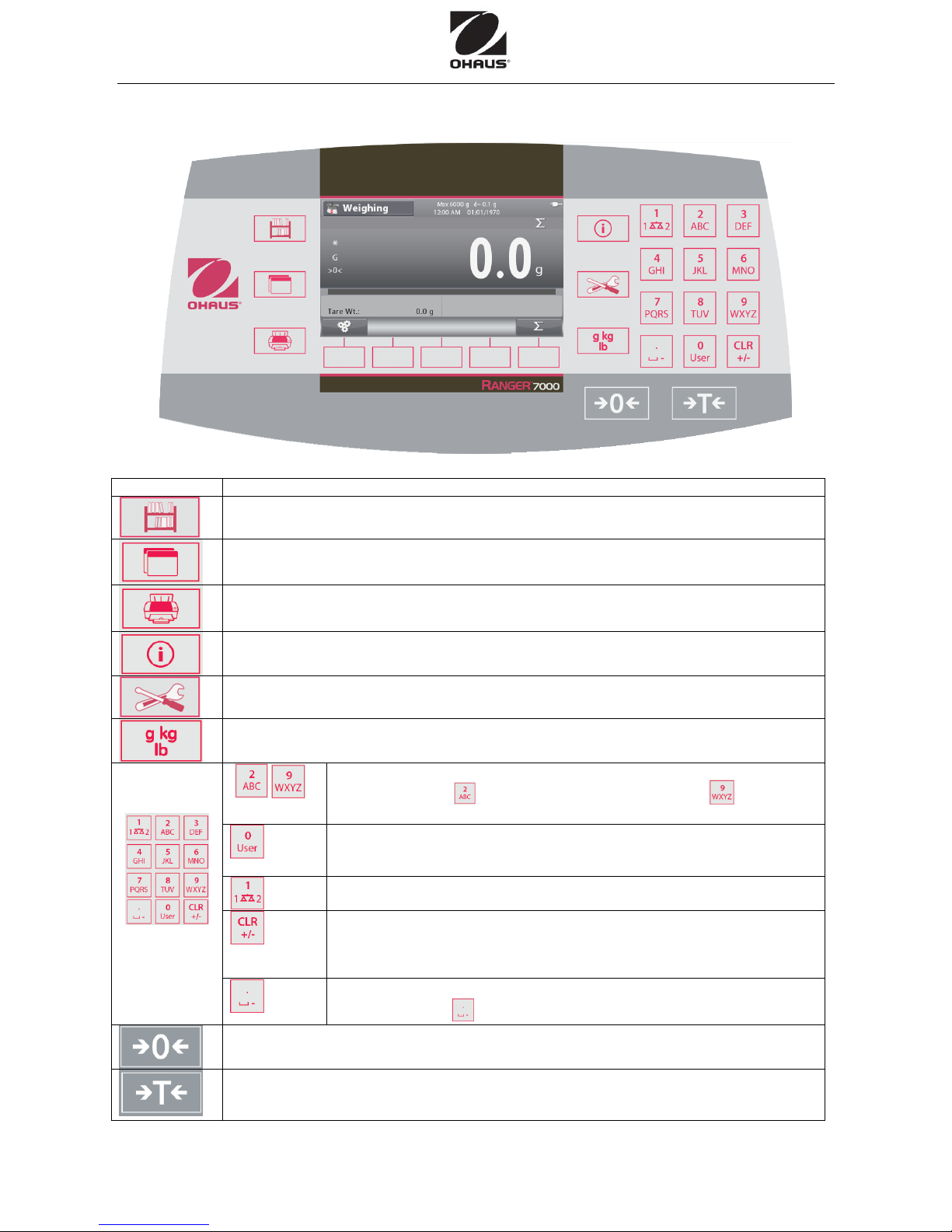

Controls

Button

Action

Enter/Exit the library menu

Switch between available application modes

Send the measurement data to available communications ports according to current

settings.

Display information about Application Mode, Library, User and Menu

Enter/Exit the User menu

Switch the main weighing unit between the available units

Short Press: Input ‘2’-‘9’

To Enter ‘A’ press 2 times. For lower case ‘Z’, press 5 times.

Short Press: Input ‘0’

Long Press: Go to User Login screen

Short Press: Input ‘1’

Long Press: Switch platform between scale 1 and scale 2

Short Press: Clear character/string when editing string

If no input is active, clear the current active library

When there is no value added, pressing this button will switch the value

sign between positive and negative.

Short Press: Input ‘.’, space, ‘_’

To Enter ‘_’ press 3 times.

Perform Zero operation

Perform Tare operation

When entering the value first and then pressing this button the number input will be set to

preset Tare value.

Ranger™7000 Quick Start Guide

Ranger 7000 Quick Start Guide iv Ohaus Corporation www.ohaus.com

Applications

The scale can be configured to operate in various Application modes, see the Instruction Manual for

information on how to activate/deactivate each application mode.

Press to select an activated application. The current application will be shown in the upper left corner

of the home screen.

The Ranger 7000 incorporates the following Applications

Weighing

Counting

Check

Formulation

Percent

Weighing

Filling

Dynamic

(Animal)

Density

Determination

Differential

Note: Before using any application, be sure the scale has been leveled and calibrated.

This product conforms to the EMC Directive 2004/108/EC, the Low Voltage Directive

2006/95/EC and the Non-automatic Weighing Instruments Directive 2009/23/EC.

The complete Declaration of Conformity is available online at

europe.ohaus.com/europe/en/home/support/compliance.aspx.

Disposal

In conformance with the European Directive 2002/96/EC on Waste Electrical and Electronic

Equipment (WEEE) this device may not be disposed of in domestic waste. This also applies to

countries outside the EU, per their specific requirements.

Ohaus® and Ranger® are either registered trademarks or trademarks of Ohaus Corporation in the United

States and/or other countries.

Ohaus Corporation

7 Campus Drive

Suite 310

Parsippany, NJ 07054 USA

Tel: +1 (973) 377-9000

Fax: +1 (973) 944-7177

With offices worldwide

www.ohaus.com

*30232802*
