OHAUS ACHIEVER e-A51ST020 Manuel utilisateur

ACHIEVER

Overhead Stirrer

e-A51ST020

e-A51ST040

e-A51ST060

e-A51ST100

e-A51ST200

User Guide

Please visit to download user manual.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

ACHIEVERTM Overhead Stirrers EN-1

1. General Information

Before using the unit, please read the following instruction manual carefully.

Do not dispose of this equipment as urban waste, in accordance with EEC

directive 2012/19/EC.

This unit must be used for laboratory applications indoor only. The

manufacturer declines all responsibility for any use of the unit that does not

comply with these instructions. If the product is used in a not specified way by

the manufacturer or with not specified accessories, product's safety may be

compromised.

This unit has been designed and manufactured in compliance with the

following standards:

- Safety requirements for electrical equipment for measurement, control

and for laboratory use: IEC/EN 61010-1 IEC/EN 61010-2-051

- Electrical equipment for laboratory use: UL 61010-1

- General requirement - Canadian electrical code: CAN/CSA-C22.2

No.61010-1

OHAUS reserves the right to modify the characteristics of its products with the

aim to constantly improving their quality.

1.1. Safety Regulations

The plug disconnects the instrument. Therefore, place the instrument where it

can be quickly disconnected.

The values indicated on the rating plate of the instrument must correspond to

those of the power supply.

Position the instrument on a flat surface, with a distance from the wall of 30 cm

(at least).

Fasten the unit to the support rod (30586771) using the double clamp

(30586773). Secure the receptacle using the ribbon clamp (30586774).

Safe working conditions are ensured only when the accessories described in

the dedicated chapter are used.

The working speed set on the instrument must be such as to avoid wobbling

and/or splashes.

Do not use with explosive or dangerous materials for which the equipment is

not designed. The stirrer must not be used in explosive atmospheres, in bain-

marie or to stir harmful liquids prior using protective measures according to the

safety standards of the processed products and/or in force in the laboratories

including personal protective equipment and the presence of an extraction

hood which ensures at least 10-fold air change in accordance with the

standards EN 14175 and DIN 12924.

It is dangerous to run the unit with the stirring blade turning in free air. Always

place the stirring shaft in the receptacle before turning the unit on.

It is responsibility of the user appropriately decontaminate the instrument in

case of dangerous substances fall on or in it.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-2 ACHIEVERTM Overhead Stirrers

It is also responsibility of the user to use safety substances for cleaning or

decontaminating, which do not react with internal parts of the instrument or

with the material contained in it. In case of doubts on the compatibility of a

cleaning solution, contact the manufacturer or local distributor.

The solution may release toxic, dangerous or poisonous gases. Adequate

safety measures must be taken, in accordance with the safety regulations in

force, including the presence of hood and personal protective equipment

(masks, gloves, goggles, etc.).

Switch off the the stirring before opening chuck locking ring. Switch off the

instrument before removing chuck.

1.2. Introduction

The overhead stirrers with electronic speed control, brushless motor, and advanced

safety features are able to satisfy the most difficult laboratory applications in terms

of viscosity and volume. The new chuck ensures higher safety for the operator and

allows to use a passing rod of up to 8.5mm in diameter.

7 Segment Display LED G.

Timer LED (for e-A51ST200) /

Upper lock LED for other models

Torque indicator bar H.

Timer key (for e-A51ST200) /

Lock key for all models

Low speed LED (only e-A51ST200) I. Lower Lock LED

Gear key (only e-A51ST200) /

Timer key for other models

J. Main switch

E. High speed LED (only e-A51ST200) /

Timer LED for other models

K. Keyless chuck

F. Speed control knob

B C

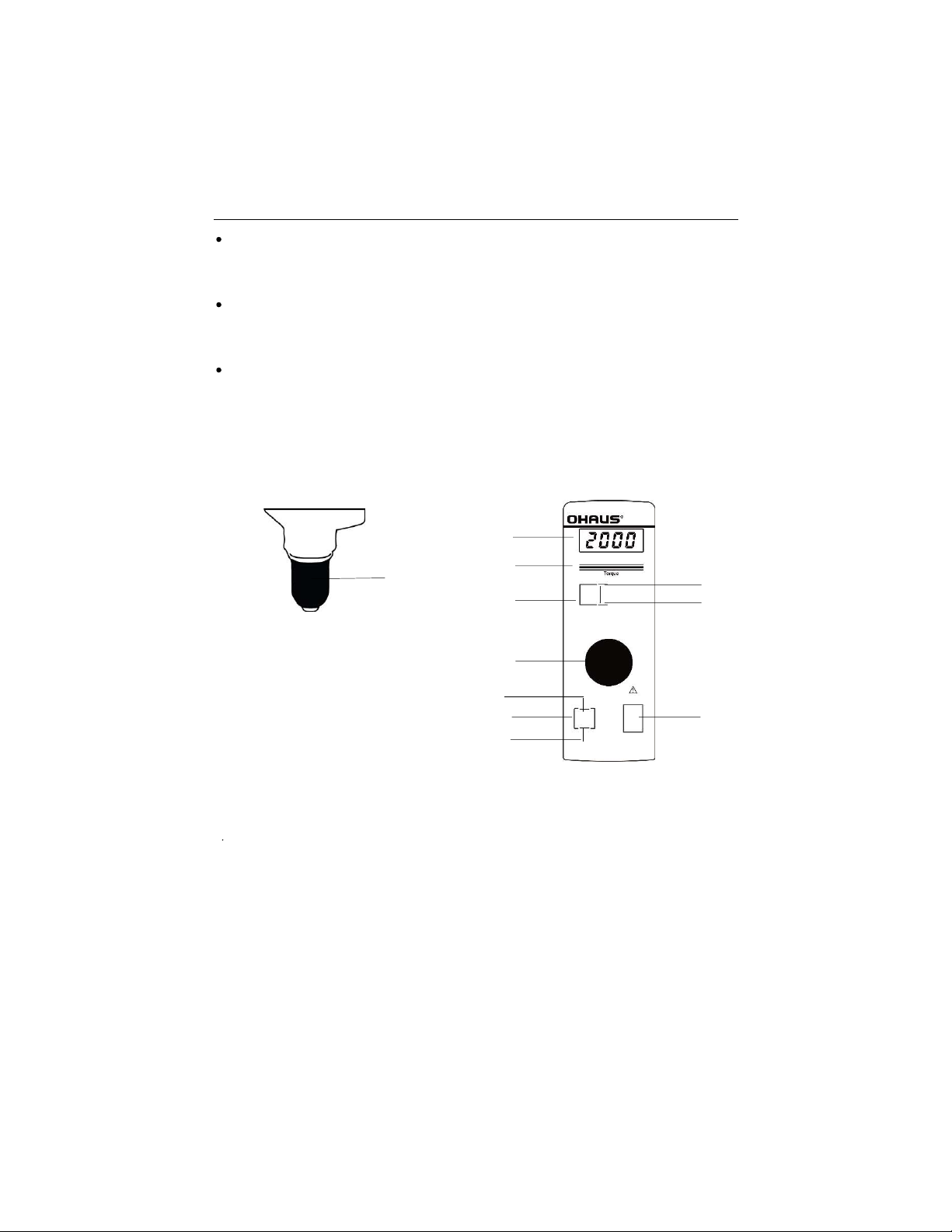

Figure 1 Figure 2. Frontal view

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

ACHIEVERTM Overhead Stirrers EN-3

2. Assembly and Installation

2.1 Unpacking

Check the integrity of the unit after unpacking.

The box includes:

e-A51STxxx Digital overhead stirrer

Power supply cable

User Guide

Allen key and allen head screw

Shaft support overhead stirrer

2.2 Installation

Place the unit on non-flammable surface

Fix the shaft support to the instrument with the allen head screw

Fasten the unit to the support rod (30586771) using the double clamp

(30586773).

Secure the receptacle using the ribbon clamp (30586774).

Slide the stirring shaft into the chuck and tight it

Make sure that the rating value of the instrument corresponds to the one of

the power supply

Ensure that the socket provided, with grounding, is compliant with the

current safety norms and easy to reach.

3. Working

Commissioning

Switch on the instrument through

the main switch (J)

Display (A) shows software version, last set point value and OFF (if

Stirring

Set the operating speed range by clicking Gear key (D) (Only e

A51ST200).

Adjust speed set point by turning the speed control knob (F).

Click the knob to start stirring.

Speed increases until set point achievement.

A microprocessor ensures constant speed even when the viscosity

changes (counter-reaction).

Switch off the stirring by clicking the knob.

Timer

Click Timer

key (D or H). HH:MM appears on display.

Rotate speed control knob (F) to set the desired value. Click to confirm.

Once timer is set, timer LED lights up:

- (G) for e-A51ST200

- (E) for other models

The LED lights continuously until the instrument starts to stir. When the

instrument stirs, the LED flashes.

the analysis by clicking timer key.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-4 ACHIEVERTM Overhead Stirrers

Gear (only for

e-A51ST200)

Set the

operating speed range by clicking Gear button (D).

The gear set has its relative LED (C or E) lighted on.

- Gear 1: Low speed (6 400 rpm) High torque (till 200 Ncm).

- Gear 2: High speed (30 2000 rpm) Low torque (till 40 Ncm).

Torque

The torque indicator bar (B), made by four LEDs, shows the intensity of

the torque applied

Lock

panel.

Unlock the control panel by holding key H for 3 seconds.

When the instrument is locked,

- LED (I) lights on for e-A51ST200

- LED (G) and (I) light on for other models

4. Menu

Hold the control knob (F) for 3 seconds to enter into the setting mode when stirring

is off. Turning the control knob (F) it is possible to pass from one of the following

parameters to the next one. Click the knob to modify

Parameter

shown on

display

Default value Range Description

Set starting mode:

Stop: when the

instrument is switched

on through the main

switch, OFF is displayed.

Run: when the

instrument is switched

on, it restarts to work

with the last set points.

e-A51ST200 (1)

(2)

Set the maximum value of

speed set point.

e-A51ST100

e-A51ST060

e-A51ST040

e-A51ST020

showed before the number, the

running time is in Day.

To install a new software

version

To restore default setting

parameters

- To reset torque zero value

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

ACHIEVERTM Overhead Stirrers EN-5

5. Keyless Chuck

Keyless chuck (K) allows to fix stirring shaft with one hand.

Open the chuck: From work position (Figure 3), turn Locking Ring 90° to the

left (Figure 4). Pull Locking Ring down (Figure 5).

Close the chuck: Push Locking Ring up (Figure 6) and turn it 90° to the right.

6. Maintenance

6.1 Cleaning

WARNING: Electric Shock Hazard. Disconnect the equipment from

the power supply before cleaning.

Make sure that no liquid enters the interior of the instrument.

Attention: Do not use solvents, chemicals, alcohol, ammonia or

abrasives to clean the housing or control panel.

The housing may be cleaned with a cloth dampened with a mild detergent if

necessary.

6.2 Troubleshooting

The following table lists common problems and possible causes and remedies.

To remove the error message, disconnect the instrument from the power supply.

If the problem persists, contact OHAUS or your authorized dealer.

Error Code Possible Cause

AL1

AL2 High internal motor temperature

AL3 Motor overload

AL4 High driver temperature

AL5 Safety relay fault

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-6 ACHIEVERTM Overhead Stirrers

6.3 Service Information

If the troubleshooting section does not resolve or describe your problem, contact

your authorized OHAUS service agent. For service assistance or technical support

in the United States call toll-free 1-800-672-7722 ext. 7852 between 8:00 AM and

5:00 PM EST. An OHAUS product service specialist will be available to provide

assistance Monday through Friday. Outside the United States, please visit our web

7. Technical Data

Models

A51ST020,

e-A51ST040,

e-A51ST060,

e-A51ST100,

e-A51ST200

A51ST020,

e-A51ST040,

e-A51ST060,

e-A51ST100,

e-A51ST200

General

features

Power supply

230 V / 50

60 Hz (+/

10%)

115V / 60 Hz (+/

10%)

Dimensions

(WxHxD)

A51ST200

90x315x235 mm

(3.54x12.40x9.25 in)

90x315x235 mm

(3.54x12.40x9.25 in)

Other Models

90x285x235 mm

(3.54x11.22x9.25 in)

90x285x235 mm

(3.54x11.22x9.25 in)

Weight

A51ST200

4,6 kg (10,14 lb) 4,6 kg (10,14 lb)

A51ST100

4,1 kg (9,04 lb) 4,1 kg (9,04 lb)

Other Models

4,1 kg

(9,04 lb)

4,1 kg (9,04 lb)

Power input

190 W

Construction material

(structure)

Aluminum

Working in continuous

Admitted

Settable restart modality

Stop or work

Noisiness

<< 60 dBa

Environmental

temperature

admitted

Storage temperature

admitted

Max humidity

80%

Level of electrical protection

CEI EN60529

IP 54

Overvoltage category

Pollution degree CEI

EN61010-1

Max altitude

2000 m

Stir

Stirring

capacity

A51ST200

100 l H

A51ST100

100 l H

A51ST060

40 l H

A51ST040

25 l H

A51ST020

25 l H

A51ST200

400rpm (1)

2000rpm

(2)

400rpm (1)

2000rpm

(2)

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

ACHIEVERTM Overhead Stirrers EN-7

Programma

ble speed

range

A51ST100

1300rpm

A51ST060

2000rpm

A51ST040

2000rpm

A51ST020

2000rpm

Motor type

BLDC

Speed selection

1 rpm step

Stirring alarm

Motor fault

Motor rating output

150 W

Torque

Max torque

admitted

A51ST200

200 Ncm (1)

40 Ncm (2)

200 Ncm (1)

40 Ncm (2)

A51ST100

100 Ncm

A51ST060

60 Ncm

A51ST040

40 Ncm

A51ST020

20 Ncm

Counters

Motor counter

Working hours

8. Accessories

30586771

Support Stand Universal

30586778

Stirrer Shaft 40x0.7 cm,

Folding Blade

30586772

Support Stand Telescopic

30586779

Stirrer Shaft 51x0.7

cm,

Paddle 6 Holes

30586773

Double clamp

30586780

Stirrer Shaft 40x0.7 cm,

Propeller

30586774

Ribbon clamp

30586781

Stirrer Shaft 40x0.7 cm,

Turbine

30586775

Stirrer Shaft 40x0.7 cm,

Anchor Blade

30586782

Stirrer Shaft 40x0.7 cm, Turbo

Propeller

305867

Stirrer Shaft 40x0.7 cm,

Fixed Blade

30586842

Chuck Cover e

A51

30586777

Stirrer Shaft 40x0.7 cm,

Floating Blade

9. Wiring diagram

1. Main switch /

2. Main board /

3. Electric motor /

5. Display board /

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

EN-8 ACHIEVERTM Overhead Stirrers

FCC Supplier Declaration of Conformity

Unintentional Radiator per 47CFR Part B

Trade Name: OHAUS CORPORATION

Model or Family identification: e-

Responsible Party U.S. Contact Information:

Ohaus Corporation

FCC Compliance Statement:

Note: This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference

in which case the user will be required to correct the interference at his own expense.

Changes or modifications not expressly approved by the party responsible for

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

ACHIEVERTM Agitador de varilla ES-1

1. Información General

Antes de utilizar la unidad, lea el siguiente manual de instrucciones con

atención.

De acuerdo con la directiva 2012/19/CE de la CEE, no elimine este equipo

como un residuo urbano.

Esta unidad debe utilizarse únicamente para aplicaciones de laboratorio en

interiores. El fabricante declina toda responsabilidad por cualquier uso de la

unidad que no cumpla con estas instrucciones. Si el producto se utiliza de una

forma no especificada por el fabricante o con accesorios no especificados,

puede verse comprometida su seguridad.

Esta unidad ha sido diseñada y fabricada de acuerdo con las siguientes

normas:

- Requisitos de seguridad para equipos eléctricos de medición, control y

uso en laboratorio: IEC/EN 61010-1 IEC/EN 61010-2-051

- Equipos eléctricos para uso en laboratorio: UL 61010-1

- Requisitos generales - Código eléctrico de Canadá: CAN/CSA-C22.2

No.61010-1

La Declaración de Conformidad de la UE está disponible online en

OHAUS se reserva el derecho de modificar las características de sus

productos con el objetivo de mejorar continuamente su calidad.

1.1. Regulaciones de seguridad

El enchufe desconecta el instrumento. Por lo tanto, coloque el instrumento en

un lugar donde pueda ser fácilmente desconectado.

Los valores indicados en la placa de características del instrumento deben

ajustarse a los de la fuente de alimentación.

Coloque el instrumento sobre una superficie plana, a una distancia de 30 cm

de la pared (por lo menos).

Fije la unidad al soporte universal (30586771) utilizando la pinza doble

(30586773). Fije el contenedor con la pinza de cadena (30586774).

Solo se garantizan unas condiciones de trabajo seguras si se utilizan los

accesorios descritos en el capítulo correspondiente.

La velocidad de trabajo que se establezca en el instrumento debe evitar el

balanceo y/o las salpicaduras.

No utilizar con materiales explosivos o peligrosos para los que el equipo no

esté diseñado. El agitador no debe utilizarse en atmósferas explosivas, al

baño maría o para agitar líquidos nocivos antes de utilizar las medidas de

protección establecidas por las normas de seguridad de los productos

procesados y/o vigentes en los laboratorios, incluyendo el equipo de

protección personal y el uso de una campana de extracción que garantice al

menos 10 renovaciones del aire de acuerdo con las normas EN 14175 y DIN

12924.

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

Autres manuels pour ACHIEVER e-A51ST020

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels OHAUS Équipement de laboratoire

OHAUS

OHAUS ST310 Manuel d'instructions

OHAUS

OHAUS 5000 Manuel utilisateur

OHAUS

OHAUS Frontier FC5513R Manuel utilisateur

OHAUS

OHAUS MB95 Manuel utilisateur

OHAUS

OHAUS Frontier FC5707 Manuel utilisateur

OHAUS

OHAUS Frontier FC5515 Manuel utilisateur

OHAUS

OHAUS Frontier FC5513 Manuel utilisateur

OHAUS

OHAUS Frontier FC5718 Manuel utilisateur

OHAUS

OHAUS e-G51ST07R Manuel utilisateur

OHAUS

OHAUS Defender 6000 Series Manuel utilisateur

OHAUS

OHAUS i-DT61XWE Manuel utilisateur

OHAUS

OHAUS Frontier 2000 Series Manuel utilisateur

OHAUS

OHAUS Frontier FC5515R Manuel utilisateur

OHAUS

OHAUS STORP1 Manuel d'instructions

OHAUS

OHAUS Frontier FC5706 Manuel utilisateur

OHAUS

OHAUS ACHIEVER e-A51ST020 Manuel utilisateur

OHAUS

OHAUS Frontier FC5714 Manuel utilisateur

OHAUS

OHAUS Vortex Mixer VXMNFS Manuel utilisateur

OHAUS

OHAUS STDO21 Manuel d'instructions

OHAUS

OHAUS Guardian 7000 Series Manuel utilisateur

OHAUS

OHAUS Frontier FC5714 Manuel utilisateur

OHAUS

OHAUS Stirrer High Volume STHVAL Manuel utilisateur

OHAUS

OHAUS MB200 Manuel utilisateur

OHAUS

OHAUS Pioneer PXP Series Manuel utilisateur

Manuels Équipement de laboratoire populaires d'autres marques

Qiagen

Qiagen DML 3000 Manuel utilisateur

Queensgate

Queensgate NANOSCAN OP400 Manuel de programmation

Conviron

Conviron GEN1000-GE Manuel utilisateur

Parr Instrument

Parr Instrument 4560 Mode d’emploi

IKA

IKA IC control Manuel utilisateur

Integra

Integra DOSE IT Manuel utilisateur

Agilent Technologies

Agilent Technologies 5800 ICP-OES Manuel utilisateur

Endress+Hauser

Endress+Hauser Cleanfit CPA875 Manuel utilisateur

NI PXI-5422 Manuel

Collomix

Collomix Aqix Manuel utilisateur

SPEX SamplePrep

SPEX SamplePrep 6875 Freezer/Mill Series Manuel utilisateur

Ocean Insight

Ocean Insight FLAME-NIR+ Manuel utilisateur

Parker

Parker ALIGN-MG-NA Manuel utilisateur

BD 644787 Manuel utilisateur

DENTAURUM

DENTAURUM Compact Megaplus Manuel utilisateur

Biuged Laboratory Instruments

Biuged Laboratory Instruments BGD 626 Manuel utilisateur

VWR

VWR SAS Super IAQ Manuel utilisateur

illumina

illumina MiSeqDx Manuel utilisateur
