OfficeSource PL139T Manuel utilisateur

OFFICE FURNITURE

MODEL NO. PL139T

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Please follow these instructions for easy assembly.

Z:\Office Furniture\ECONOWISE\OLD\Performance_logo.jpg

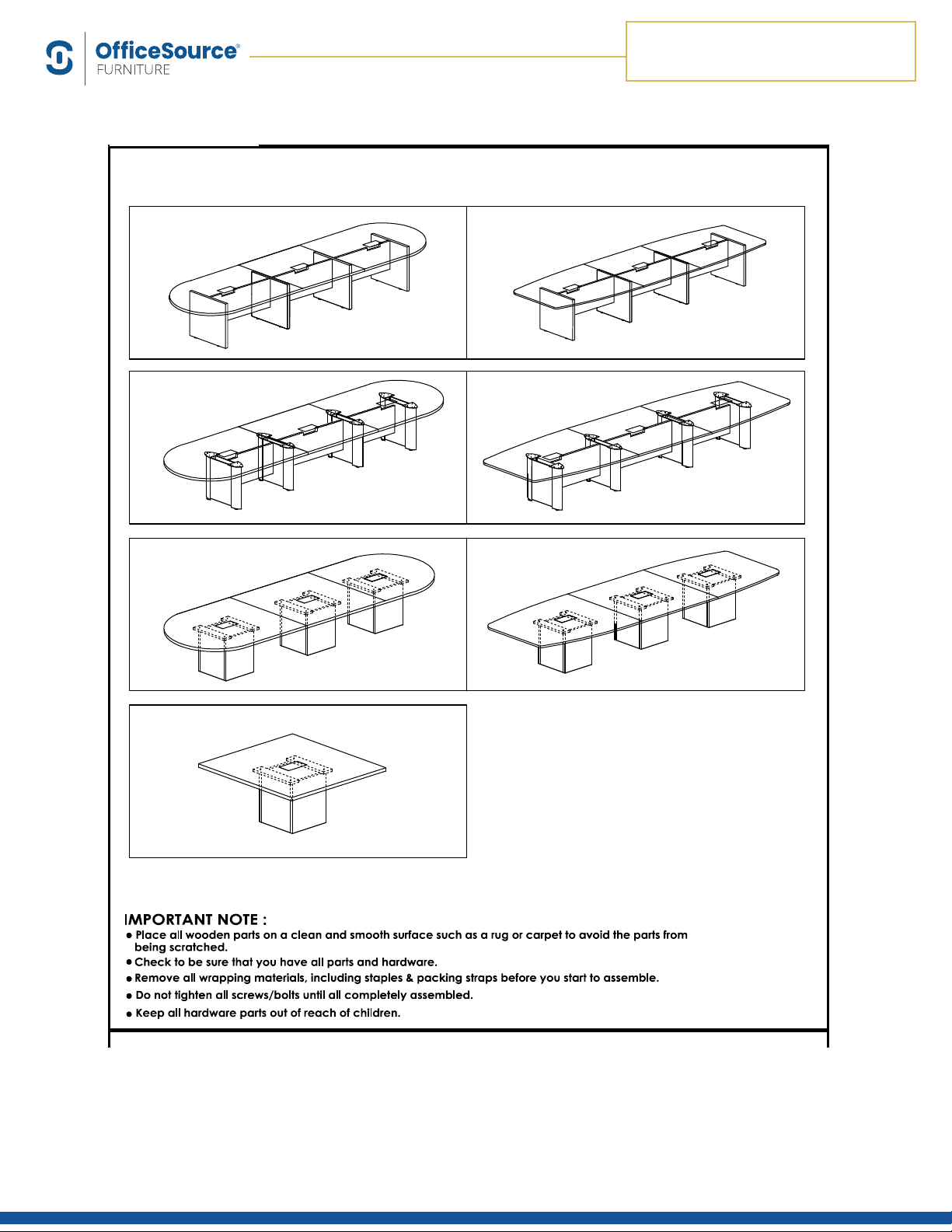

Thank you for purchasing the Office Source Race Track / Boat Shape Conference Table.

PAGE 1 OF 5

See Page 3 See Page 3

See Page 4 See Page 4

See Page 5 See Page 5

Option 1

Option 2

Option 3

Option 1

Option 2

Option 3

See Page 5

Option 4

MODEL NO. PL139T

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

OFFICE FURNITURE

MODEL NO. PL139T

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Please follow these instructions for easy assembly.

Z:\Office Furniture\ECONOWISE\OLD\Performance_logo.jpg

Thank you for purchasing the Performance Race Track / Boat Shape Conference Table.

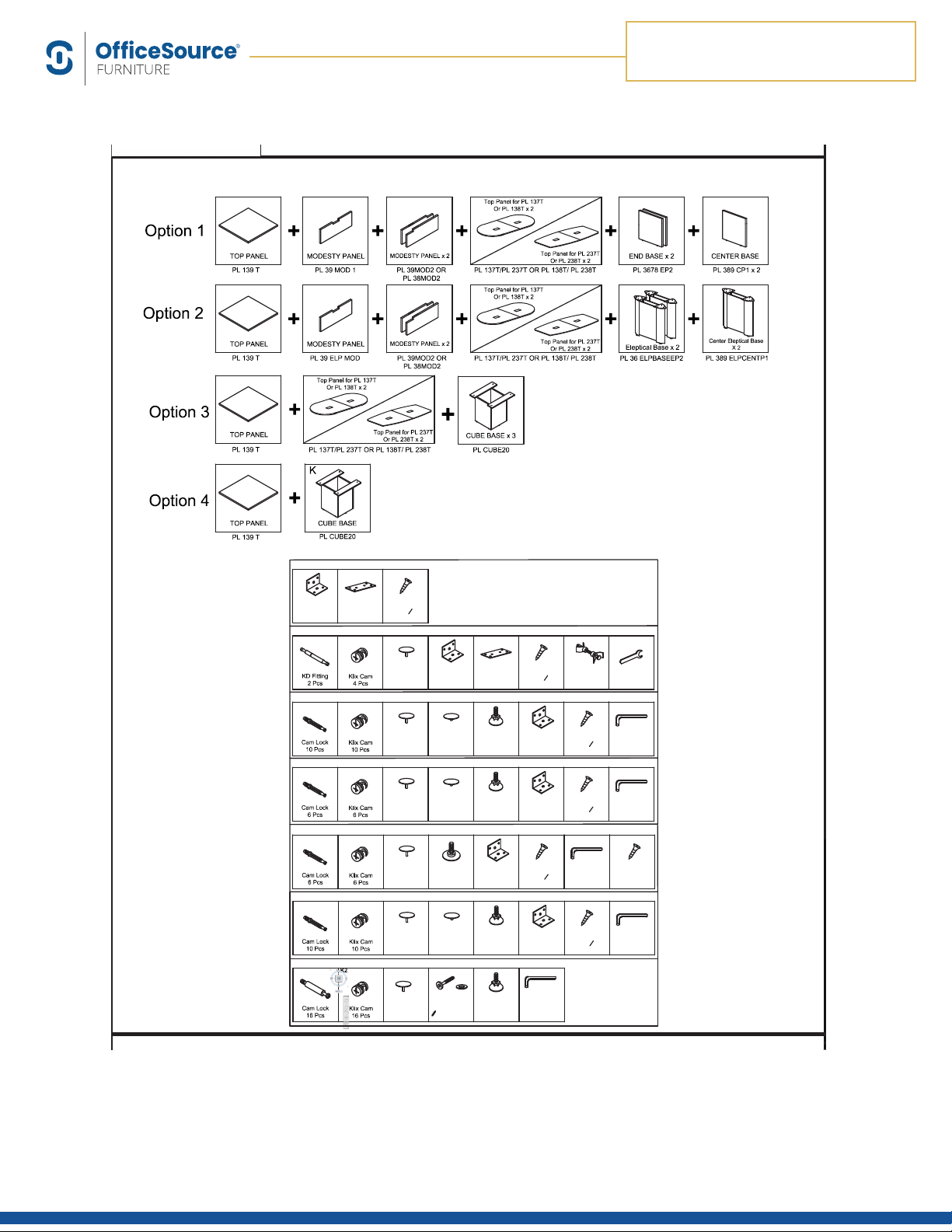

PAGE 2 OF 5

Housing

Cap (Long)

4 Pcs

Screw

#6 x 58"

48 Pcs

D1 D2 D3 D4 D5

6 Hole

L-Bracket

6 Pcs

Flat Bracket

2 Pcs

HARDWARE PACK PL 137 T/PL 237 T

FA B C

Screw

#6 x 58"

66 Pcs

A4 A5

6 Hole

L-Bracket

5 Pcs

Flat Bracket

6 Pcs

HARDWARE PACK PL 139 T

D7 D8

Fitting-GL

Screw

2 Pcs

Wrench

1 Pc

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Short)

4 Pcs

Housing

Cap (Long)

6 Pcs

Adjustable

Glide

4 Pcs

Screw

#6 x 58"

24 Pcs

E1 E2 E3 E4 E5 E7

6 Hole

L-Bracket

4 Pcs

HARDWARE PACK PL 3678 EP2

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Short)

2 Pcs

Housing

Cap (Long)

4 Pcs

Adjustable

Glide

2 Pcs

Screw

#6 x 58"

24 Pcs

F1 F2 F3 F4 F5 F7

6 Hole

L-Bracket

4 Pcs

HARDWARE PACK PL 389 CP1 x 2

I JA G H

K1 K2 K3

HARDWARE PACK PL CUBE20

M4 x 65

Allen-Key

1 Pc

Adjustable

Glide

6 Pcs

K4 K5 K6

JCBC Screw

M6 x 40mm = 4pcs

14Washer = 4pcs

Housing

Cap (Long)

16 Pcs

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Short)

4 Pcs

Housing

Cap (Long)

6 Pcs

Adjustable

Glide

4 Pcs

Screw

#6 x 58"

24 Pcs

J1 J2 J3 J4 J5 J7

6 Hole

L-Bracket

4 Pcs

HARDWARE PACK PL 3678 EP2

M4 x 65

Allen-Key

1 Pc

Housing

Cap (Long)

6 Pcs

Adjustable

Glide

4 Pcs

Screw

#6 x 58"

24 Pcs

I1I2I3I4I6

6 Hole

L-Bracket

4 Pcs

HARDWARE PACK PL 36 ELPBASEEP2

CSK Scew

M3.5 x 20MM

16 Pcs

MODEL NO. PL139T

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

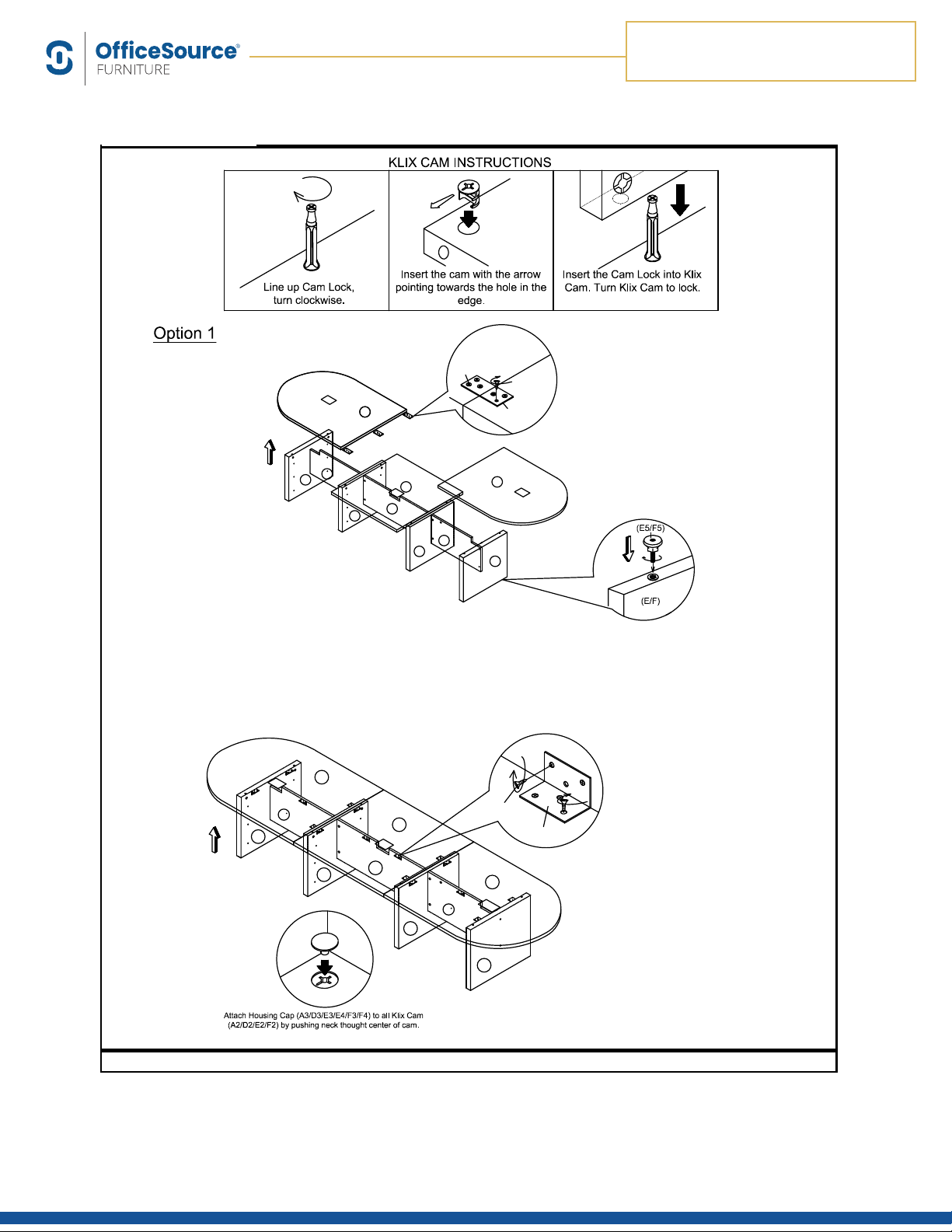

OFFICE FURNITURE

MODEL NO. PL139T

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

1 2 3

TOP

Attach the Flat-Bracket (A5/D5) to

two Top Panel (D) and

Top Panel (A) as shown.

Tighten Screws (A6/D6) securely.

Attach the L-Bracket (A4/D4/E6/F6)

from Top Panel (A/D) to Modesty

Panel (B/C) and End Base (E) and

Center base (F) as shown. Tighten

Screws (A6/D6/E7/F7) securely.

TOP

PAGE 3 OF 5

Screw Adjustable Glide

(E5/F5) into bottom of End

Base (E) and Center Base (F).

Attach Center Base (F) to Modesty Panel (B)

by using Cam Lock (E1/F1) and Klix Cam (E2/F2).Attach Modesty Panel (C) to Center Base (F) by using Cam Lock

(E1/F1) and Klix Cam (E2/F2).Attach End Base (E) to Modesty Panel (C) by using Cam Lock (E1/F1) and Klix Cam

(E2/F2).Attach Top Panel (A) & Top Panel (D) to Center Base (F) & End Base (E) & Modesty Panel (B/C)

by using Cam Lock (E1/F1) and Klix Cam (E2/F2).

(A4/D4/E6/F6)

(A6/D6/E7/F7)

(A5/D5)

(A6/D6)

BOTTOM

FACE

MODEL NO. PL139T

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

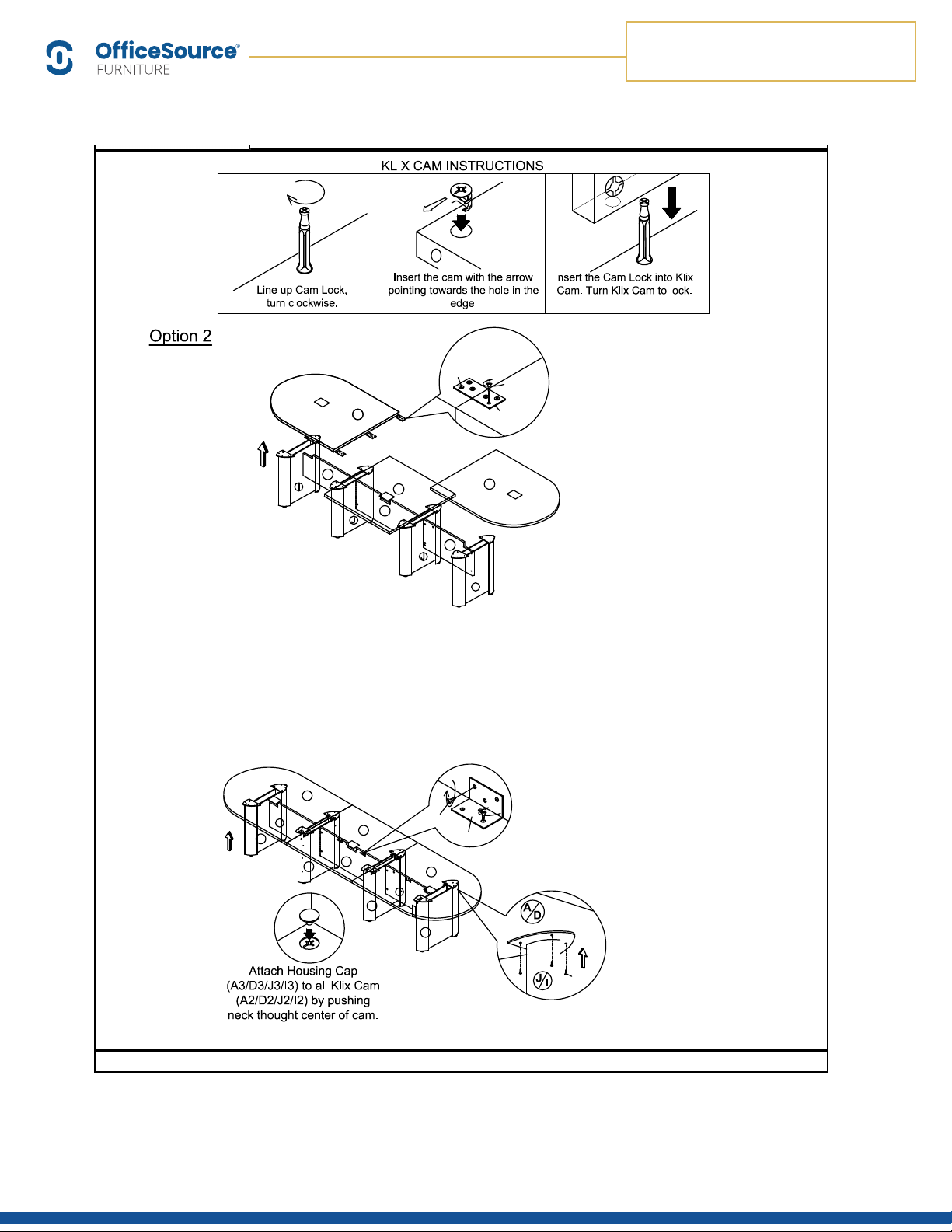

OFFICE FURNITURE

MODEL NO. PL139T

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

1 2 3

TOP

Attach the Flat-Bracket (A5/D5) to

two Top Panel (D) and

Top Panel (A) as shown.

Tighten Screws (A6/D6) securely.

Attach the L-Bracket (A4/D4/J6/I5)

from Top Panel (A/D) to Modesty

Panel (G/H) and Eleptical Base (I)

and Center Eleptical base (J) as

shown. Tighten Screws

(A6/D6/J7/I8) securely.

TOP

PAGE 4 OF 5

Attach Center Eleptical Base (J) to Modesty Panel (G)

by using Cam Lock (J1/I1) and Klix Cam (J2/I2).Attach Modesty Panel (H) to Center Base (I) by using Cam Lock (J1/I1)

and Klix Cam (J2/I2).Attach Eleptical Base (J) to Modesty Panel (H) by using Cam Lock (J1/I1) and Klix Cam

(J2/I2).Attach Top Panel (A) & Top Panel (D) to Center Eleptical Base (I) & End Base (J) & Modesty Panel (G/H)

by using Screw (J7/I8).

(A4/D4/E6/F6)

(A6/D6/E7/F7)

(A5/D5)

(A6/D6)

BOTTOM

FACE

J7/I8

Attach Top Panel (A) & Top Panel (D) to

Center Eleptical Base (I) & End Eleptical

Base (J) & Modesty Panel (G/H)

by using Screw (J7/I8).

MODEL NO. PL139T

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023

OFFICE FURNITURE

MODEL NO. PL139T

OFFICESOURCE.COM

Last Updated: 10/2021

ASSEMBLY INSTRUCTIONS

Z:\Office Furniture\ECONOWISE\OLD\Performance_logo.jpg

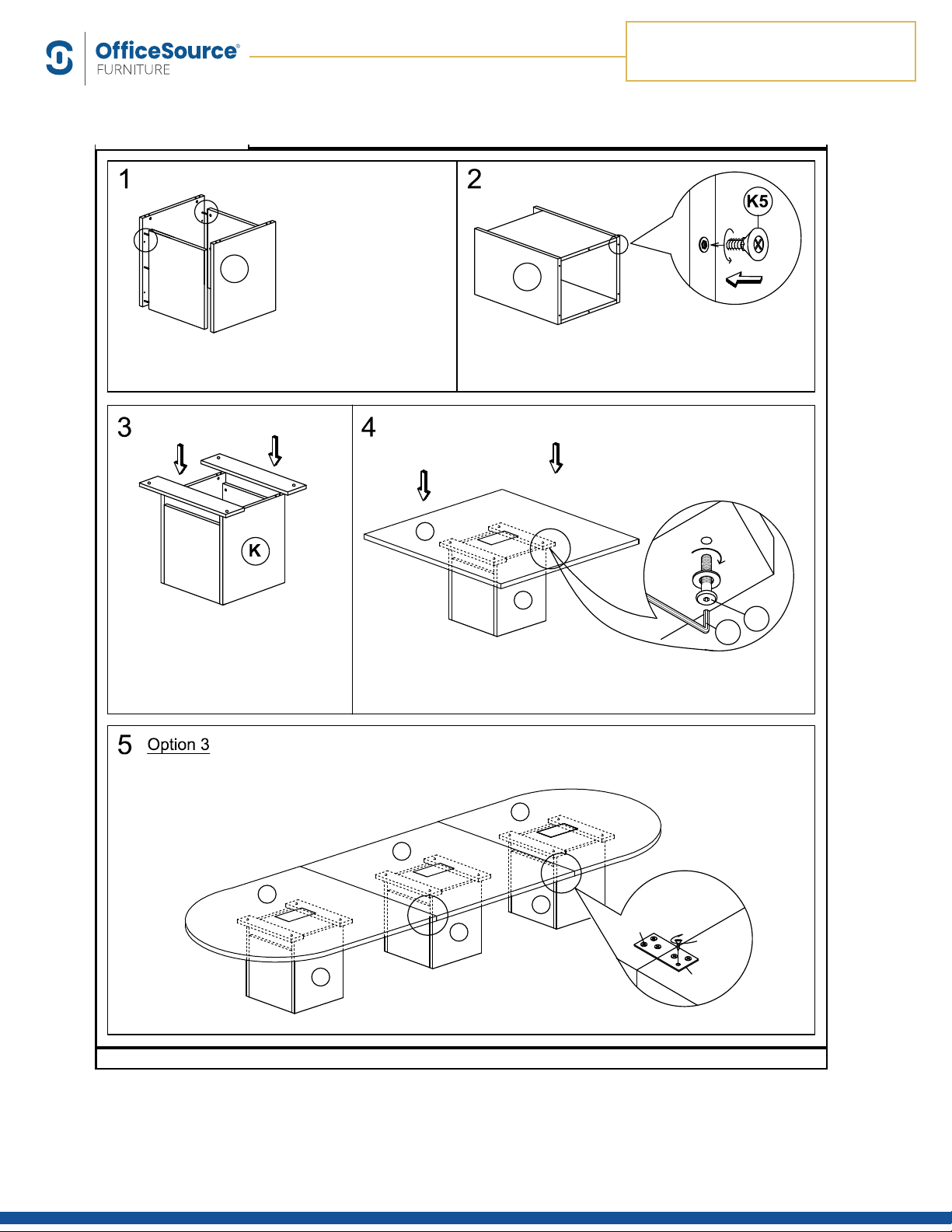

PAGE 5 OF 5

Attach the Flat-Bracket

(A6/D6) to two Top

Panel (D) and

Top Panel (A) as shown.

Tighten Screws (A5/D5)

securely.

(A5/D5)

(A6/D6)

BOTTOM

FACE

Attach Cube Base (K) by

using Cam Lock (K1) and

Klix Cam (K2).

Screw Adjustable Glide

(K5) into bottom of End

Base (K).

Attach Cube Base

Support (K) by using

Cam Lock (K1) and Klix

Cam (K2).

Attach Top Panel (A) to

Cube Base (K) by using

JCBC Screw (K4) and

tighten with Allen Key

(K6).

BOTTOM

FACE

MODEL NO. PL139T

OFFICESOURCE.COM

ASSEMBLY INSTRUCTIONS

Last Updated: 3/2023
