OfficeSource OX9245 Manuel utilisateur

OFFICE FURNITURE

MODEL NO. OX9245

OFFICESOURCE.COM

Last Updated: 6/2022

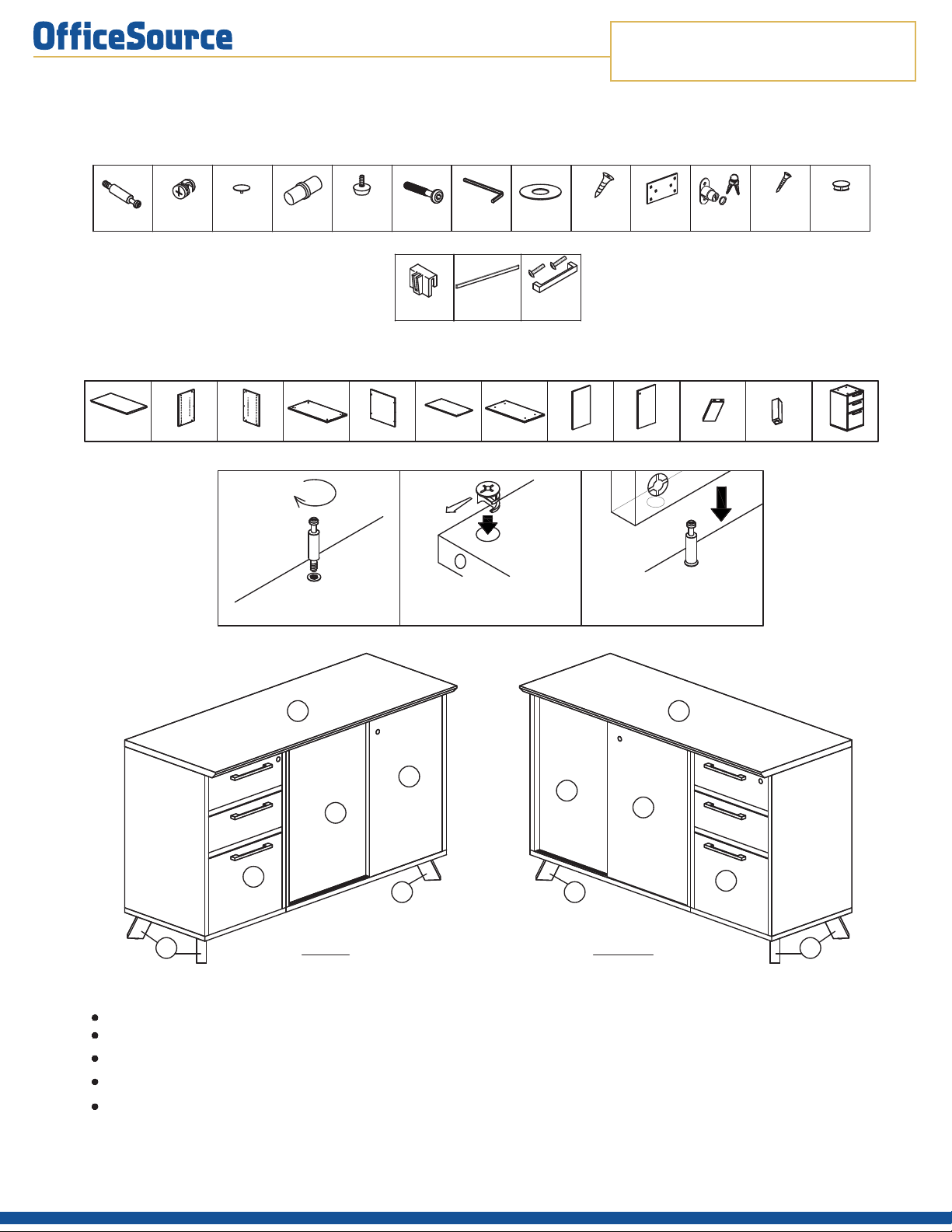

ASSEMBLY INSTRUCTIONS

Minfix cap

12 Pcs

Cam Cam

12 Pcs

Shelf Pin

4 Pcs

4 6 7

Adjustable

Glide

5 Pcs

Cam Lock

12 Pcs

Bolt M6X30MM

12 Pcs

L-KEY

1 Pc

8 9

FLAT WASHER

8 Pcs

File Clip

2 Pcs

File Bar

1 Pc

Screw

#3.5 x 16mm

12 Pcs

Flat Plate

2 Pcs

Push Lock

1 Set

M3.5 x 12

CSK Screw

2 Pcs

12 13

Ø15mm

Hole Plug

4 Pcs

Remove all wrapping materials, including staples & packing straps before you start to assemble.

Do not tighten any screws or bolts until the unit is completely assembled.

Keep all hardware parts out of reach of children.

Check that you have all parts and hardware.

KLIX CAM INSTRUCTIONS

SIDE PANEL-L

TOP PANEL

Insert the cam with the arrow pointing

towards the hole in the edge.

Line up Cam Lock, turn

clockwise.

1 2

Insert the Cam Lock into Klix Cam. Turn

Klix Cam to lock.

PAGE 1 OF 3

REV. 1 OX9245_AI

ASSEMBLY INSTRUCTION FOR 47" CREDENZA

HARDWARE

IMPORTANT NOTE :

Place all wooden parts on a clean, smooth surface to prevent the parts from being scratched.

COMPONENTS

SIDE PANEL-R BOTTOM PANEL BACK PANEL ADJUST SHELF PANEL

D E F J

WOODEN LEG X 4PCS

RIGHT

LEFT

FIXED SHELF PANEL

SUPPORT LEG

BOX BOX FILE

INCLUDED WITH OX9245 A

INCLUDED WITH OX9245 B

LEFT DOOR

RIGHT DOOR

Handle

3 Pcs

OFFICE FURNITURE

MODEL NO. OX9245

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

WOODEN LEG

PUSH

RELEASE

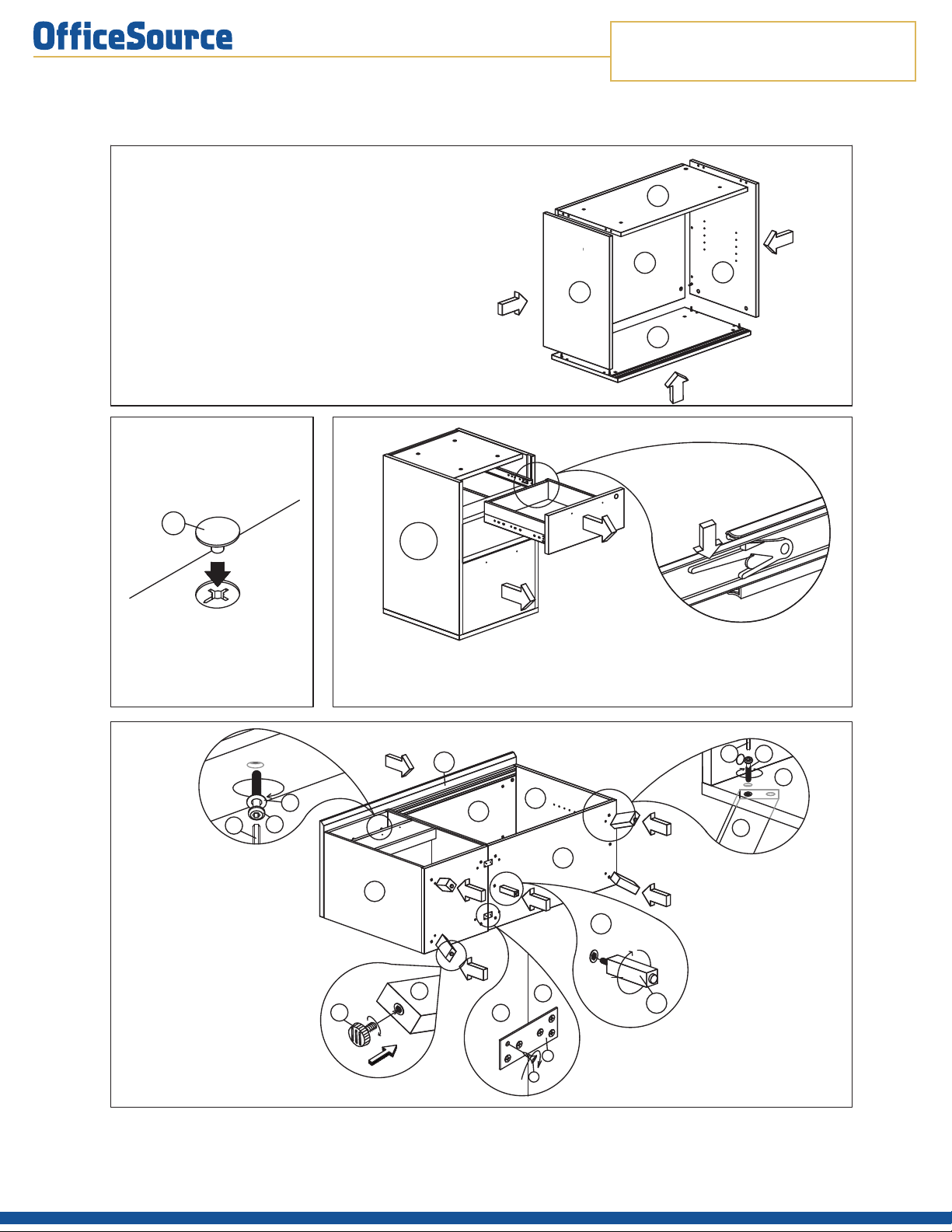

PAGE 2 OF 3

REV. 1

Attach Cam Cap (3) to all Klix

Cam(2) by pushing neck through

center of cam.

Attach Side Panel-L(B) & Side Panel-R(C)

to Fixed Shelf(G) & Back Panel(E) then

attach Bottom Panel(D) to Side

Panels(B,C) using Cam Lock(1) and Klix

Cam(2).

Press drawer slide release tab and remove the top drawer

and bottom drawer.

OX9245_AI

Attach Wooden Leg(J)

to Bottom Panel(D)

using Bolt(6)

Insert Adjustable

Glides(5) into

bottom of Wooden

Leg(J) & Support

Leg(K).

Screw Support Leg(K) to

Bottom Panel(D)

Attach Flat Plate(10) using

Screw(9) to Bottom Panel(D) &

Bottom BBF(L)

ASSEMBLY INSTRUCTION FOR 47" CREDENZA

LEFT

Attach B/B/F(L) & Fixed

Shelf(G) to Top Panel(A)

and secure with Bolt(6) &

Flat Washer(8)

OFFICE FURNITURE

MODEL NO. OX9245

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

UP DOWN

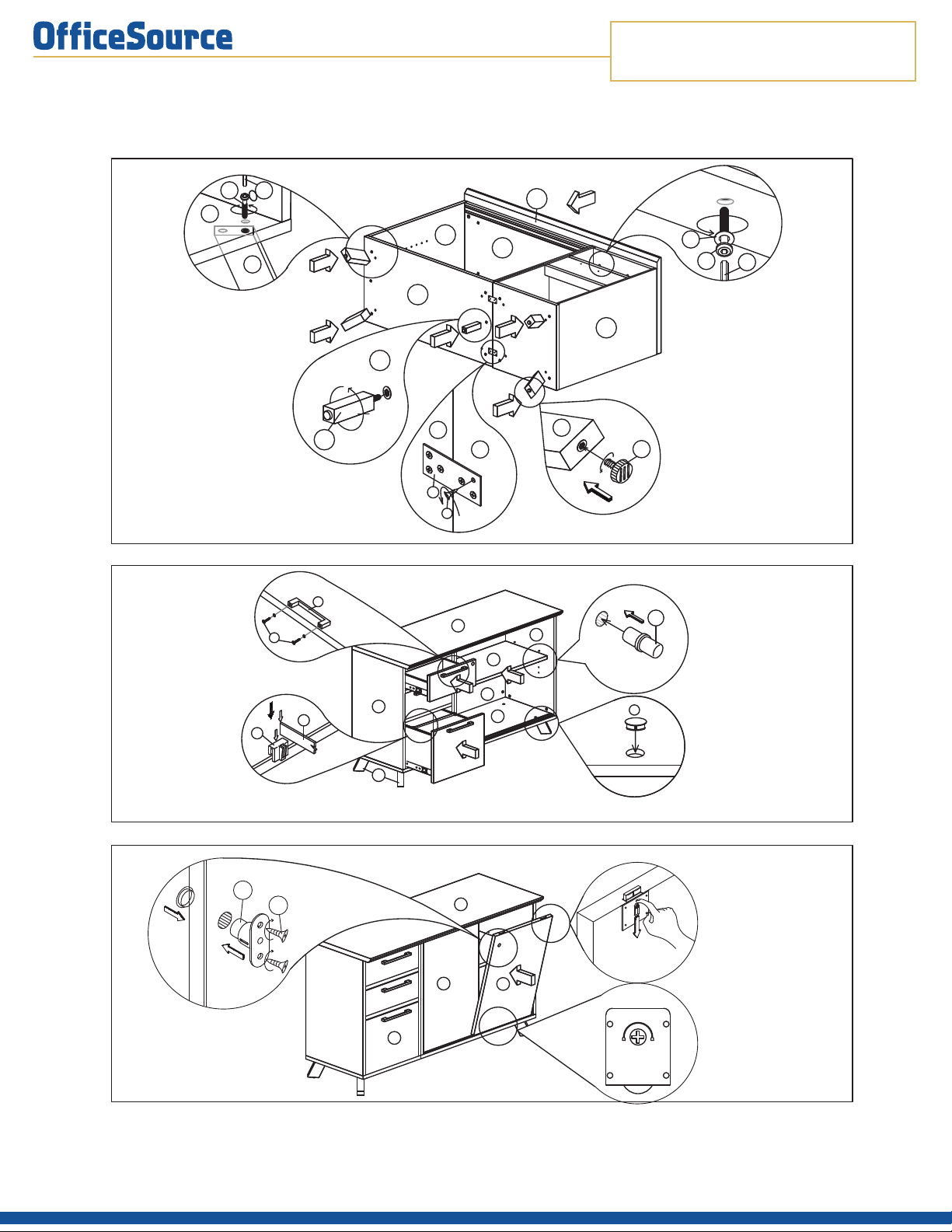

PAGE 3 OF 3

REV. 1 OX9245_AI

ASSEMBLY INSTRUCTION FOR 47" CREDENZA

4Insert Shelf Pins(4) and

place Shelf(F) in desired

location.

Insert the Hole Plug (13)

into Bottom Panel(D).

Attach the File Clip(14) on the drawer side.

Insert the File Bar(15) into the clip.

Attach Push Lock(11) to

back of Right Door(I)

using Screw(12).

Retract roller slide into

Door(H)&(I) when

installing.

To adjust door height

turn adjusting screw as

needed.

Attach the

Handle(16) on the

Drawer

Front.Reinstall the

Top drawer &

Bottom drawer

WOODEN LEG

Attach Wooden Leg(J)

to Bottom Panel(D)

using Bolt(6)

Insert Adjustable

Glides(5) into

bottom of Wooden

Leg(J) & Support

Leg(K).

Screw Support Leg(K) to

Bottom Panel(D)

Attach Flat Plate(10) using

Screw(9) to Bottom Panel(D) &

Bottom BBF(L)

RIGHT

Attach B/B/F(L) & Fixed

Shelf(G) to Top Panel(A)

and secure with Bolt(6) &

Flat Washer(8)

Insert Left Door(H) first,

then Right Door(I).
