OARTEC DX Manuel utilisateur
USER MANUAL
DYNAMIC ROWING MACHINE
Introduction
Base length
2.23m/7’4”
Seat height
41cm/16”
Front leg width
66cm/26”
Flywheel height
90cm/35”
Thankyou for purchasing the Oartec DX.
Indoor rowing is one of the best overall fitness exercises for the body.
Dynamic indoor rowing makes it even better because you are achieving the
same workout but without the wear and tear on the body, lower back and joints.
We are proud to be helping you achieve your fitness goals.
Please read the DX user manual carefully, following the procedures to assemble,
set up and maintain you DX in optimal working condition.
Enjoy your rowing!
Rear leg width
45cm/18”
Overall height
101cm/40”
Length locked
2.23m/7’4”
Maximum overall length
2.62m/8’7”
Length upright
2.23m/7’4”
Dimensions
Table of Contents
1. Assembly 3
Unpacking the box 3
Box contents 3
Step 1: Attaching rear leg, seat base to rail assembly 4
Step 2: Building front leg assembly 5
Step 3: Front assembly to rail assembly 6
Step 4: Front leg to rail assembly 7
Step 5: Seat to seat base 7
2. Getting Started 8
Adjusting the bottom roller wheels 8
Setting the front leg height 9
Locking the rolling frame 10
Storing the DX upright 10
Adjusting the feet height 11
Adjusting the footstraps 12
Storing the handle 12
Adjusting the resistance 13
Ready to row 13
3. Oartec Training Monitor OTM-2 14
Installing the batteries 14
Setting the date and time 14
Quick start guide 15
Setting workouts 16
Memory/Rerow 16
4. Maintenance 17
Cleaning the rails 17
Cleaning the seat track and wheels 17
Oiling the chain 17
Adjusting the bottom roller wheels 18/19
Cleaning the flywheel and flywheel housing 20
5. Troubleshooting 21
6. Warranty 22
2
Box Contents
Unpacking the Box
1. ASSEMBLY
Please follow the assembly procedures below.
Assembly should take approximately 20 minutes and if possible get the help of a second person for the lifting.
Carefully unpack the box contents and lay out on the floor. With the help of a second person remove the front
assembly first. If assembling on a hard surface, use a drop sheet or blanket to protect the parts from damage
during assemblly. Check the contents of the box against the checklist below.
Front assembly
Seat assembly
Rail assembly
Front leg inner
Front leg outer
Rear leg
Seat base
Height adjuster assembly
Tools
3
Front assembly
Rail assembly
Rear Leg
Seat Base
Seat assembly
Front leg inner
Front leg outer
Height adjuster
assembly
Step 1: Rear Leg and Seat Base to Rails
Tools required: 17mm wrench
4
1. Remove the rear extrusion mounts from the seat
base bolts.
5. Carefully roll the assembly over and rest on floor.
Attach the rear leg to the seat base bolts.
7. Turn assembly over and rest on floor.
4. Insert the seat base bolts
through the top extrusion mount.
IMPORTANT
3. Check that the locking latch opens on the top
rail edge. If it opens to the bottom, simply roll the rail
assembly over to orientate correctly.
2. Attach the extrusion mounts to the top and bottom
of the rear of the rail assembly, with the latch at the
front.
6. Add washers and nuts and firmly tighten with
17mm wrench but do not ovetighten.
Rear
Top
Front
Bottom
Tools required: 17mm wrench
Step 2: Assemble Front Leg
5
1. Remove all parts from height adjuster threaded
axle assembly.
2. Insert the 20mm pin into the inner front leg hole
with the thread aligned vertically.
3. Screw the threaded flange into and
through the threaded pin by about 25mm/1”.
Add M16 washer.
4. Loosen the clamping knob.
Align the clamping plate square in the
slot as the outer front leg slides over
the inner leg.
5. Slide the outer leg down until
the axle protrudes through the top
plate.
6. Thread the M10 half nut and
knob onto the top of the height
adjuster thread.
7. While holding the knob, tighten
the nut with the 17mm wrench up
against the knob to secure in position.
Step 3: Front Assembly to Base Rails
No tools required
6
2. Carefully lift the front assembly and align the rail
ends with the gap between the top and bottom rollers.
** If available, get the help of a second person.
Slide the front assembly onto the rails until the rails
protrude through the other side.
3. While continuing to support the weight
of the front assembly, slide the front assembly
down the rails until it meets the box.
4. Lift the front assembly and rails over the box so
the front assembly can continue to slide down the
rails and rest touching the seat base. Once clear of the
box underneath, place the front of the rails back down
onto the seat box.
5. Check again that the rails and front assembly are
balanced and stable before leaving.
1. Place the empty seat box on the floor. Rest the
rail on the top of the seat box about along the rail
length toward the front. Check that it is stable before
leaving.
Step 4: Front Leg to Base Rails
7
Tools required: 16mm and 17mm wrench
1. Align the front extrusion mounts to the top and
bottom of the rails. Push the mounts tight onto the rails
and level with the end of rails.
2. Slide the front leg bracket over the
extrusion mounts and align bracket holes with
the extrusion mount holes.
3. Place washers over the bracket holes and insert
bolts through washers and the top and bottom
extrusion mounts. Gently tap or shake the front leg to
help the bolts through the holes.
4. Add washers and nuts to the underside
bolts and tighten with the 16mm and 17mm
spanners.
5. Remove the seat box from underneath the
rails and place front leg on floor.
Tools required: 8mm wrench, Phillips head screwdriver

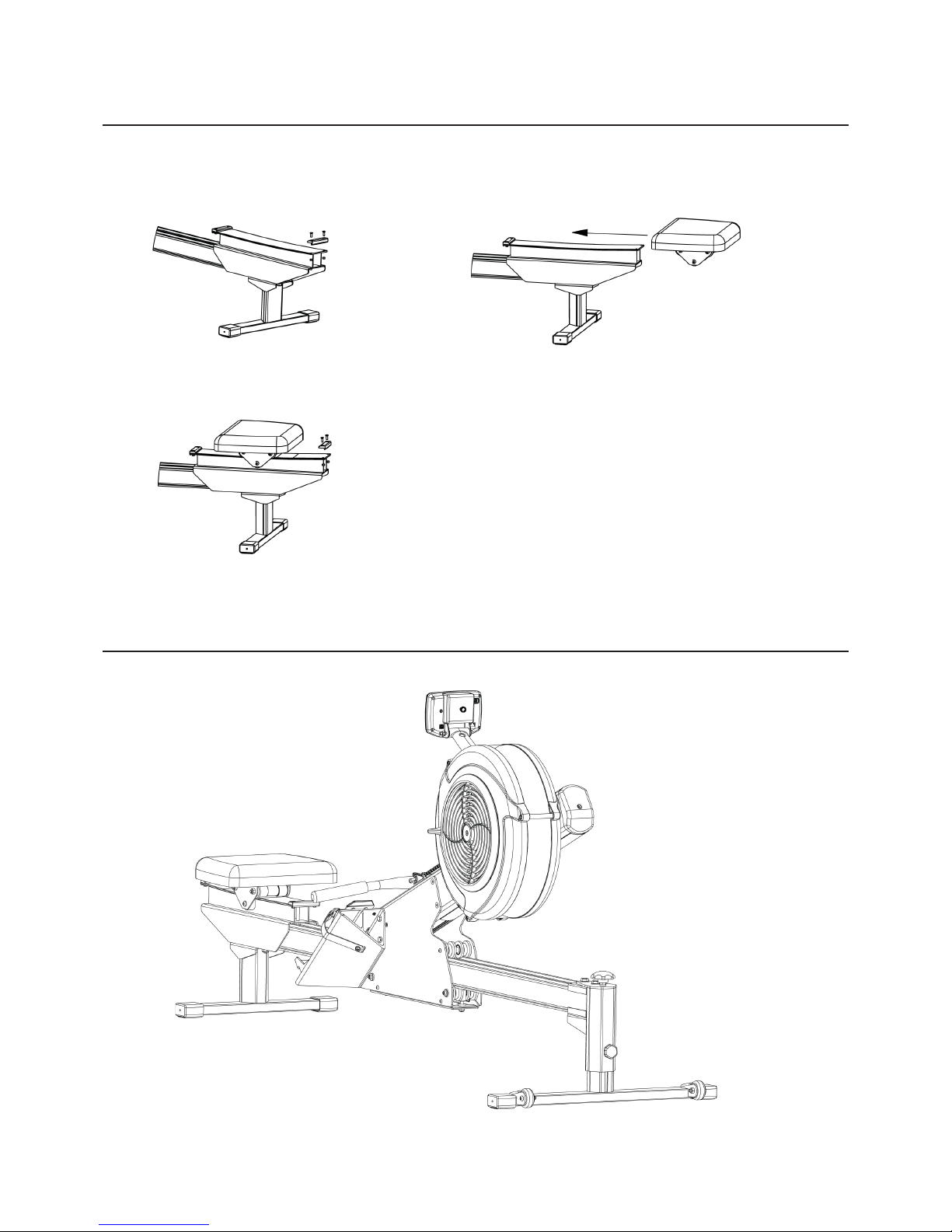

Step 5: Seat to Seat Base
Assembly Complete
8
1. Remove the rear end stop using the 8mm
spanner and a phillips head screwdriver.
2. Slide the seat onto the seat track.
3. Replace the rear end stop and tighten bolts.
Adjusting the Bottom Roller Wheels
2. Getting Started
Congratulations on completing the DX assembly process.
Please read the following final steps to set up before you use your DX for the first time.
The DX roller wheel settings are preset during the factory assembly, however if the rolling frame is too loose on
the rails or too tight, it is necessary to adjust the roller wheels before rowing for the first time.
Follow the procedure set out in the Maintenance section of the manual to tune the bottom roller adjustment
perfectly.
9
Setting the Front Leg Height
The DX rails are set to a 1 degree angle, sloping down from the front leg to the rear leg.
The front leg also has a height adjustable system that compensates for sloping and uneven floor surfaces.
Try and find a flat even floor surface to use your DX. Row a few strokes to get used to the rowing movement first,
then check if you are rolling closer to the front or rear seat end stops.
If you consistently hit or go closer to one end of the seat stops, stop and adjust the front leg height higher or lower.
Set the height so that when you are rowing, the seat has even travel in each direction on the seat track.
Follow the procedure below to correctly set the front leg height.
1. Loosen the locking knob at the lower front of
the leg.
3. Check that the seat has travel in both directions
without hitting the end stops.
4. Tighten the locking knob to lock height and
stabilise front leg.
2. Turn the height adjuster knob clockwise to lower,
or anticlowise for raise the front leg height..
