NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 1

Ver.2.0 10.09.06

NVIDIA Quadro FX 4500 X2 by PNY Technologies

Part No. VCQFX4500X2-PCIE-PB

NVIDIA Quadro FX 4500 X2G by PNY Technologies

Part No. VCQFX4500X2G-PCIE-PB

Specification Guide

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 2

Ver.2.0 10.09.06

Table of Contents

Overview 3

Key Features 3

Output Connectors 3

Internal Connectors and Headers 3

Memory 3

Display Support 3

GPU Description 4

Performance 4

Display 4

NVIDIA Quadro FX 4500 X2 Bus Interface 4

Operating System Support 4

Vertex Processing 4

Pixel Processing 4

Configuration 4

Mechanical Specifications 5

Placement of Standard I/O Connectors 5

Power Specifications 5

Power by Rail 6

Compatible Professional Motherboards 6

Displays supported 7

Display modes 7

NVIDIA FX 4500 X2G by PNY 8

NVIDIA FX 4500 X2G working with 4 DVI displays 8

WHQL Certifications 9

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 3

Ver.2.0 10.09.06

NVIDIA Quadro FX 4500 X2 by PNY

Part No. VCQFX4500X2-PCIE-PB

NVIDIA Quadro FX 4500 X2G by PNY

Part No. VCQFX4500X2G-PCIE-PB

Overview

NVIDIA Quadro FX 4500 X2 by PNY Technologies is an ultra high performance graphic board designed to handle

massive datasets and specialized needs for the Visualization & Simulation, Oil & Gas Exploration and Broadcast

& Film markets. NVIDIA Quadro FX 4500 X2 by PNY Technologies offers two NVIDIA 4500 GPUs on a single

board with four dual link DVI monitor outputs and 512MB GDDR3 frame buffer memory per GPU.

With over 1GB memory this ultra high end board delivers high throughput for interactive visualization of large

models, high-performance for real time processing of large textures and frames and enables the highest quality

and resolution full-scene anti aliasing (FSAA).

The NVIDIA Quadro® FX 4500 X2 by PNY professional graphics board is a PCI Express full-height (4.376 inches

by 12.00 inches) form factor dual stack board design based on the NVIDIA Quadro FX 4500 X2 GPU, and is

targeted as a PCI Express based high-performance scalable and flexible graphics solution for professional

workstation applications. Designed to meet the requirements of the most challenging visual computing

applications, the NVIDIA Quadro FX 4500 X2 by PNY Technologies is the first graphic board to offer quad dual

link DVI display support. This allows professional users to maximize their display real estate by driving four 30”

ultra-high resolution (up to 3840 x 2400 @ 24Hz) digital flat panels.

Utilizing a single x16 PCI Express motherboard slot, the NVIDIA Quadro FX 4500 X2 by PNY allows SLI Frame

Rendering, SLI Multiview and SLI AA mode functionality. The NVIDIA Quadro FX 4500 X2 by PNY offers 512 MB

of 136-pin ball grid array (BGA) GDDR3 memory per GPU (1024MB total) and supports up to four CRTs or digital

flat panels.

Certified on all industry-leading CAD, geo-seismic and visualization applications, NVIDIA Quadro FX 4500 X2

delivers a full 128-bit floating point pipeline and 12-bit subpixel precision, setting the standard for the industry’s

highest workstation quality.

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 4

Ver.2.0 10.09.06

Key Features

Twelve layer PCB design

PCI Express x16 form factor card

Physical dimensions: 4.376 inches × 12.00 inches

PCI Express x16 system interface

Power: 145.9 W

Output Connectors

Four dual link DVI-I connectors

3-pin mini-DIN stereo connector

Internal Connectors and Headers

NVIDIA SLI™ 26-pin edge connector

Two 6-pin PCI Express power connectors (one main board, one daughterboard)

Memory

Interface: 256-bit

Total frame buffer: 1024 MB (512MB per GPU)

Sixteen pieces 16M × 32 GDDR3 BGA136 SDRAM (eight per board)

Display Support

Dual 400 MHz integrated RAMDACs

Maximum resolution over VGA port 2048 × 1536 × 32 bpp at 85 Hz

Dual dual-link internal TMDS (DVI 1.0)

Maximum resolution over digital port (single GPU and SLI mode) 2560 × 1600 × 32 bpp at 60 Hz

(reduced blanking)

GPU Description

The NVIDIA Quadro FX 4500 X2 by PNY graphics board is architected with two NVIDIA Quadro FX 4500

graphics processing units (GPUs), NVIDIA’s ultra high-end professional solutions graphics GPU. Like all NVIDIA

Quadro professional products, the NVIDIA Quadro FX 4500 X2 GPU offers high-end features such as:

Performance

Full 128-bit floating point precision pipeline

12-bit sub-pixel precision

8 pixels per clock rendering engine

Hardware anti-aliased points and lines

Hardware OpenGL overlay planes

Hardware accelerated two-sided lighting

Hardware accelerated clipping planes

3rd generation occlusion culling

16 textures per pixel

OpenGL quad-buffered stereo (3-pin sync

connector)

High-Performance OpenGL Hardware

Accelerated Pixel Readback

x16 PCI Express bus interface

Display

High-precision scanout – 32-bit floating point

color precision per component

2 Integrated TMDS per PCB

Quad analog CRT, Quad analog flat panel, or

Quad digital flat panel

NVIDIA Quadro FX 4500 X2 Bus Interface

Fast GPU to host transfers

Error tolerant bus interface

Operating System Support

Windows XP

Windows ME

Windows 2000

Linux

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 5

Ver.2.0 10.09.06

Vertex Processing

Full support for Shader Model 3.0/DirectX

9.1

Displacement mapping

Vertex processing can access texture

Dynamic flow control

Branching, call and return

Vertex frequency stream divider

Pixel Processing

Full support for Shader Model 3.0/DirectX 9.1

65,536 instruction pixel shader programs –

shatters PS2.0 limit of 96

Flow control – loops and branding

Highest precision pixel shading – native,

optimized FP32 processing

Flexible data type support – FP32, FP16 operand

formats

Multiple render target support

Output to 4 destination color surfaces plus 1

depth surface

4xFP32 per pixel, per surface

Other Features

90 nm process technology for higher levels of

integration and higher operating clock speeds

Advanced thermal management and thermal

monitoring

Comprehensive Microsoft DirectX 9.0c (and

lower) and OpenGL 2.0 (and earlier) support

DirectX and S3TC texture compression

Configuration

NVIDIA Quadro FX 4500 X2 by PNY graphics board configuration.

Table 1 – Board Configuration

Specification Description

GPU NVIDIA Quadro FX 4500 X2

Frame Buffer 1024MB (512MB per GPU)

Memory I/O 256-bit

Memory Configuration 8 pcs 16M x 32 GDDR3 BGA 136 per GPU

Total Board Power 145.9 Watts

Connectors 4 dual link DVI-I, 3-pin DIN stereo

connector

Internal Connectors and Headers

SLI 26-pin edge connector, 6-pin PCI

Express power connector(s)

G-sync connector for genlock and

framelock application uses

Specification Description

Mechanical Specifications

The NVIDIA Quadro FX 4500 X2 by PNY graphics board conforms to the PCI Express height (4.376 inches

by 12.00 inches) graphics add-in card standard based on the NVIDIA Quadro FX 4500 X2 GPU. At a length of

12.00 inches, the NVIDIA Quadro FX 4500 X2 graphic board maintains a total chassis length requirement greater

than the NVIDIA Quadro FX 4500 graphic board model.

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 6

Ver.2.0 10.09.06

Placement of Standard I/O Connectors

Figure 3 shows the connector placement for the NVIDIA Quadro FX 4500 X2 by PNY graphics board.

Figure 3 – Standard Connector Placement

Power Specifications

The NVIDIA Quadro FX 4500 X2 graphics board is a performance optimized high-end board. Power is

taken from the PCI Express host bus and the auxiliary power connector. Without auxiliary power the NVIDIA

Quadro FX 4500 X2 graphics board will run in emergency power mode with very low speed to be compliant

with PCI Express specification of 75 W maximum via on port GPU_SLOW. For full performance, an external

PCI Express power connector must be attached giving an additional 75 W through the 6-pin power

connectors. The total input power will be 150 W maximum. A power supply 400 Watts or higher with a 12V

Current rating of 27A is recommended.

Power by Rail

Table 6 – power supply by rail numbers.

Input Rails

12 V Voltage Volts 12

12 V Current Amps 3.12

12 V Power Watts 37.4

3V3Voltage Volts 3.3

3V3 Current Amps 0

3V3 Power Watts 0

Input Rails Ext 12V

P278 12 V Voltage Volts 12

P278 12 V Current Amps 3.12

P278 12 V Power Watts 37.4

P378 12 V Voltage Volts 3.3

P378 12 V Current Amps 0

P378 12 V Power Watts 0

Total Board Power Watts 145.9

4 Dual Link DVI-I connectors

3-pin DIN stereo

connector

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 7

Ver.2.0 10.09.06

Compatible Professional Motherboards

NVIDIA has a comprehensive list of motherboards, which have been tested and passed NVIDIA's compatibility

testing requirements with the NVIDIA Quadro FX 4500 X2 graphics board.

Visit: http://www.nvidia.com/object/quadro_fx_4500_x2_mobo.html for a complete compatible motherboard list.

Display modes

The NVIDIA Quadro FX 4500 X2 PCIe supports the following screen resolutions and refresh rates:

Resolution Color Refresh rate

bits (Hz)

320 x 200 8, 16, 32 60, 70, 75

320 x 240 8, 16, 32 60, 70, 75

400 x 300 8, 16, 32 60, 70, 75

480 x 360 8, 16, 32 60, 70, 75

512 x 384 8, 16, 32 60, 70, 75

640 x 400 8, 16, 32 60, 70, 72, 75, 85, 100, 120

640 x 480 8, 16, 32 60, 70, 75, 85, 100, 120

800 x 600 8, 16, 32 60, 70, 72, 75, 85, 100, 120

1024 x 768 8, 16, 32 60, 70, 72, 75, 85, 100, 120

1152 x 864 8, 16, 32 60, 70, 72, 75, 85, 100, 120

1280 x 720 8, 16, 32 60, 70, 72, 75, 85, 100, 120

1280 x 960 8, 16, 32 60, 70, 75, 85, 100, 120

1280 x 1024 8, 16, 32 60, 70, 72, 75, 85, 100, 120

1600 x 900 8, 16, 32 60, 70, 75, 85, 100

1600 x 1200 8, 16, 32 60, 70, 72, 75, 85, 100

1792 x 1344 8, 16, 32 60, 75

1856 x 1392 8, 16, 32 60, 75

1920 x 1080 8, 16, 32 60, 70, 72, 75, 85, 100

1920 x 1200 8, 16, 32 60, 70, 72, 75, 85,

1920 x 1440 8, 16, 32 60, 70, 72, 75, 85

2048 x 1536 8, 16, 32 60, 70, 72, 75, 85

3840 x 2400 8, 16, 32 13, 20, 24, 25

Maximum analog Maximum digital

resolution resolution

Single-head 2728 x 1536 3840 x 2400 (48 Hz)

Dual-head 2728 x 1536 each 3840 x 2400 each (24 Hz)

Quad-head 2728 x 1536 each 3840 x 2400 each (24 Hz)

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 8

Ver.2.0 10.09.06

NVIDIA Quadro FX 4500 X2G by PNY

Part No. VCQFX4500X2G-PCIE-PB

The NVIDIA Quadro FX 4500 X2G delivers framelock/genlock functionality to unprecedented levels of industrial

realism, visualization and collaborative capabilities. The NVIDIA Quadro FX 4500 X2G provides features for

advanced multisystem visualization and multi-device film and video environments. The NVIDIA Quadro FX 4500

X2G supports framelock, genlock, and synchronized frame buffer swap and refresh rate.

The NVIDIA Quadro G-Sync board is designed to fit into any available expansion slot within 6 inches of the

NVIDIA Quadro FX 4500 X2 connector. The G-sync derives all data and power directly from the NVIDIA Quadro

FX 4500 X2 graphic board.

Frame lock allows the display channels from multiple workstations to be synchronized, thus creating one large

"virtual display" that can be driven by a multisystem cluster for performance scalability.

Genlock allows the graphics output to be synchronized to an external source, typically for film and broadcast

video applications.

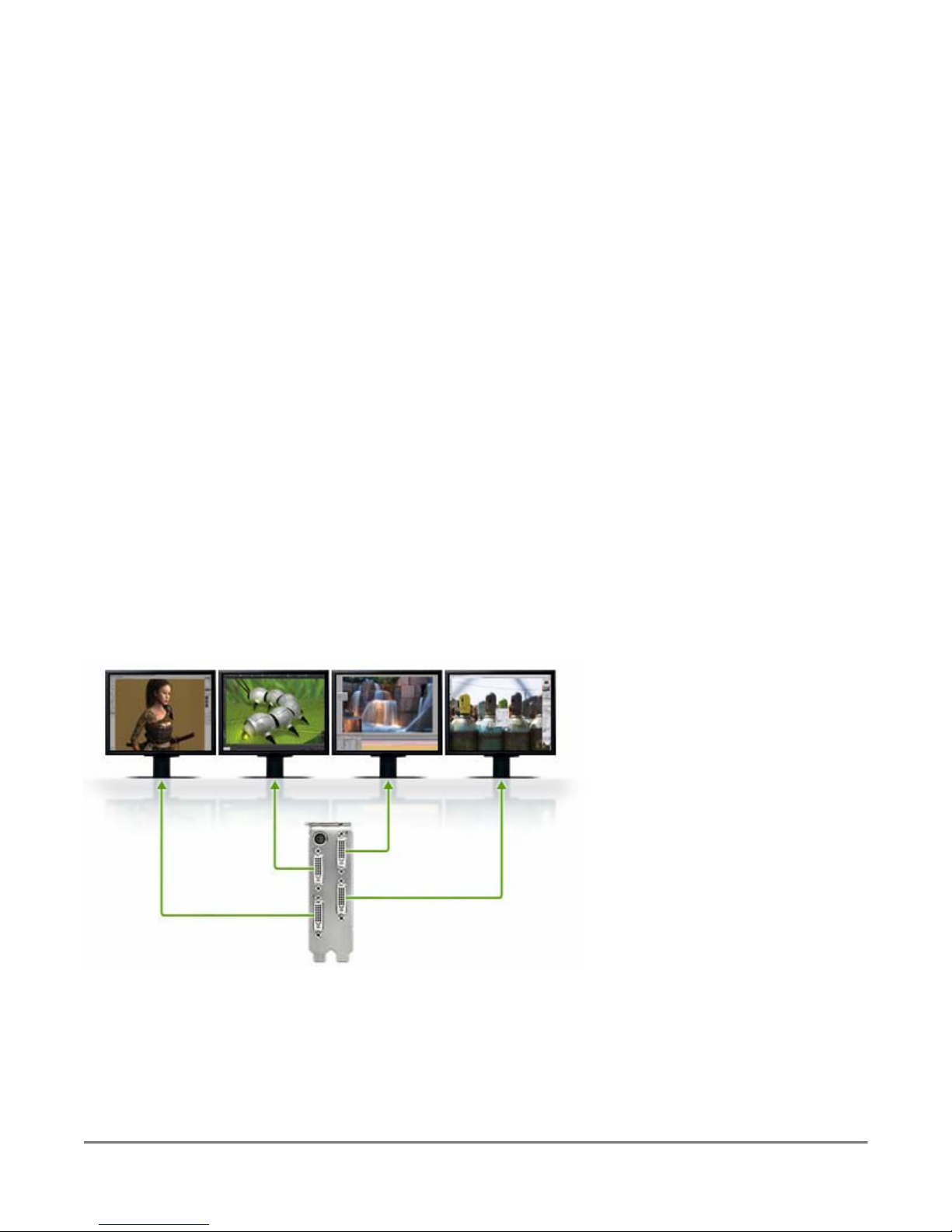

NVIDIA FX 4500 X2G by PNY working with four DVI monitor displays

The NVIDIA FX 4500 X2 G by PNY will synchronize 4 DVI provided they are all in the same display mode, which

means the same resolution and refresh rate on the same monitor.

If all 4 DVI displays are not the same mode on the same monitor then the following configuration setup applies:

1) The display chosen on the FX 4500 X2 graphic board connected to the primary socket on the G-sync card will

drive the sync or be synchronized to an external source.

2) If the second display on the FX 4500 X2 graphic board connected to the primary socket on the G-sync is a

different display mode (analog is different to digital even at the same resolution) then the second display cannot

be synchronized.

3) If the second display on the FX 4500 X2 graphic board connected to the primary socket on the G-sync is

exactly the same refresh rate and resolution on the same type of monitor and both are analog or both are digital

then the second display will also be synchronized.

NVIDIA Quadro FX 4500 X2 by PNY User’s Guide 9

Ver.2.0 10.09.06

4) A display on the FX 4500 X2 graphic board connected to the secondary socket on the G-sync card can be

synchronized to the timing server display, even if its is different resolution but has to be the same frame rate and it

also doesn't need to be the same as the timing server in terms of analog or digital.

5) If a second display is connected to the FX 4500 X2 graphic board secondary socket on the G-sync card then

that display must match exactly the first display on the FX 4500 X2 graphic board connected to the secondary

socket on the G-sync card in terms of resolution refresh rate, monitor type and analog or digital in order to be

synchronized. If it doesn't match the first display exactly it won't be synchronized. Only one G-sync card connects

to the FX 4500 X2. Do not use two G-sync cards for one FX 4500 X2.

Windows XP Driver version 91.36 with Sedona control panel

Linux IA32 driver version 1.0-8762

For more information on NVIDIA Quadro FX by PNY Technologies products and specialty markets

contact: Jeff Medeiros, business development manager, PNY Technologies, Inc

E-mail: [email protected]

WHQL Certifications

Windows Hardware Quality Lab (WHQL): Certified Windows XP and Windows 2000. Windows XP is the only operating system

that Microsoft requires to ship with a digital signature. Legacy operating systems can be submitted and tested on WHQL’s

DCT test. However they are not required to ship with a digital signature.

Agencies

 Australian Communication Authority (ACA)

 Bureau of Standards, Metrology, and Inspection (BSMI)

 Conformité Européenne (CE)

 Federal Communications Commission (FCC)

 Interference-Causing Equipment Standard (ICES)

 Macrovision

 Ministry of Information and Communication (MIC)

 Underwriters Laboratories (UL) – For use with UL Listed Personal computers

 Voluntary Control Council for Interference

 ISO 9241

Notice

ALL PNY OR NVIDIA PROVIDED DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS,

DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, “MATERIALS”) ARE BEING

PROVIDED “AS IS.” PNY AND NVIDIA MAKE NO WARRANTIES, EXPRESSED, IMPLIED, STATUTORY, OR OTHERWISE

WITH RESPECT TO THE MATERIALS, AND EXPRESSLY DISCLAIMS ALL IMPLIED WARRANTIES OF

NONINFRINGEMENT, MERCHANTABILITY, AND FITNESS FOR A PARTICULAR PURPOSE.

Information furnished is believed to be accurate and reliable. However, PNY and NVIDIA assume no responsibility for the

consequences of use of such information, or for any infringement of patents or other rights of third parties that may result from

its use. No license is granted by implication or otherwise under any patent or patent rights of PNY or NVIDIA. Specifications

mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information

previously supplied. NVIDIA Quadro by PNY products are not authorized for use as critical components in life support devices

or systems.

Trademarks

The PNY logo is a registered trademark of PNY Technologies, Inc. NVIDIA, the NVIDIA logo, and NVIDIA Quadro are

registered trademarks of NVIDIA Corporation in the United States and/or other countries. All registered trademarks are the

property of their respective owners.

PNY Technologies, Inc.

299 Webro Rd.

Parsippany, NJ 07054-0218

Phone 800.769.7079

Fax 973.560.559

Autres manuels pour VCQFX4500X2

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nvidia Carte vidéo

Nvidia

Nvidia Quadro K6000 Manuel utilisateur

Nvidia

Nvidia GeForce FX Series Manuel utilisateur

Nvidia

Nvidia Quadro FX 4800 Manuel utilisateur

Nvidia

Nvidia GRID K1 Manuel utilisateur

Nvidia

Nvidia RTX A6000 Manuel utilisateur

Nvidia

Nvidia GeForce 6 series Manuel utilisateur

Nvidia

Nvidia GeForce4 MX Series Manuel utilisateur

Nvidia

Nvidia GeForce GTX 980 Guide de référence rapide

Nvidia

Nvidia GeForce2 - MX 400 64MB AGP Video Card Manuel utilisateur

Nvidia

Nvidia Quadro Workstation Manuel utilisateur

Nvidia

Nvidia geforce4 MX420 Manuel utilisateur

Nvidia

Nvidia GeForce 2 GTS Manuel utilisateur

Nvidia

Nvidia GeForce RTX 2060 SUPER Manuel utilisateur

Nvidia

Nvidia FX 580 Manuel utilisateur

Nvidia

Nvidia FX1300 - Quadro FX 128MB Dual DVI-I PCIe Video... Manuel utilisateur

Nvidia

Nvidia D870 - X8 INTERFACE CARD Manuel utilisateur

Nvidia

Nvidia FX 1500 Instructions d'utilisation

Nvidia

Nvidia MS-8802 Manuel utilisateur

Nvidia

Nvidia Quadro 4000 Manuel utilisateur

Nvidia

Nvidia MS-8808 Vanta TNT2 M64 Manuel utilisateur

Nvidia

Nvidia 3DForce4 MX440-8X Series Manuel utilisateur

Nvidia

Nvidia Quadro Workstation Manuel utilisateur

Nvidia

Nvidia VCQK6000SYNC-PB Manuel utilisateur

Nvidia

Nvidia 9500GT - GeForce 9500 GT 550MHz 128-bit DDR2 1GB PCI-Express Pcie x16 Video... Manuel utilisateur

Manuels Carte vidéo populaires d'autres marques

Gainward

Gainward GeForce GTX 690 4GB Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 137-40225-20 Manuel utilisateur

MSI

MSI N220GT series Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Manuel utilisateur

SIIG

SIIG aurora Manuel utilisateur

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuel utilisateur

MSI

MSI R7850 series Manuel utilisateur

DVS

DVS Atomix HDMI Manuel utilisateur

Aztech

Aztech VGS3D-AGP Manuel utilisateur

Advoli

Advoli TB4 Standard Manuel utilisateur

ELSA

ELSA ERAZOR III LT Manuel utilisateur

Gigabyte

Gigabyte GV-R7500L Manuel utilisateur

Themis

Themis TGA-7000 PMC Manuel utilisateur

EMS

EMS XtremeRGB-Ex1 Manuel utilisateur

Pioneer

Pioneer PDA-5003 Manuel utilisateur

QDI

QDI N2 Manuel utilisateur

NEC

NEC N8116-48 Manuel utilisateur

MSI

MSI R7770 PoweR Edition Manuel utilisateur
