A. PRODUCT INFORMATION

GeForce 6 Series User’s Manual

THANK YOU for purchasing our NVIDIA®GeForceTM 6 series VGA card, which

supports DirectX 9.0 and ushers in a new era of graphics and gaming. With a

GeForce 6 series graphics card, you can get better performance and higher speed in

graphics that you have ever experienced.

A. 1 Item Checklist

9One NVIDIA®GeForceTM 6 series VGAcard

9One driver CD

9One video cable

9One user’s manual

A. 2 System Requirements

Intel PIII / Celeron, AMD Duron or Athlon CPU or higher

64 MB system memory at least

Hard disk with 50 MB free space at least

At least 300W system power supply. To better overclock, 480W or higher is

recommended for 6800Ultra card, 500W or higher for 6800GT PCI-E card

Windows 98 / 98 SE / ME / 2000 / NT4.0 / XP

One free AGP 8X/4X slot (for AGP cards), or one free PCI-Express 16x slot (for

PCI-E cards)

At least one available hard disk drive power dongle.

CD-ROM or DVD-ROM drive

A. PRODUCT INFORMATION

2 GeForce 6 Series User’s Manual

A. 3 Key Features for 6800 Series

−First superscalar architecture supercharges gaming performance

Up to 8x floating-point shader power (over previous generation)

Up to 4x shadow processing power with NVIDIA® UltraShadow™ II

technology (over previous generation)

Up to 2x vertex processing power (over previous generation)

First chip designed for the world’s fastest GDDR3 memory

−Full support for Microsoft® DirectX® 9.0 Shader Model 3.0 for ultra-realistic games

Built for today’s hottest games

Unlimited programmability for advanced visual effects

Displacement mapping enables the creation of unique 3D characters and objects

Infinite program length allows for a new class of special effects

−Complete support for NVIDIA High-Precision Dynamic-Range (HPDR) technology

makes graphics more vibrant and lifelike

Full floating point support throughout entire pipeline

Floating point filtering vastly improves the quality of images in motion

Floating point texturing drives new levels of clarity and image detail

Floating point blending gives detail to special effects like motion blur and

explosions

−World’s first on-chip video processor for unmatched video functionality

MPEG video encode and decode delivers a stunning video experience

WMV9 decode acceleration provides unmatched performance for Microsoft®

Windows® Media Center Edition

Advanced adaptive de-interlacing smoothes playback on progressive displays

High-quality video scaling and filtering improves playback quality at any

window size

High-definition video support delivers crystal-clear imagery

Integrated TV-encoder for direct-to-TV playback

PCI Express support speeds up data transfers to accelerate video editing

−Renowned NVIDIA compatibility and reliability ensure a no-compromise experience

NVIDIA® ForceWare™ software delivers unmatched features and rock-solid

stability

¾NVIDIA Unified Driver Architecture (UDA)

¾Game profiles

¾Auto-overclocking tool delivers stability as it safely pushes the GPU’s

performance limits

A. PRODUCT INFORMATION

GeForce 6 Series User’s Manual

A. 4 Key Features for 6600 Series

−Supercharged gaming performance: Only Microsoft® DirectX® 9.0 Shader Model

3.0 and PCI Express GPU in its class

Built for screaming frame rates on next-generation Shader Model 3.0 games like

Far Cry and S.T.A.L.K.E.R: Shadow of Chernobyl

PCI ExpressTM support delivers BGB/sec of raw graphics bandwidth

NVIDIA® SLITM multi-GPU ready-with the power of two GPUs, gaming will

never be the same (GeForce 6600 GT only)

Designed for high-speed GDDR3 memory (GeForce 6600 GT only)

−Best-in-class visual effects for ultra-realistic gaming

64-bit texture filtering support delivers full-speed, high dynamic-range (HDR)

lighting effects

Unmatched image quality delivered through new 16x anisotropic filtering and

rotated grid antialiasing

4x shadow processing power with NVIDIA® UltraShadowTM II for next

generation games like Doom III

Infinite program length allows for a new class special effects

−On-chip video processor delivers an unmatched multimedia experience

Hardware-accelerated MPEG and WMV9 decode delivers smooth, artifact-free

video

Dedicated video hardware reduces CPU utilization and improves overall system

performance

On-chip video encoder and motion estimation engine provides fast, high-quality

encoding from TV tuner

Programmable video engine ensures compatibility with future video codecs

High-quality video scaling and filtering improves playback quality at any

window size

PCI Express support accelerates video editing by speeding up data transfer rates

Integrated HDTV-output brings content from your desktop to your

high-definition TV

−Renowned NVIDIA compatibility and reliability ensure a no-compromise gaming

and multimedia experience

NVIDIA® ForceWareTM software delivers unmatched features and rock-solid

stability

¾NVIDIA Unified Driver Architecture (UDA)

¾Game profiles

NVIDIA®: the way it’s meant to be playedTM

¾Ensures hardware compatibility with the games you want to play

¾Hundreds of game titles in the program and growing

A. PRODUCT INFORMATION

4 GeForce 6 Series User’s Manual

A. 5 Key Features for 6200 Series

−World-class performance you expect from NVIDIA

Revolutionary design delvers best-in-class performance on today's hottest games

and applications

Support for the latest bus architecture—PCI Express™—increases graphics and

overall system performance

−Ultra-realistic characters, environments, and special effects

Only GPU in its class to support Microsoft®DirectX®9.0 Shader Model

3.0—get the latest effects without compromising performance

NVIDIA®UltraShadow™ II technology delivers blazing speeds on

next-generation, shadow-intensive games

−Stunning, high-definition video playback with NVIDIA®PureVideo™ technology

Astonishing, lifelike HD DVD playback on the PC

Fluid HD video playback without stutter or skips

Superb picture clarity—eliminates double images, blurring, and distortions

Precise, vivid colors on any display

Dedicated video processor offloads the CPU and speeds up overall system

performance

−Industry-leading compatibility and reliability for a worry-free experience

Get unmatched features and rock-solid stability with the renowned NVIDIA®

ForceWare™ Unified Driver Architecture (UDA)

Worry-free compatibility for an easy "install-and-play" experience

A. PRODUCT INFORMATION

GeForce 6 Series User’s Manual

A. 6 Key Features for 6200 Turbo cache

−Turbocharged system performance to play all the hottest games and applications

Dedicated grapihcs processing unit (GPU) offloads the GPU and increases

overall system performance

Patented NVIDIA®TurboCache™ technology dynamically allocates memory for

maximum system performance

Support for the latest bus standard—PCI Express®—speeds up date transfer for

improved system performance

−Advanced 3D graphics and video features of the latest generation GPUs

Experience stunning, high-quality video playback and superb picture clari

your PC with NVIDIA®PureVideo™ technology

Experience the latest gaming effects without compromising performance with

Microsoft

®DirectX™ 9.0 Shader Model 3.0 support

−The compatibility, stability and reliability you expect from NVIDIA, the worldwide

Leader in graphics and media processors

Worry-free compatibility for an easy “install-and-play”experience

Rock-solid stability and reliability with the renowned NVIDIA®ForceWare™

Unified Driver Architecture (UDA)

B. HARDWARE INSTALLATION

6 GeForce 6 Series User’s Manual

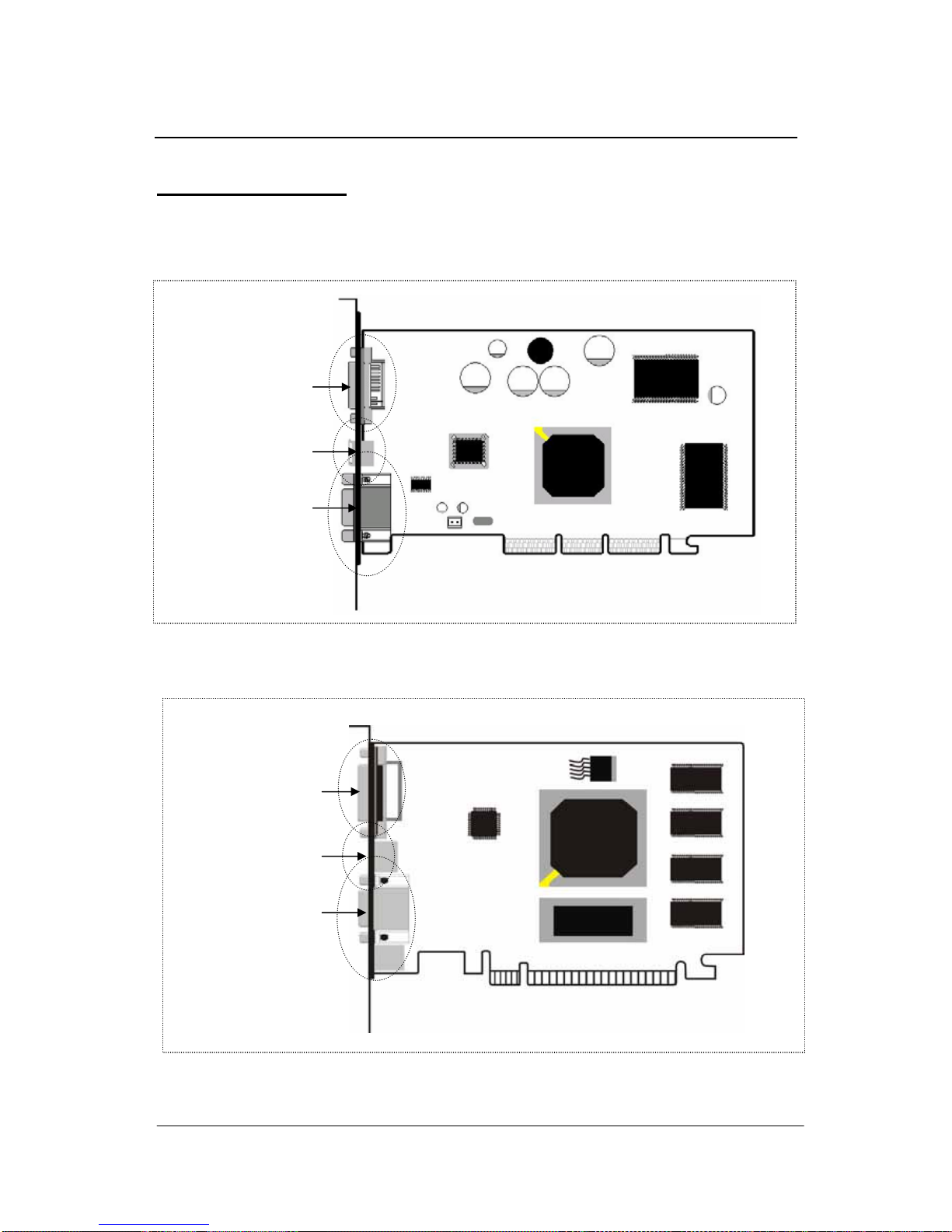

B. 1 Board Layout

Note: The pictures are for reference only and might be different from the appearance of

your purchased product.

GeForce 6 SeriesAGPcard

GeForce 6 Series PCI-E card

Dual DVI/DVI-out

(

tional

)

GPU

TV-out/VIVO

(Optional)

VGA-out

GUP

DVI-out

(

tional

)

GPU

TV-out/VIVO

(Optional)

VGA-out

B. HARDWARE INSTALLATION

GeForce 6 Series User’s Manual

Note: The card and other components are subjected to damage by static electricity.

Users should take necessary precautions when handling these static sensitive devices,

such as taking on anti-static wrist strap, or keep the motherboard touching the metal

chassis of PC to eliminate static electricity.

B. 2 Uninstall the Existing Display Driver

Skip this step if you are installing a new computer.

Click Start│Setting│Control Panel│System│Device Manager. Select the existing

driver name in Display Adapter column and delete it (please refer to your old VGA

card’s manual).

B. 3 Install New VGA Card

Shut down the computer and unplug electrical cords on your computer;

Open up the case cover and remove the existing card;

Insert the new card. Earth yourself then take the card out of the anti-static bag. Insert

the card into proper slot (PCI-E card to PCI-E slot, AGP card to AGP slot). Pay

attention to the slot direction and avoid the damage to motherboard and VGA card;

Put the cover back and plug in the electrical cords;

Restart the computer, and Windows will auto-detect the new card.

C. DRIVER INSTALLATION

8 GeForce 6 Series User’s Manual

C. 1 Display Driver Installation

1. Put the driver CD into the CD-ROM drive of your PC. The window will be loaded

automatically. Click Video Drivers to continue;

2. Click Next in this welcome window;

3. Click Yes to continue;

4. Click Finish to complete the display driver installation and restart the computer.

C. 2 TV Capture Driver Installation

1. Put the driver CD into CD-ROM drive of your PC. The window will be loaded

automatically. Click Video Drivers to continue;

2. Click TV Capture to continue;

3. Click Next to continue;

4. Click Finish to complete the installation and restart the computer.

C. 3 DirectX 9.0 Installation

1. Put the driver CD into CD-ROM drive of your PC. The window will be loaded

automatically. Click Video Drivers to continue;

2. Click Install DirectX 9.0 to continue;

3. Check “I accept the agreement” and then click Next to continue;

4. Click Next to continue;

5. Click Finish to complete the installation and restart the computer.

D. SETTING

GeForce 6 Series User’s Manual

D. 1 Display Properties

After the driver installation, you may click Display icon in Control Panel to view display

properties. Or, you may right-click the Windows desktop to pop up the shortcut menu,

and then click Properties. In Settings tab, you may change the display settings.

–Screen area

Change the resolution of your monitor.

–Colors

Change the color depth of your monitor.

D. 2 Advanced Settings

Click Advanced button in the Settings tab to change various property settings.

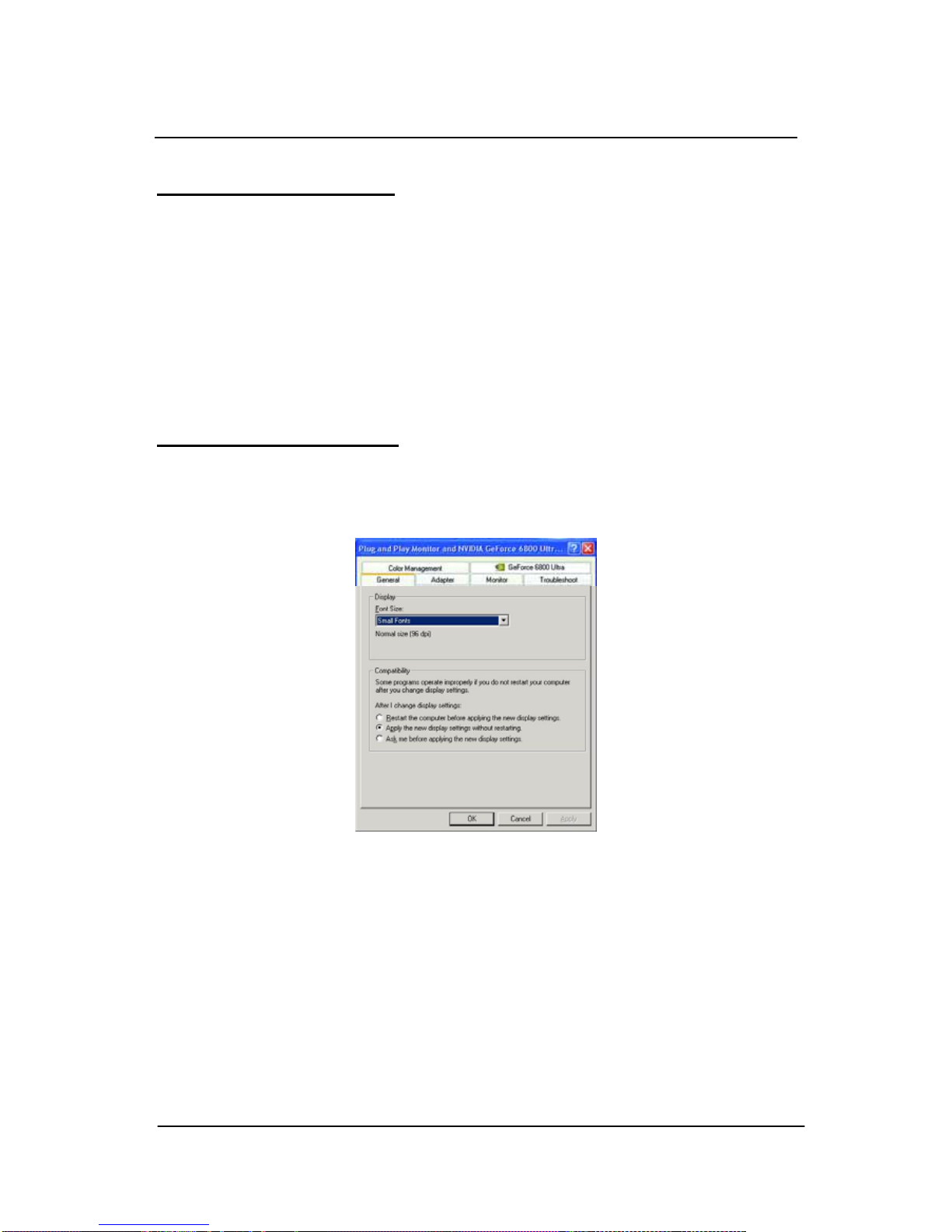

D.2.1 General

–Display

Set system font size.

–Compatibility

Set the operating mode of system after changing color settings.

D. SETTING

10 GeForce 6 Series User’s Manual

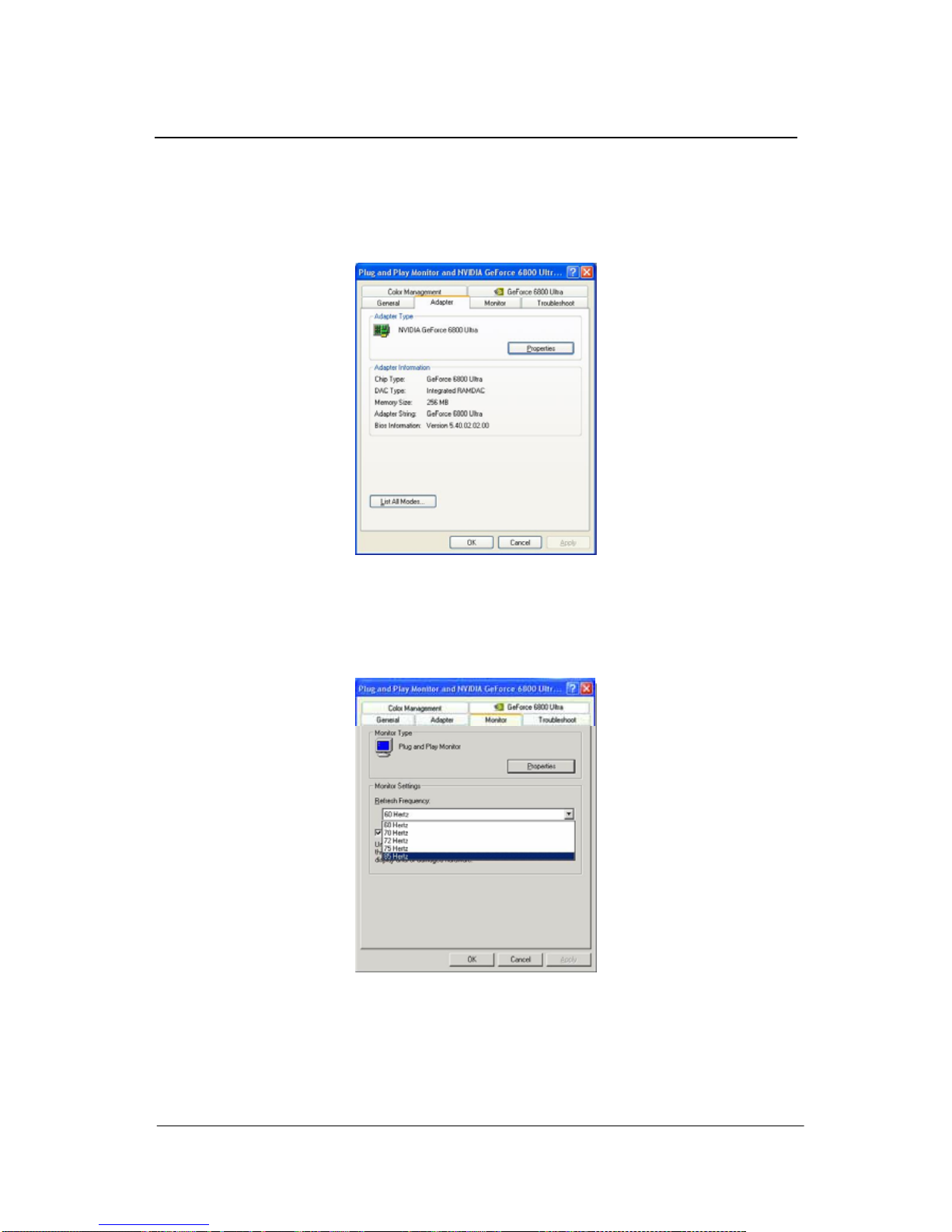

D.2.2 Adapter

This tab shows you some basic information of the adapter.

D.2.3 Monitor

In this tab, you may adjust refresh frequency of your monitor.

Autres manuels pour GeForce 6 series

Table des matières

Autres manuels Nvidia Carte vidéo

Nvidia

Nvidia GeForce GT series Manuel utilisateur

Nvidia

Nvidia GeForce FX 5900 XT Series Manuel utilisateur

Nvidia

Nvidia Video-PX9000 series Manuel utilisateur

Nvidia

Nvidia GeForce RTX 2080 Ti Manuel utilisateur

Nvidia

Nvidia Geforce RTX 2080 Manuel utilisateur

Nvidia

Nvidia NVS 810 Manuel utilisateur

Nvidia

Nvidia GEFORCE GTX 560 Ti Manuel utilisateur

Nvidia

Nvidia NVIDIA Quadro FX 1300 Instructions d'utilisation

Nvidia

Nvidia GeForce GTX 660 TI Manuel utilisateur

Nvidia

Nvidia GeForce GTX 980 Ti Manuel utilisateur

Nvidia

Nvidia Quadro FX 4700 X2 Instructions d'utilisation et de sécurité

Nvidia

Nvidia 9600GSO - PV-T96O-SDFH-OC GeForce - SLI... Manuel utilisateur

Nvidia

Nvidia D870 - X8 INTERFACE CARD Manuel utilisateur

Nvidia

Nvidia GV-N430-2GI Manuel utilisateur

Nvidia

Nvidia GeForce 256 Manuel utilisateur

Nvidia

Nvidia QUADRO SYNC Manuel utilisateur

Nvidia

Nvidia GeForce 8500 GT Manuel utilisateur

Nvidia

Nvidia VCQFX4500X2 Manuel utilisateur

Nvidia

Nvidia Quadro GV100 NVLink Bridge Manuel utilisateur

Nvidia

Nvidia QUADRO SYNC II Manuel utilisateur

Nvidia

Nvidia Quadro GV100 NVLink Bridge Manuel utilisateur

Nvidia

Nvidia GEFORCE GT 630 Manuel utilisateur

Nvidia

Nvidia VCQFX550PCIEPB - Quadro FX 550 Manuel utilisateur

Nvidia

Nvidia GeForce GT220 Manuel utilisateur

Manuels Carte vidéo populaires d'autres marques

Gainward

Gainward GeForce GTX 690 4GB Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 137-40225-20 Manuel utilisateur

MSI

MSI N220GT series Manuel utilisateur

ATI Technologies

ATI Technologies RADEON 7000 MAC EDITION Manuel utilisateur

SIIG

SIIG aurora Manuel utilisateur

ClearSpeed

ClearSpeed ClearSpeed Advance e720 Manuel utilisateur

MSI

MSI R7850 series Manuel utilisateur

DVS

DVS Atomix HDMI Manuel utilisateur

Aztech

Aztech VGS3D-AGP Manuel utilisateur

Advoli

Advoli TB4 Standard Manuel utilisateur

ELSA

ELSA ERAZOR III LT Manuel utilisateur

Gigabyte

Gigabyte GV-R7500L Manuel utilisateur

Themis

Themis TGA-7000 PMC Manuel utilisateur

EMS

EMS XtremeRGB-Ex1 Manuel utilisateur

Pioneer

Pioneer PDA-5003 Manuel utilisateur

QDI

QDI N2 Manuel utilisateur

NEC

NEC N8116-48 Manuel utilisateur

MSI

MSI R7770 PoweR Edition Manuel utilisateur
