Optional lighting can be added to

Best®by Broan liners. See page 51.

BUILT-IN COLLECTION

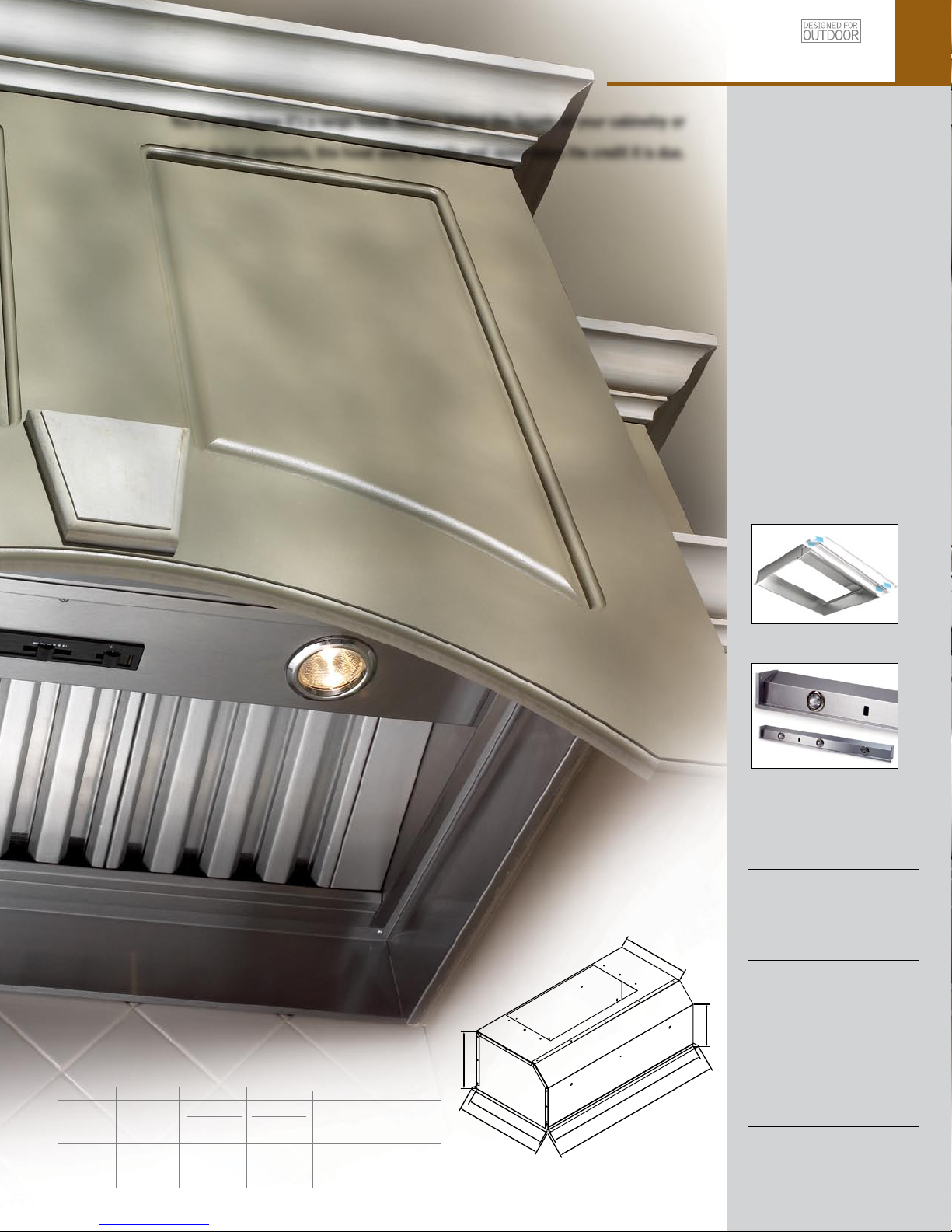

PIK Pro-Style

Insert

33" model

& 45" model

diagram shown

Adjustable liners ensure a perfect fit

in custom enclosures. See page 51.

Elegant, easy-to-clean brushed

stainless finish is completed with

professional-style baffle filters

Outdoor-rated version PIK33D

available for covered patios and

lanai areas

Powerful yet quiet internal and

external blowers with HVI

certified performance (see p. 52)

To protect cabinetry, use with

optional Best®by Broan custom

hood liners (see p. 51)

Bright, flush-mount halogen

lighting (bulbs purchased

separately)

Variable-speed slide control, or

optional wall-mounted control

panel (see p. 51)

Heat Sentry™is a smart feature

that detects excessive heat and

adjusts speed to high

automatically

Blower & Liner Selection Guide

1. Select a Pro-Style Insert

PIK33 (33" wide), PIK45 (45" wide)

Both feature an 18

⁄ 16"depth

Outdoor PIK33D

• 33" wide, 18

7⁄16" depth

2. Select a Liner

• L3336S 36" width, for PIK33

•L3342S 42" width, for PIK33

• L4548S 48" width, for PIK45

• L4560S 60" width, for PIK45

• L3336D 36" width, for PIK33D

• L3348D 42" width, for PIK33D

3. Select an Internal, In-Line or

Exterior Blower:

Internal:

P5 (460 CFM) or P8 (850 CFM)

Exterior (outside, roof or wall):

EB6 (600 CFM), EB9 (900 CFM)

EB12 (1200 CFM), EB15 (1500 CFM)

In-Line (inside, attic or other space):

ILB3 (280CFM), ILB6 (600CFM)

ILB9 (800CFM), ILB11 (1100CFM)

Blowers for PIK33D

Internal:

P8D(850 CFM)

Exterior:

EB12 (1200 CFM), EB15 (1500 CFM)

For installation guidelines and product details see pages 54 – 58.

Model Width Blower CFM Finish

33-3/4", INT.

460, 850

PIK 45-3/4" EXT.

4 In-line 430 Brushed Stainless

(see page 52)

4 Exterior

PIK33D 33-3/4" INT.

850 (P8D) 316 Brushed Stainless

EXT.

1200, 1500

(see page 52)

uBlower purchased separately.

430 stainless steel finish is not recommended for installations along saltwater coastal areas.

min 33

3/4

max 45

3/4"

min 32

3/8"

max 44

3/8"

111/2"

7/16"

5/8"

You’d never know it’s a range hood. Hidden behind the façade of your cabinetry or

other design elements, this hood works quietly and never takes the credit it is due.
