NTI ENVIROMUX Series Manuel utilisateur

MAN215 Rev Date 1/19/2016

Temperature/Humidity Sensor Installation

Manual

ENVIROMUX®Series

ENVIROMUX-STHS-LCD

Temperature/Humidity sensors

ENVIROMUX-STHS-N4085IND

Temperature/Humidity sensor

ENVIROMUX-STHSB

Temperature/Humidity Sensor

ENVIROMUX-STSM-E7, STHSM-E7

Temperature/Humidity sensors

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

TABLE OF CONTENTS

Introduction......................................................................................................................................................................1

Mounting..........................................................................................................................................................................1

Connect Sensors.............................................................................................................................................................3

RJ45 Sensors ..............................................................................................................................................................3

ENVIROMUX-STHS-PRCIND100-Pxx.....................................................................................................................4

ENVIROMUX-STHS-LCD.........................................................................................................................................5

RJ45 Sensor Cable......................................................................................................................................................7

TABLE OF FIGURES

Figure 1- Keyhole slot for standard mounting....................................................................................................................................1

Figure 2- Mounting bracket for outdoor installation............................................................................................................................1

Figure 3- DIN rail clip.........................................................................................................................................................................2

Figure 4- Connect Sensors using CAT5 cable with RJ45 connectors................................................................................................3

Figure 5- A portion of the sensor configuration page.........................................................................................................................3

Figure 8- Precision wide-range temperature/humidity sensor............................................................................................................4

Figure 9- ENVIROMUX-STHS-LCD...................................................................................................................................................5

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

INTRODUCTION

Many different sensors can be connected to the ENVIROMUX Series Enterprise Environment Monitoring Systems. Series models

covered by this manual include ENVIROMUX-SEMS-16U and ENVIROMUX-16D/5D/2D. A complete listing of available sensors

and accessories can be found at

http://www.networktechinc.com/enviro-rems.html for the ENVIROMUX-SEMS-16U,

http://www.networktechinc.com/environment-monitor-16d.html for the ENVIROMUX-16D,

http://www.networktechinc.com/environment-monitor-5d.html for the ENVIROMUX-5D,

http://www.networktechinc.com/environment-monitor-2d.html for the ENVIROMUX-2D, and Manuals for each Environment

Monitoring System covering installation and configuration for all features can also be found at these websites.

This manual is only provided to instruct how to install the ENVIROMUX temperature and humidity sensors to these systems.

MOUNTING

Most of the ENVIROMUX Temperature and Humidity sensors are

intended for indoor use only. These sensors can be mounting in any

position but include a keyhole slot on the back to enable quick wall-

mounting if desired.

Figure 1- Keyhole slot for standard mounting

The ENVIROMUX-STHS-N4085IND-O is intended for outdoor use and provides additional mounting hardware to make mounting

on a greater variety of surfaces easier to do. The mounting bracket provides additional holes for two screws to enable secure

positioning. When installed, the cable entrance to the sensor should be at the bottom of the sensor housing.

Figure 2- Mounting bracket for outdoor installation

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

If you have purchased an ENVIROMUX Sensor with a DIN rail clip for DIN rail mounting, see the drawing below for instructions to

install the sensor to the DIN rail.

Figure 3- DIN rail clip

DIN rail Clip

ears for gripping

the rail

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

CONNECT SENSORS

RJ45 Sensors

The temperature and humidity sensors for the ENVIROMUX-16D/5D/2D and ENVIROMUX-SEMS-16(U) Enterprise Environment

Monitoring Systems have RJ45 connection ports. Connect each sensor to one of the female connectors labeled "RJ45 Sensors"

on the ENVIROMUX using CAT5 cable. The male RJ45 connectors should snap into place. (See page 7 for wiring specification

and pinout.) The CAT5 cable that connects the sensor to the ENVIROMUX can be up to 1000 feet in length.

Note: It is very important to locate the temperature and/or humidity sensors away from ventilation sources and fans.

Figure 4- Connect Sensors using CAT5 cable with RJ45 connectors

Application Note:

When connecting temperature and humidity sensors to the ENVIROMUX, the web interface will identify the sensor accordingly for

the type of sensor it is. The status bar and configuration page will enter the maximum and minimum range that this type of

sensor can display if used with the ENVIROMUX, not necessarily the operating range of the sensor itself. The various

temperature and humidity sensor models offered by NTI have varying ranges of performance capabilities, as indicated in the table

on page 6. Be sure to match the sensor installed to the operating range of the environment it will be expected to work in. Using a

sensor outside of its intended temperature range may result in damage to the sensor.

Figure 5- A portion of the sensor configuration page

This is the range the ENVIROMUX will

display, not necessarily the range the

sensor will work within. See

specifications for the sensor being

installed for the proper operating

environment.

Note: Shielded CAT5 cable

is required between the

sensor and the ENVIROMUX

to maintain CE compliance

of the sensor.

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

ENVIROMUX-STHS-PRCIND100-Pxx

The ENVIROMUX-STHS-PRCIND100-Pxx is a precision wide-range extreme environment sensor that includes a probe-type

temperature sensor attached to the aluminum case with a special extreme-environment cable. The cable length is defined by

the “xx” in the “Pxx”. When installing this temperature sensor, the temperature sensing probe and attached cable are the only

portions of the sensor that can be exposed to the full extreme environment that this sensor is rated for (-40 to 212°F (-40 to

100°C)). The aluminum case and the components therein are rated for -40 to 185°F (-40 to 85°C) and must be located in an

environment within that range. Most CATx cables are rated 32 to 140°F (0 to 60°C).

Note: When mounting the temperature probe, be sure not to obstruct the holes in the probe tubing as this will adversely

affect the sensor’s ability to sense humidity.

Note: The ENVIROMUX-2D/5D/16D must be running firmware version 2.18 or later to support this sensor.

Figure 6- Precision wide-range temperature/humidity sensor

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

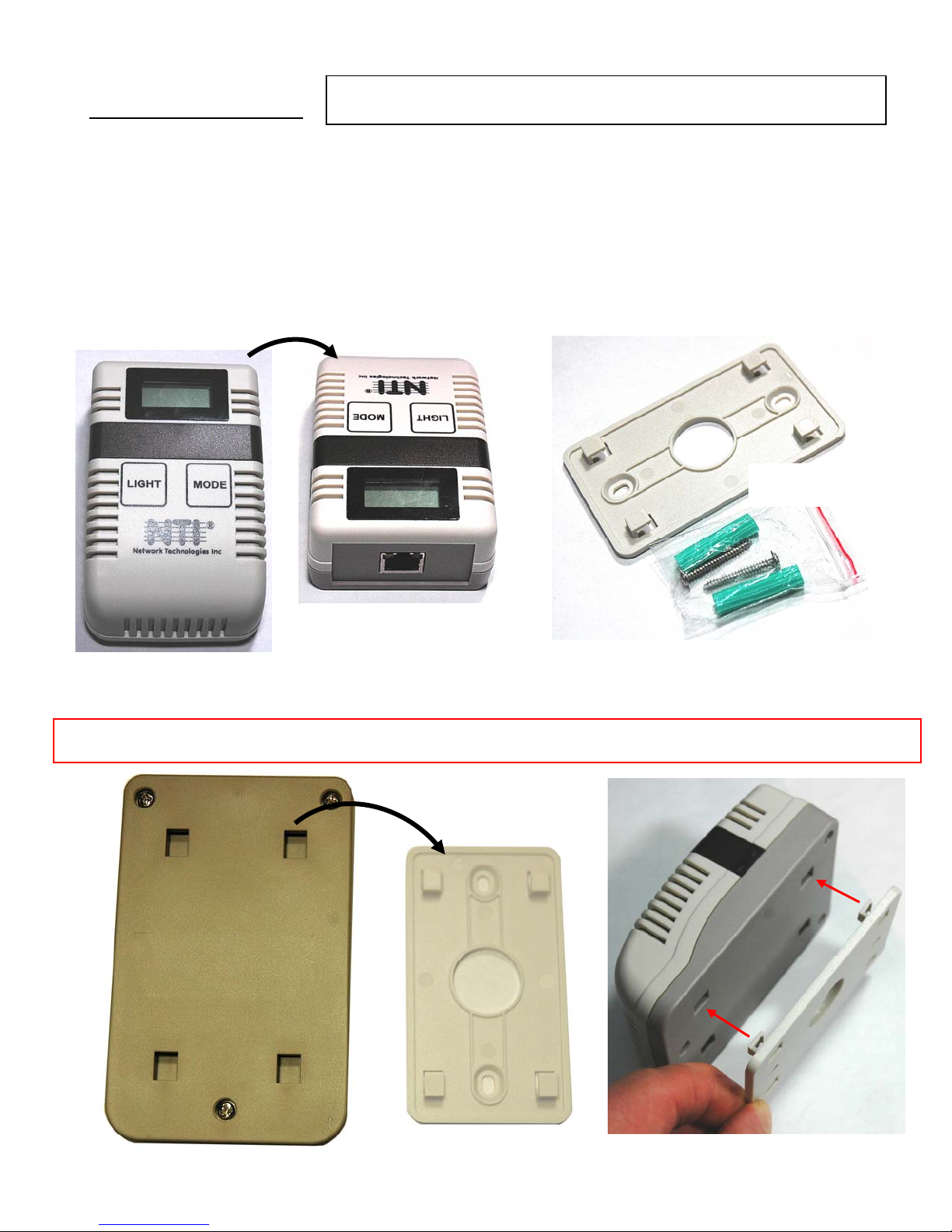

ENVIROMUX-STHS-LCD

The ENVIROMUX-STHS-LCD is a temperature/humidity sensor with built-in LCD display. It has a temperature range of -4 to

140°F (-20 to 60°C) ±0.7°F (±0.4°C) and will sense 0 to 90% relative humidity ±4% RH (30°C). It includes two touch-sensitive

buttons. One to control the LCD display illumination, and the other to cycle the display mode between temperature in degrees

Fahrenheit, temperature in degrees Celsius, and percentage of humidity. The ENVIROMUX-STHS-LCD includes a mounting

plate and mounting hardware.

To use the MODE button, touch and release to cycle the display from Degrees F. to Degrees C, and to percentage of Humidity,

and once again to return to Degrees F. The display will hold the mode set, each time, until MODE is touched again.

To use the LIGHT button, touch to illuminate the display for 5 seconds. To keep the display illuminated, touch and hold the

LIGHT button for at least 6 seconds. Touch and release again to have illumination stop after 5 more seconds.

Figure 7- ENVIROMUX-STHS-LCD

To mount the sensor, use the hardware provided to secure the mounting plate to the wall. Then hook the sensor onto the four

clips using the matching openings in the back of the sensor. Once it is mounted, connect a CATx cable between the RJ45

connector (see Top End View) and the ENVIROMUX monitoring system.

(Top End View)

(Rear View) Mounting Plate

Mounting Plate

and Hardware

Note: Keep fingers away from LIGHT and MODE buttons for 2 seconds when connecting the sensor to the monitoring system

via the CATx cable. This will enable the sensor to self-calibrate.

ENVIROMUX-xD firmware version 2.31 or later is required to support

this sensor.

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

TEMPERATURE AND HUMIDITY SENSORS

SENSOR MODEL OPERATING TEMPERATURE

RANGE HUMIDITY RANGE ACCURACY

ENVIROMUX-STS 32 to 122°F (0 to 50°C) n/a ±0.9°F (±0.5°C)

ENVIROMUX-SHS n/a 20 to 80% RH. ±5% RH

ENVIROMUX-STSM-E7 -4 to 185°F (-20 to 85°C) n/a ±1.26°F (±0.70°C) for -4

to 41°F (-20 to 5°C)

±0.72°F (±0.40°C) for 41

to 140°F (5 to 60°C)

ENVIROMUX-STHS-99 32 to 176°F (0 to 80°C) •20 to 80% RH, ±3%

•10 to 90% RH, ±4%

•0 to 99% RH, ±5%

±2°F (0 to 50°C, ±1°C)

ENVIROMUX-STHS-N4085IND -40°F to 185°F (-40°C to +85°C)

Accurate at -4°F to 185°F

(-20°C to +85°C)

± 5% from 20% to 80%

RH(measured at 25°C) ±0.9°F (±0.5°C). and

±5% RH@ 77°F (25°C)

ENVIROMUX-STHS-

N4085IND-O -40°F to 185°F (-40°C to +85°C)

Accurate at -4°F to 185°F

(-20°C to +85°C)

± 5% from 20% to 80%

RH(measured at 25°C) ±0.9°F (±0.5°C). and

±5% RH@ 77°F (25°C)

ENVIROMUX-STHSB /

ENVIRMUX-STHSM-E7 -4 to 185°F (-20 to 85°C) 0 to 90% RH ±0.7°F (±0.4°C).

±4% RH (30°C)

ENVIROMUX-STHS-LCD -4 to 140°F (-20 to 60°C) 0 to 90% RH ±0.7°F (±0.4°C).

±4% RH (30°C)

ENVIROMUX-STHS-PRC 32 to 140°F (0 to 60°C) 10% to 80% RH ± 0.4°F(±0.2°C)

± 1.8%RH@86°F (30°C)

ENVIROMUX-STHS-PRCIND -40 to 185°F (-40 to 85°C) 10% to 80% RH ± 0.4°F(±0.2°C)

± 1.8%RH@86°F (30°C)

ENVIROMUX-STHS-

PRCIND100-Pxx -40 to 212°F (-40 to 100°C) 10% to 80% RH ± 0.4°F(±0.2°C)

± 1.8%RH@86°F (30°C)

ENVIROMUX-STHS-WLM 23 to 131°F (-5 to 55°C) 10 to 90% RH ±0.54°F (±0.3°C). and

±3% RH@68°F (20°C)

ENVIROMUX-STSP

ENVIROMUX-STSP-SL-7 -40 to 185°F (-40 to 85°C) n/a ±1.0°F (±0.5°C).

ENVIROMUX-STS-PRC 32 to 140°F (0 to 60°C) n/a ±0.2°F (±0.1°C).

Sensor Calibration

All temperature/humidity combination sensors and humidity-only sensors are factory-calibrated and are not designed to be

calibrated in the field. In the event recalibration of your sensor is desired, please contact NTI for an RMA to return your sensor.

Sensors within warranty will be recalibrated at no charge. Normal labor charges will apply to sensors out of warranty.

NTI ENVIROMUX TEMPERATURE/HUMIDITY SENSOR ATTACHMENT

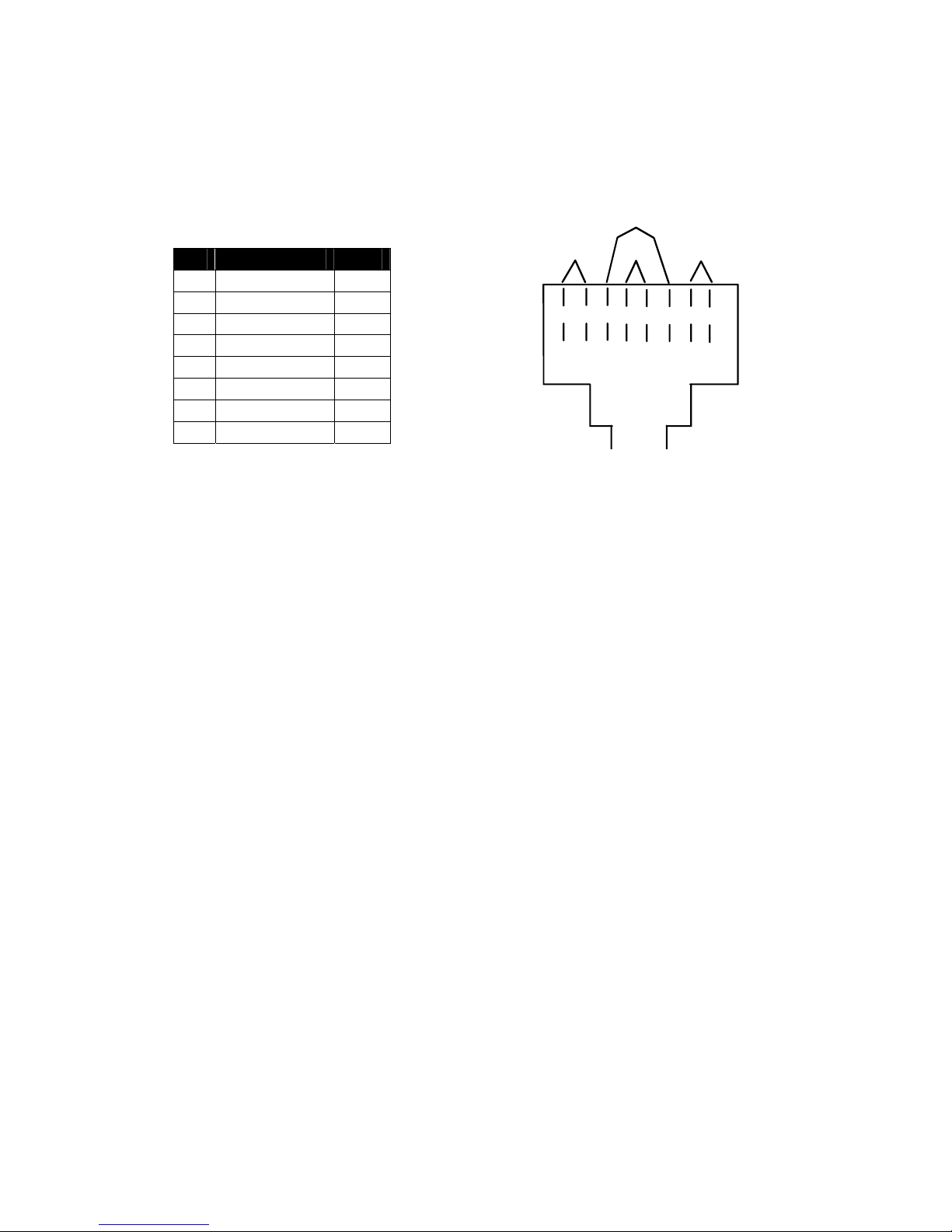

RJ45 Sensor Cable

The CAT5 connection cable between the ENVIROMUX and connected external sensors is terminated with RJ45 connectors and

must be wired according to the EIA/TIA 568 B industry standard. Wiring is as per the table and drawing below. The sensors

that connect to “RJ45 Sensor” ports (ENVIROMUX-16(U)/xD) are all designed to use cables wired to this standard.

Pin Wire Color Pair

1 White/Orange 2

2 Orange 2

3 White/Green 3

4 Blue 1

5 White/Blue 1

6 Green 3

7 White/Brown 4

8 Brown 4

TRADEMARK

ENVIROMUX is a registered trademark of Network Technologies Inc in the U.S. and other countries.

in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,

without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.

CHANGES

The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the

right to make changes in the product design without reservation and without notification to its users.

MAN215 REV 2/12/2016

Pair 2 Pair 1 Pair 4

Pair 3

(View Looking into RJ45 Socket)
