Novus NVIP-3DN7030SD-2P Manuel utilisateur

U ser’s manual

( short )

NVIP-3DN7030SD-2P

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2004/108/EC) and LVD (2006/95/EC ) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives and national regulations

implementing the directives:

 Electromagnetic compatibility EMC 2004/108/EC.

 Low voltage LVD 2006/95/EC with further amendment. The Directive applies to electrical

equipment designed for use with a voltage rating of between 50VAC and 1000VAC as well as

75VDC and 1500VDC.

WEEE Directive 2012/19/EU

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European 1000VAC Directive on Waste Electrical and Electronic

Equipment (2002/96/EC) and further amendments. By ensuring this product is disposed of correctly, you will

help to prevent potential negative consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance may not be

treated as household waste. It shall be handed over to the applicable collection point for used up electrical and

electronic equipment for recycling purpose. For more information about recycling of this product, please contact

your local authorities, your household waste disposal service or the shop where you purchased the product.

RoHS Directive 2011/65/EU

Out of concern for human health protection and friendly environment, we assure that our products

falling under RoHS Directive regulations, regarding the restriction of the use of hazardous

substances in electrical and electronic equipment, have been designed and manufactured in

compliance with the above mentioned regulations. Simultaneously, we claim that our products have

been tested and do not contain hazardous substances whose exceeding limits could have negative

impact on human health or natural environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed for self

installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other devices

during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN

PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE

PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE PRODUCT,

MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING THE

MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO

USER-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE

PERSONNEL MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions described in the

manual in question may change without further notice. We strongly suggest visiting the www.novuscctv.com

website in order to access the newest manual

Data included in the following user’s manual is up to date at the time of printing. AAT Holding Sp z o.o. holds

exclusive rights to modify this manual. The producer reserves the rights for device specification modification

and change in the design without prior notice.

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

TABLE OF CONTENTS.................................................................................................4

1. FOREWORD INFORMATION..................................................................................5

1.1. General Characteristics.....................................................................................5

1.2. Technical specification ....................................................................................6

1.3. Camera dimension ...........................................................................................8

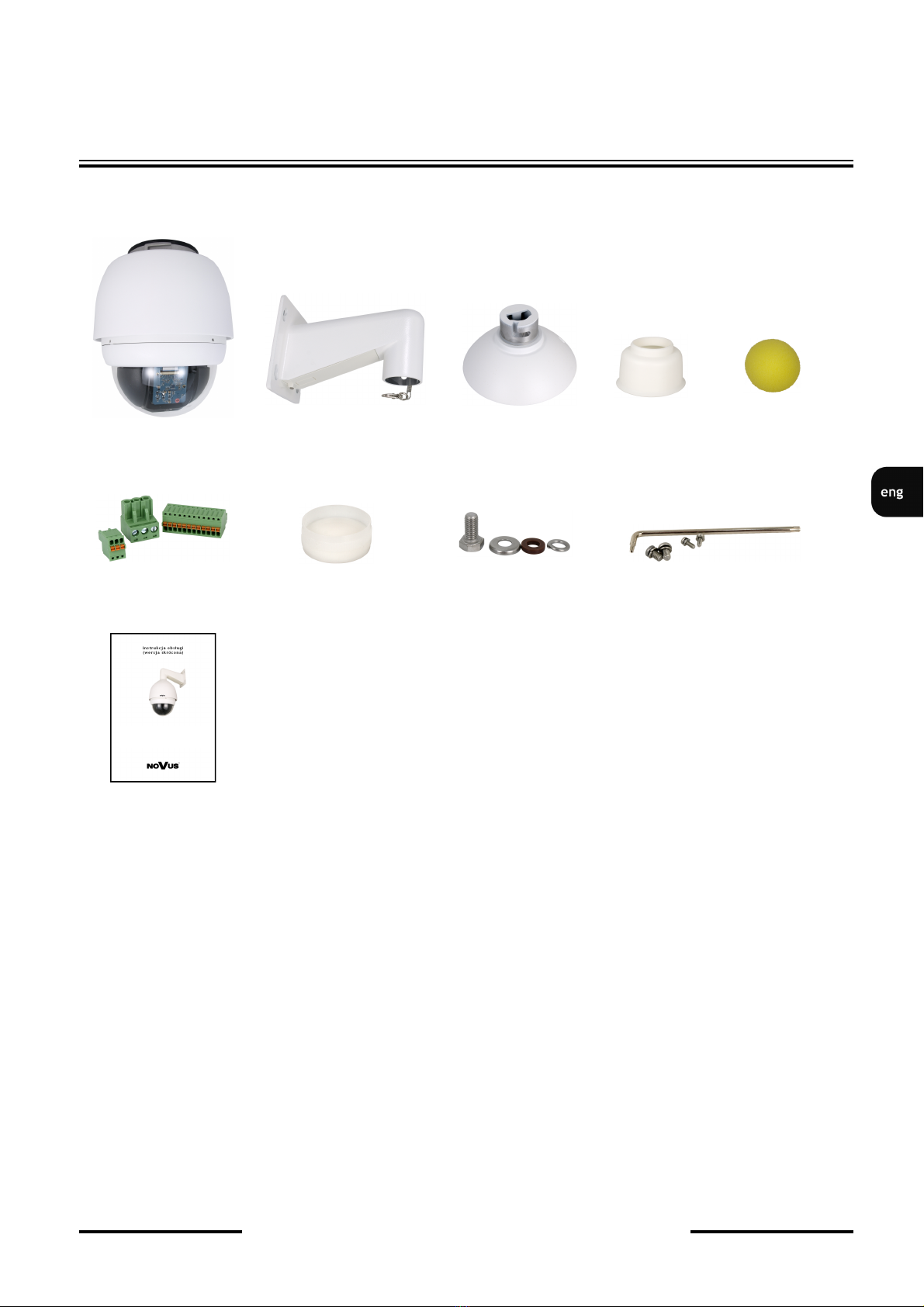

1.4. Package contents..............................................................................................9

2. START-UP AND INITIAL IP CAMERA CONFIGURATION ..............................10

2.1. Description of connectors and control tools ....................................................10

2.2 Connecting power supply to the camera …..………….………………………10

2.2. Camera mounting...........................................................................................11

2.3. Starting the IP camera ....................................................................................14

2.4. Initial configuration via the Web browser.......................................................15

3. NETWORK CONNECTION UTILIZING WEB BROSWER ...............................16

3.1. Recommended PC specification for web browser............................................16

3.2. Connection with IP camera via the Internet Explorer.......................................16

3.3. Connection with IP camera via the other browser............................................18

4. WWW INTERFACE - WORKING WITH IP CAMERA .......................................20

4.1. Displaying live pictures...................................................................................20

4.2. Displaying live pictures - PTZ control.............................................................22

5. ELECTRIC CONNECTORS AND ACCESORIES ...............................................23

5.1. Connecting audio inputs/outputs .....................................................................23

5.2. Connecting alarm input and output..................................................................23

5.3. SD card installation ........................................................................................24

5.4 BNC connection ..……………………………………………………………...24

6. RESTORING FACTORY DEFAULTS ..................................................................25

6.1. Restoring software factory defaults .................................................................25

6.2. Restoring hardware factory defaults in IP cameras .........................................25

TABLE OF CONTENTS

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

 Mechanical IR cut filter

 IR operation capability

 Imager resolution: 2 megapixels

 Min. Illumination: from 0.009 lx/F=1.4

 Motor-zoom lens, AI and AF function

 Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

 Digital Slow Shutter (DSS)

 8 tours (max. 64 presets each)

 4 auto-scan functions

 8 patterns (max. 206 s)

 256 preset commands

 Privacy zones: 16

 Optical zoom: up to 30x

 4 alarm inputs & 2 alarm relay outputs (NO/NC)

 “Auto-Flip” function allows the tilt to rotate 180° and reposition itself for continuous viewing of a moving object

directly beneath the dome

 Compression: H.264 or M-JPEG

 Bidirectional audio transmission

 Video processing resolution: up to 2048 x 1536

 RTP/RTSP protocol support for video & audio transmission

 Quadruple stream mode: compression, resolution, speed and quality defined individually for each video stream

 Hardware motion detection

 Network connection control function

 Built-in web server: camera configuration through the website

 Diverse definition of system reactions to alarm events: e-mail with attachment, saving file on FTP server, saving

on NAS server, saving file on microSDXC card, alarm output trigger, HTTP notification, PTZ function

activation

 PTZ control directly from the website and NMS (NOVUS MANAGEMENT SYSTEM)

 Schedule recording function

 Network protocols support: ONVIF (2.6/Profile S), HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP,

DHCP, DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS

 Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring, playback and

remote IP devices administration

 IP 66

 Installation:

-wall mount using bracket in-set included,

-ceiling mount using NVB-SD70CB bracket,

-corner mount using NVB-SD70CA adapter,

-pole mount using NVB-SD70PA adapter

 Housing, wall mount bracket & poly-carbonate bubble in-set included

Power supply: 24 VAC/High PoE (60W)/ 28-48 VDC

FOREWORD INFORMATION

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

1.2. Technical specification

FOREWORD INFORMATION

Parameters

Description

NVIP-3DN7030SD-2P

Image Sensor 3 MPX CMOS sensor 1/2.8” SONY

Number of Effective Pixels 2048 (H) x 1536 (V)

Min. Illumination 0.04 lx/F1.4 - color mode (DSS),

0.009 lx/F1.4 - B/W mode (DSS)

Electronic Shutter auto/manual: 1/1 s ~ 1/10000 s

Digital Slow Shutter (DSS) up to 1 s

Wide Dynamic Range (WDR) yes

Digital Noise Reduction (DNR) 2D

Defog Function (F-DNR) yes

LENS

Optical Zoom 30x

Lens Type motor-zoom varifocal, AI and AF function,

f=4.4 ~ 132 mm/F1.4 ~ F4.7

Angle of View (H) 57.02° ~ 2.15°

DAY/NIGHT

Switching Type mechanical IR cut filter

Switching Mode auto, manual, time

Switching Schedule yes

NETWORK

Stream Resolution

2048 x 1536 (QXGA), 1920 x 1080 (Full HD), 1280 x 1024

(SXGA), 1280 x 720 (HD), 1024 x 768 (XGA), 800 x 600 (SVGA),

720 x 576 (D1), 640 x 480 (VGA), 352 x 288 (CIF), 320 x 240

(QVGA)

Frame Rate 30 fps for each resolution,

60 fps for 1920 x 1080 (Full HD) and lower resolutions

Multistreaming Mode 4 streams

Video/Audio Compression H.264, MJPEG/G.711, G.726

Number of Simultaneous

Connections max. 8

Bandwidth 50 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4/v6, UDP, HTTPS, Multicast, FTP, DHCP,

DDNS, NTP, RTSP, RTP, UPnP, SNMP, QoS, PPPoE

ONVIF Protocol Support Profile S (ONVIF 2.6)

Camera Configuration from Internet Explorer browser

languages: Polish, English, Russian, and others

Compatible Software NMS

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

FOREWORD INFORMATION

PTZ

Preset Commands 256

Tours 8 (up to 64 presets per tour)

Auto-Scans 4

Patterns 8

Tilt/Pan Range -10° ~ 190°/360° (continuous)

Pan/Tilt Speed up to 90°/s (proportional to zoom)

Preset Speed up to 400°/s

OTHER FUNCTIONS

Privacy Zones 16

Motion Detection yes

Video Content Analysis

(VCA) Auto Tracking

Image Processing 180˚ image rotation, sharpening, mirror effect

Prealarm/Postalarm up to 3 s or 20 frames/up to 9999 s or 20 frames

System Reaction to Alarm

Events

e-mail with attachment, saving file on FTP server, saving file on SD

card, saving file on NAS server, alarm output activation, HTTP

notification, PTZ

INTERFACES

Video Output BNC, 1.0 Vp-p, 75 Ohm - maintenance only

Audio Input/Output 1/1

Alarm Input/Output 4 (NO/NC)/2 relay type

Network Interface 1 x Ethernet - RJ-45 interface, 10/100/1000 Mbit/s

Memory Card Slot microSD

Dimensions (mm) 192 (Ф) x 287 (H) with bracket: 192 (W) x 359 (H) x 254 (L)

INSTALLATION PARAMETERS

Power Consumption 24 W,

57 W (heater on)

Power Supply 24 VAC, High PoE (60W), 28 ~ 48 VDC

Enclosure aluminium/plastic, white, poly-carbonate bubble, in-set included:

outdoor housing (integrated with the camera), wall mount bracket

Weight 2.3 kg with bracket: 2.9 kg

Operating Temperature -40°C ~ 50°C

Degree of Protection IP 66

Built-in Heater/Fan yes/yes

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

FOREWORD INFORMATION

1.3. Camera dimensions

359 mm

287 mm

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

FOREWORD INFORMATION

1.4. Package contents

After you open the package make sure that the following elements are inside:

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

Short version of

user’s manual

Wall bracket Mounting

base

Connectors Lubricant

Sponge seal

Rubber

M8 Screw with 3

washers

Speed dome

camera

Torx key - 1 pc

M5 Torx screw - 1 pc

M5 Phillips screw - 1 pc

M3 Torx screw - 1 pc

M3 Phillips screw - 1 pc

NVIP-7030SD-2P

NVIP-3DN7030SD-2P User’s manual (short form) ver.1.0

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

2.1. Description of connectors and control tools

1. Port Ethernet 1000 Mb/s (RJ-45 connector)

2. MicroSD card slot

3. BNC - service connector

4. Alarm input/output connector

5. ’Reset’ button (reverts to factory defaults)

6. 24 VAC, 28-48 VDC Power socket

7. Audio input/output connector

2.2. Connecting power supply to the camera

The camera can be supplied using an external power supply with parameters compatible with

camera specification or via the network using the RJ45 socket using High PoE. To power the camera

through High PoE, use the High PoE (60W) switch or the High PoE (60W) power adapter.

CAUTION!

Incorrect connection of power supply wires may result in damage that is not covered by

warranty.

CAUTION!

The camera is 24 VAC or 28-48 VDC supplied. Camera can also be High PoE (60W) supplied.

Minimal required power output for the power supply unit should be at least: 60W

CAUTION!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate

surge protectors is advised. Any damages resulting from surges are not eligible for service

repairs.

Information: Power supply adapter is not included. Please use power adapter with parameters

specified in user’s manual.

START-UP AND INITIAL CAMERA CONFIGURATION

Pin Symbol Power description 24 VAC Power description 28-48 VDC

1 AC1 Power input 24 VAC Power input 28-48 VDC (+)

2 Ground Ground

3 AC2 Power input 24 VAC Power input 28-48 VDC (-)

24VAC

28-48 VDC

Power

Supply AC 24V

Table des matières

Langues :

Autres manuels Novus Caméra de sécurité

Novus

Novus NVIP-4H-6532M/F-II Manuel utilisateur

Novus

Novus NVIP-2VE-4201/PIR Manuel utilisateur

Novus

Novus NVIP-4VE-6201-II Manuel utilisateur

Novus

Novus NVAHD-2DN5106MH/IR-1 Manuel utilisateur

Novus

Novus NVIP-1DN3020V/IR-1P-II Manuel utilisateur

Novus

Novus NVIP-2H-6201 Manuel utilisateur

Novus

Novus NVIP-2V-6402M Manuel utilisateur

Novus

Novus NVIP-5DN2004H/IR-1P-II Manuel utilisateur

Novus

Novus NVAHD-2DN5100C-3 Manuel utilisateur

Novus

Novus NVAHD-2DN5102MH/IR-1 Manuel utilisateur

Novus

Novus NVIP-2DN5020H/IR-1P Manuel utilisateur

Novus

Novus NVIP-4DN3552AH/IR-1P Manuel utilisateur

Novus

Novus NVC-GDN3810H/IR Manuel utilisateur

Novus

Novus NVIP-4DN2004V/IR-1P Manuel utilisateur

Novus

Novus NVIP-4DN2002V/IR-1P-II Manuel utilisateur

Novus

Novus NVIP-5VE-4402/F Manuel utilisateur

Novus

Novus NVIP-3DN7500V/IRH-2P Fiche d'information produit

Novus

Novus NVIP-8VE-6201-II Manuel utilisateur

Novus

Novus NVC-FC3311H/IR Manuel utilisateur

Novus

Novus NVIP-8VE-4511/FWLAD Manuel utilisateur

Novus

Novus NVAHD-2DN5101MV/IR-1 Manuel utilisateur

Novus

Novus NVC-DN6118SD/IR Manuel utilisateur

Novus

Novus NVIP-1DN3000H/IR-1P Manuel utilisateur

Novus

Novus NVAHD-2DN5102MV/IR-1 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
