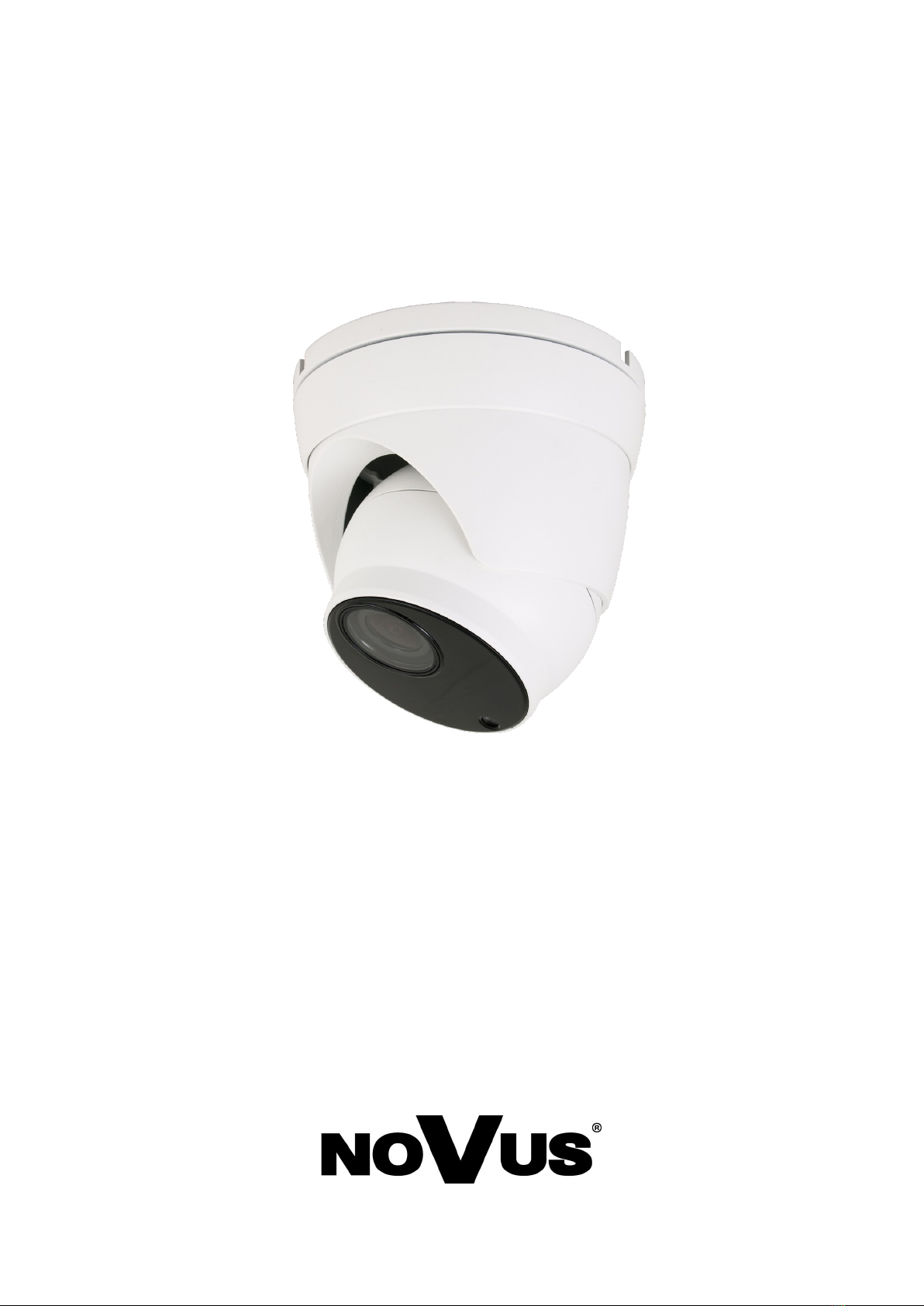

Novus NVIP-4VE-4202M Manuel utilisateur

User’s ma n ua l

(s h o rt fo rm )

NVIP-4VE-4202M

NVIP-4VE-4202M User’s manual (short form) ver 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

EMC (2014/30/UE) and LVD (2014/35/UE) Directives

CE Marking

Our products are manufactured to comply with requirements of the following directives

and national regulations implementing the directives:

• Electromagnetic compatibility EMC 2014/30/UE..

• Low voltage LVD 2014/35/UE with further amendment. The Directive applies to

electrical equipment designed for use with a voltage rating of between 50VAC and

1000VAC as well as 75VDC and 1500VDC.

WEEE Directive 2012/19/UE

Information on Disposal for Users of Waste Electrical and Electronic Equipment

This appliance is marked according to the European 1000VAC Directive on Waste

Electrical and Electronic Equipment (2012/19/UE) and further amendments. By ensuring

this product is disposed of correctly, you will help to prevent potential negative

consequences for the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product, or the documents accompanying the product, indicates that this appliance

may not be treated as household waste. It shall be handed over to the applicable collection point for

used up electrical and electronic equipment for recycling purpose. For more information about

recycling of this product, please contact your local authorities, your household waste disposal service

or the shop where you purchased the product.

RoHS Directive 2011/65/UE

Information concerning the restriction of use of hazardous substances in electrical electronic

equipment.

Out of concern for human health protection and friendly environment, we assure that our

products falling under RoHS Directive regulations, regarding the restriction of the use of

hazardous substances in electrical and electronic equipment, have been designed and

manufactured in compliance with the above mentioned regulations. Simultaneously, we

claim that our products have been tested and do not contain hazardous substances whose

exceeding limits could have negative impact on human health or natural environment

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed

for self installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other

devices during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN

PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE

PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE

PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING

THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

NVIP-4VE-4202M User’s manual (short form) ver 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS SHORT MANUAL IS AN INDESPENSIBLE CONDITION OF A

PROPER DEVICE ISTALLATION AND CONFIGURATION. YOU ARE KINDLY REQUSTED TO

FAMILIRIZE YOURSELF WITH THE FULL USER MANUAL PRIOR TO FURTHER DEVICE

EXPLOATATION. FULL USER MANUAL IS AVAILABLE ON www.novus.com/en

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT.

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and

operating instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual

is necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the

user’s manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is

forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools,

bath tubs, damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.)

is not recommended since it may lead to heat build-up and damaging the device itself as a

consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden.

Improperly mounted camera may cause a fatal accident or may be seriously damaged itself. The

camera must be mounted by qualified personnel with proper authorization, in accordance with this

user’s manual.

10. Device should be supplied only from a power sources whose parameters are in accordance with

those specified by the producer in the camera technical datasheet. Therefore, it is forbidden to

supply the camera from a power sources with unknown parameters, unstable or not meeting

producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com/en website in order to access the newest manual

NVIP-4VE-4202M User’s manual (short form) ver 1.0

TABLE OF CONTENTS.....................................................................................................4

1. FOREWORD INFORMATION .....................................................................................5

1.1. General characteristics.........................................................................................5

1.2. Technical specification .......................................................................................6

1.3. Camera dimension ..............................................................................................7

1.4. Package contents..................................................................................................7

2. START-UP AND INITIAL CONFIGURATION .........................................................8

2.1. Description of connectors....................................................................................8

2.2. Connecting ethernet cable ...................................................................................8

2.3. Camera mounting ................................................................................................9

2.4. Starting the IP camera........................................................................................10

2.5. Initial configuration via web browser................................................................11

2.6. Security recommendations for network architecture and configuration ...........12

3. NETWORK CONNECTION UTILIZING WEB BROSWER ................................13

3.1. Recommended PC specification for web browser .............................................13

3.2. Connection with IP camera via web browser.....................................................13

4. USING AND CONFIGURING .....................................................................................15

4.1. Remote Preview Interface. .................................................................................15

5. ELECTRIC CONNECTORS ......................................................................................17

5.1. Connecting power supply to the camera. ..........................................................17

6. RESTORING FACTORY DEFAULTS .....................................................................17

6.1. Restore factory defaults via web browser ..........................................................17

TABLE OF CONTENTS

NVIP-4VE-4202M User’s manual (short form) ver 1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Sensor resolution: 4 megapixels

• Mechanical IR cut filter, IR operation capability

• Min. Illumination from 0 lx with IR LED on

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Digital Noise Reduction (DNR)

• Lens type: motorzoom, f=2.7 ~ 13.5mm/F=1.3

• Built-in LED illuminator: 40 pcs LED

• Compression: H.264/H265

• Max video processing resolution: 2592x1520

• Multi streaming: three independently configurable streams

• Stream parameters: compression, resolution, speed and quality defined individually for each

video stream

• RTP/RTSP protocol support for video transmission

• Hardware motion detection

• Hardware sabotage detection (lens shade)

• Built-in webserver: camera configuration through the website

• Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server

• Six advanced image analysis functions

• Four privacy zones

• Eight definable Region of Interest

• Power supply: 12VDC, PoE (Power over Ethernet 802.3af)

Information

Depending on the type of recorder/registration system, the range of features and options may vary. Full

list of camera functionality available from a given type of recorder is included in the instruction manual

on www.novuscctv.com/en

Information!

The manufacturer reserves the right to printing errors and technical specifications changes

without prior notice.

FOREWORD INFORMATION

NVIP-4VE-4202M User’s manual (short form) ver 1.0

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 4 MPX CMOS sensor 1/3” OV

Number of Eecve Pixels 2688 (H) x 1520 (V)

Min. Illuminaon 0.06 lx/F1.3 - color mode,

0 lx (IR on) - B/W mode

Electronic Shuer auto/manual: 1/5 s ~ 1/20000 s

Digital Slow Shuer (DSS) up to 1/5 s

Wide Dynamic Range (WDR) yes (double scan sensor), 90dB

Digital Noise Reducon (DNR) 2D, 3D

Defog Funcon (F-DNR) yes

Back Light Compensaon (BLC) yes

Lens

Lens Type motor-zoom, f=2.7 ~ 13.5 mm/F1.3

Auto-focus zoom trigger, day/night mode trigger, manual trigger

Day/Night

Switching Type mechanical IR cut lter

Switching Mode auto, manual

Switching Delay 1 ~ 36 s

Visible Light Sensor yes

Network

Stream Resoluon 2592 x 1520, 2304 x 1296, 2048 x 1520, 1920 x 1080 (Full HD),

1280 x 960, 1280 x 720 (HD), 704 x 576, 640 x 480 (VGA), 320 x 240

Frame Rate 20 fps for 2592 x 1520,

30 fps for 2048 x 1520 and lower resoluons

Mulstreaming Mode 3 streams

Video/Audio Compression H.264, H.265/-

Number of Simultaneous Connecons max. 10

Bandwidth 63 Mb/s in total

Network Protocols Support HTTP, TCP/IP, IPv4, FTP, DHCP, DNS, DDNS, NTP, RTSP, RTP, UPnP,

SMTP

ONVIF Protocol Support Prole S (ONVIF 2.6)

Camera Conguraon from Internet Explorer browser

languages: Polish, English, Russian, and others

Compable Soware NMS

Other funcons

Privacy Zones 4

Moon Detecon yes

Region of interest (ROI) 8

Video Content Analysis (VCA) abandoned object, object disappearance, line cross, zone entrance,

face detecon, pedestrian detecon, cross counng

Image Processing 180˚ image rotaon, corridor mode, vercal ip, horizontal ip

System Reacon to Alarm Events e-mail with aachment, saving le on FTP server

NVIP-4VE-4202M User’s manual (short form) ver 1.0

FOREWORD INFORMATION

1.3. Camera dimensions

Dimensions are given in millimeters

1.4. Package contents

After you open the package make sure that the following elements are inside:

• IP camera

• Accessories bag

• Short version of user’s manual

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

IR LED

LED Number 40

Range 40 m

Angle 120°

Interfaces

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Installaon parameters

Dimensions (mm) 135 (Ф) x 128 (H)

Weight 0.7 kg

Degree of Protecon IP 66 (details in the user’s manual, page 9)

Enclosure vandal proof aluminium, white

Power Supply PoE, 12 VDC

Power Consumpon 2 W,

6 W (IR on)

Operang Temperature -35°C ~ 60°C

NVIP-4VE-4202M User’s manual (short form) ver 1.0

2. START-UP AND INITIAL CONFIGURATION

2.1. Description of connectors

1. Power supply 12VDC

2. 100 Mb/s Ethernet port (RJ-45 hermetic connector)

2.2. Connecting ethernet cable

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (b) from the connector cover (a), mount the sealing ring on the socket (c)

2. Route the network cable through the components (a) and (b). Plug the RJ-45 connector into the

socket (c)

3. Screw the connector cover (a) on the socket (c). Inside the upper part of the connector cover (a) push

in to the stop the seal of the cable (d) - the seal is cut to insert on the network cable.

4. Tighten up to the stop nut (b)

WARNING!

Camera power supply connector is not hermetic. User should seal this connector by himself.

START-UP AND INITIAL CONFIGURATION

NVIP-4VE-4202M User’s manual (short form) ver 1.0

2.3. Camera mounting

To mount a camera please follow the instructions below:

• Unscrew the locking ring (A) by turning it counter-clockwise

• Remove the camera cover (B), remove the camera from the base

• Put the bracket or mounting template to the wall in a desired mounting place (with cable hole).

Taking the bracket’s base screw holes as a pattern, mark future drilling holes for screws.

• Drill holes in accordance with previously done markings and base hole placement.

• Mount the camera base using the supplied plugs and screws.

• Connect the camera cables, put camera on the base, attach the cover (B) and pre-tighten the

locking ring (A)

• Adjust camera position, fully screw the locking ring (A)

• Make adjustments to the camera using the on-screen menu (see chapter 4)

WARNING!

Please note that the wall or ceiling must have enough strength to support the IP Camera.

WARNING!

The declared degree of protection of the camera relates to its housing and does not take into

account the possibility of moisture infiltration into the interior of the camera by connecting

cables. Connection cables protection through i.e. sealing up is the responsibility of the camera

installer. The manufacturer is not liable for any damages to the camera caused as a result of

failing in performing that activity by installer, which also means that camera damaged in that

way is not subject to warranty repairs.

START-UP AND INITIAL CONFIGURATION

NVIP-4VE-4202M User’s manual (short form) ver 1.0

START-UP AND INITIAL CONFIGURATION

2.4. Starting the IP camera

To run NOVUS IP camera you have to connect ethernet cable between camera and network switch.

To power it up you can connect it directly via power supply adapter with parameters compatible with

camera power supply specification, or camera can be powered with PoE (IEEE 802.3af ) compatible

switch.

After connecting power supply it takes about 30 seconds to start camera. Then You can proceed to

connect to the camera via web browser.

The recommended way to start an IP camera and perform its configuration is a connection directly

to the network switch which is not connected to other devices. To obtain further information about

network configuration parameters (IP address, gateway, network mask, etc.) please contact your

network administrator.

• Connection utilising network switch with PoE support

• Connection utilising external power supply and network switch

Computer

IP camera

Power supply and network

transmission

Network transmission

Network PoE switch

Network transmission

Network switch Computer

IP camera

Table des matières

Langues :

Autres manuels Novus Caméra de sécurité

Novus

Novus NVIP-2VE-6401 Manuel utilisateur

Novus

Novus NVIP-5H-6202M Manuel utilisateur

Novus

Novus NVIP-5H-6201 Manuel utilisateur

Novus

Novus NVAHD-1DN5102D/IR-1 Manuel utilisateur

Novus

Novus NVIP-4H-6101/WL/LITE Manuel utilisateur

Novus

Novus NVAHD-2DN5100MC-1 Manuel utilisateur

Novus

Novus NVIP-4V-6511/F-II Manuel utilisateur

Novus

Novus NVIP-6DN5021H/IRH-1P Manuel utilisateur

Novus

Novus NVIP-4H-6522M/F-II Manuel utilisateur

Novus

Novus NVIP-5C7000D-P Manuel utilisateur

Novus

Novus NVC-401D-black Manuel utilisateur

Novus

Novus NVIP-5DN3613AH/IR-1P/F Fiche d'information produit

Novus

Novus NVIP-2H-6511/F Manuel utilisateur

Novus

Novus NVIP-4DN2004H/IR-1P-II Manuel utilisateur

Novus

Novus NVIP-5H-6401/F Manuel utilisateur

Novus

Novus NVAHD-2ATM-4011 Manuel utilisateur

Novus

Novus NVC-401H/IR Manuel utilisateur

Novus

Novus NVAHD-4DN3202H/IR-1 Manuel utilisateur

Novus

Novus NVIP-5C-6400/F Manuel utilisateur

Novus

Novus NVIP-5DN3612H/IR-1P/F Manuel utilisateur

Novus

Novus NVIP-5DN2004H/IR-1P-II Manuel utilisateur

Novus

Novus NVDN-201D/IR Manuel utilisateur

Novus

Novus NVIP-4DN2002H/IR-1P Manuel utilisateur

Novus

Novus NVIP-3DN3012V/IR-1P Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
