LogBox Wi-Fi

AWS VIA MQTT CONFIGURATION MANUAL

Applies to devices with firmware version starting with V1.1x.

NOVUS AUTOMATION 2/13

1. PRESENTATION

Through the MQTT protocol, the LogBox Wi-Fi can be configured to communicate with Amazon Web Services (AWS). To do this,

follow the steps in this manual.

NOVUS AUTOMATION 3/13

2. CONFIGURING AWS

To perform the communication and pairing between the LogBox Wi-Fi and AWS, you need the NXperience software, available

on our website, and optionally the MQTTBox.

After that, the following procedures must be performed:

1. Create an account in Amazon Web Services.

2. Once the account is created, access the Services tab in the top menu and, in the Internet of Things subsection, select the

IoT Core option.

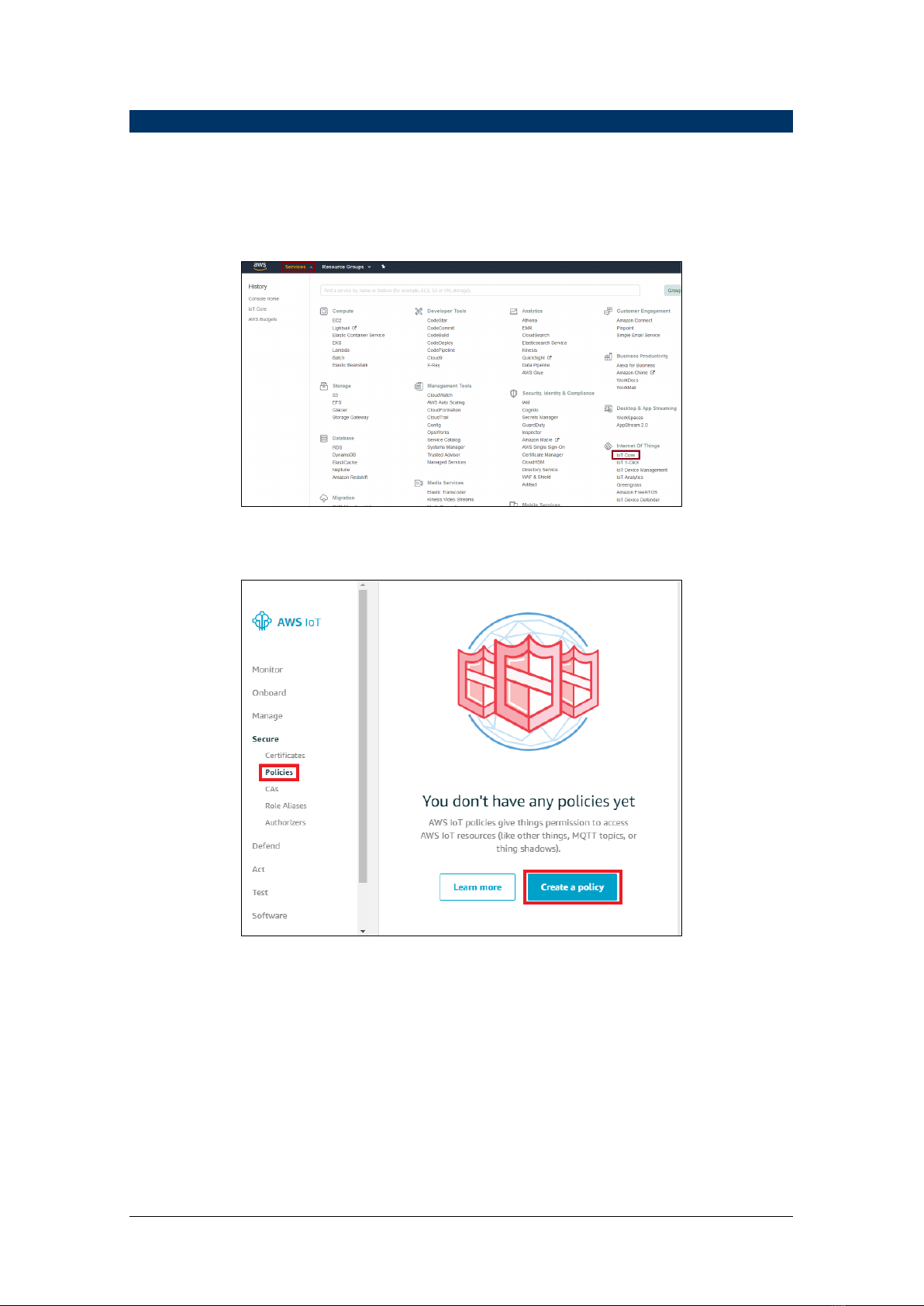

Fig. 01 – AWS Services

3. In the IoT Core service, open the Secure tab in the left menu and select the Policies option. Once the option has been

selected, click on Create a policy.

Fig. 02 – Create a policy

NOVUS AUTOMATION 4/13

4. In the Name field, name the policy to be created. In the Action field, type: "iot:*". Edit the Resource ARN field for "*". Check

the Allow field and click the Create button.

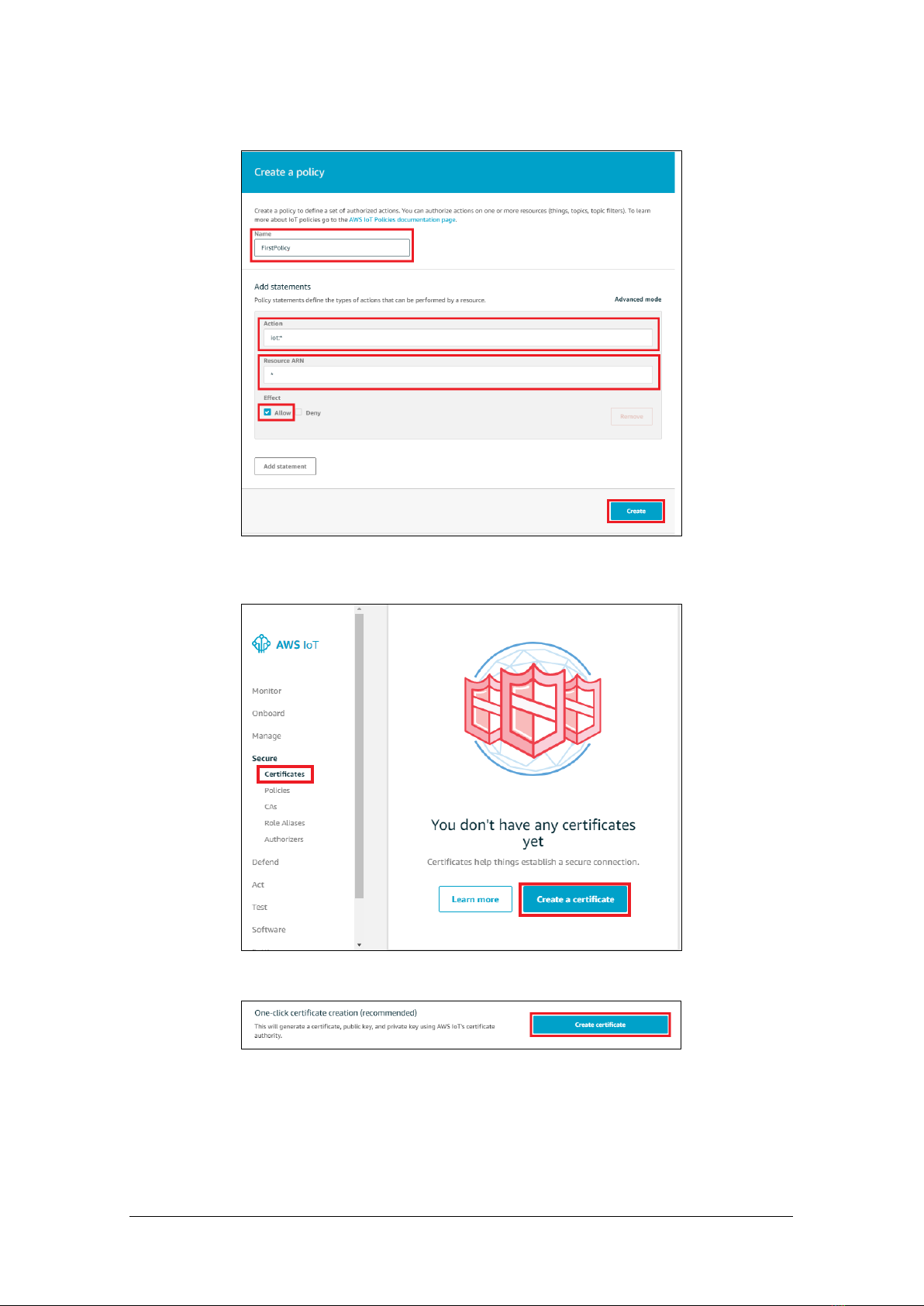

Fig. 03 – New policies configuration

5. After creating a new policy, still in the Secure tab, in the left menu of the IoT Core service, select the Certificatesoption.

Once this option has been selected, click Create a certificate.

Fig. 04 – Create a certificate

6. Click Create certificate in the One-click certificate creation tab.

Fig. 05 – One-click certificate creation

NOVUS AUTOMATION 5/13

7. Download the A certificate for this thing and the Private Key.

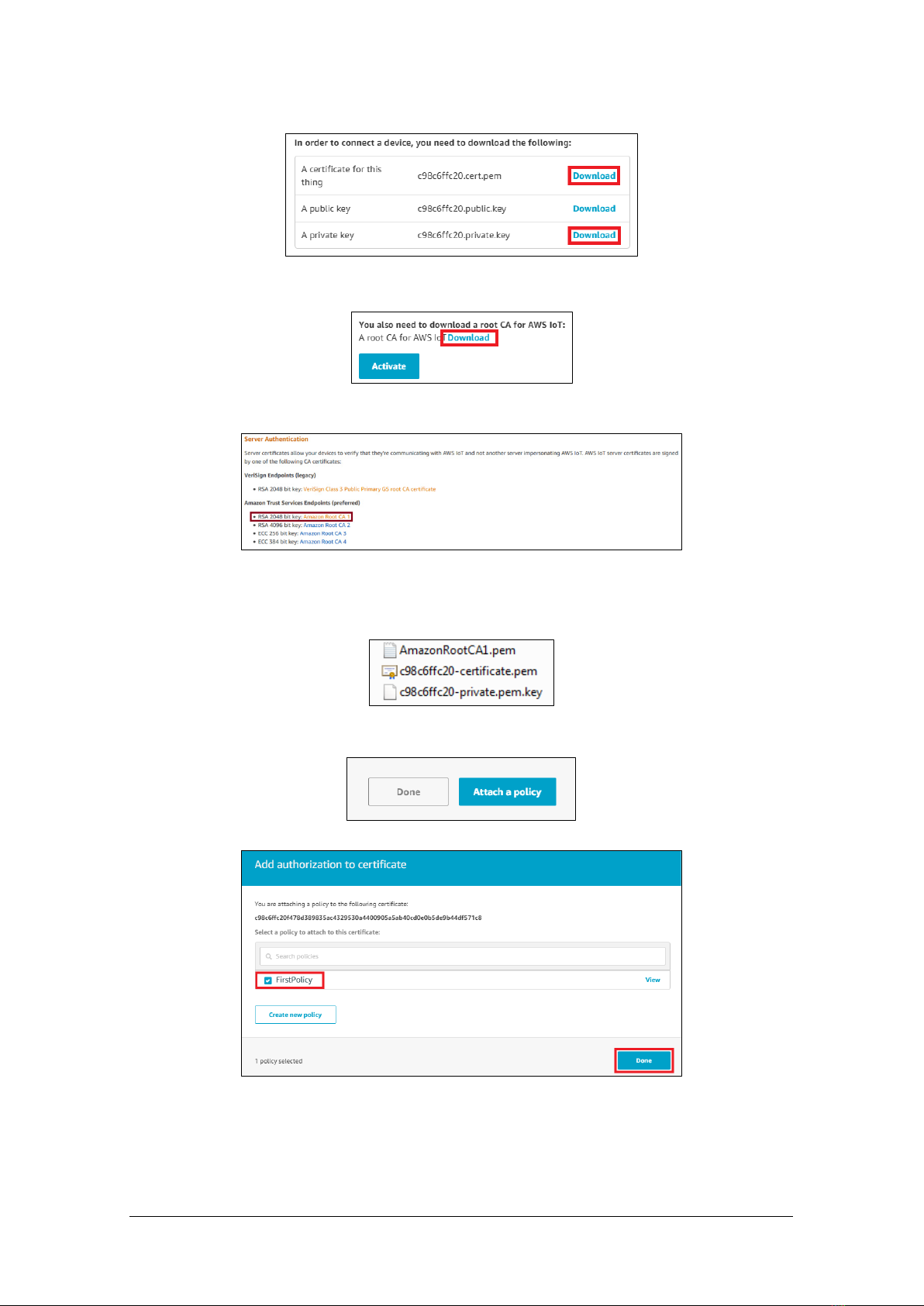

Fig. 06 – Downloads

8. Download the certificate from a root CA.

Fig. 07 – root CA

9. In this new window, click the Amazon Root CA 1 link to download AWS Root CA certificate.

Fig. 08– Root CA 1

10. When you click on the Amazon Root CA1 link, the certificate will be displayed on the webpage in text format. To save it, just

click on Ctrl + S.

For the TLS v1.2 security layer, you must have the 3 certificates, similar to the ones below:

Fig. 09 – Examples

11. Before completing the procedure, click Attach a policy and append the policy created in Step 4.

Fig. 10 – Attach a policy

Fig. 11 – Select a policy

NOVUS AUTOMATION 6/13

12. Check the created certificate, access the list of Actions and click Activate.

Fig. 12– Activate

13. On the side menu, expand the Manage tab and select the Things option. In the next window, click Register a thing.

Fig. 13 – Register a thing

14. In the new tab, click Create a single thing.

Fig. 14 – Create a single thing

15. Name the device in the Name field.

Fig. 15– Name the device

16. Create a device type by clicking the Create a type button.

Fig. 16 – Create a type

NOVUS AUTOMATION 7/13

17. In the new windows, assign a name for the type and click Create a thing type.

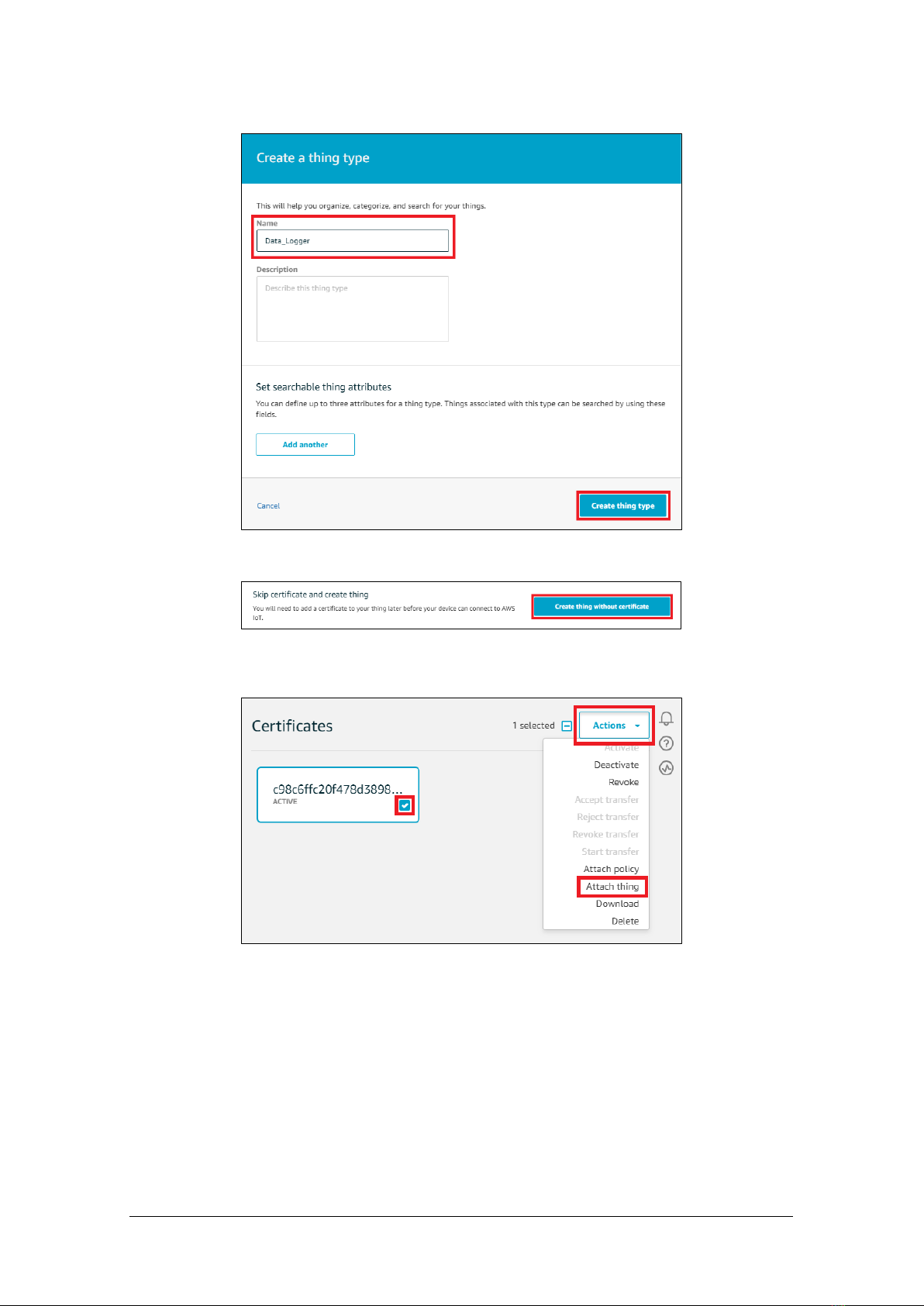

Fig. 17 – Create thing type

18. After create a type, click Next. In the new window, click Create thing without certificate.

Fig. 18 – Create thing without certificate

19. In the side menu, select the Secure tab and access the Certificates option. Check the existing certificate, open the Actions

tab and click Attach thing.

Fig. 19– Attach thing

NOVUS AUTOMATION 8/13

20. In the new window, check the item to be attached and click Attach.

Fig. 20 – Attach things to certificates

21. In the side menu, access the Settings option. Save the AWS account custom endpoint.

Fig. 21 – Custom endpoint

NOVUS AUTOMATION 9/13

22. Run NXperience. Connect LogBox Wi-Fi via USB interface or via Modbus-TCP. Enable the Wi-Fi interface on the Wi-Fi tab

in the Communication NXperience tab. Access the MQTT tab and configure it with the following parameters:

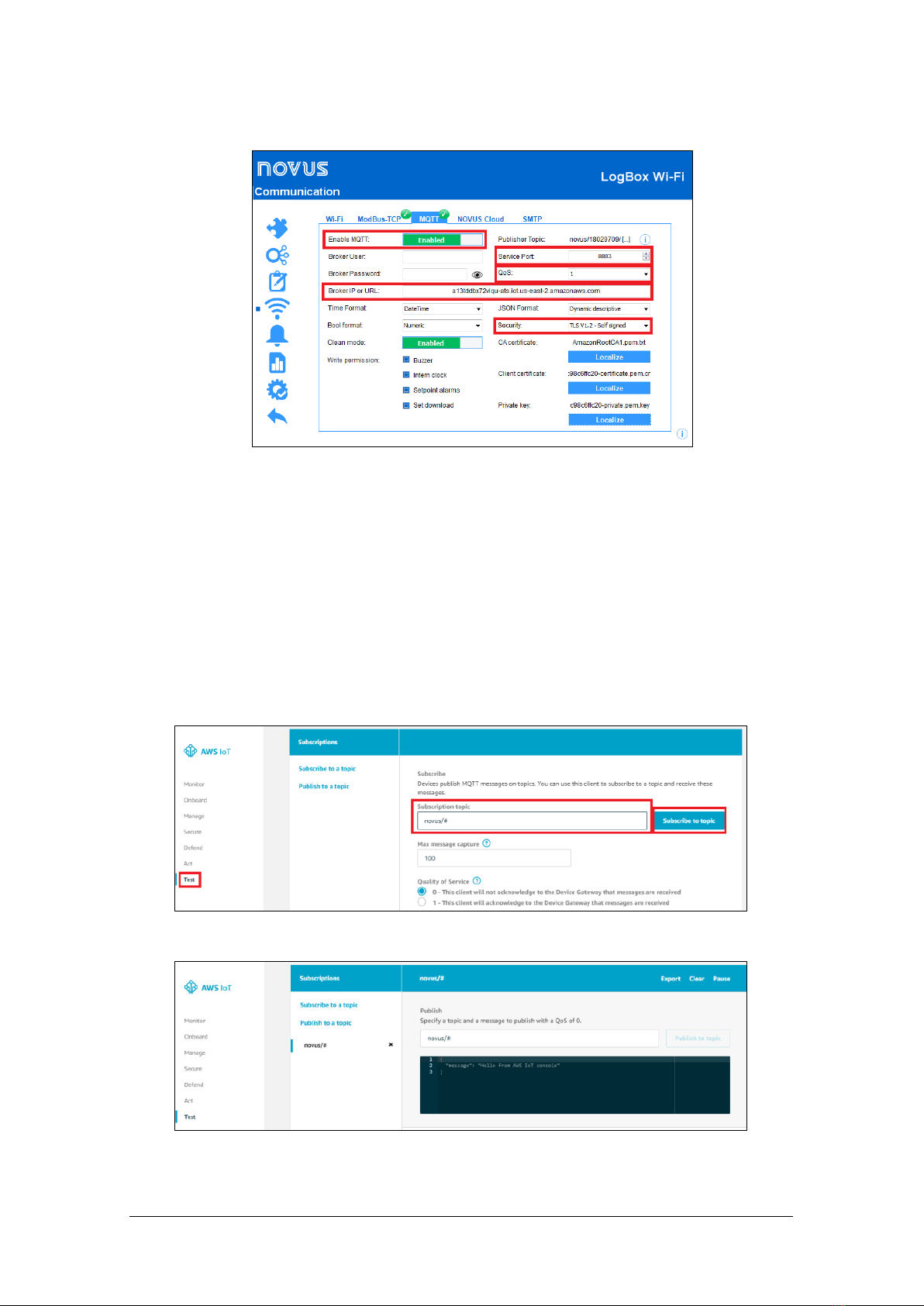

Fig. 22 – Communication

•Enable MQTT: Enable the MQTT protocol.

•Service Port:8883.

•QoS: 1 (AWS does not allow QoS 2).

•Broker IP or URL:Insert Endpoint saved in Step 21. Ex.: a2jsauz3jc3c1e-ats.iot.us-east-2.amazonaws.com.

•Security:TLS V1.2 – Self signed.

•CA Certificate:Load the Amazon Root CA certificate. Ex.: AmazonRootCA1.pem.

•Client Certificate:Load the "thing" certificate. Ex.: 993cb74d0b-certificate.pem.crt.txt.

•Private Key:Load the private key certificate. Ex.: 993cb74d0b-private.pem.key.

23. Send the new configurations to the LogBox Wi-Fi.

24. Return to the AWS console and, in the side menu, select the Test option. In the Subscription topic field, type "novus/#" and

click on Subscribe to topic.

Fig. 23 – Subscription topic

The "novus/#" topic will be as shown in Fig. 24:

Fig. 24 – "novus/#" topic

NOVUS AUTOMATION 10/13

25. Restart the device and wait for the previously programmed data to be sent. This procedure will allow you to observe the data

being delivered to the Broker, as shown in Fig. 25, Fig. 26 and Fig. 27:

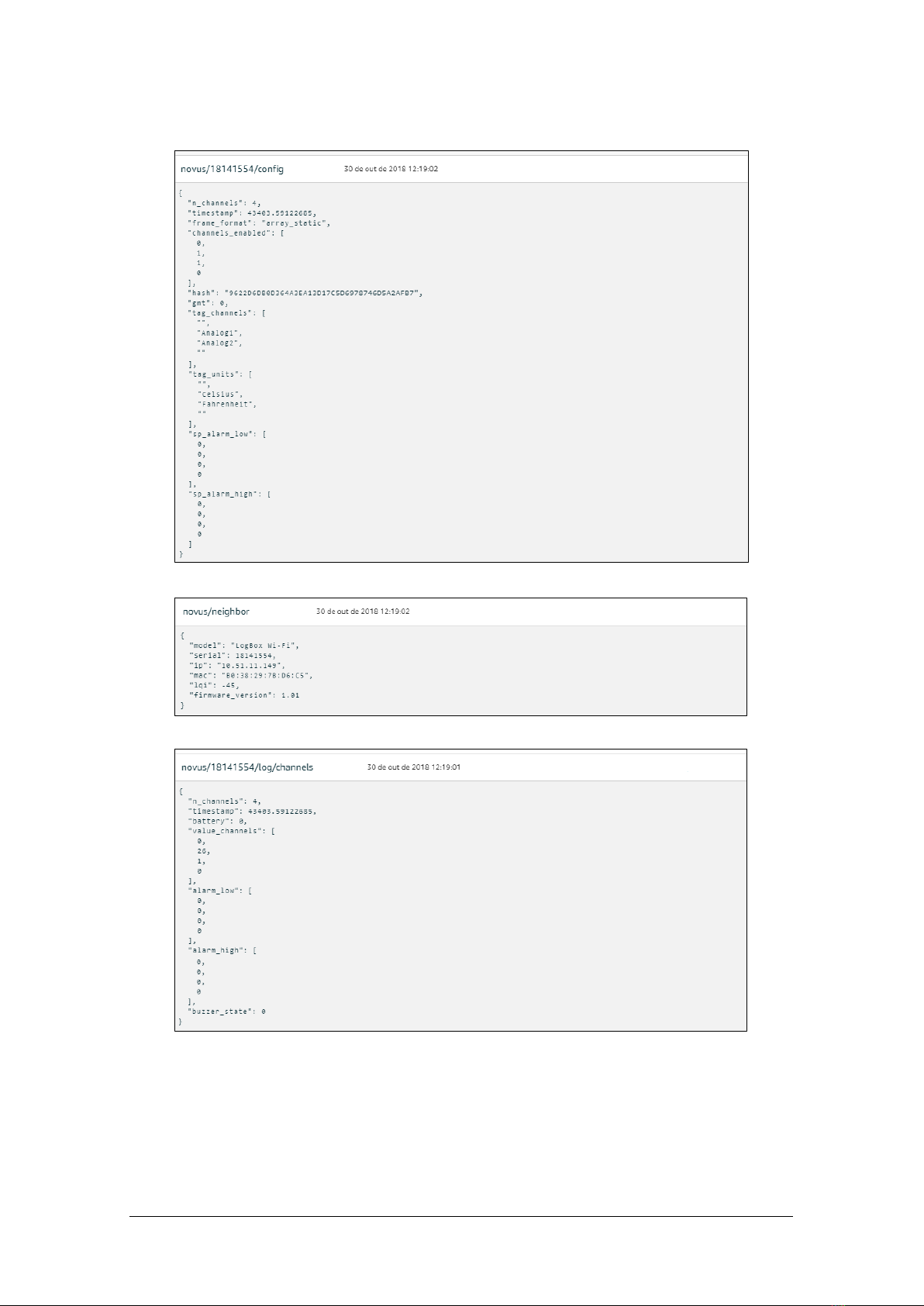

Fig. 25 – /config topic

Fig. 26 – /neighbor topic

Fig. 27 – /log/channels topic
