Novatel PwrPak7 Manuel utilisateur
1
Box Contents
Power Cable USB Cable COM1 Serial Cable
Other Equipment Needed
GNSS Antenna 50Ω Coaxial
Antenna Cable
9-36 VDC
Power Supply
Capable of 15 W
Computer, Tablet or
Smart Phone
PwrPak7®Family
Quick Start Guide
2
Connect and Power the PwrPak7
LOG
GNSS
PWR INS
TRANSFER
COM
PORTS
ANT
+
-
6A fuse
1
3
2

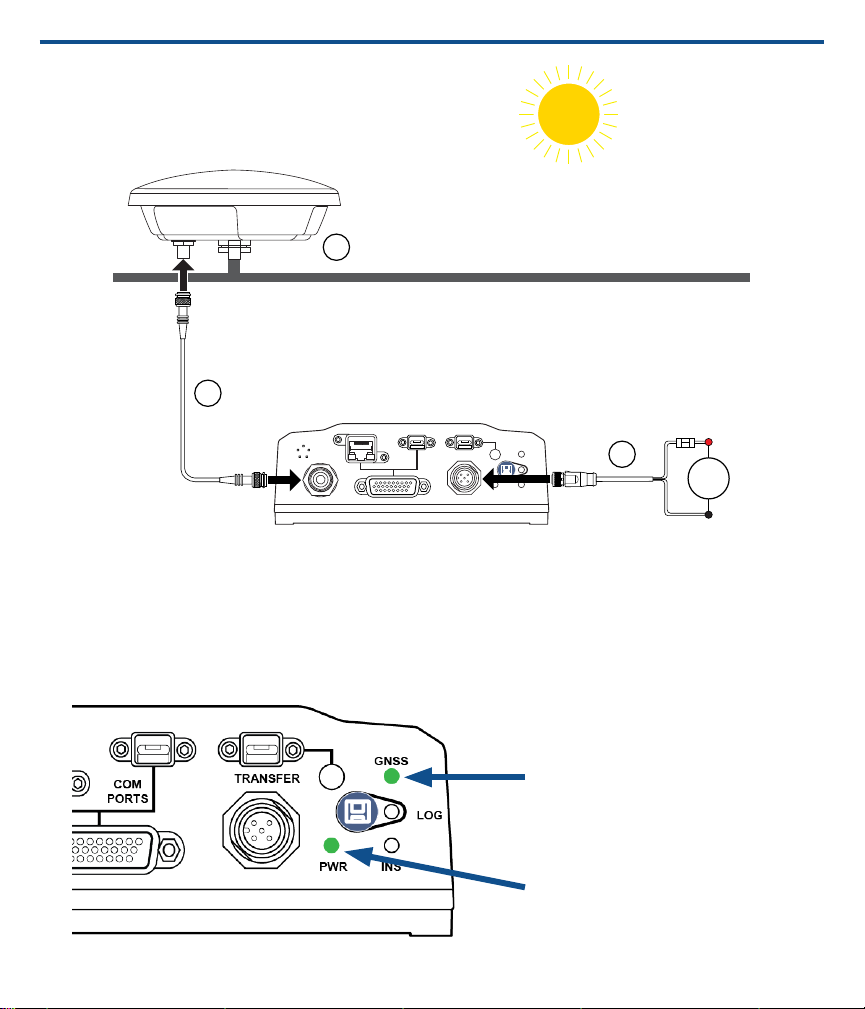

1. Securely mount the GNSS antenna with a clear view of the sky.
2. Connect the GNSS antenna to the PwrPak7.
3. Connect the PwrPak7 to a 9-36 VDC power supply.
4. Check the PWR and GNSS LEDs.
Green: Startup successful
Green (solid or ashing):
Position computed
3
Communications – Web UI (Option 1)

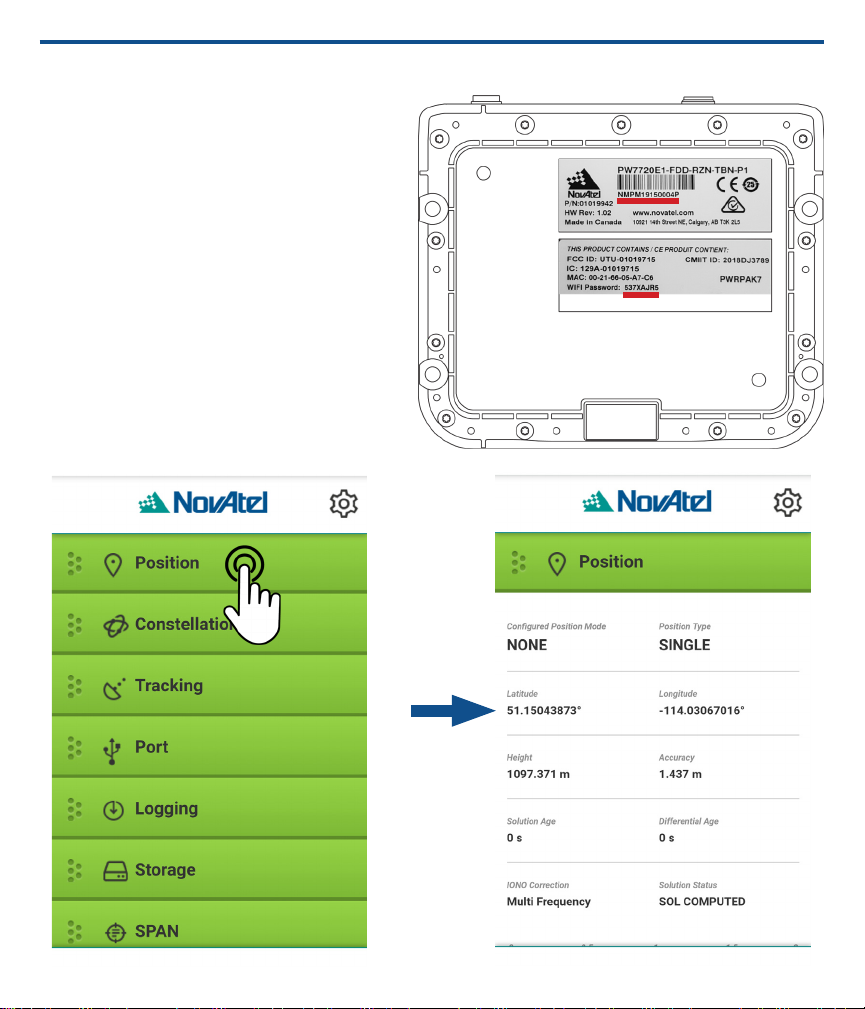

1. Connect your computer, phone or
tablet to the PwrPak7 Wi-Fi hotspot.
(e.g. PwrPak7-NMPM191500004P)
2. Enter the PwrPak7 Wi-Fi Password.
3. Open a web browser and enter
192.168.19.1.
4. Tap the Position button to display
the receiver’s latitude, longitude and
height.
4
Communications – NovAtel Connect (Option 2)
1. Install NovAtel Connect and the USB
drivers on your computer.
(www.novatel.com/novatel-connect)
2. Connect the USB cable from your
computer to the PwrPak7.
3. Launch NovAtel Connect.
4. Double-click one of the USB tiles.
The Position tile displays the
receiver’s latitude, longitude and
height.
Additional Information
For more information and support, refer to docs.novatel.com/OEM7.
