NovaStar NovaPro UHD Manuel utilisateur

NovaPro UHD

All-in-One Controller

Document Version:

V1.0.0

Document Number:

NS160100280

Specifications

http://www.novastar.tech i

No part of this document may be copied, reproduced, extracted or transmitted in any form or by any means

without the prior written consent of Xi’an NovaStar Tech Co., Ltd.

Trademark

is a trademark of Xi’an NovaStar Tech Co., Ltd.

Statement

You are welcome to use the product of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar).

This document is intended to help you understand and use the product. For accuracy and reliability,

NovaStar may make improvements and/or changes to this document at any time and without notice. If you

experience any problems in use or have any suggestions, please contact us via contact information given

in document. We will do our best to solve any issues, as well as evaluate and implement any suggestions.

NovaPro UHD All-in-One Controller

Specifications 1 Overview

www.novastar.tech 1

1 Overview

The NovaPro UHD is a new all-in-one controller developed by NovaStar. By

integrating video processing, video control and LED screen configuration functions

into one controller, this product is capable of receiving a variety of video signals,

processing and sending images of resolutions up to ultra HD 4K×2K@60Hz.

The NovaPro UHD is equipped with industry-standard 4K connectors, and has some

added new functions such as video rotation processing and video transition effects.

With the built-in Master VI smart platform, the NovaPro UHD supports layer creation,

property settings, and screen configuration via simple mouse, keyboard, and monitor

operations.

The NovaPro UHD supports sending of processed video to LED display through

Neutrik Ethernet port or fiber optical connectors. With powerful video processing and

sending capabilities, this product is well suited for high-end rental applications, stage

control systems, and fine-pitch LED displays.

NovaPro UHD All-in-One Controller

Specifications 2 Features

www.novastar.tech 2

2 Features

A variety of input connectors: 4 × 12G-SDI connectors with loop output functions,

1 × HDMI 2.0 with loop output functions, 1 × DP 1.2, and 1 × USB playback port

1 × replaceable input card with four connectors

The input card can be SDI, DVI, HDMI or VGA.

8 × layers, 1 × OSD and 1 × LOGO, and BKG

2 × layers up to 4K×2K, 6 × layers up to 2K×1K

Layers can be scaled.

4K×2K OSD, cropping, transparency adjustment, dynamic/static images and

texts supported

OSD can be placed at any position.

Layer transparency adjustment, irregular layers, layer mask, and layer

overlapping and layer flipping supported

Layer priority adjustment by z-order

Up to 8K display width or height of a single device

Playback of programs stored in USB drive

MultiViewer monitoring settings, including monitoring of input sources, PVW,

PGM, or mixed preview

Sending the preview content to a monitor through wired network

16 × Neutrik Ethernet outputs, 4 × 10G fiber optical outputs with copy and hot

backup modes

Quick and advanced screen configurations

With the built-in smart platform Master VI, LED screen configuration, layer

configuration and video playback can be easily performed via the connected

mouse, keyboard and monitor.

10-bit processing of the input source

HDR function to make images finer and smoother

Powerful image processing capability to realize low latency from input to output

3D sending card function supported with an external emitter

Remote data transmission via a Gigabit Ethernet port or fiber optical connector

NovaPro UHD All-in-One Controller

Specifications 3 Appearance

www.novastar.tech 3

3 Appearance

Front Panel

Button Function

ON/OFF button This is the power button of the device.

Press it to power on the device.

Hold it down to power off or restart the device.

Layer buttons These are the shortcut buttons for layer operations.

Press a button to quickly create a layer.

Blue: The layer is open, and the input source is accessed

normally.

White: The layer is open, but the input source is not accessed.

Off: The layer is not added.

When a layer is opened, hold down the layer button to close the

layer.

Input source

Indicate the status of the input source.

NovaPro UHD All-in-One Controller

Specifications 3 Appearance

www.novastar.tech 4

selection buttons

Press a button to quickly select an input source.

Blue: The input source is accessed and in normal use.

White: The input source is accessed but not in use.

Off: The input source is not accessed or used.

When the indicators of the buttons with numbers are blue, these

buttons can be used to enter numbers.

TFT screen Display current device status and settings menu.

Knob On the home screen, press the knob to enter the operation

menu screen.

On the operation menu screen, rotate the knob to select a menu

item, and press the knob to confirm the selection or enter the

submenu.

When a menu item with parameters is selected, rotate the knob

to adjust the parameters. Please note that after adjustment, you

need to press the knob again to confirm the adjustment.

Function buttons Navigation button: Hold it down to enter or exit quick navigation

screen. By rotating the knob, you can quickly get started with

NovaPro UHD.

FTB: Set LED to black screen.

LOGO: Enter LOGO settings menu.

PRESET: Enter preset menu.

FREEZE: Freeze the PGM screen.

OSD: Enter OSD settings menu.

FN: Custom function button

TEST: Enter test pattern menu.

BKG: Enter BKG settings menu.

TAKE: Press the button to switch PVW to PGM with the

transition effect set previously. A total of 13 transition effects are

supported.

SHIFT: A modifier button for reserved functions

CUT: Press the button to switch PVW directly to PGM.

ESC button Press the button to exit the current menu or cancel the operation.

USB ports Insert a USB drive to play media or perform system upgrade.

Connect a mouse or keyboard.

NovaPro UHD All-in-One Controller

Specifications 3 Appearance

www.novastar.tech 5

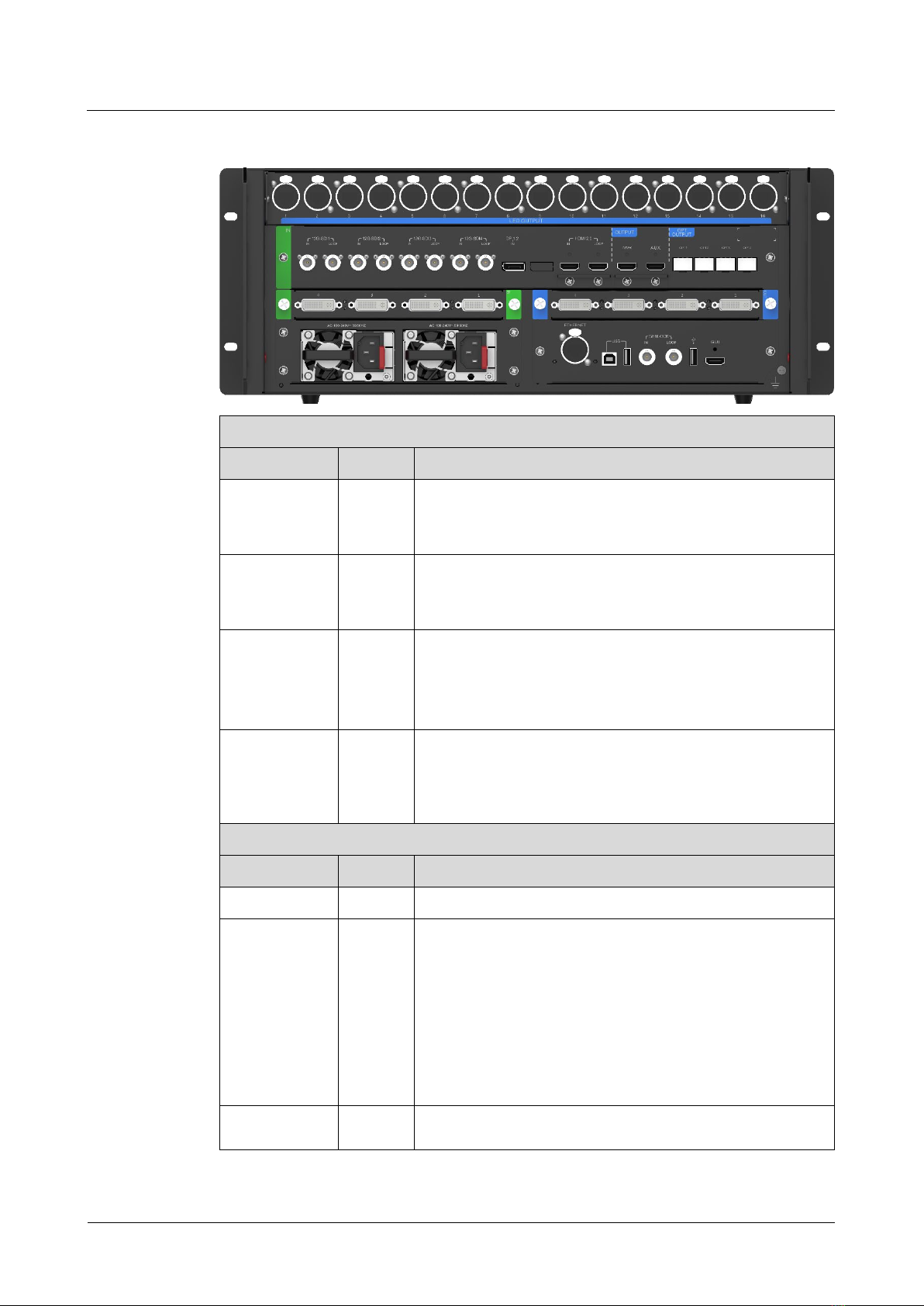

Rear Panel

Input

Connector Quantity Description

12G-SDI 4 Input resolution up to 4K×2K@60Hz and downward

compatible

12G-SDI loop output

DP 1.2 1 Input resolution up to 4K×2K@60Hz (8K×1K@60Hz) and

downward compatible

HDCP 1.3

HDMI 2.0 1 Input resolution up to 4K×2K@60Hz (8K×1K@60Hz) and

downward compatible

HDCP 1.4 and HDCP 2.2

HDMI 2.0 loop output

DVI 4 Plug-in design for connecting different input cards

according to users' needs

HDMI input cards, SDI input cards are supported. The

default option is DVI input card.

Output

Connector Quantity Description

Ethernet port 16 Neutrik Gigabit Ethernet outputs

OPT 1–OPT 4 4 4 × 10G fiber optical output connectors with copy and hot

backup modes

OPT 1 transmits data of Ethernet ports 1–8.

OPT 2 transmits data of Ethernet ports 9–16.

OPT 3 is the copy/hot backup channel for OPT 1 or

Ethernet ports 1–8.

OPT 4 is the copy/hot backup channel for OPT 2 or

Ethernet ports 9–16.

MVR 1 HDMI 1.4 connector, used as monitoring connector of

MultiViewer to monitor input source, PVM, PGM or

NovaPro UHD All-in-One Controller

Specifications 3 Appearance

www.novastar.tech 6

perform mixed preview

AUX 1 HDMI 1.4 connector, used as auxiliary output connector

for connecting an auxiliary device, such as a teleprompter

Control

Connector Quantity Description

ETHERNET 1 Connect to the PC for communication or connect to the

network.

USB 1 USB-B:

Connect to the PC for device debugging.

Used as input for cascading devices

USB-A:

Used as output for cascading devices

GENLOCK IN-

LOOP

1 Connect a synchronization signal source to synchronize

the cascaded devices.

1 Insert a USB drive to play media or perform system

update.

Connect a mouse or keyboard.

GUI 1 Connect to a monitor for human-machine interaction.

NovaPro UHD All-in-One Controller

Specifications 4 Dimensions

www.novastar.tech 7

4 Dimensions

Unit: mm

NovaPro UHD All-in-One Controller

Specifications 5 Applications

www.novastar.tech 8

5 Applications
