Quick Start Guide Seasam
with ORPHIE Camera
December 2022
Content
I - ORPHIE CAMERA INSTALLATION
●Installation of the Orphie Camera
II - STARTING UP
●Connecting the battery
●Connecting the WiFi Reel to the drone
●Starting up the equipment
●Connecting to the WiFi Reel
○Delivery after September 2021
○Delivery before September 2021
●Choice of configuration
●Checking the connections
●Get both video feedback
III - USING SEASAM WITH THE ORPHIE CAMERA
●Using the Orphie Camera
●Videos of the Orphie Camera
●At the end of the exploration
I - ORPHIE
CAMERA
INSTALLATION
Installation of the Orphie Camera
I - ORPHIE CAMERA INSTALLATION
Required Equipment
●Drone
●Sensor Network
●Structure with Orphie Camera
4
Secure the plugs of the connectors together to prevent them
from catching on anything else during operation
Connect the Orphie camera to the Sensor Network by
connecting the camera cable to the Sensor Network connector
The battery must not be connected to the drone during this step.
5
I - ORPHIE CAMERA INSTALLATION
Installation of the Orphie Camera
Make sure the structure is properly
secured to the drone to prevent it from
moving during operation.
Place the structure on the drone
●Engage the structure on the 2 ball joints of the drone.
●Lower the front of the frame onto the drone.
●Press the red button on the front of the structure
●Engage the structure on the clip previously installed on the drone
6
I - ORPHIE CAMERA INSTALLATION
Installation of the Orphie Camera
The battery must not be connected to the drone during this step.
II - STARTING UP
THE DRONE
Connecting the battery
Make sure the battery compartment is properly closed.
Use the dedicated tool.
Ensure that the emergency stop on the underside of the drone is
properly inserted.
Make sure that the safety guide is aligned in the right direction
II - STARTING UP THE DRONE
8
Turn the drone over and place it on the structure.
Be careful not to damage the camera.

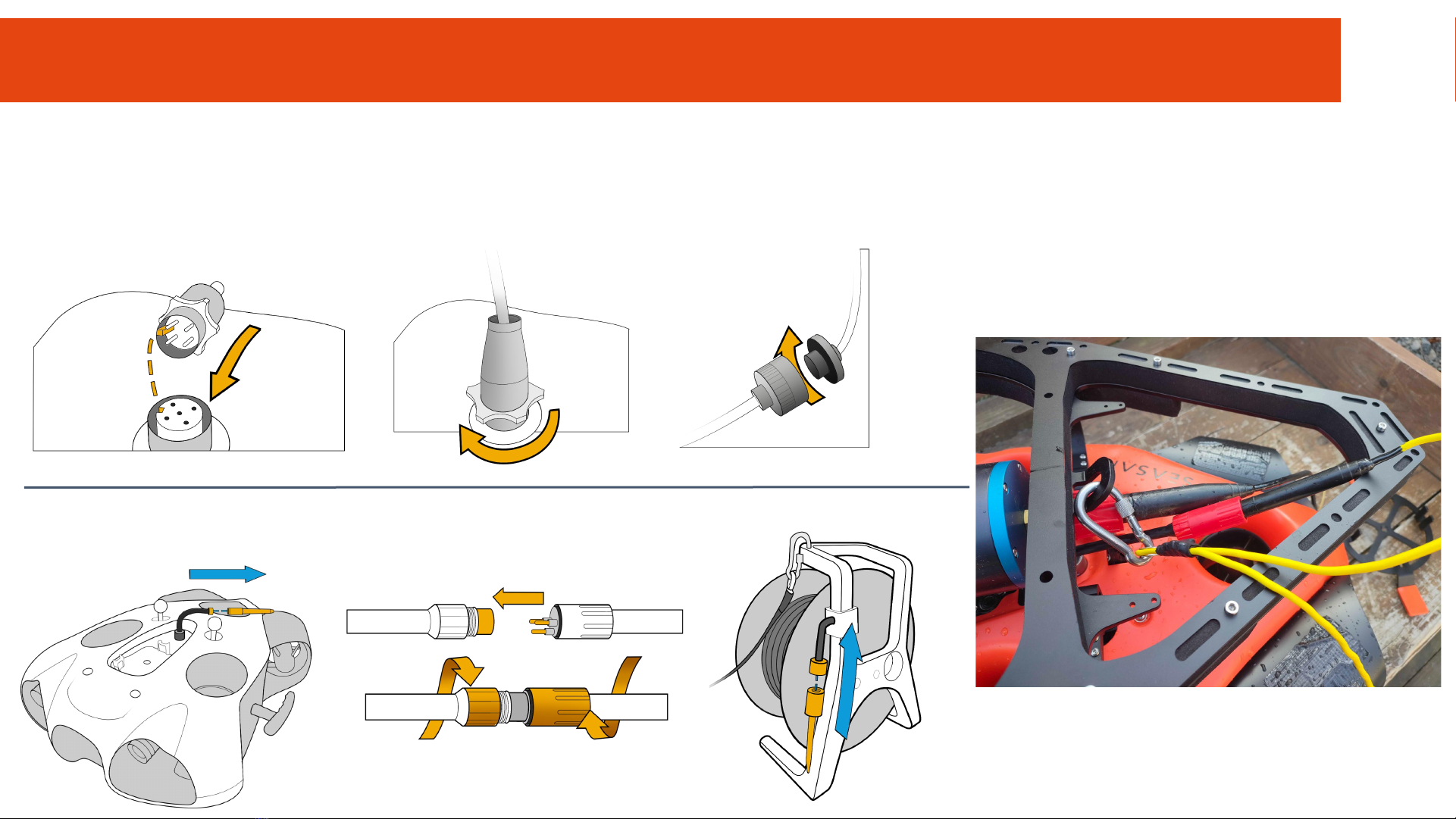

Connecting the WiFi reel to the drone
Attach and lock the carabiner on the
structure to secure the Drone
Standard Connector
Subconn Connector
II - STARTING UP THE DRONE
9
Starting up the equipment
Press the "On" button once. After
several seconds the LED flashes
quickly blue
Place the magnet on the "Power" icon on top of the drone.
The drone will turn on and test all its components. It will make
sounds and activate its lights.
Make sure that nothing is in the way and that the motors are
not jammed.
When this process is complete, the green front LED will be solid.
Turn on the controller.
II - STARTING UP THE DRONE
10
