Nortel IP Phone 2001 Manuel utilisateur

Carrier VoIP

Nortel IP Phone 2001 User Guide

(CICM)

Release: CICM 10.1

Document Revision: 09.01

www.nortel.com

NN10300-005

Carrier VoIP

Release: CICM 10.1

Publication: NN10300-005

Document status: Standard

Document release date: 4 July 2008

Printed in Canada, the United States of America, and the United Kingdom

LEGAL NOTICE

While the information in this document is believed to be accurate and reliable, except as otherwise expressly

agreed to in writing NORTEL PROVIDES THIS DOCUMENT "AS IS" WITHOUT WARRANTY OR CONDITION OF

ANY KIND, EITHER EXPRESS OR IMPLIED. The information and/or products described in this document are

subject to change without notice.

Nortel, the Nortel logo, Business Made Simple and the Globemark are trademarks of Nortel.

All other trademarks are the property of their respective owners.

Contents

New in this release 7

Features 7

Other changes 7

Overview 9

Basic features 9

Terminal display 10

IP Phone 2001 menu systems 11

Call Services menu 13

Settings menu 13

Regional menu 13

User menu 14

Terminal menu 14

Call menu 14

Softkey Status 14

Connecting the IP Phone 2001 components 15

Logging on 17

Logging off 19

Making calls 21

Making a call using off-hook dialing 21

Making a call using hands-free dialing 21

Make a call using predial 22

Editing a predialed number 22

Answering a call 25

Terminating a call 27

Navigating the menu system 29

Navigating the Main menu 29

Navigating the Call Services menu 30

Navigating the Settings menu 30

Navigating the Regional menu 31

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008

Navigating the User menu 31

Navigating the Terminal menu 32

Navigating the Call menu 32

Navigating the Feature menu 33

Navigating the Directory menu 34

Using the Call Services menu 35

Activating a feature from the menu 35

Using a soft key to activate a feature 36

Assigning a feature to a soft key 36

Removing a feature assignment from a soft key 37

Resetting soft keys to the default 37

Viewing soft key assignments 38

Displaying soft key labels while on a call 38

Hiding soft key labels 39

Viewing feature profiles 39

Labeling soft keys 40

Using the Regional menu 41

Selecting the language 41

Selecting the time zone 42

Enabling Daylight Saving time 42

Disabling Daylight Saving time 43

Defining the time format 44

Defining the date format 45

Resetting the default time 46

Using the User menu 47

Viewing your user name 47

Viewing your login type 47

Viewing, disabling, or enabling Auto Login 48

Changing your password 49

Using the Terminal menu 51

Viewing and editing your audio profile 51

Viewing and editing the default volume 52

Adjusting the contrast level of the display 53

Performing a firmware upgrade 54

Viewing and editing the dialpad feedback 55

Call menu 57

Accessing the Feature menu 57

Resetting the Inbox or Outbox 57

Resetting soft keys to the defaults 58

Using the Feature menu 61

Using the Assign menu 61

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008

Defining the Key type 62

Enabling or disabling AutoScroll 63

Resetting the feature keys to the defaults 63

Labeling a feature 64

Using the Options menu 65

Enabling or disabling Auto Hide 65

Defining your default feature 66

Assigning the Outbox to a key 66

Using the Directory menu 69

Adding an entry to the directory 69

Editing a directory entry 70

Deleting an entry from the directory 71

Making a call using the directory 72

Using the Inbox 73

Accessing the Inbox 73

Viewing Inbox call information 74

Storing a number from the Inbox 74

Using the Inbox to make a call 75

Using the Outbox 77

Accessing the Outbox 77

Viewing Outbox call information 78

Storing a number from the Outbox 78

Using the Outbox to make a call 79

Call Services 81

Call Services menu 81

Feature profiles 81

Soft key assignment 82

Examples of feature to soft key mapping 83

Mute feature 87

Inbox 89

Outbox 91

Using the dialpad to enter text 93

Use the IP Phone 2001 with the IP Softphone m6350 95

Access Code summary 97

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008

New in this release

Features There were no feature changes made to this document.

Other changes

There were no other changes made to this document.

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008

8New in this release

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008

Overview

The IP Phone 2001 brings voice and data to the desktop by connecting

directly to a Local Area Network (LAN) through an Ethernet connection.

Basic features

The IP Phone 2001 supports these features:

•four soft keys

•multifield LCD screen

•speaker for on-hook dialing or on-hook listening

•volume control bar for adjusting ringer, speaker and handset volume

•two specialized fixed keys:

— Services

— Inbox

•three Call processing fixed keys:

— Line

— Hold

— Goodbye

•Automatic network configuration

Not all features are available on all telephones. Consult your system

administrator to verify which features are available to you.

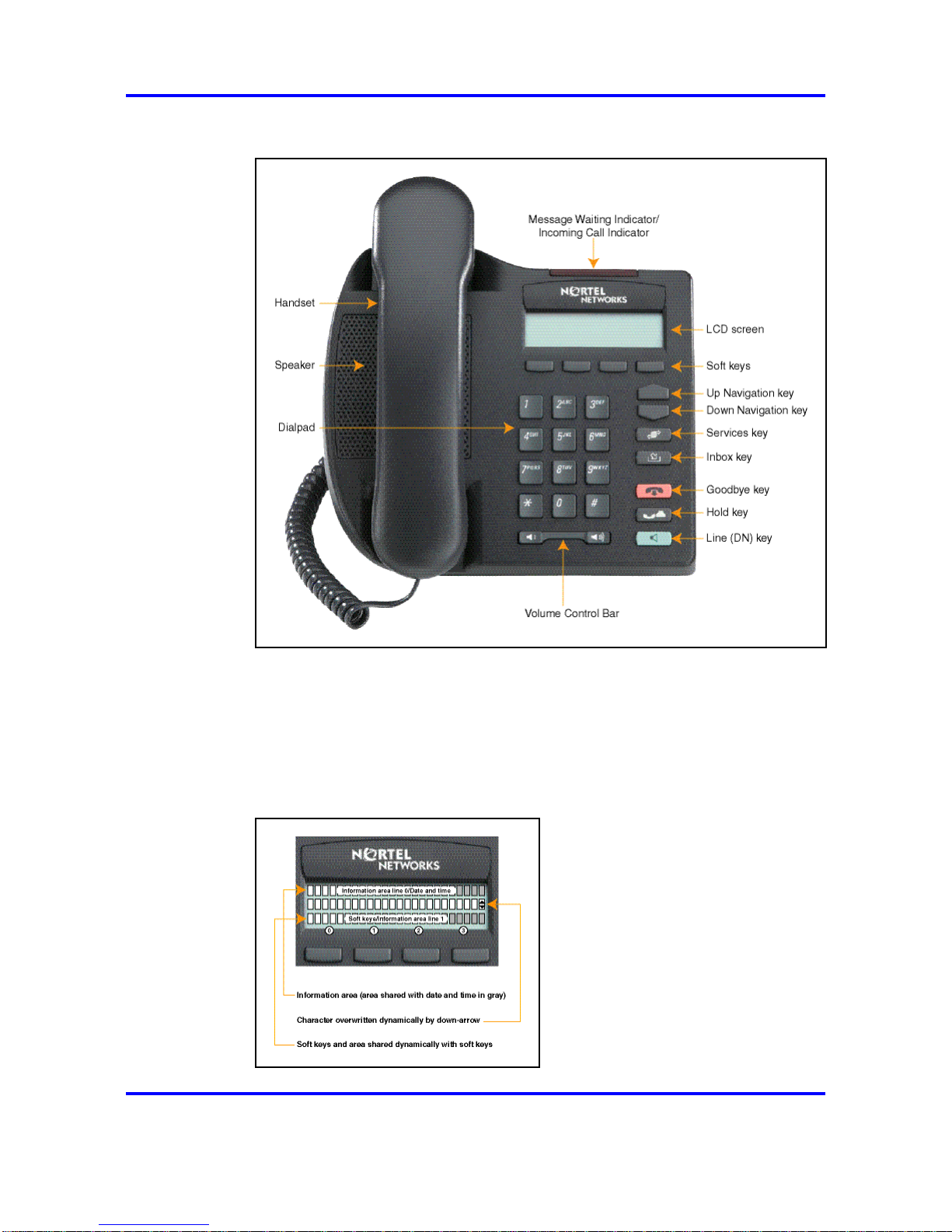

Figure 1 "IP Phone 2001 " (page 10) , shows the location of the keys and

the components of the IP Phone 2001.

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008

10 Overview

Figure 1

IP Phone 2001

Terminal display

Figure 2 "IP Phone 2001 display" (page 10) , describes the IP Phone 2001

display areas.

Figure 2

IP Phone 2001 display

Carrier VoIP

Nortel IP Phone 2001 User Guide (CICM)

NN10300-005 09.01 Standard

4 July 2008
