NordicTrack T7.3 Treadmill Manuel utilisateur

7.3

CAUT ON

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number

Decal

Model No. NCTL17810.0

Serial No.

Write the serial number in the space

above for reference.

QUEST ONS?

If you have questions, or if parts

are damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERV CE DEPARTMENT

D RECTLY.

CALL TOLL-FREE:

1-888-936-4266

Mon.–Fri., 7:30 until 16:30 ET

(excluding holidays)

OR E-MA L US:

customerservice@iconcanada.ca

USER'S MANUAL

www.nordictrack.com

TABLE OF CONTENTS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS .................................................................3

BEFOREYOUBEGIN .......................................................................5

ASSEMBLY ...............................................................................6

OPERATIONANDADJUSTMENT ............................................................13

OWTOFOLDANDMOVET ETREADMILL ..................................................27

TROUBLES OOTING ......................................................................29

EXERCISEGUIDELINES ...................................................................32

PARTLIST ...............................................................................34

EXPLODEDDRAWING .....................................................................36

ORDERINGREPLACEMENTPARTS ..................................................BackCover

LIMITEDWARRANTY...............................................................BackCover

NordicTrack is a registered trademark of ICON IP, Inc.

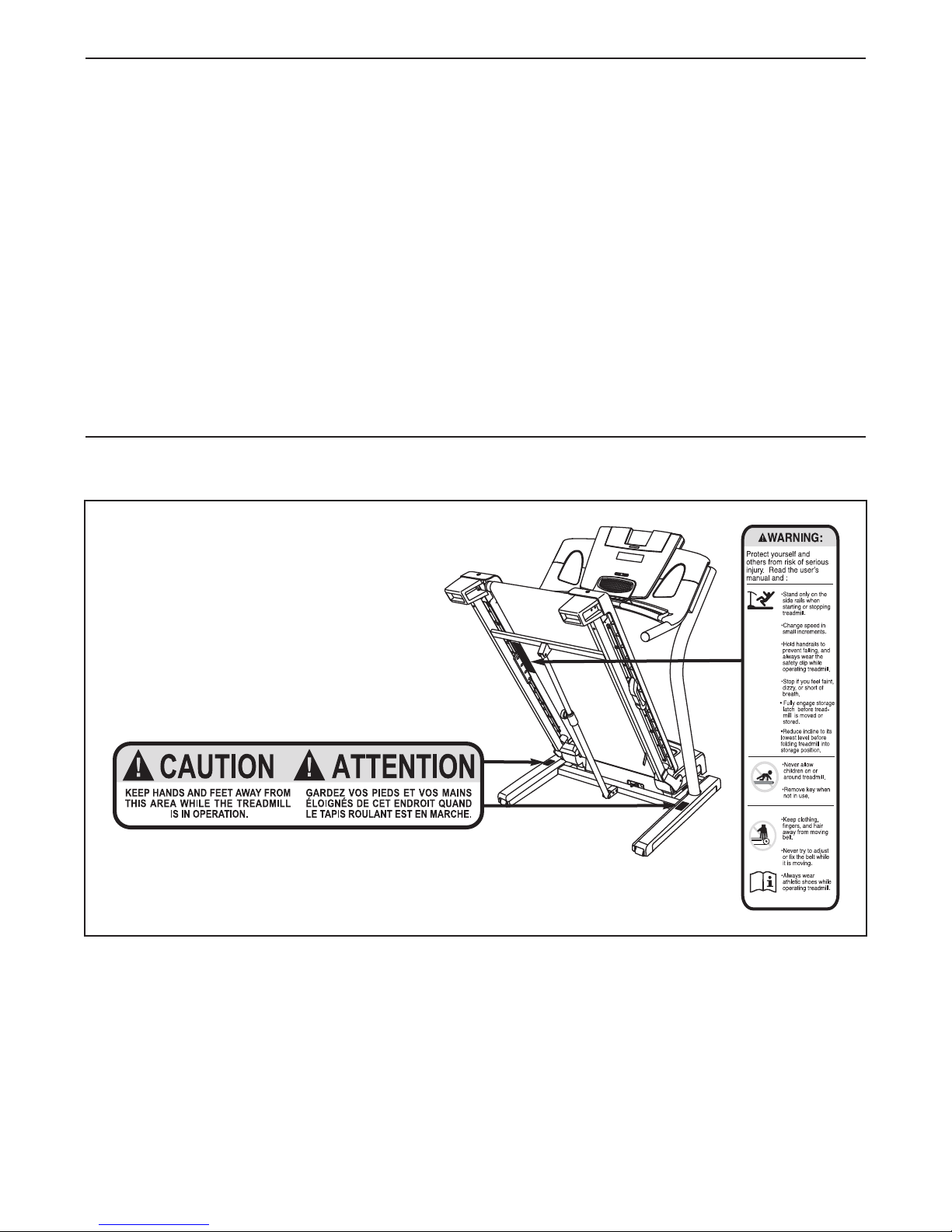

This drawing shows the locations of the

warning decals. f a decal is missing or il-

legible, call the telephone number on the

front cover of this manual and request a

free replacement decal. Apply the decal

in the location shown. Note: The decals

may not be shown at actual size.

WARN NG DECAL PLACEMENT

1. Before beginning this or any exercise pro-

gram, consult your physician. This is espe-

cially important for persons over age 35 or

persons with pre-existing health problems.

2. t is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Place the treadmill on a level surface, with at

least 8 ft. (2.4 m) of clearance behind it and 2

ft. (0.6 m) on each side. Do not place the

treadmill on any surface that blocks air open-

ings. To protect the floor or carpet from dam-

age, place a mat under the treadmill.

5. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

6. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by per-

sons weighing 325 lbs. (147 kg) or less.

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose

clothes that could become caught in the

treadmill. Athletic support clothes are recom-

mended for both men and women. Always

wear athletic shoes. Never use the treadmill

with bare feet, wearing only stockings, or in

sandals.

11. When connecting the power cord (see page

13), plug the power cord into a surge suppres-

sor (not included) and plug the surge sup-

pressor into a grounded circuit capable of

carrying 15 or more amps. No other appliance

should be on the same circuit. Do not use an

extension cord.

12. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 13. To purchase a surge suppressor call

the telephone number on the front cover of

this manual.

13. Failure to use a properly functioning surge

suppressor could result in damage to the con-

trol system of the treadmill. f the control sys-

tem is damaged, the walking belt may slow,

accelerate, or stop unexpectedly, which may

result in a fall and serious injury.

14. Keep the power cord and the surge suppres-

sor away from heated surfaces.

15. Never move the walking belt while the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

TROUBLESHOOT NG on page 29 if the tread-

mill is not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 15).

17. Never start the treadmill while you are stand-

ing on the walking belt. Always hold the

handrails while using the treadmill.

WARN NG: To reduce the risk of serious injury, read all important precautions and in-

structions in this manual and all warnings on your treadmill before using your treadmill. CON as-

sumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

MPORTANT PRECAUT ONS

18. The treadmill is capable of high speeds.

Adjust the speed in small increments to

avoid sudden jumps in speed.

19. The pulse sensor is not a medical device.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

20. Never leave the treadmill unattended while it

is running. Always remove the key, unplug

the power cord, and press the power switch

into the off position when the treadmill is not

in use. (See the drawing on page 5 for the lo-

cation of the power switch.)

21. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADM LL on page 27.) You

must be able to safely lift 45 lbs. (20 kg) to

raise, lower, or move the treadmill.

22. Do not change the incline of the treadmill by

placing objects under the treadmill.

23. When folding or moving the treadmill, make

sure that the storage latch is holding the

frame securely in the storage position.

24. nspect and properly tighten all parts of the

treadmill regularly.

25. Never insert or drop any object into any

opening on the treadmill.

26. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing

other than the procedures in this manual

should be performed by an authorized service

representative only.

27. The treadmill is intended for in-home use

only. Do not use the treadmill in any commer-

cial, rental, or institutional setting.

28. Over exercising may result in serious injury

or death. f you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

SAVE THESE NSTRUCT ONS

Thank you for selecting the revolutionary NordicTrack®

T7.3 treadmill. The T7.3 treadmill offers a selection of

features designed to make your workouts at home

more enjoyable and effective. And when youʼre not ex-

ercising, the unique treadmill can be folded up, requir-

ing less than half the floor space of other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have questions after read-

ing this manual, please see the front cover of this man-

ual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEG N

andrail

Console

Fan

Key/Clip

Power Switch

Walking Belt

Foot Rail

Power Cord

Platform Cushion

Wheel

Idler Roller

Adjustment Bolts

Accessory Tray

Pulse Sensor

ASSEMBLY

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking

belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of

the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-

cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

Assembly requires the included hex keys and your own Phillips screwdriver and

adjustable wrench .

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is

the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses

is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-

aging parts, do not use power tools for assembly. Extra hardware may be included.

#8 x 3/4"

Screw (1)–12

#10 Star

Washer (3)–2 5/16" Star

Washer (4)–4

3/8" Nut (5)–5

#8 x 5/8"

Screw (7)–8

#8 x 1" Tek

Screw (8)–6

3/8" Star

Washer (18)–4

#8 x 1/2" Ground

Screw (16)–1

Base Foot

Spacer (87)–6

3/8" x 2" Bolt (2)–3

3/8" x 2 3/4" Bolt (6)–2

3/8" x 2 3/8" Bolt (10)–4

#10 x 1/2"

Bolt (11)–2

5/16" x 4" Bolt (12)–4

2. Attach a Wheel (92) to the indicated Extension

Leg (90) with a 3/8" x 2 3/4" Bolt (6) and a 3/8"

Nut (5). Do not overtighten the Nut; the

Wheel must turn freely.

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip

the treadmill onto its side as shown. Partially

fold the Frame (54) so the treadmill is more sta-

ble. Do not fully fold the Frame until the

treadmill is completely assembled.

Attach six Base Feet (88) and six Base Foot

Spacers (87) to the Base (85) and the Extension

Legs (90) in the locations shown with six #8 x 1"

Tek Screws (8). Do not overtighten the Tek

Screws.

87 8

878

3. Identify the Right Upright (112), which is marked

with a sticker. ave a second person hold the

Right Upright near the Base (85) as shown.

Slide the Right Base Cover (119) onto the end

of the Right Upright.

See the inset drawing. Tie the wire tie in the

Right Upright (112) securely around the end of

the Wire arness (79). Then, pull the other end

of the wire tie until the Wire arness is routed

completely through the Right Upright.

119

Wire

Tie

4. ave a second person hold the Right Upright

(112) against the Base (85), with the bend in the

Right Upright positioned as shown. Be careful

not to pinch the Wire Harness (79).

Attach the Right Upright (112) to the Base (85)

with two 3/8" x 2 3/8" Bolts (10) and two 3/8"

Star Washers (18); do not fully tighten the

Bolts yet.

Bend

112 79

5. Slide the Right Base Cover (119) over the Base

(85). Attach the Right Base Cover with three #8

x 3/4" Screws (1). Do not overtighten the

Screws.

119

112

Wire Tie

112

6. With the help of a second person, carefully tip

the treadmill onto its side as shown. Partially

fold the Frame (54) so the treadmill is more sta-

ble. Do not fully fold the Frame until the

treadmill is completely assembled.

ave a second person hold the Left Upright

(111) against the Base (85), with the bend in the

Left Upright positioned as shown. Slide the Left

Base Cover (118) onto the end of the Left

Upright.

Attach the Left Upright (111) to the Base (85)

with two 3/8" x 2 3/8" Bolts (10) and two 3/8"

Star Washers (18); do not fully tighten the

Bolts yet.

Attach a Wheel (92) to the indicated Extension

Leg (90) with a 3/8" x 2 3/4" Bolt (6) and a 3/8"

Nut (5). Do not overtighten the Nut; the

Wheel must turn freely.

118

111

Bend

8. Set the console assembly face down on a soft

surface to avoid scratching the console assem-

bly.

Identify the Left Accessory Tray (93) and the

Right Accessory Tray (94), which are marked

with an "L" and an "R" on the bottom.

Attach the Left and Right Accessory Trays (93,

94) to the console assembly with eight #8 x 5/8"

Screws (7). Do not overtighten the Screws.

Console

Assembly

894 7

7. Slide the Left Base Cover (118) over the Base

(85). Attach the Left Base Cover with three #8 x

3/4" Screws (1). Do not overtighten the

Screws.

With the help of a second person, tip the tread-

mill so that the Base (85) is flat on the floor.

118

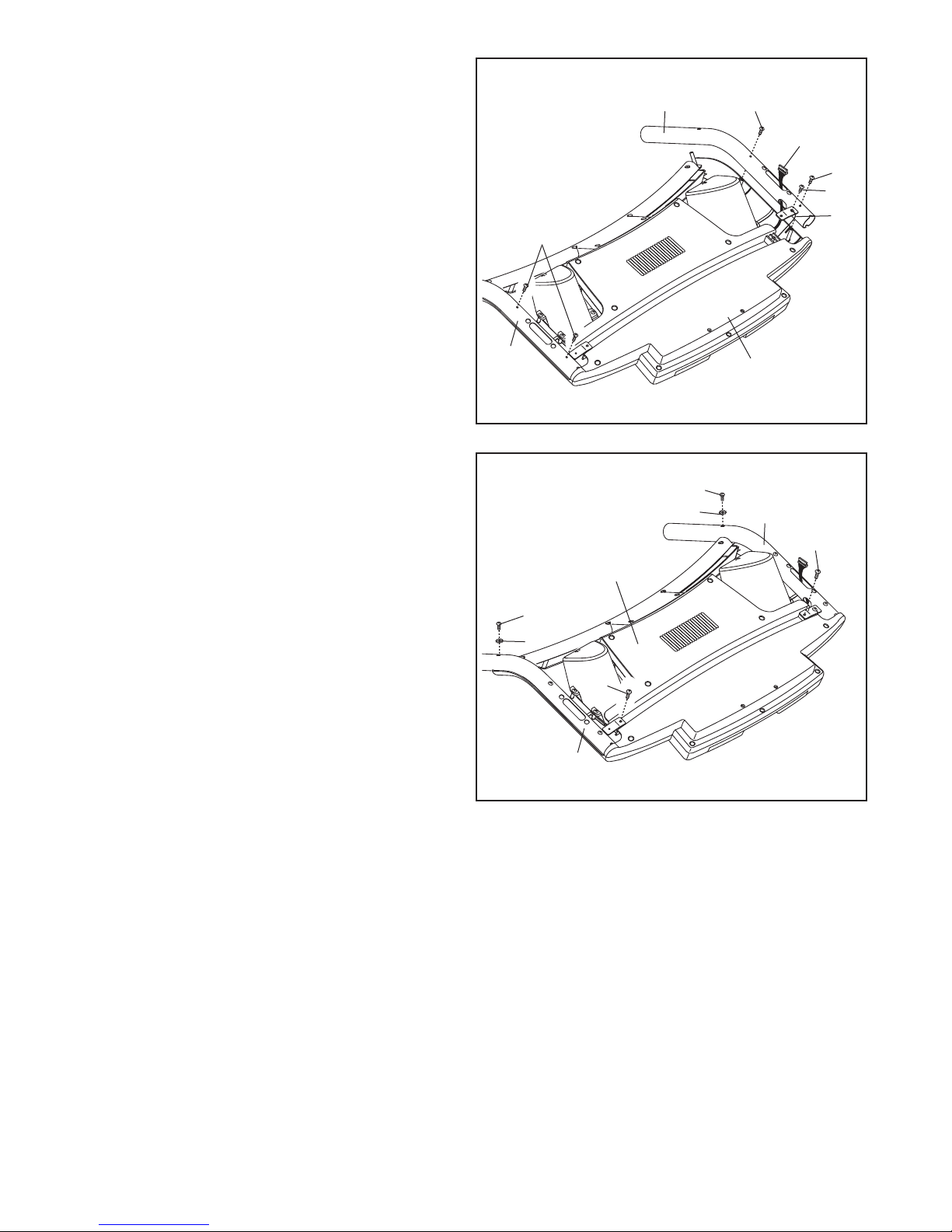

9. old the Right andrail (107), which is labeled

with a sticker, near the console assembly. Insert

the console wire into the hole in the side of the

Right andrail.

Attach the Console Ground Wire (102) to the

bracket on the Right andrail (107) with the #8 x

1/2" Ground Screw (16).

Set the andrails (106, 107) on the console as-

sembly. Start four #8 x 3/4" Screws (1) into the

andrail; do not fully tighten the Screws yet.

Be careful not to pinch the console wire.

Console

Assembly

Console

Wire

107

106

10. Partially tighten two #8 x 3/4" Screws (1) into

the Left and Right andrails (106, 107); do not

fully tighten the Screws yet.

Tighten two #10 x 1/2" Bolts (11) with two #10

Star Washers (3) into the Left and Right

andrails (106, 107).

See assembly steps 9 and 10. Tighten the six

#8 x 3/4" Screws (1). Do not overtighten the

Screws.

Console

Assembly

107

106

102

Autres manuels pour T7.3 Treadmill

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NordicTrack tapis roulant

NordicTrack

NordicTrack Incline Trainer X3 Treadmill Manuel utilisateur

NordicTrack

NordicTrack E 3100 Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack NTTL09992 Manuel utilisateur

NordicTrack

NordicTrack T7.0 S Manuel utilisateur

NordicTrack

NordicTrack T8.0 Treadmill Guide de l'utilisateur

NordicTrack

NordicTrack C2250 Treadmill Manuel utilisateur

NordicTrack

NordicTrack NTL01308.0 Manuel utilisateur

NordicTrack

NordicTrack Viewpoint 3600 Treadmill Manuel utilisateur

NordicTrack

NordicTrack NTL19010.0 Incline Trainer X9i Manuel utilisateur

NordicTrack

NordicTrack NTL99010.2 Manuel utilisateur

NordicTrack

NordicTrack C 1800i NTL99030 Manuel utilisateur

NordicTrack

NordicTrack X7i Incline Trainer Manuel utilisateur

NordicTrack

NordicTrack NTL15008.0 Manuel utilisateur

NordicTrack

NordicTrack NTL1095.3 Manuel utilisateur

NordicTrack

NordicTrack C 1750 Pro Treadmill Manuel utilisateur

NordicTrack

NordicTrack COMMERCIAL X 22 i Manuel utilisateur

NordicTrack

NordicTrack NTL16915C.0 Manuel utilisateur

NordicTrack

NordicTrack NETL81810.0 Manuel utilisateur

NordicTrack

NordicTrack C4000 Treadmill Guide de configuration

NordicTrack

NordicTrack C 1800S Manuel utilisateur

NordicTrack

NordicTrack C2155 Treadmill Manuel utilisateur

NordicTrack

NordicTrack Powertread 1750 Manuel utilisateur

NordicTrack

NordicTrack NTL19007.0 Manuel utilisateur

NordicTrack

NordicTrack C 2500 NTL09007.0 Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

Master

Master F22 Manuel utilisateur

Precor

Precor PRECISION SERIES Manuel technique

Horizon Fitness

Horizon Fitness DT680 Manuel utilisateur

Matrix

Matrix T130 XI Manuel utilisateur
