NordicTrack E 3100 Manuel utilisateur

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual

for future reference.

Serial Number Decal

Model No. NETL90133

Serial No.

Find the serial number in the location

shown below. Write the serial number

in the space above for reference.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if there are

missing or damaged parts,

please call:

or write:

ICON Health & Fitness, Ltd.

Customer Service Department

Unit 4

Revie Road Industrial Estate

Revie Road

Beeston

Leeds, LS118JG

email: [email protected]

08457 089 009

USER'S MANUAL

Class HC Fitness Product

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE CHEST PULSE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: An EXPLODED DRAWING is attached in the centre of this manual.

NordicTrack is a registered trademark of ICON IP, Inc.

1. It is the responsibility of the owner to ensure

that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least 2.5 m (8 ft) of clearance behind it and

0.5 m (2 ft) on each side. Do not place the

treadmill on a surface that blocks any air

openings. To protect the floor or carpet from

damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dust. Do not put the treadmill in a

garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should not be used by persons

weighing more than 135 kg (300 lbs).

8. Never allow more than one person on the

treadmill at a time.

9. Wear appropriate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for

both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet,

wearing only stockings, or in sandals.

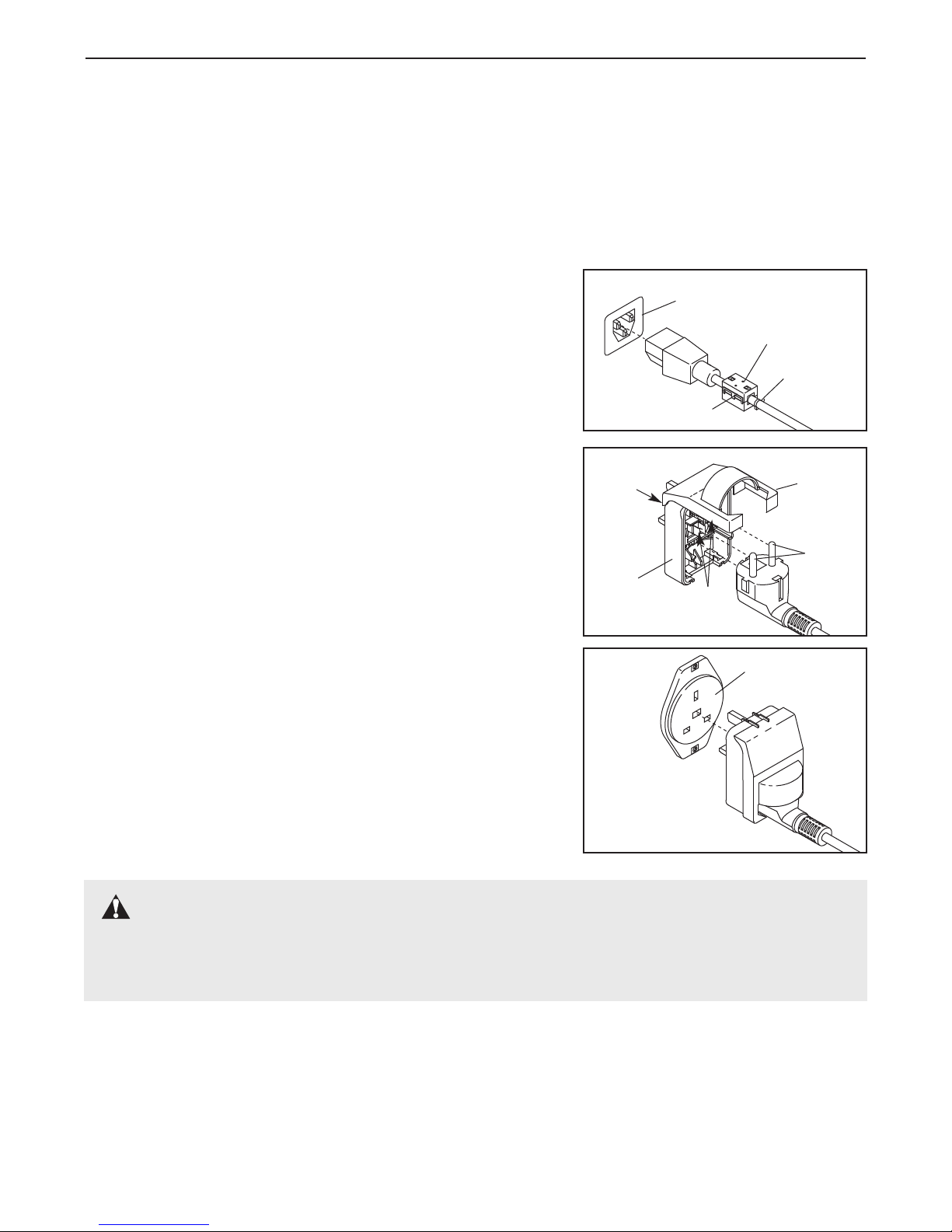

10. When connecting the power cord (see page 9),

plug the power cord into an earthed circuit. No

other appliance should be on the same circuit.

When replacing the fuse, an ASTA approved

BS1362 type should be fitted to the fuse car-

rier. A 13 amp fuse should be used.

11. If an extension cord is needed, use only a 3-

conductor, 1mm2(14-gauge) cord that is no

longer than 1.5 m (5 ft).

12. Keep the power cord away from heated sur-

faces.

13. Never move the walking belt whilst the power

is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See

BEFORE YOU BEGIN on page 5 if the tread-

mill is not working properly.)

14. Never start the treadmill whilst you are stand-

ing on the walking belt. Always hold the

handrails whilst using the treadmill.

15. The treadmill is capable of high speeds.

Adjust the speed in small increments to avoid

sudden jumps in speed.

16. The pulse sensors are not medical devices.

Various factors, including the user's move-

ment, may affect the accuracy of heart rate

readings. The pulse sensors are intended

only as exercise aids in determining heart

rate trends in general.

17. Never leave the treadmill unattended whilst it

is running. Always remove the key, unplug

the power cord and move the on/off circuit

breaker to the off position when the treadmill

is not in use. (See the drawing on page 5 for

the location of the on/off circuit breaker.)

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on page 6, and HOW TO FOLD

AND MOVE THE TREADMILL on page 26.) You

must be able to safely lift 20 kg (45 lbs) in

order to raise, lower, or move the treadmill.

19. Do not change the incline of the treadmill by

placing objects under the treadmill.

20. When folding or moving the treadmill, make

sure that the storage latch is fully closed.

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

21. When using iFIT.com CDs and videos, an

electronic “chirping” sound will alert you

when the speed and/or incline of the treadmill

is about to change. Always listen for the

“chirp” and be prepared for speed and/or in-

cline changes. In some instances, the speed

and/or incline may change before the per-

sonal trainer describes the change.

22. When using iFIT.com CDs and videos, you

can manually override the speed and incline

settings at any time by pressing the speed

and incline buttons. However, when the next

“chirp” is heard, the speed and/or incline will

change to the next settings of the CD or video

program.

23. Always remove iFIT.com CDs and videos from

your CD player or VCR when you are not

using them.

24. Inspect and properly tighten all parts of the

treadmill regularly.

25. Never insert or drop any object into any

opening.

26. DANGER: Always unplug the power

cord immediately after use, before cleaning

the treadmill, and before performing the main-

tenance and adjustment procedures de-

scribed in this manual. Never remove the

motor hood unless instructed to do so by an

authorised service representative. Servicing

other than the procedures in this manual

should be performed by an authorised service

representative only.

27. This treadmill is intended for in-home use

only. Do not use this treadmill in any commer-

cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

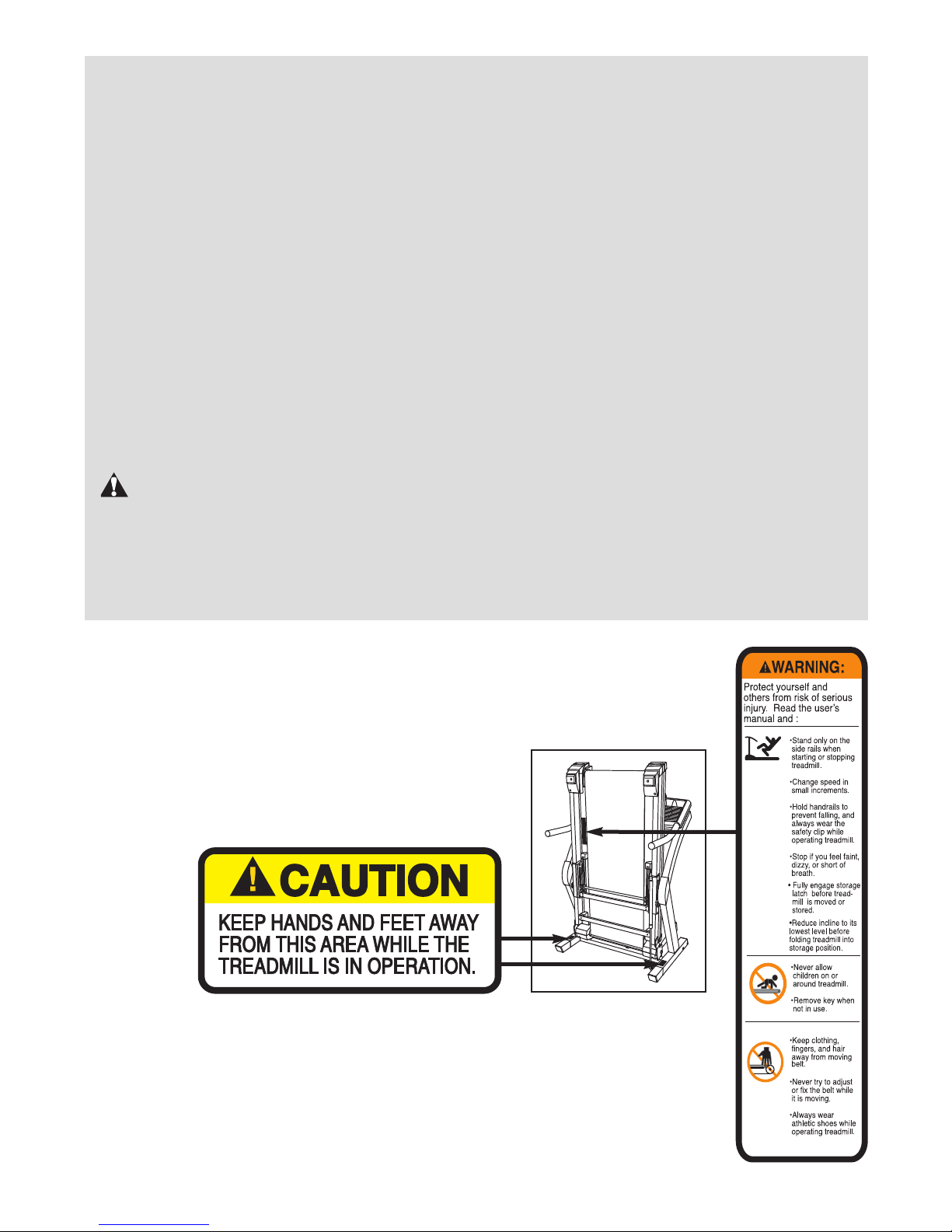

The decals shown have been placed on your treadmill. If a decal is missing, or if it

is not legible, please call our Customer Service Department to order a free replace-

ment decal (see the back cover of this manual). Apply the decal in the location

shown.

Note: The decal shown at

the right is 50% of actual

size.

Thank you for selecting the revolutionary NordicTrack®

E 3100 treadmill. The E 3100 treadmill offers an im-

pressive array of features to make your home work-

outs more enjoyable and effective. And when you’re

not exercising, the unique E 3100 treadmill can be

folded up, requiring less than half the floor space of

other treadmills.

For your benefit, read this manual carefully before

using the treadmill. If you have additional questions,

please call our Customer Service Department at 08457

089 009. To help us assist you, please note the prod-

uct model number and serial number before calling.

The model number of the treadmill is NETL90133. The

serial number can be found on a decal attached to the

treadmill (see the front cover of this manual for the lo-

cation).

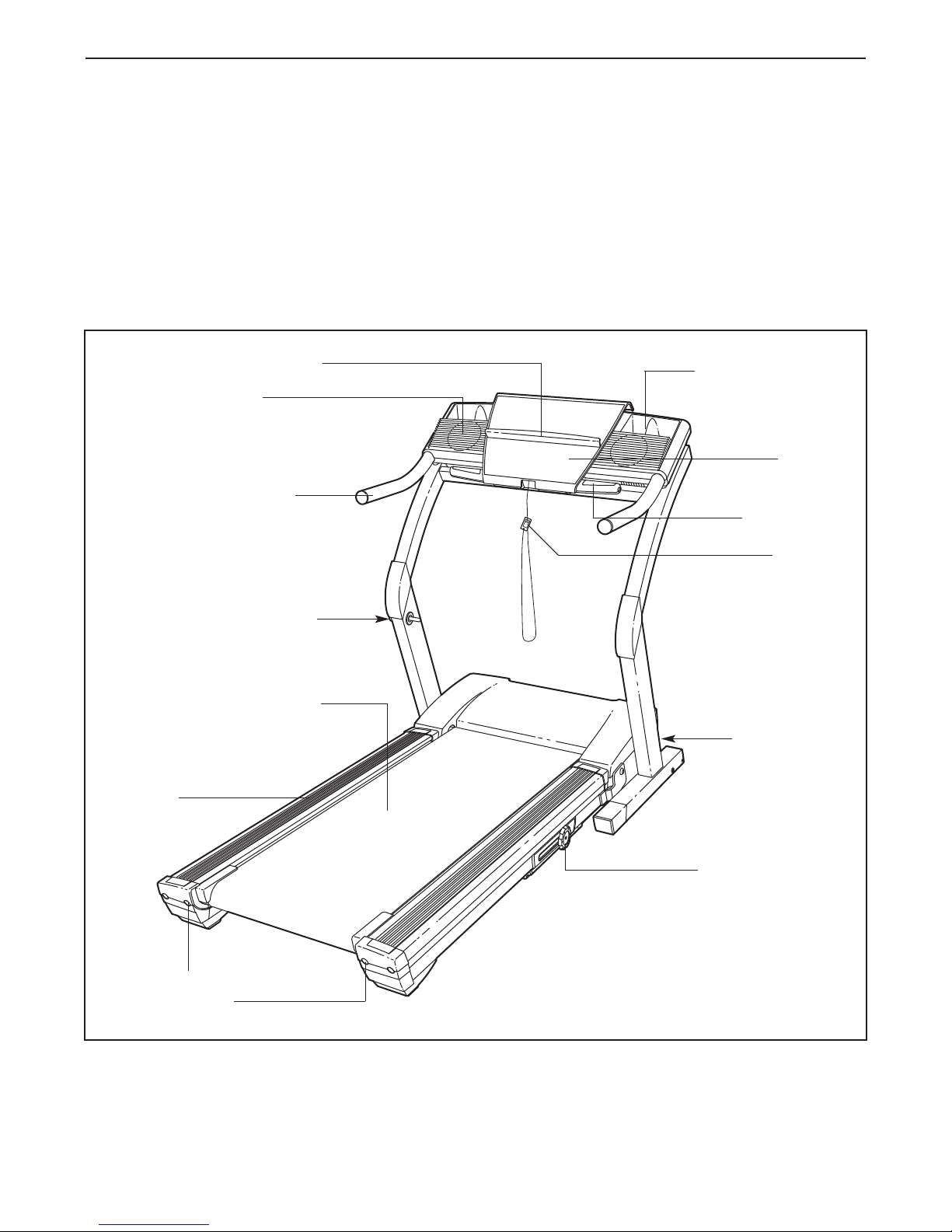

Before reading further, please familiarise yourself with

the parts that are labelled in the drawing below.

BEFORE YOU BEGIN

Handrail

Console

Fan

Latch Knob

Book Holder

Key/Clip

On/Off

Circuit Breaker

Walking Belt

Foot Rail

Adjustable Cushion

Rear Roller

Adjustment Bolts

Water Bottle Holder*

Pulse Sensor

RIGHT SIDE

LEFT SIDE

*No water bottle is included.

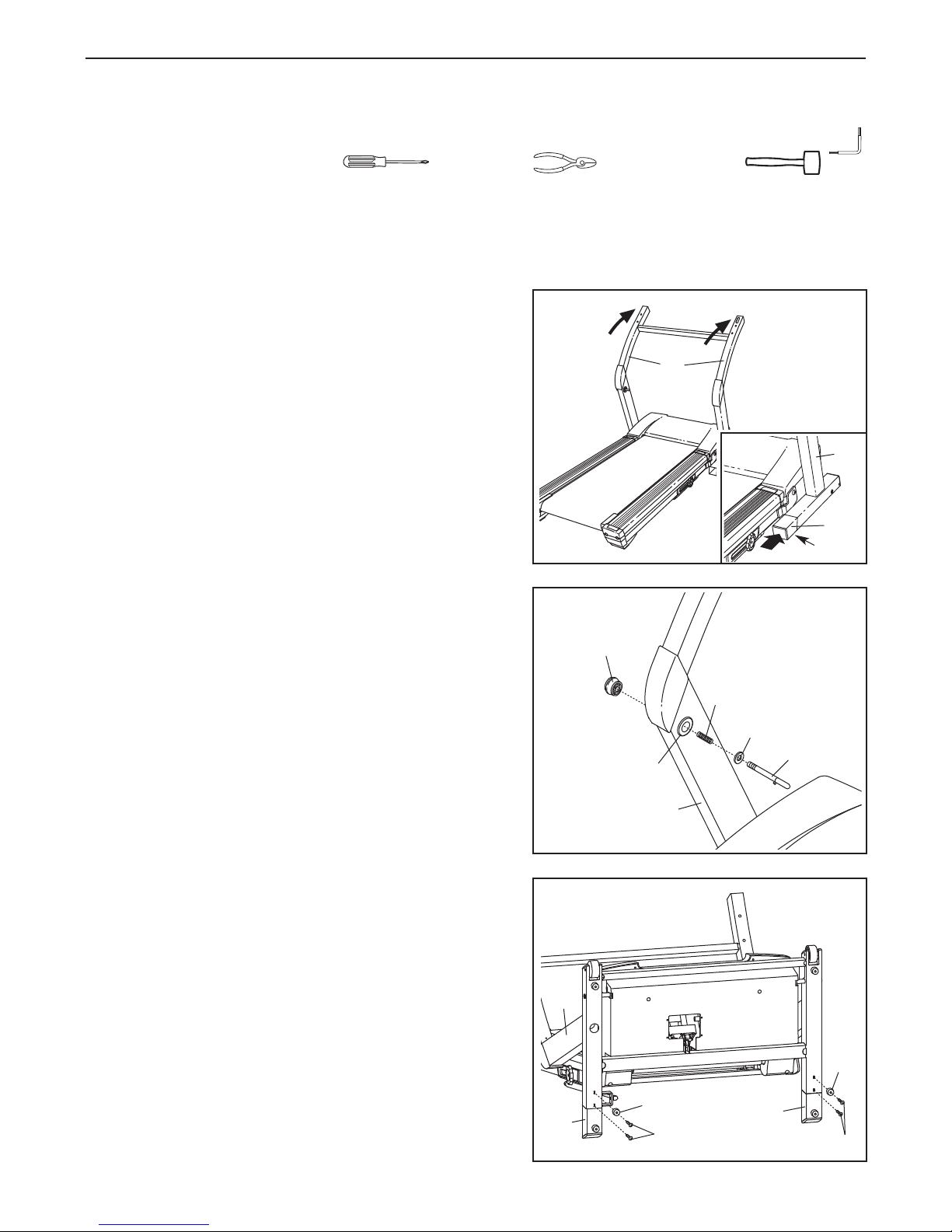

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench

and your own phillips screwdriver , wire cutters , and rubber mallet .

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the treadmill or the shipping carton. This is a normal

condition and does not affect treadmill performance. If there is lubricant on top of the walking belt or foot pads,

simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

1. With the help of a second person, carefully raise the

Uprights (69) until the treadmill is in the position shown.

Refer to the inset drawing. Insert one of the Extension

Legs (102) into the treadmill as shown. Make sure that

the Extension Leg is turned so the Base Pad (99) is on

the bottom. Note: It may be helpful to tip the Uprights (69)

forward and tap on the Extension Leg with a rubber mal-

let as you insert the Extension Leg.

Insert the other Extension Leg (not shown) in the same

way.

3. With the help of a second person, carefully tip the

Uprights (69) down as shown. Make sure that the

Extension Legs (102) remain in the Uprights.

Attach each Extension Leg (102) with two 1” Screws

(148) and a Base Pad (99) as shown. Note: Attach the

lower Screw (without the Base Pad) first.

With the help of a second person, carefully tip the

Uprights (69) back to the vertical position.

Note: One replacement Base Pad (99) may be included.

Use the Base Pad to replace any Base Pad that becomes

worn.

102

148

102

148

102

2. Press the Latch Knob Sleeve (70) into the left Upright

(69).

Remove the Latch Knob (68) from the Latch Pin (74).

Make sure that the Latch Pin Collar (72) and the Spring

(71) are on the Latch Pin.

Insert the Latch Pin (74) into the Latch Knob Sleeve (70)

and the left Upright (69).

Tighten the Latch Knob (68) back onto the Latch Pin (74).

5. Insert two Handrail Bolts (78) with Handrail Washers (77)

into the right Upright (69) and the right Handrail (66). Be

careful not to pinch the wires. Next, lift the right

Handrail slightly and align the Handrail Bolts with the

holes in the Handrail. Thread the Handrail Bolts into the

Handrail; do not tighten the Bolts yet.

Attach the left Handrail (not shown) in the same way.

Tighten all four Handrail Bolts (78).

4. Cut the plastic tie holding the Upright Wire Harness (98)

in the right Upright (69).

Have a second person hold the Handrails (66) near the

Uprights (69) as shown. Connect the Upright Wire

Harness (98) to the wires extending from the Console

Base (81). The connectors should slide together eas-

ily and snap into place. If they do not, turn one con-

nector and try again. Insert the connectors and the

Upright Wire Harness into the hole in the right Upright.

Set the Handrails (66) on the Uprights (69); be careful

not to pinch the Upright Wire Harness (98).

6. Make sure that all parts are properly tightened before you use the treadmill. Place a mat beneath the

treadmill to protect the floor. For your benefit, familiarise yourself with the information on pages 28–30.

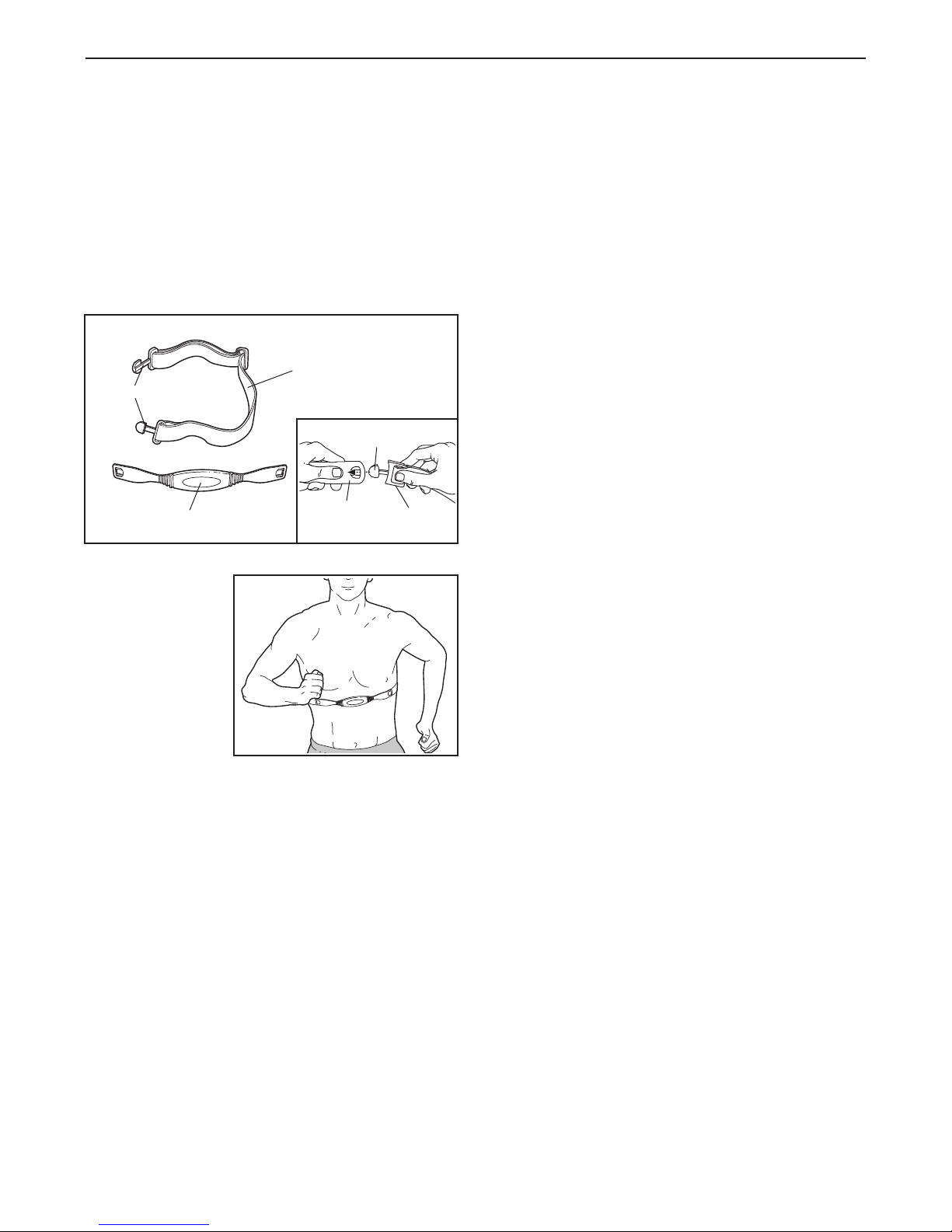

HOW TO PUT ON THE CHEST PULSE SENSOR

The chest pulse sensor consists of two components:

the chest strap and the sensor unit (see the drawing

below). Insert the tab on one end of the chest strap into

one end of the sensor unit, as shown in the inset draw-

ing. Press the end of the sensor unit under the buckle

on the chest strap. The tab should be flush with the

front of the sensor unit.

Next, wrap the

chest pulse sen-

sor around your

chest, and attach

the other end of

the chest strap to

the sensor unit.

Adjust the length

of the chest strap,

if necessary. The

chest pulse sen-

sor should be under your clothes, tight against your

skin, and as high under the pectoral muscles or

breasts as is comfortable. Make sure that the logo on

the sensor unit is facing forward and is right-side-up.

Pull the sensor unit away from your body a few inches

and locate the two electrode areas on the inner side

(the electrode areas are covered by shallow ridges).

Using saline solution such as saliva or contact lens so-

lution, wet both electrode areas. Return the sensor unit

to a position against your chest.

CHEST PULSE SENSOR CARE AND MAINTENANCE

• Thoroughly dry the chest pulse sensor after each

use. The chest pulse sensor is activated when the

electrode areas are wetted and the heart rate

monitor is put on; the chest pulse sensor shuts off

when it is removed and the electrode areas are

dried. If the chest pulse sensor is not dried after

each use, it may remain activated longer than nec-

essary, draining the battery prematurely.

• Store the chest pulse sensor in a warm, dry place.

Do not store the chest pulse sensor in a plastic bag

or other container that may trap moisture.

• Do not expose the chest pulse sensor to direct

sunlight for extended periods of time; do not expose

it to temperatures above 50° C (122° F) or below

-10° C (14° F).

• Do not excessively bend or stretch the sensor unit

when using or storing the chest pulse sensor.

• Clean the sensor unit using a damp cloth—never

use alcohol, abrasives, or chemicals. The chest

strap may be hand washed and air dried.

CHEST PULSE SENSOR TROUBLESHOOTING

The instructions on the following pages explain

how the chest pulse sensor is used with the con-

sole. If the chest pulse sensor does not function

properly, try the steps below.

• Make sure that you are wearing the chest pulse sen-

sor as described at the left. Note: If the chest pulse

sensor does not function when positioned as de-

scribed, move it slightly lower or higher on your chest.

• Use saline solution such as saliva or contact lens

solution to wet the two electrode areas on the

sensor unit. If heart rate readings do not appear until

you begin perspiring, re-wet the electrode areas.

• As you walk or run on the treadmill, position your-

self near the centre of the walking belt. For the

console to display heart rate readings, the user

must be within arm’s length of the console.

•The chest pulse sensor is designed to work with

people who have normal heart rhythms. Heart rate

reading problems may be caused by medical

conditions such as premature ventricular contrac-

tions (pvcs), tachycardia bursts, and arrhythmia.

•The operation of the chest pulse sensor can be

affected by magnetic interference caused by high

power lines or other sources. If it is suspected that

this is a problem, try relocating the treadmill.

• The CR2032 battery may need to be replaced (see

page 30).

Chest Strap

Tabs

Sensor Unit

Tab

Sensor

Unit Buckle

HOW TO USE THE CHEST PULSE SENSOR

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETM WALKING BELT

Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant. IMPOR-

TANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such

substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

This product must be earthed. If it should malfunction or break

down, earthing provides a path of least resistance for electric cur-

rent to reduce the risk of electric shock. This product is equipped

with a power cord having an equipment-earthing conductor and an

earthing plug. Important: If the power cord is damaged, it must

be replaced with a manufacturer-recommended power cord.

See drawing 1. Plug the indicated end of the power cord into the

socket on the treadmill. If a ferrite box is included, lift the tab on

the ferrite box and clamp the ferrite box around the power cord.

Fasten the included plastic tie just behind the ferrite box and cut off

the excess plastic tie. The plastic tie will prevent the ferrite box from

sliding along the power cord.

See drawing 2. Press the pins on the power cord into the metal clips

in the adapter as shown. Close the adapter cover over the end of the

power cord and tighten the screw in the adapter. Important: Make

sure that the adapter cover is secure and the screw has been

tightened before using the power cord.

See drawing 3. Plug the power cord into an appropriate outlet that is

properly installed and earthed in accordance with all local codes and

ordinances. Important: The treadmill is not compatible with

GFCI-equipped outlets.

DANGER: Improper connection of the equipment-earthing conductor can result in an in-

creased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as

to whether the product is properly earthed. Do not modify the plug provided with the product—if it will

not fit the outlet, have a proper outlet installed by a qualified electrician.

Socket on Treadmill

Metal

Clips

Ferrite Box

Tab

Plastic Tie

Pins

Screw

Adapter

Outlet

Adapter

Cover

FEATURES OF THE CONSOLE

The advanced console offers a selection of features

designed to help you get the most from your exercise.

When the manual mode of the console is selected, the

speed and incline of the treadmill can be changed with

the touch of a button. As you exercise, the console will

display continuous exercise feedback. You can even

measure your heart rate using the handgrip pulse sen-

sor or the chest pulse sensor.

Eleven preset workout programs are also offered. Each

program automatically controls the speed and incline

of the treadmill to give you an effective workout.

In addition, the console offers two heart rate programs

that automatically adjust the speed and incline of the

treadmill to keep your heart rate near a target level

whilst you exercise.

You can even create custom workout programs and

store them in memory for future use.

The console also features iFIT.com interactive technol-

ogy. Having iFIT.com interactive technology is like

having a personal trainer in your home. Using the in-

cluded stereo audio cable, you can connect the tread-

mill to your home stereo, portable stereo, computer, or

VCR and play special iFIT.com CD and video pro-

grams (iFIT.com CDs and videocassettes are available

separately). iFIT.com CD and video programs auto-

matically control the treadmill as a personal trainer

coaches you through every step of your workout. High-

energy music provides added motivation. To pur-

chase iFIT.com CDs and videocassettes, visit our

Web site at www.iFIT.com.

With the treadmill connected to your computer, you can

also go to our Web site at www.iFIT.com and access

programs directly from the internet. Explore

www.iFIT.com for more information.

Pulse

Sensor

Pulse

Sensor

Clip

Key

Program

Display

Main

Display

Note: If there is a thin sheet

of clear plastic on the face

of the console, remove it.

Autres manuels pour E 3100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NordicTrack tapis roulant

NordicTrack

NordicTrack T20.0 Treadmill Guide de démarrage rapide

NordicTrack

NordicTrack T8.0 Treadmill Manuel utilisateur

NordicTrack

NordicTrack NTL07908.2 Manuel utilisateur

NordicTrack

NordicTrack NTTL11511 Manuel utilisateur

NordicTrack

NordicTrack T 20.5 Treadmill Guide de démarrage rapide

NordicTrack

NordicTrack C2155 NTL07707.1 Manuel utilisateur

NordicTrack

NordicTrack Incline Trainer X 5 Treadmill Manuel utilisateur

NordicTrack

NordicTrack E 3200 Manuel du système

NordicTrack

NordicTrack EXP 1000i NTTL09901 Manuel utilisateur

NordicTrack

NordicTrack NTTL11991 Manuel utilisateur

NordicTrack

NordicTrack E3000 Manuel utilisateur

NordicTrack

NordicTrack EXP10i Manuel utilisateur

NordicTrack

NordicTrack ViewPoint 2800 30602.0 Manuel utilisateur

NordicTrack

NordicTrack T 9.2 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack T9ci Treadmill Manuel utilisateur

NordicTrack

NordicTrack Ex 3300 Treadmill Guide de démarrage rapide

NordicTrack

NordicTrack 831.29882 Manuel utilisateur

NordicTrack

NordicTrack C2155 Treadmill Manuel utilisateur

NordicTrack

NordicTrack T15.0 Treadmill Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack Incline Trainer 9800 Manuel utilisateur

NordicTrack

NordicTrack E 3800 Manuel utilisateur

NordicTrack

NordicTrack NTL61011.0 Manuel utilisateur

NordicTrack

NordicTrack 1900i NATL82205.0 Manuel utilisateur

NordicTrack

NordicTrack NTL09007.1 Manuel utilisateur

Manuels tapis roulant populaires d'autres marques

Treadly

Treadly TREADLY 2 Manuel utilisateur

HEALTH ONE

HEALTH ONE Walk Ro Manuel utilisateur

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Manuel utilisateur

Merax

Merax MS282992 Manuel utilisateur

FYTTER

FYTTER RU-2SX Manuel utilisateur

Precor

Precor 903 Manuel utilisateur

FitLogic

FitLogic freewill d225 Manuel utilisateur

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Manuel utilisateur

Horizon Fitness

Horizon Fitness Adventure 5 Plus Manuel utilisateur

Stamia

Stamia InMotion II Manuel utilisateur

Smooth Fitness

Smooth Fitness EVO 3i Manuel utilisateur

Schwinn

Schwinn 830/Journey 8.0 Manuel utilisateur

Keys Fitness

Keys Fitness HealthTrainer HT-740T Manuel utilisateur

Spirit

Spirit XT8 Manuel utilisateur

Master

Master F22 Manuel utilisateur

Precor

Precor PRECISION SERIES Manuel technique

Horizon Fitness

Horizon Fitness DT680 Manuel utilisateur

Matrix

Matrix T130 XI Manuel utilisateur
